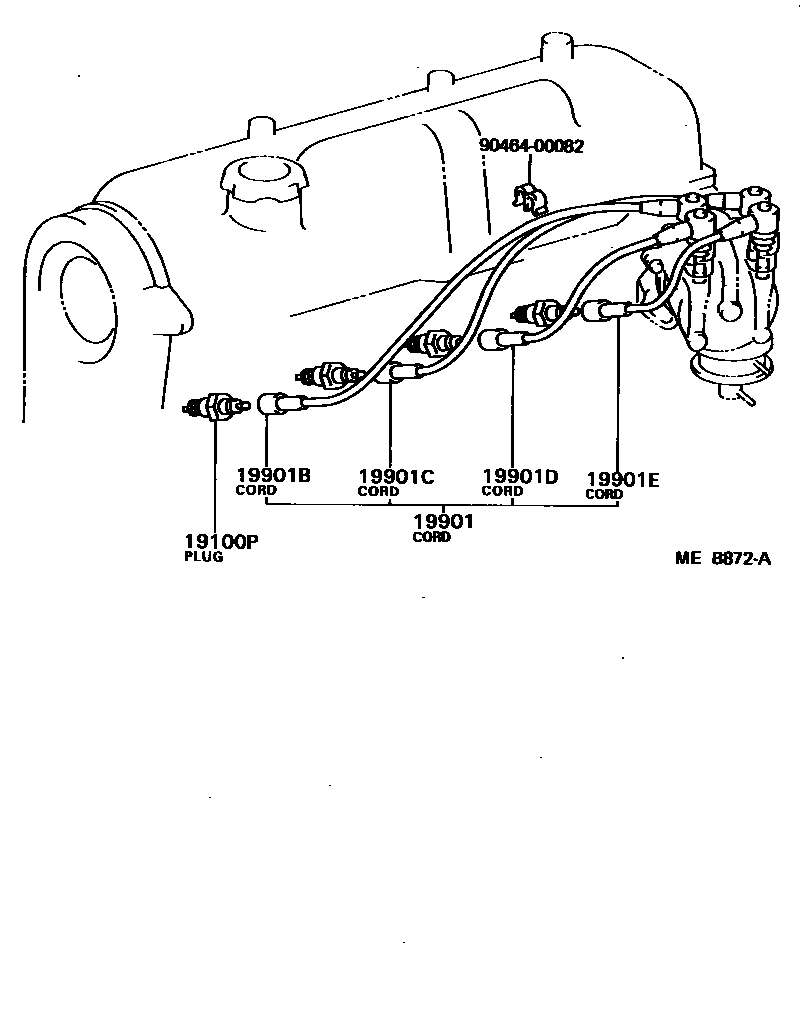

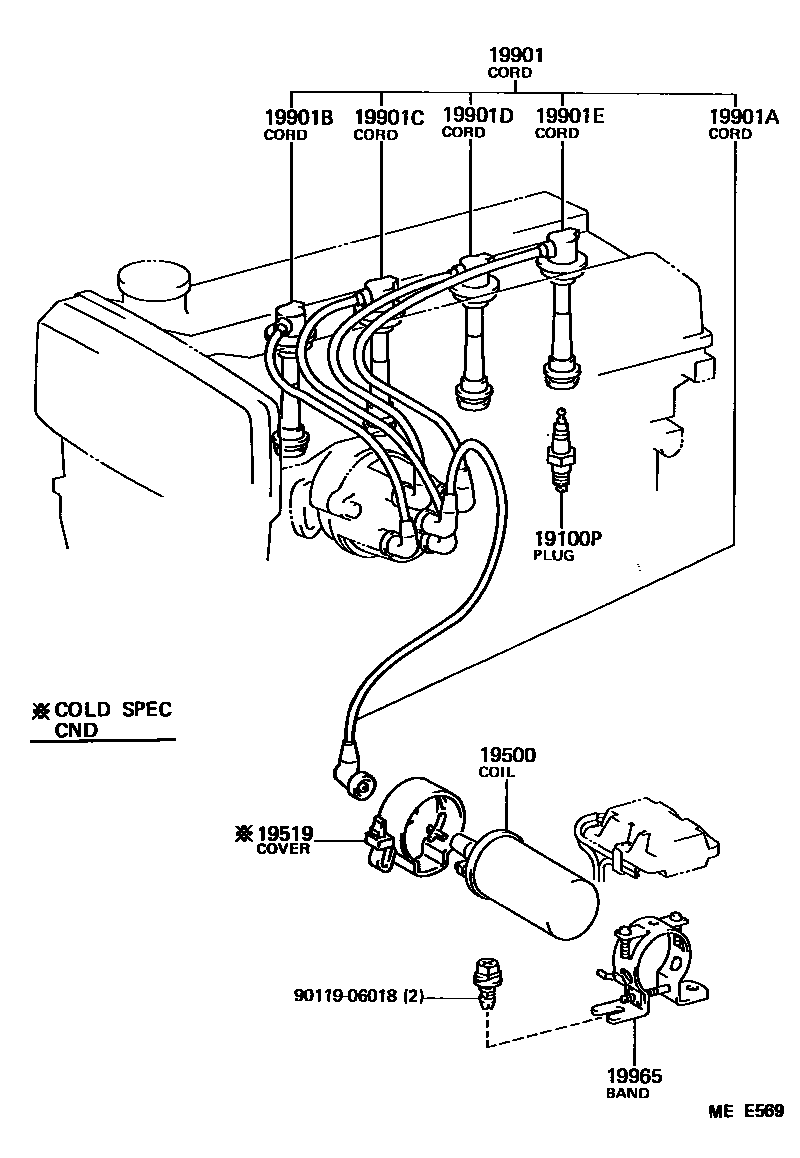

Toyota COROLLA 点火线圈和火花塞 — Figure 1901
Toyota COROLLA EPC diagram 1901, 点火线圈和火花塞, with 2 images and 10 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 19100P | spark plug | 90919-01064 · 90919-01091 · 90919-01121 |
| 19500 | Ignition coil assembly | 90919-02113 |
| 19519 | Ignition coil cover | 19519-28020 |
| 19901 | Coil and spark plug assembly with damper wire | 90919-21362 · 90919-22133 · 90919-22147 |
| 19901A | coil damping line | 90919-13237 |
| 19901B | No. 1 spark plug damper wire | 90919-12473 · 90919-12514 · 90919-12592 |
| 19901C | No. 2 spark plug damper wire | 90919-12474 · 90919-12515 · 90919-12593 |
| 19901D | No. 3 spark plug damper wire | 90919-12475 · 90919-12594 |
| 19901E | No. 4 spark plug damper wire | 90919-12476 · 90919-12595 |
| 19965 | No. 1 ignition coil band | 90919-03093 |
