Toyota COROLLA vacuum tube — Figure 1708

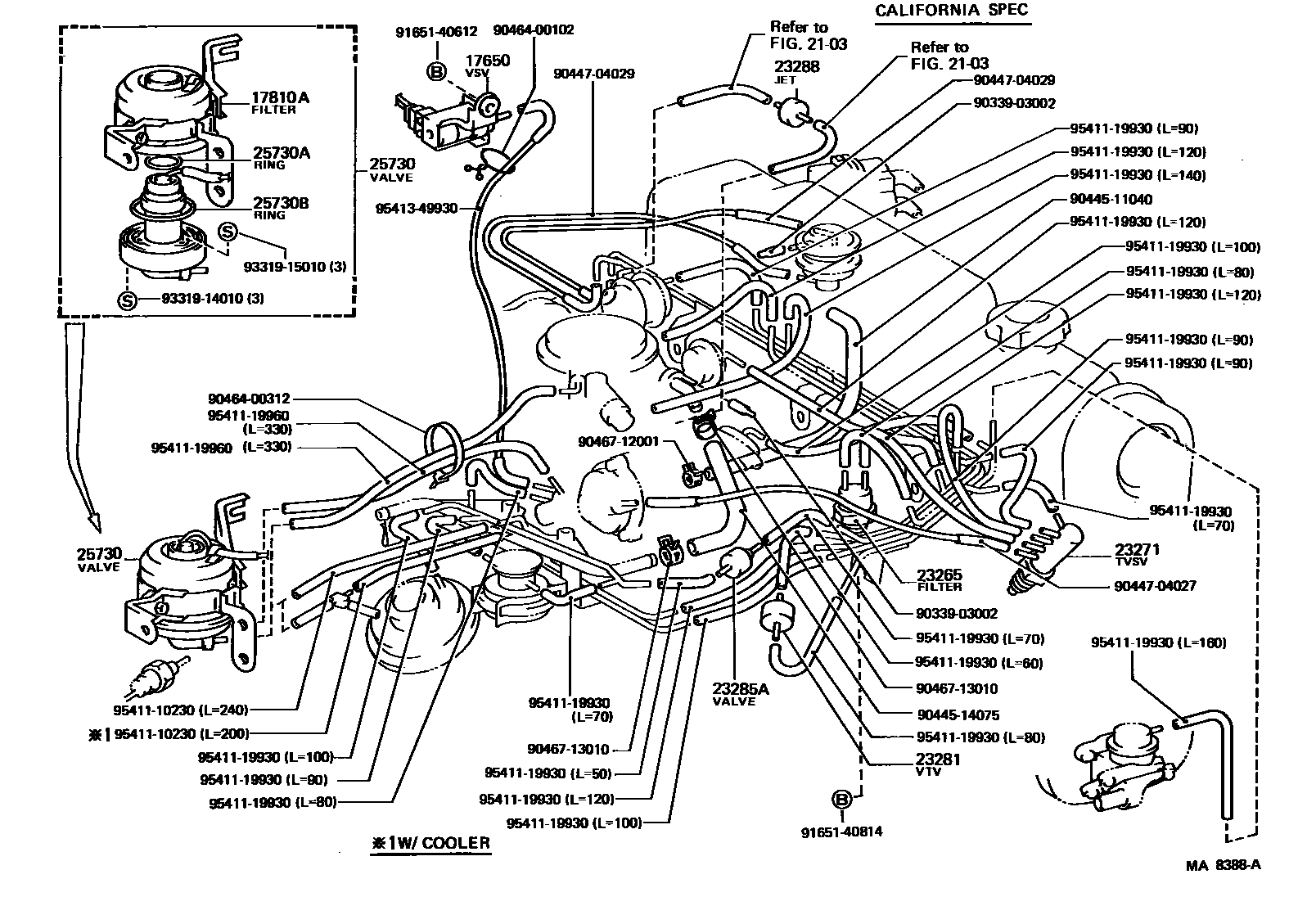

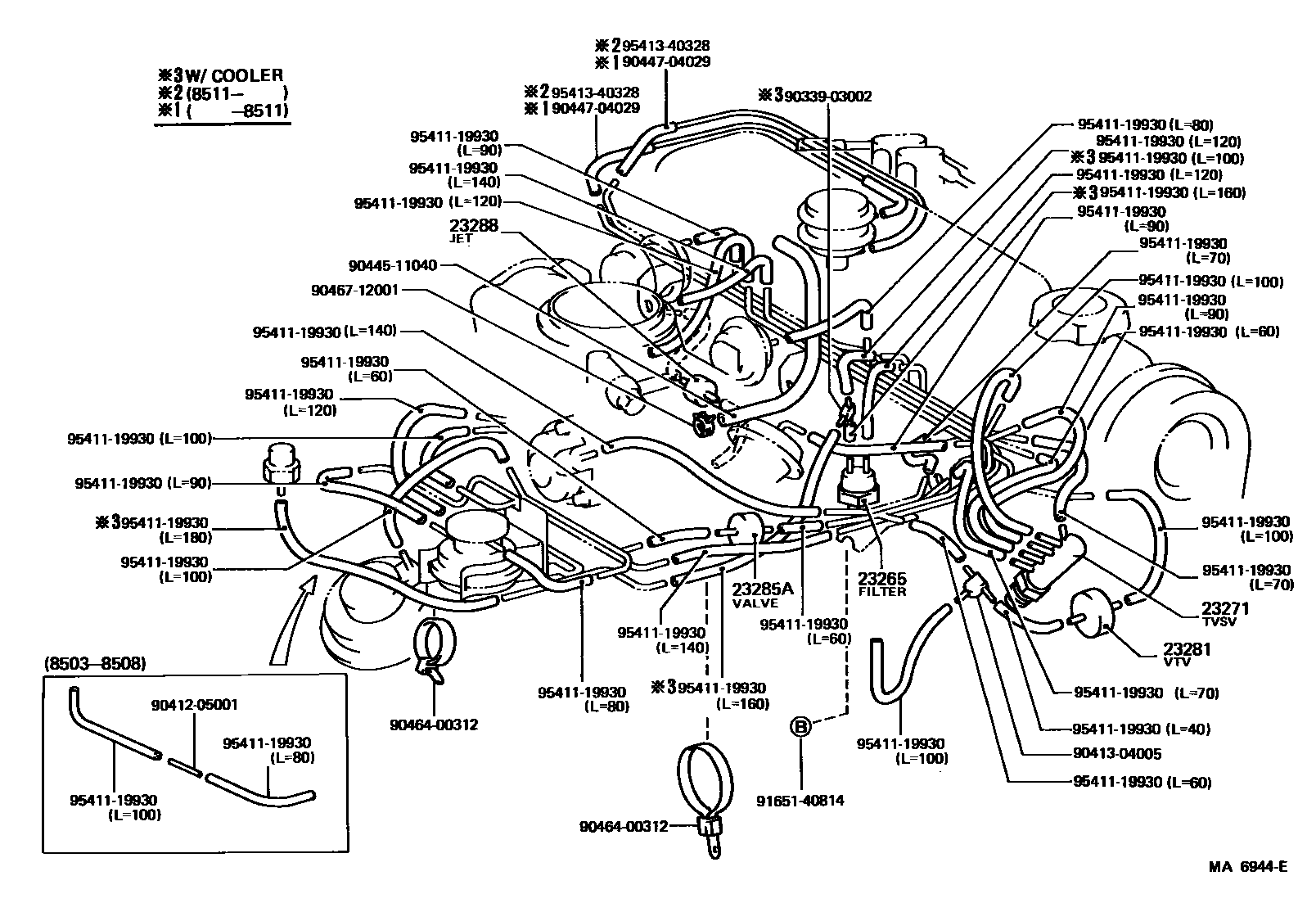

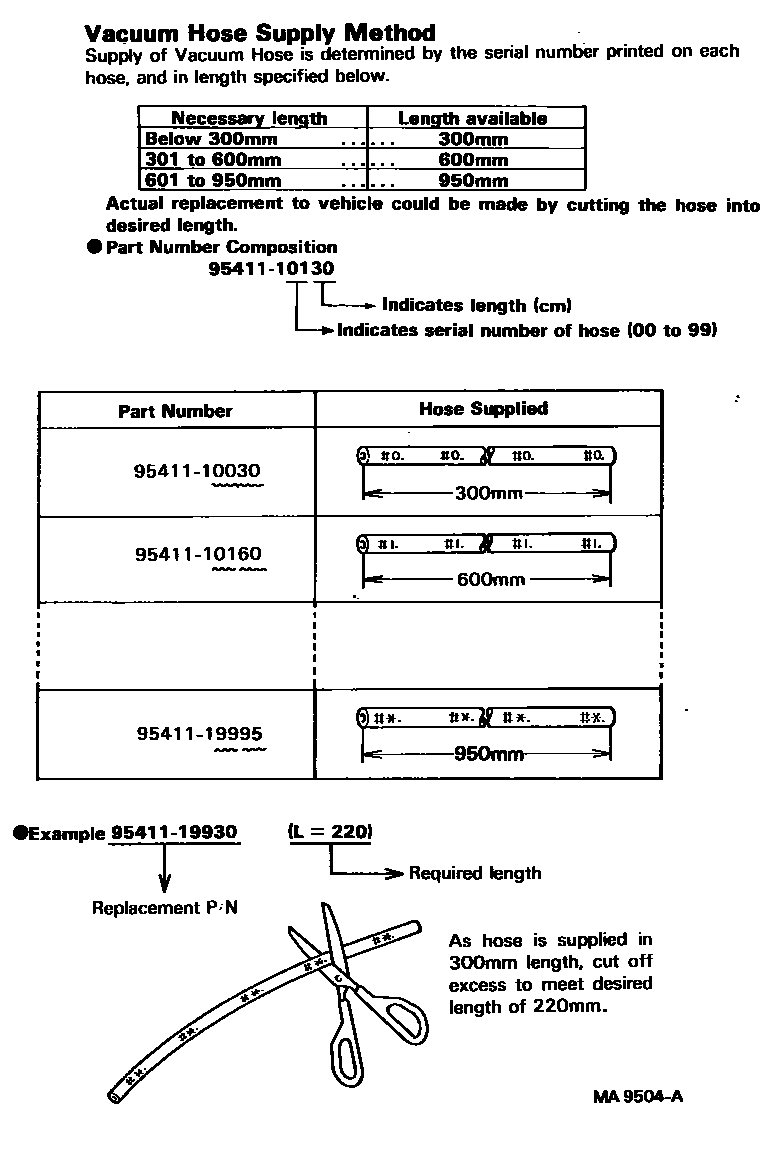

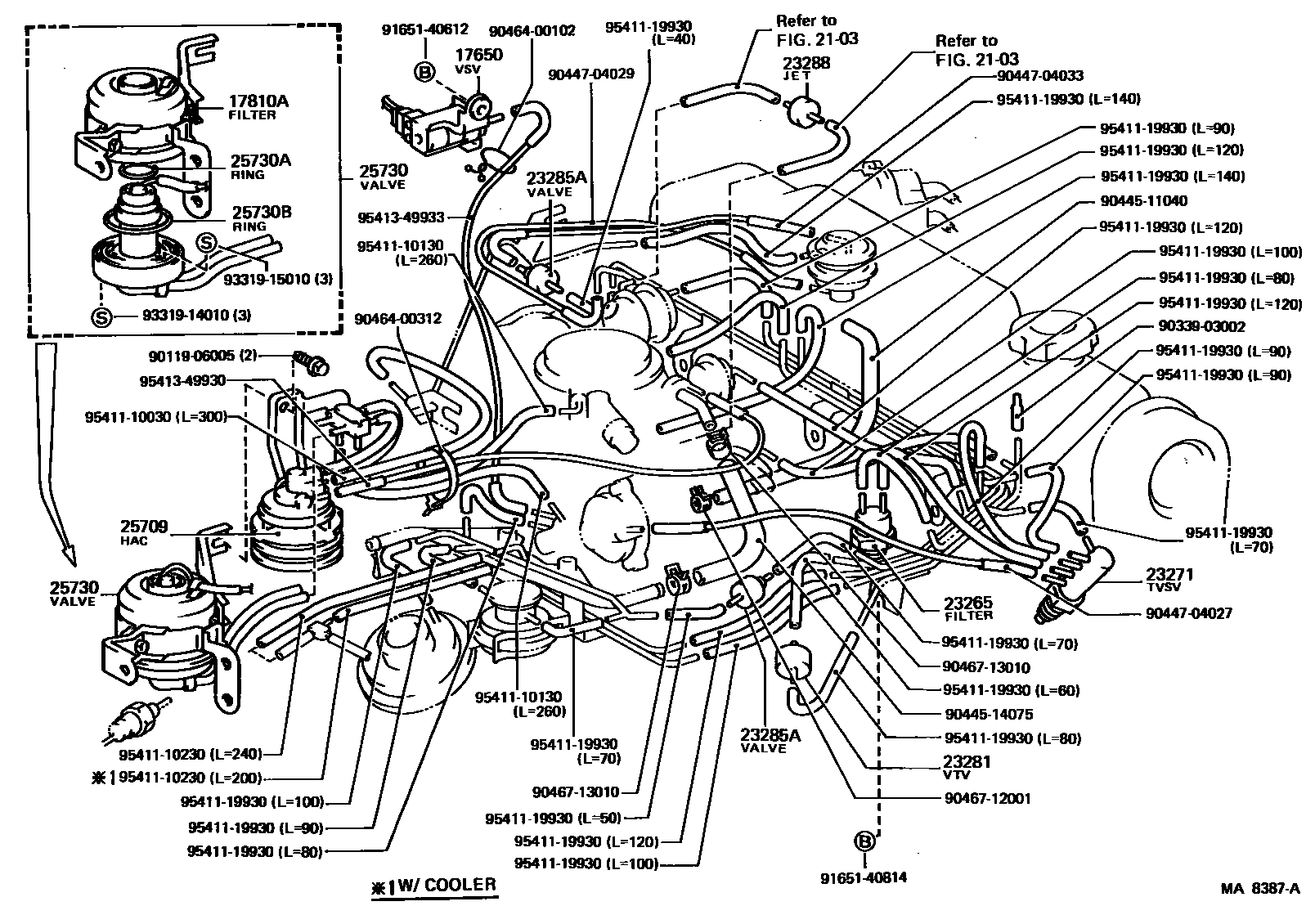

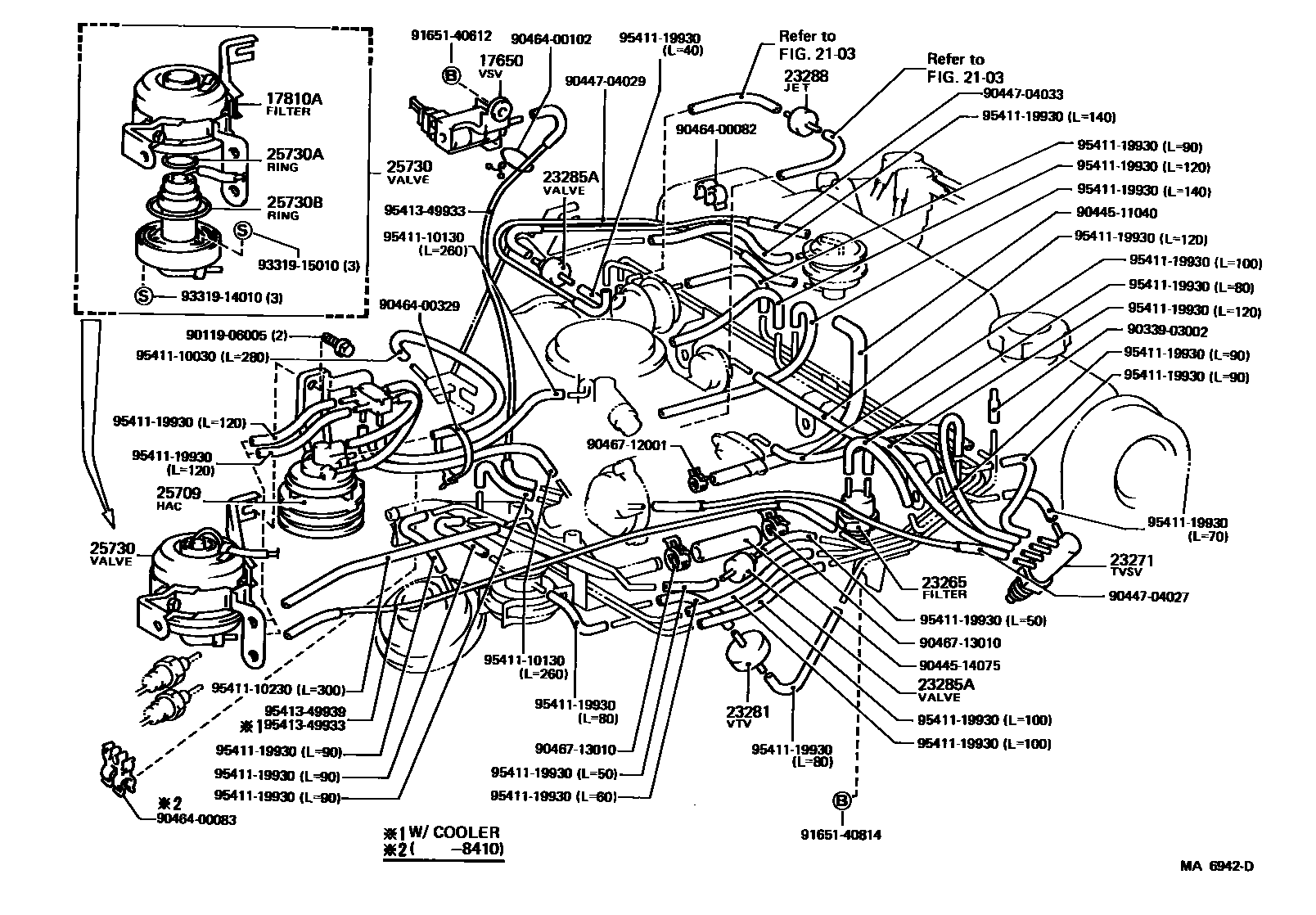

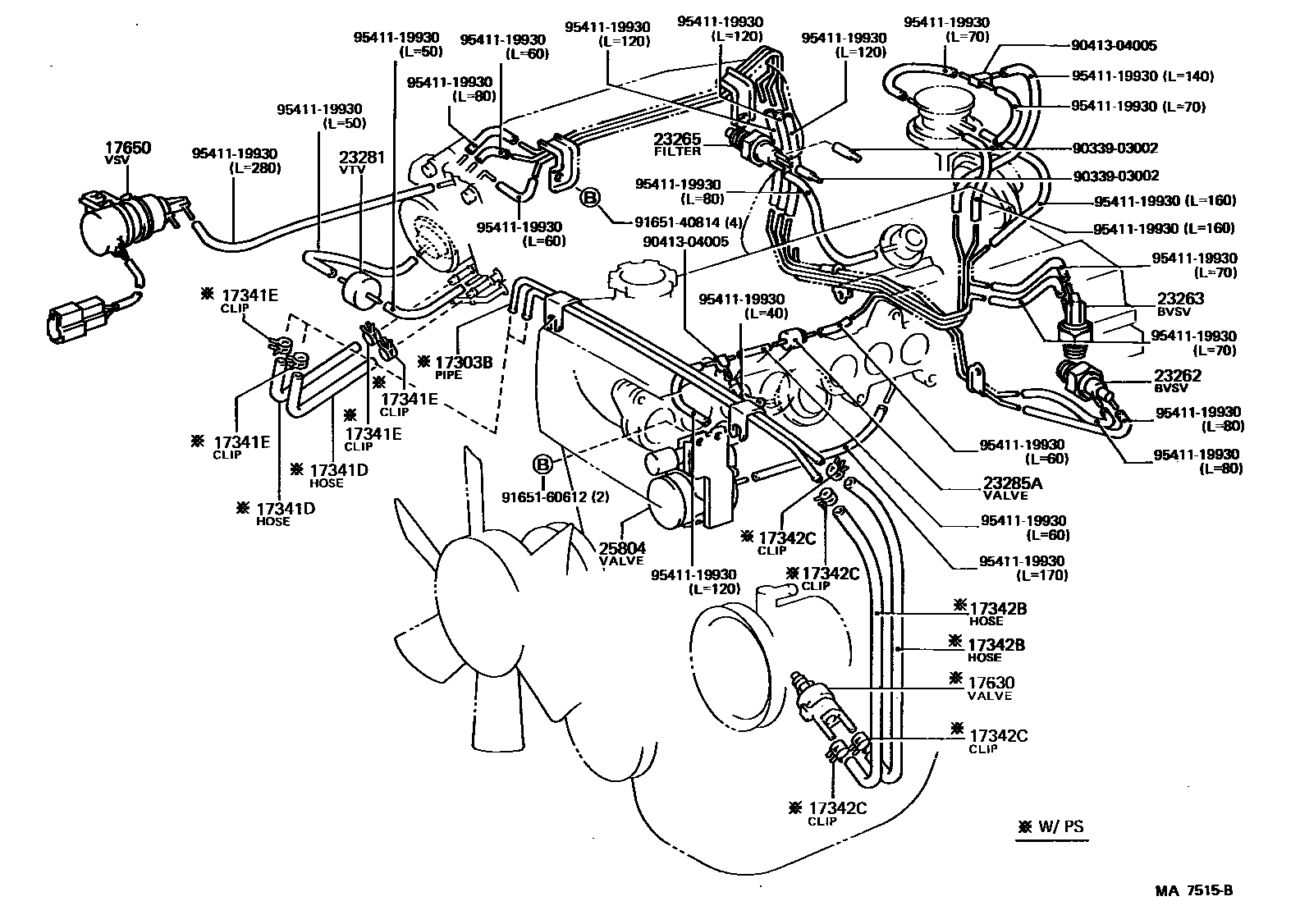

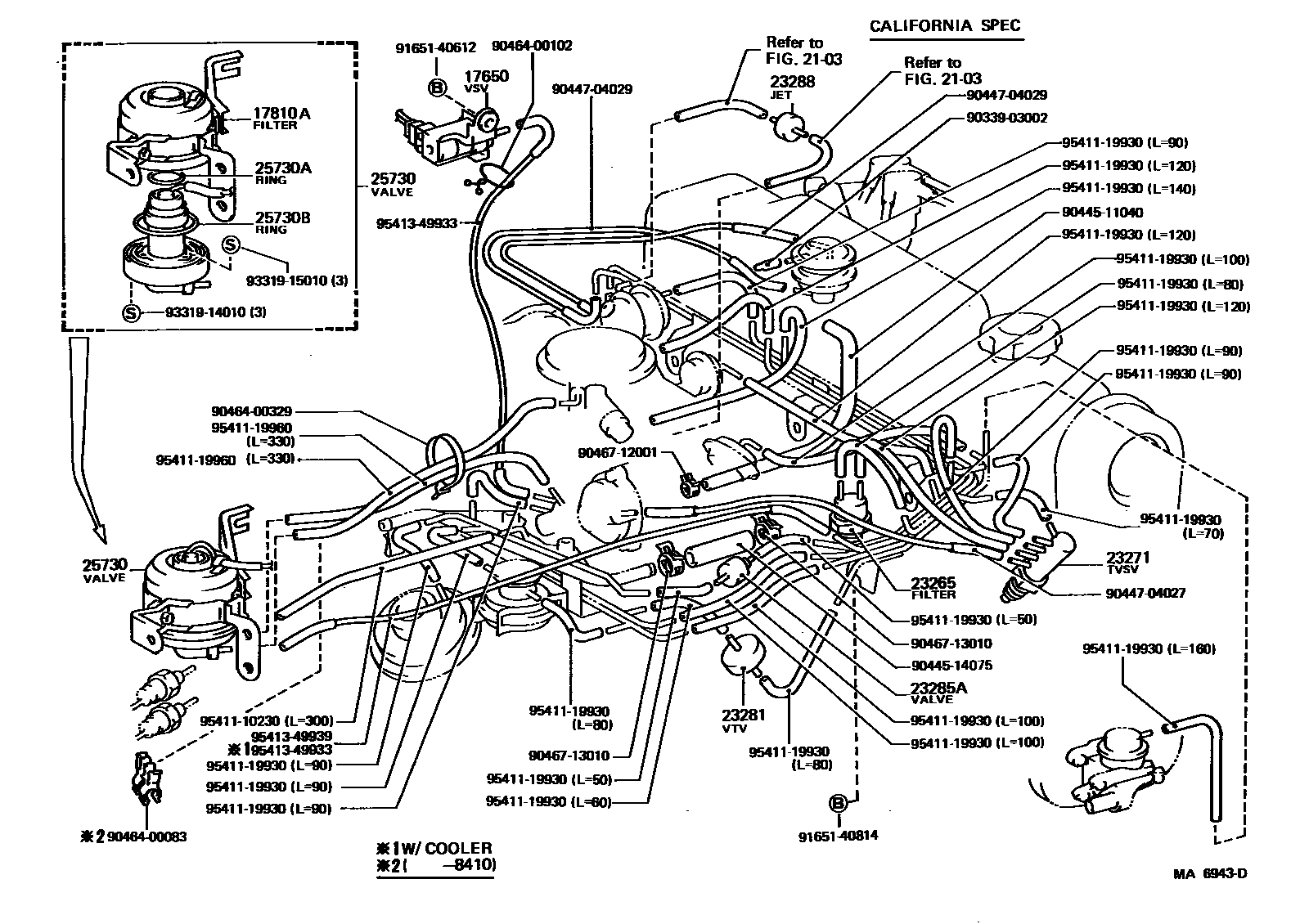

Toyota COROLLA EPC diagram 1708, vacuum tube, with 7 images and 20 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 17303B | No. 1 air pipe sub-assembly | 17303-16020 |
| 17341D | No. 1 hose (for idle boost) | 17341-16030 |
| 17341E | Clamp No. 1 (for idle lift hose) | 96132-30400 |
| 17342B | No. 2 hose (for idle boost) | 17342-16040 |
| 17342C | Clamp No. 2 (for idle lift hose) | 96132-30400 |
| 17630 | Air control valve assembly | 17630-70010 |
| 17650 | Vacuum switch valve assembly | 89570-12210 · 89570-12290 · 89570-12300 · 89570-12301 · 89570-12350 |
| 17810A | air filter assembly | 17810-15020 |
| 23262 | No. 1 bimetallic vacuum switch valve | 90925-05068 |
| 23263 | No. 2 bimetallic vacuum switch valve | 90925-05047 |
| 23265 | No. 1 gas filter | 90917-11023 · 90917-11027 |
| 23271 | No. 1 thermostatic vacuum switching valve | 90925-02076 |
| 23281 | Vacuum Transfer Valve No. 1 | 90925-01014 |
| 23285A | No. 1 one-way valve | 90917-10049 |
| 23288 | Nozzle No. 1 | 90925-04003 · 90925-04006 |
| 25709 | High altitude compensator valve sub-assembly | 25708-16030 · 25708-16050 |
| 25730 | Electronic exhaust control valve assembly | 25730-16020 · 25730-16030 |
| 25730A | No. 1 O-ring (for electronic exhaust control valve) | 90096-80002 |
| 25730B | No. 2 O-ring (for electronic exhaust control valve) | 90096-80003 · 90099-06032 |
| 25804 | Vacuum control valve assembly | 25804-16010 |
