Toyota COROLLA 歧管喷气系统 — Figure 1706

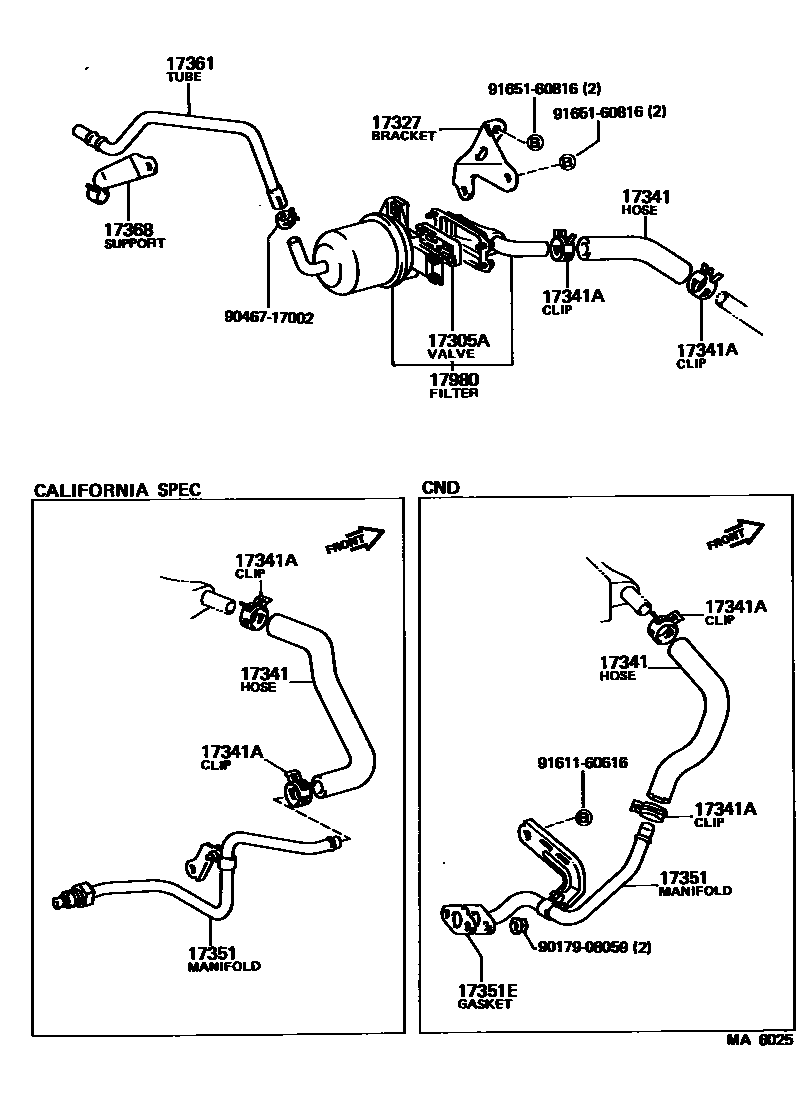

Toyota COROLLA EPC diagram 1706, 歧管喷气系统, with 1 images and 9 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 17305A | Reed valve sub-assembly | 17305-15010 |
| 17327 | Reed valve bracket | 17327-16011 |
| 17341 | Hoses No. 1 (for air injection systems) | 17341-15050 · 17341-15100 · 17341-16011 |
| 17341A | No. 1 clip or clip (for No. 1 air injection system hose) | 90467-23003 · 90467-28003 |
| 17351 | jet manifold | 17306-15030 · 17306-15040 |
| 17351E | Gasket (for jet manifold) | 89466-30010 |
| 17361 | air tube | 17361-16010 |
| 17368 | Air tube support | 17368-16010 |
| 17980 | Secondary air suction filter assembly | 17980-16011 |
