Toyota COROLLA Exhaust Pipe — Figure 1702

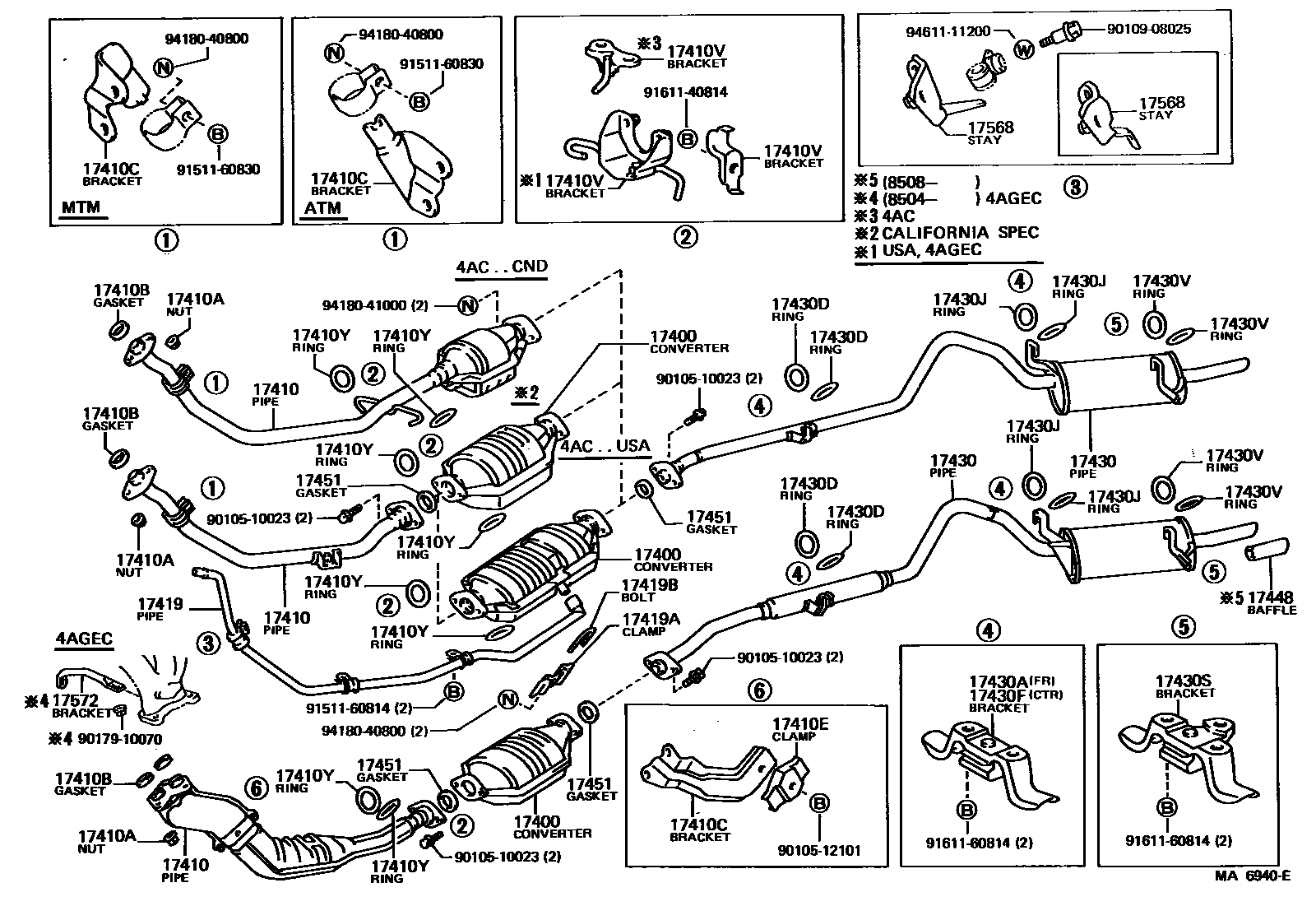

Toyota COROLLA EPC diagram 1702, Exhaust Pipe, with 1 images and 22 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 17400 | Three-way catalytic converter assembly with catalyst | 18450-15021 · 18450-15040 · 18450-15110 · 18450-15120 · 18450-16050 |
| 17410 | Front exhaust pipe assembly | 17410-15140 · 17410-16010 · 17410-16011 · 17410-16130 |
| 17410A | Exhaust pipe fixing studs and nuts | 90179-10010 · 90179-10070 |
| 17410B | Exhaust pipe gasket | 90917-06004 |
| 17410C | Front exhaust pipe bracket (for front) | 17571-15090 · 17571-15100 · 17571-16130 |
| 17410E | No. 1 front exhaust pipe clamp (for front) | 17578-15031 |
| 17410V | Front exhaust pipe bracket (for rear) | 17503-16010 · 17503-16030 · 17503-16040 · 17505-16010 · 17588-16010 |
| 17410Y | Front exhaust pipe bolts or rings (for rear) | 90301-36001 |
| 17419 | Three-way catalytic converter intake pipe | 17409-16010 |
| 17419A | Clamp No. 1 (for three-way catalytic converter intake pipe) | 17578-15020 |
| 17419B | U-shaped bolt (for three-way catalytic converter intake pipe) | 90117-08022 |
| 17430 | Exhaust tailpipe assembly | 17430-16020 · 17430-16030 · 17430-16040 · 17430-16210 · 17430-16240 · 17430-16250 · 17430-16280 · 17430-16320 |
| 17430A | Exhaust tailpipe bracket (for front) | 17506-13020 |
| 17430D | Exhaust tailpipe bolts or rings (for front) | 90301-36001 |
| 17430F | Exhaust tailpipe bracket (for center) | 17506-13020 |
| 17430J | Exhaust tailpipe bolt or ring (for center) | 90301-34207 · 90301-36001 |
| 17430S | Exhaust tailpipe bracket (for rear) | 17508-13010 |
| 17430V | Exhaust tailpipe bolts or rings (for rear) | 90301-34207 · 90301-36001 |
| 17448 | Exhaust pipe tail throat | 17406-70010 · 17406-79025 |
| 17451 | Exhaust pipe gasket | 90917-06012 |
| 17568 | Exhaust pipe bracket stay | 17568-15030 · 17568-15040 |
| 17572 | No. 1 exhaust pipe bracket | 17572-16010 |
