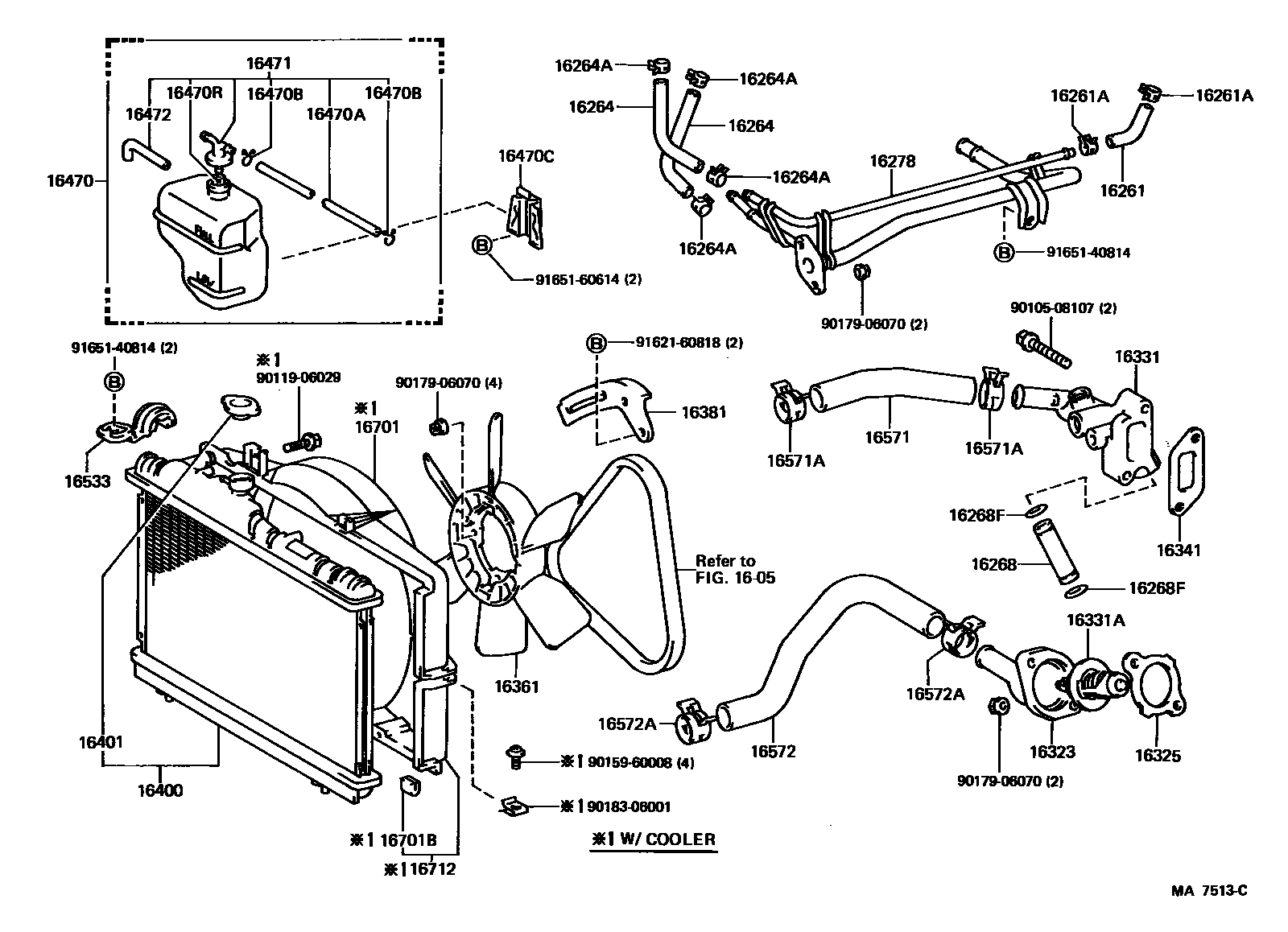

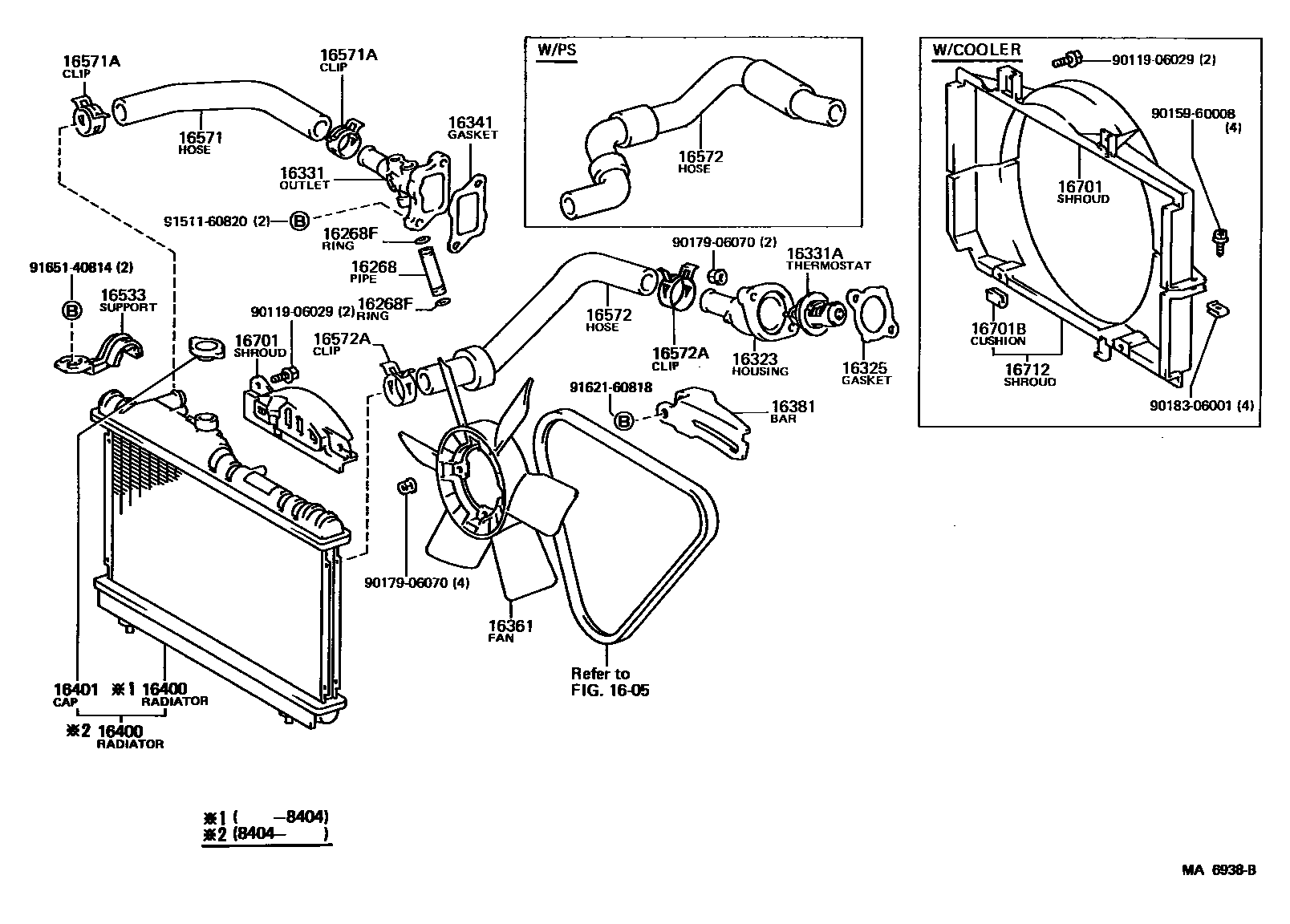

Toyota COROLLA RADIATOR & WATER OUTLET — Figure 1603
Toyota COROLLA EPC diagram 1603, RADIATOR & WATER OUTLET, with 3 images and 46 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 16261 | HOSE, WATER BY-PASS | 16261-16020 |
| 16261A | CLAMP OR CLIP, WATER BY-PASS HOSE | 90467-13001 |
| 16264 | HOSE, WATER BY-PASS, NO.2 | 16264-16020 |
| 16264A | CLAMP OR CLIP, WATER BY-PASS HOSE NO.2 | 90467-13001 |
| 16268 | PIPE, WATER BY-PASS, NO.1 | 16268-15010 · 16268-15011 · 16268-16010 · 16268-16011 |
| 16268F | O-ring (for water bypass pipe) | 96711-24013 |
| 16278 | PIPE, WATER BY-PASS, NO.2 | 16278-16030 · 16278-16050 |
| 16323 | HOUSING, WATER INLET | 16323-15020 · 16323-16020 |
| 16325 | GASKET, WATER INLET HOUSING, NO.1 | 16325-70021 |
| 16331 | Water outlet | 16331-15040 · 16331-15050 · 16331-16040 |
| 16331A | thermostat | 90916-03046 |
| 16341 | GASKET, WATER OUTLET | 16341-15011 · 16341-16010 · 16341-16020 |
| 16361 | Fan | 16361-16010 |
| 16381 | Fan belt adjustment lever | 16381-15030 · 16381-16010 · 88688-12180 |

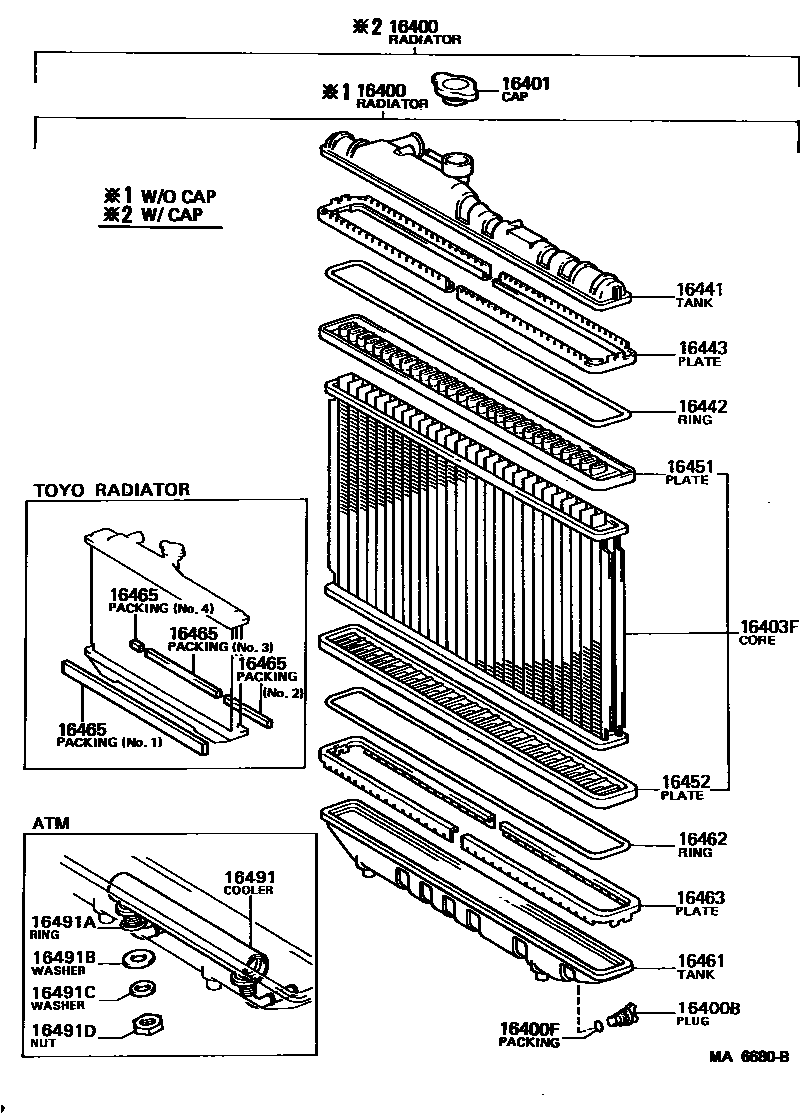

| 16400 | Radiator assembly | 16400-15210 · 16400-15231 · 16410-15210 · 16410-15231 |
| 16400B | Radiator drain switch screw plug | 16417-15210 · 23322-54010 |
| 16400F | Seal (for radiator drain switch) | 16418-24200 · 96711-19007 |
| 16401 | Radiator cover sub-assembly | 16401-15210 · 16401-63010 · 16401-71010 |
| 16403F | Radiator core sub-assembly | 16403-14030 · 16403-15210 · 16403-15231 |
| 16441 | Radiator water tank | 16441-15210 · 16441-15220 |
| 16442 | O-ring (for radiator tank) | 16442-14030 · 16442-15210 |
| 16443 | Radiator upper tank locking plate | 16443-15210 · 16443-15301 |
| 16451 | Radiator core upper plate | 16451-14030 · 16451-15210 |
| 16452 | Radiator core lower plate | 16451-15210 · 16452-14030 |
| 16461 | Radiator lower tank | 16461-15210 · 16461-15220 · 16461-15230 |
| 16462 | O-ring (for radiator lower tank) | 16442-15210 · 16462-14030 |
| 16463 | Radiator lower tank locking plate | 16443-15210 · 16463-15300 |
| 16465 | Radiator seal | 16465-15210 · 16466-15210 · 16467-15210 · 16468-15210 |
| 16470 | Radiator reservoir assembly | 16470-16040 |
| 16470B | Clip or clip (for radiator reservoir hose) | 90467-11085 |
| 16470C | Bracket (for radiator reservoir) | 16611-16010 |
| 16471 | Liquid storage tank cover sub-assembly | 16405-16030 |
| 16472 | Breather hose | 85338-12020 |
| 16491 | Oil cooler (for ATM) | 16491-15230 |
| 16491A | O-ring (for automatic transmission oil cooler) | 16492-35080 |
| 16491B | Flat Washer (for automatic transmission oil cooler) | 16493-15130 |
| 16491C | Spring washer (for automatic transmission oil cooler) | 16494-15130 |
| 16491D | Nut (for automatic transmission oil cooler) | 16496-15130 |
| 16533 | Radiator upper bracket | 16505-15030 |
| 16571 | Radiator water inlet hose | 16571-15110 · 16571-16010 |
| 16571A | Hose clamp or clip (for radiator water inlet) | 90467-34001 · 90467-34002 · 90467-34003 |
| 16572 | Radiator outlet hose | 16572-15160 · 16572-15170 · 16572-16010 |
| 16572A | Hose clamp or clip (for radiator outlet No. 1) | 90467-34001 · 90467-34002 · 90467-34003 |
| 16701 | Fan cover sub-assembly | 16711-15120 · 16711-15130 |
| 16701B | fan cover cushion | 90541-11002 |
| 16712 | No. 2 fan cover | 16712-15030 |
