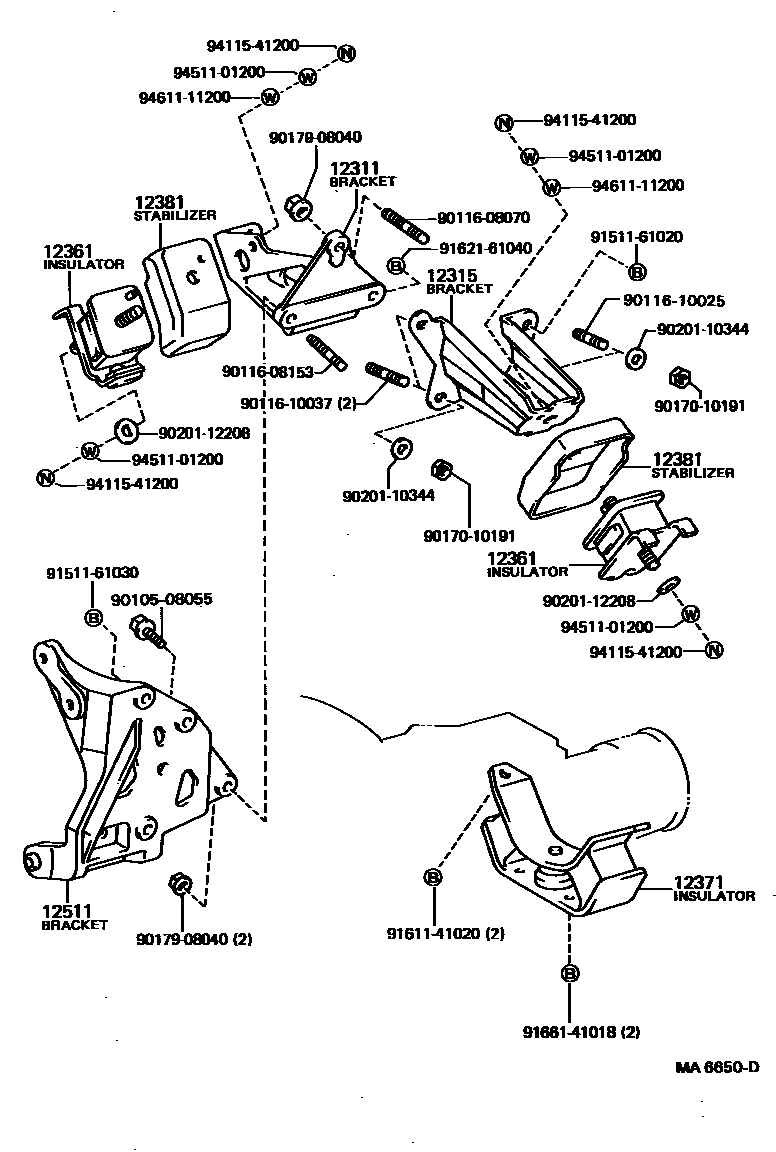

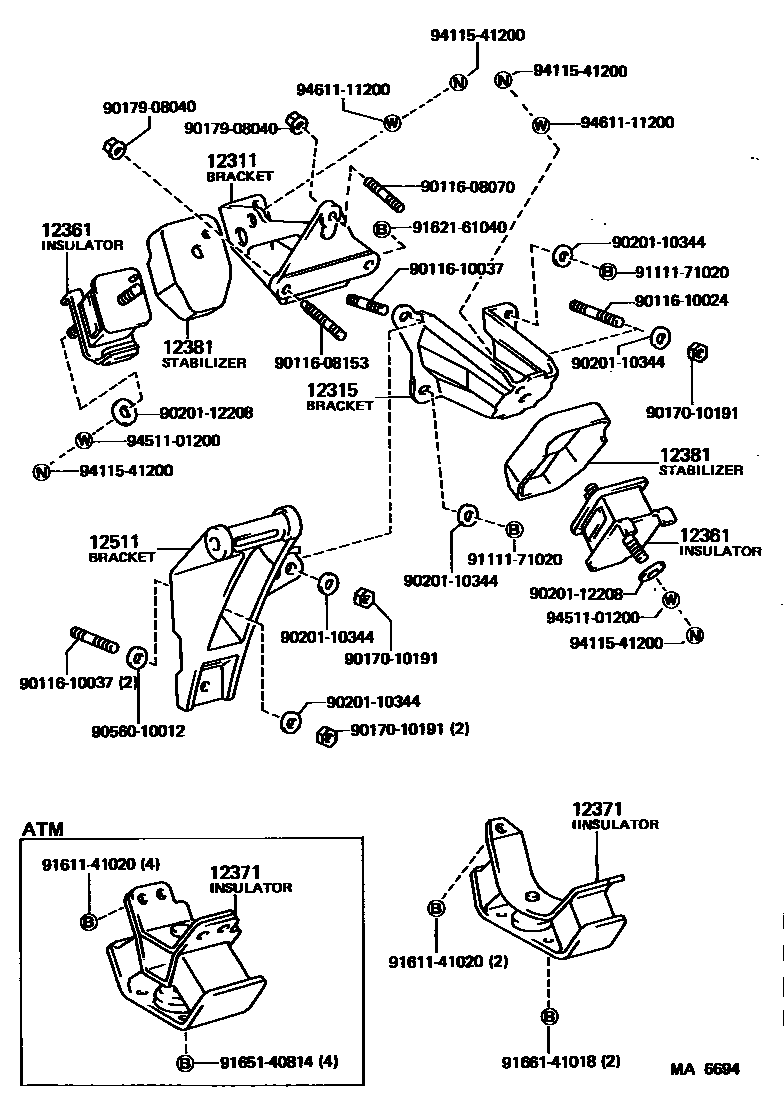

Toyota COROLLA Engine Mounting — Figure 1107
Toyota COROLLA EPC diagram 1107, Engine Mounting, with 2 images and 6 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 12311 | Engine Mounting Bracket No. 1, Front RH | 12311-15090 |
| 12315 | Engine No. 1 left front suspension bracket | 12315-15060 |
| 12361 | Engine front mounting vibration isolation pad | 12361-15040 · 12361-16010 |
| 12371 | Engine No. 1 rear mount vibration isolation pad | 12371-16010 · 12371-16020 · 12371-16030 |
| 12381 | engine mount stabilizer bar | 12381-15040 · 12381-16010 |
| 12511 | No. 1 generator bracket | 12511-15011 · 12511-16011 |
