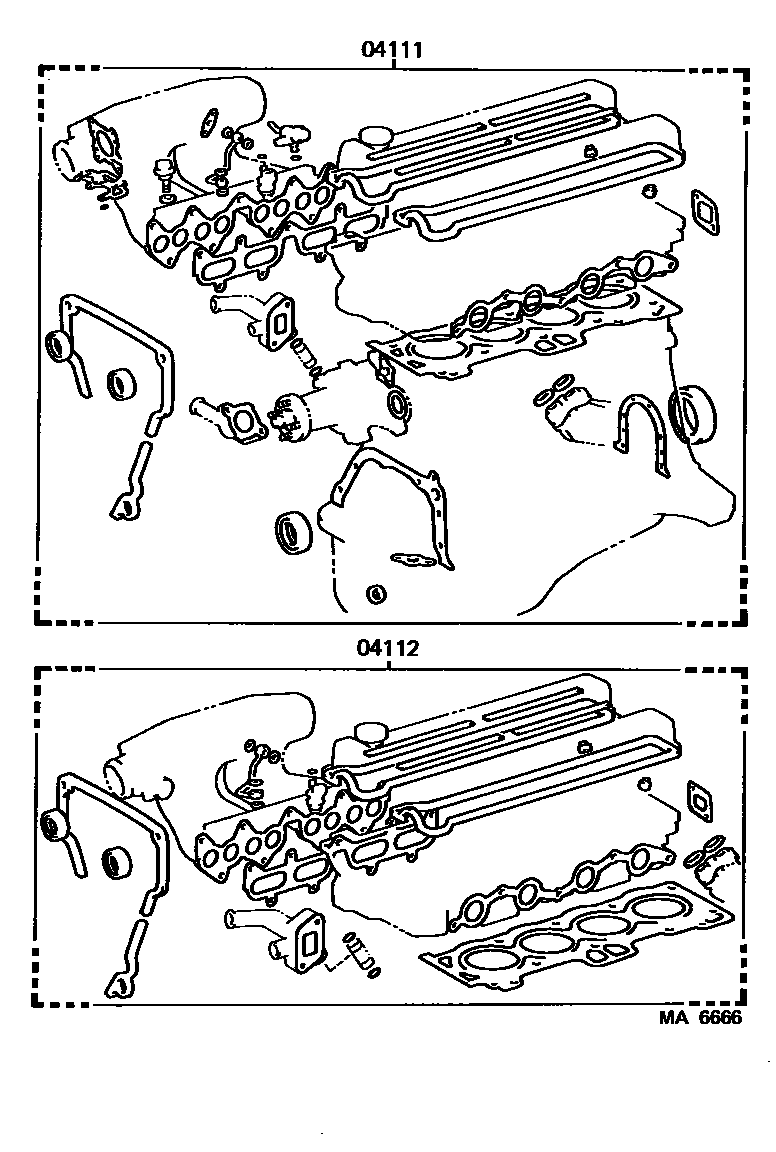

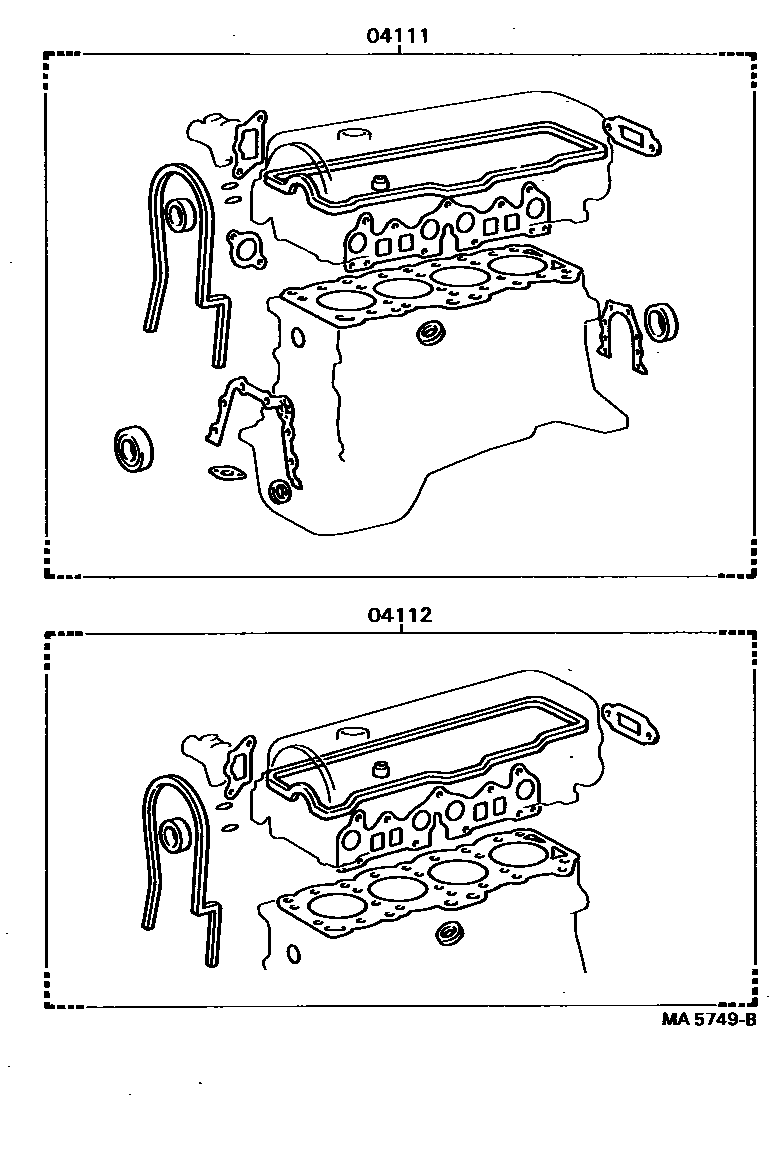

Toyota COROLLA Engine Overhaul Gasket Kit — Figure 1103
Toyota COROLLA EPC diagram 1103, Engine Overhaul Gasket Kit, with 2 images and 2 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 04111 | Engine overhaul gasket assembly | 04111-16022 · 04111-16023 · 04111-16031 · 04111-16032 · 04111-16080 |
| 04112 | Engine valve grinding pad assembly | 04112-16022 · 04112-16023 · 04112-16030 · 04112-16031 · 04112-16080 |
