Toyota COROLLA Partial Engine Assembly — Figure 1101

Toyota COROLLA EPC diagram 1101, Partial Engine Assembly, with 1 images and 1 PNC and OE references.

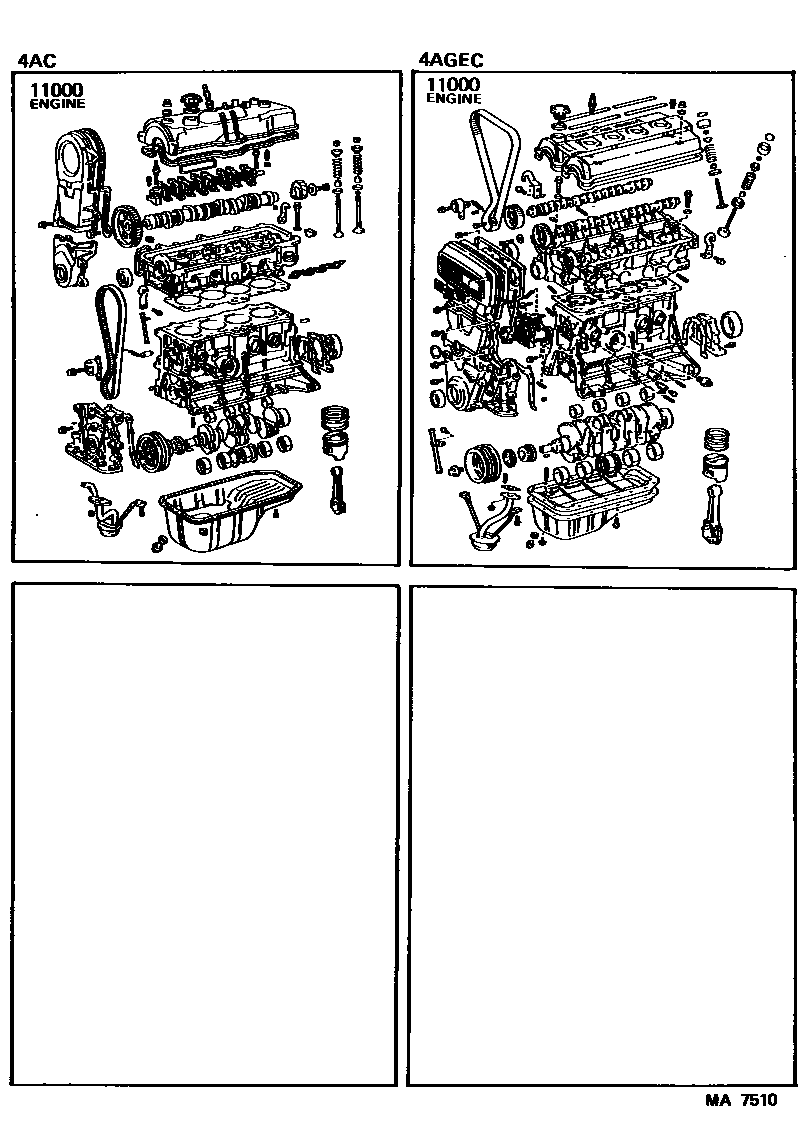

Toyota COROLLA Partial Engine Assembly EPC diagram — MA7510
Partial Engine Assembly — MA7510 (198308 – 999999)

PNC and OE references

PNCPart nameOE numbers
11000Partial Engine Assembly19000-16080 · 19000-16090 · 19000-16210 · 19000-16310 · 19000-16320
