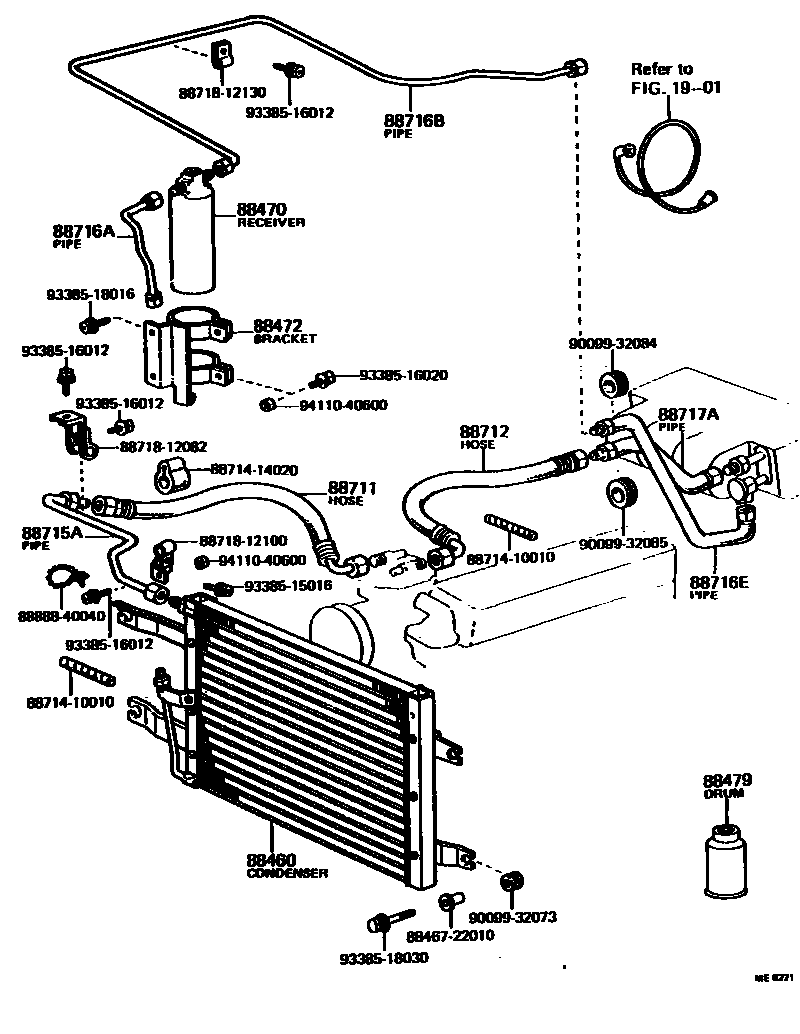

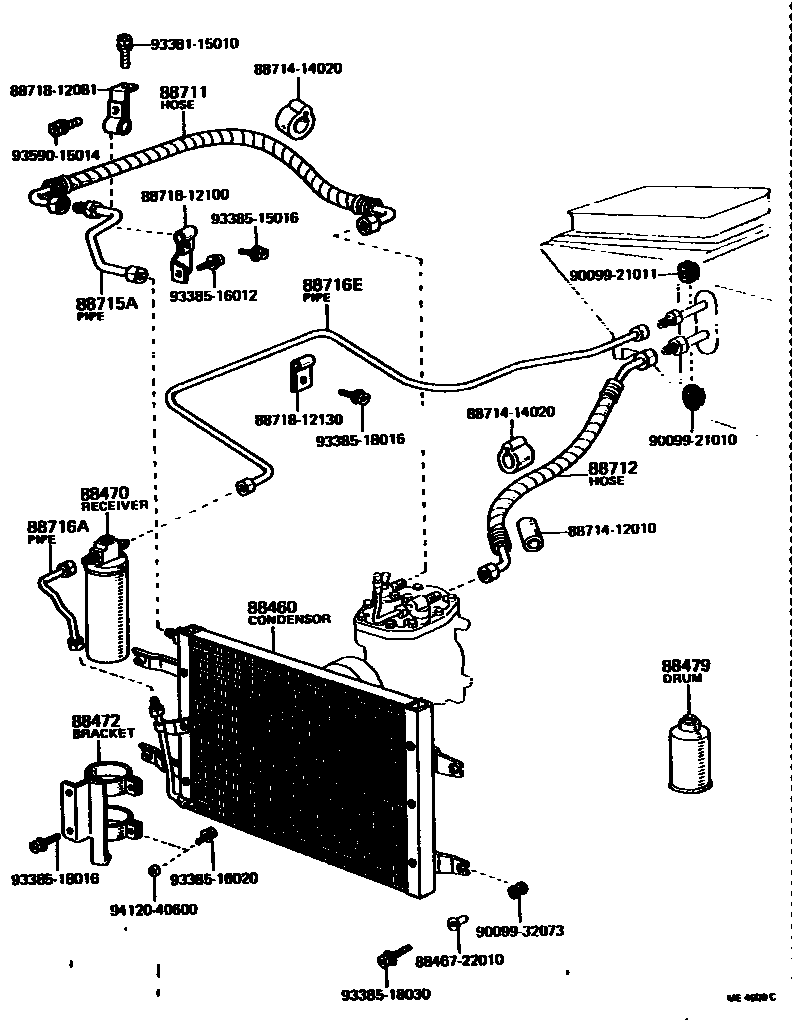

Toyota COROLLA Heating & Air Conditioning - Cooler Piping — Figure 8718
Toyota COROLLA EPC diagram 8718, Heating & Air Conditioning - Cooler Piping, with 2 images and 11 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 88460 | Air conditioning condenser assembly | 88460-12030 · 88460-12031 · 88460-12060 · 88460-12070 |
| 88470 | Cooler reservoir and dryer assembly | 88470-12020 · 88470-12021 · 88470-20070 |
| 88472 | No. 1 liquid storage tank bracket | 88472-12120 · 88472-12160 |
| 88479 | Air conditioning Freon gas (cooler refrigerant drum) | 88434-30010 |
| 88711 | Cooler No. 1 refrigerant drain hose | 88711-12070 · 88711-12071 · 88711-12080 · 88711-14030 |
| 88712 | Cooler No. 1 refrigerant suction hose | 88712-12100 · 88712-12101 · 88712-12160 |
| 88715A | Cooler refrigerant discharge pipe A | 88715-12041 · 88715-12042 · 88715-12050 · 88715-12070 · 88715-12071 |
| 88716A | Cooler refrigerant liquid pipe A | 88716-12140 · 88716-12141 · 88716-12300 |
| 88716B | Cooler refrigerant liquid pipe B | 88716-12180 |
| 88716E | Cooler refrigerant liquid pipe E | 88716-12180 · 88716-12220 · 88716-12260 · 88716-12261 |
| 88717A | Cooler refrigerant suction pipe A | 88717-12080 |
