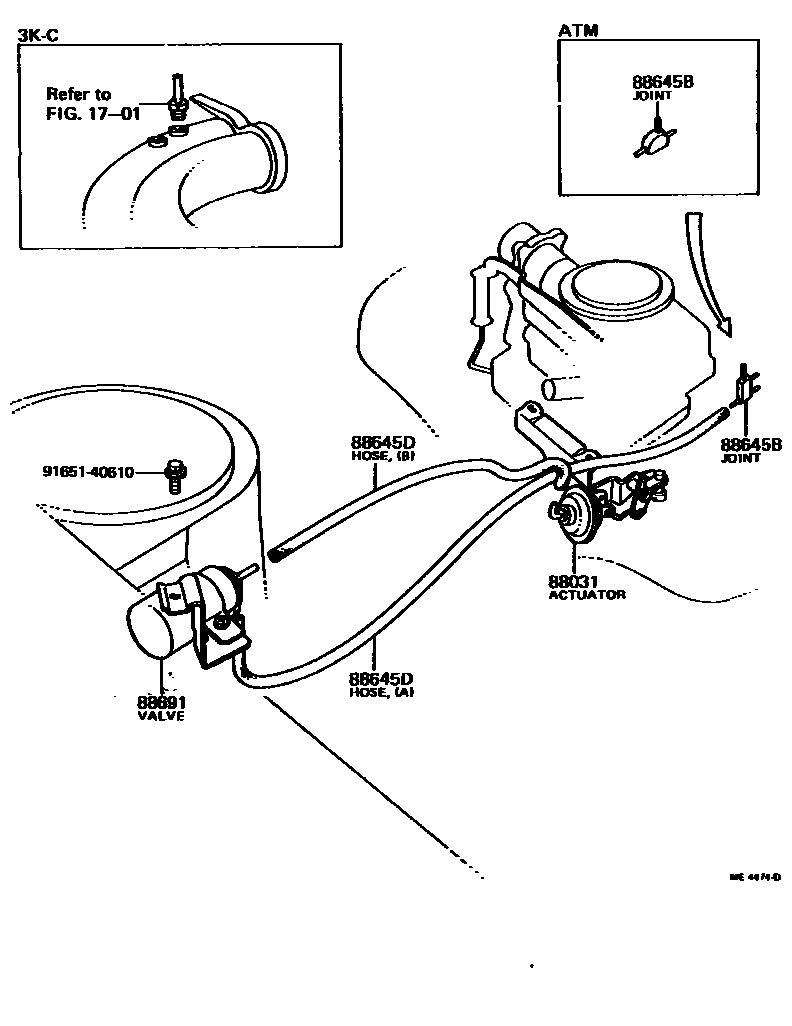

Toyota COROLLA 暖风和空调系统 - 真空管 — Figure 8717
Toyota COROLLA EPC diagram 8717, 暖风和空调系统 - 真空管, with 1 images and 4 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 88031 | Idle speed lift actuator assembly | 88031-12031 · 88031-12032 · 88031-12060 · 88031-12070 |
| 88645B | Connector No. 1 (for idle speed lifting device) | 90413-04001 · 90414-04002 |
| 88645D | Hoses (for idle lift) | 95411-10030 |
| 88691 | Solenoid valve (for idle speed lifting device) | 88690-12011 · 88690-12110 |
