Toyota COROLLA 暖风和空调系统 - 水管 — Figure 8716

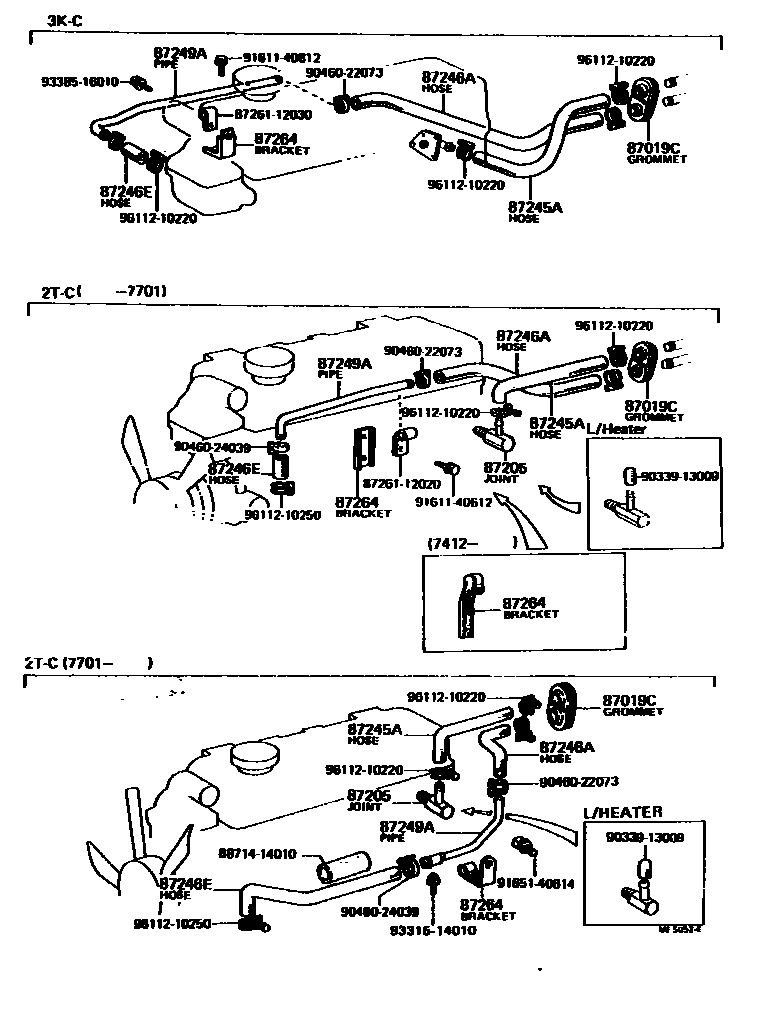

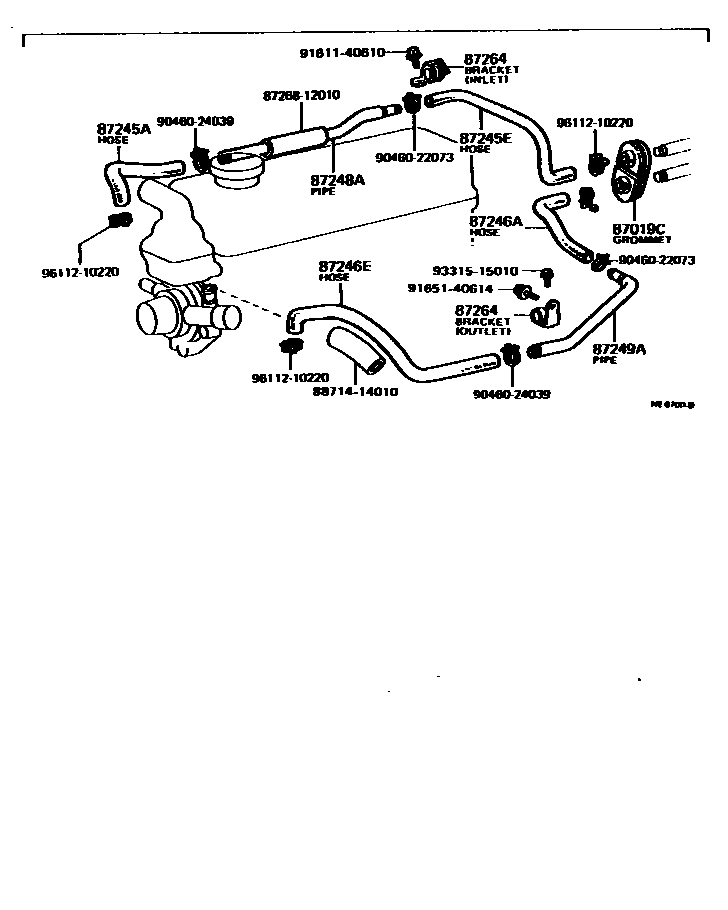

Toyota COROLLA EPC diagram 8716, 暖风和空调系统 - 水管, with 2 images and 9 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 87019C | heater hose seal | 90480-01011 · 90480-01466 |
| 87205 | Front heater hose feedthrough connector or water inlet valve connector | 87251-12020 · 87251-12031 |
| 87245A | Heater water inlet hose A | 87245-12090 · 87245-12091 · 87245-12111 · 87245-12150 · 87245-12261 |
| 87245E | Heater water inlet hose E | 87245-12271 |
| 87246A | Heater outlet hose A | 87245-12080 · 87245-12220 · 87245-12221 · 87245-12230 · 87245-12300 · 99552-20270 |
| 87246E | Heater outlet hose E | 87245-12160 · 87245-12240 · 87245-12281 · 87245-12282 · 99552-20050 · 99552-30055 · 99552-30065 |
| 87248A | Heater water inlet pipe A | 87248-12101 |
| 87249A | Heater outlet pipe A | 87248-12040 · 87248-12041 · 87248-12060 · 87248-12061 · 87248-12090 · 87248-12120 |
| 87264 | Heater water hose bracket | 87263-12021 · 87263-12030 · 87263-12031 · 87263-12032 · 87263-12040 · 87263-12050 · 87263-12070 · 87263-12071 · 87263-12111 · 87263-12120 |
