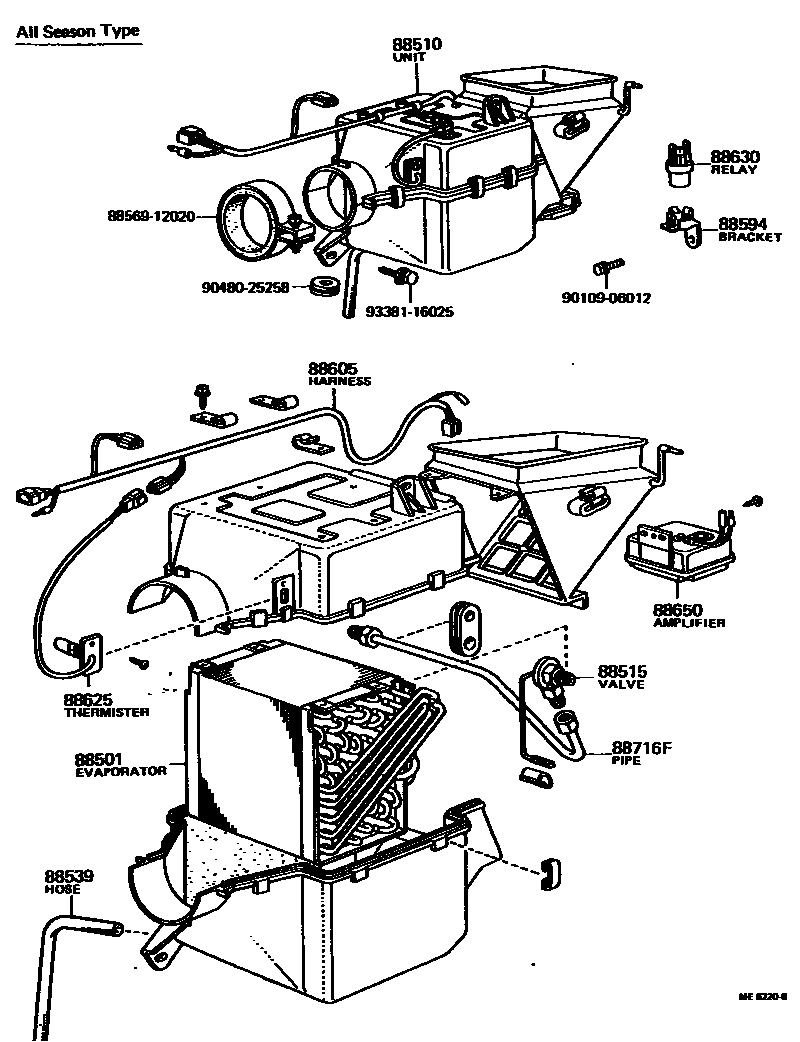

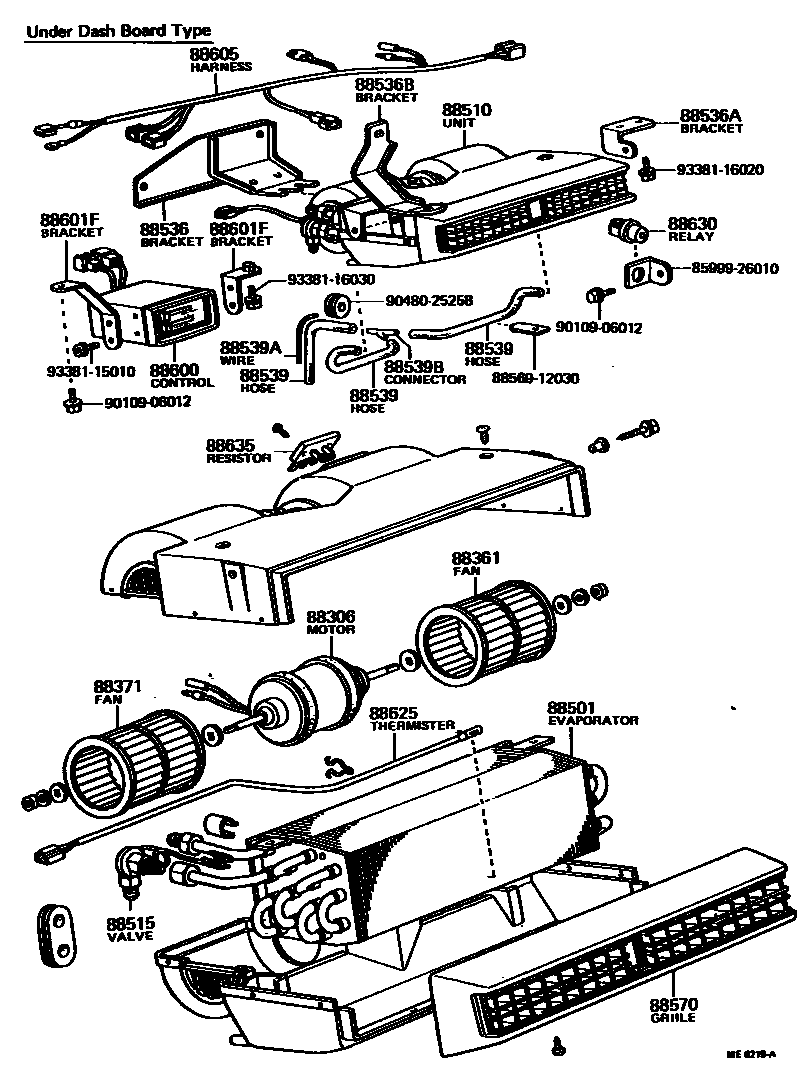

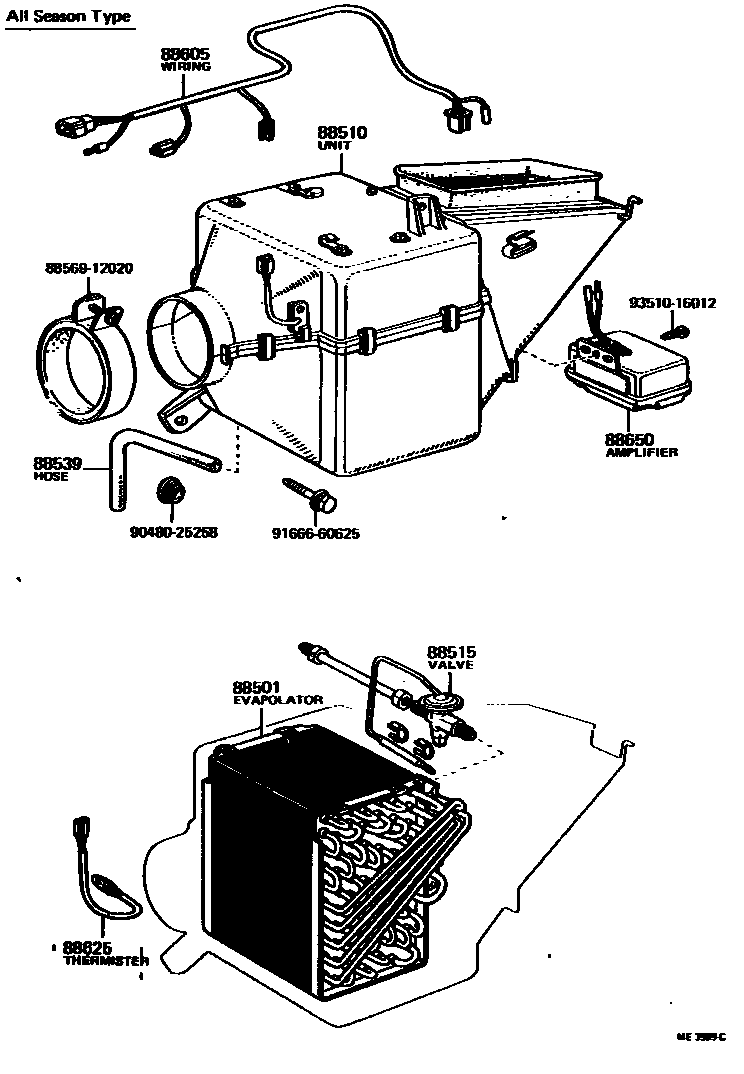

Toyota COROLLA 暖风和空调系统 - 冷却器组件 — Figure 8714
Toyota COROLLA EPC diagram 8714, 暖风和空调系统 - 冷却器组件, with 3 images and 22 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 88306 | No. 1 cooler blower motor sub-assembly | 88550-30300 |
| 88361 | Cooler Blower Fan No. 1 | 88541-10010 |
| 88371 | Cooler Blower Fan No. 2 | 88541-10020 |
| 88501 | Cooler No. 1 evaporator sub-assembly | 88501-12060 · 88501-12061 · 88501-12100 · 88501-12110 · 88501-12130 · 88501-30530 |
| 88510 | Cooler device assembly | 88510-12060 · 88510-12061 · 88510-12062 · 88510-12063 · 88510-12064 · 88510-12065 · 88510-12100 · 88510-12110 · 88510-12111 · 88510-30670 |
| 88515 | Cooler expansion valve | 88515-10010 · 88515-12030 · 88515-12031 · 88515-12032 · 88515-12050 · 88515-20031 · 88515-20040 |
| 88536 | Cooling device bracket No. 1 | 88536-12080 |
| 88536A | Cooling device bracket No. 2 | 88536-12090 |
| 88536B | Cooling device bracket No. 3 | 88536-12100 · 88536-12101 |
| 88539 | No. 1 Cooler Unit Drain Hose | 88539-12021 · 88539-12030 · 88539-22011 · 90099-33304 |
| 88539A | Drain hose harness (for cooler) | 88895-12020 |
| 88539B | Cooler drain hose connector | 88894-22010 |
| 88570 | Cooler air outlet grille sub-assembly | 88570-30600 |
| 88594 | Cooler relay bracket | 85999-26010 |
| 88600 | Air conditioning control assembly | 88660-10010 |
| 88601F | Cooler control switch bracket | 88899-12100 · 88899-12150 · 88899-12160 |
| 88605 | No. 1 cooler wiring harness sub-assembly | 88605-12060 · 88605-12061 · 88605-12100 · 88605-12111 · 88605-12170 |
| 88625 | Cooler No. 1 Thermistor | 88625-12020 · 88625-12050 · 88625-20040 · 88625-30480 |
| 88630 | Cooler relay assembly | 85923-40010 · 90987-02001 |
| 88635 | Cooler unit blower resistor | 88635-30370 |
| 88650 | Cooler stabilized amplifier assembly | 88650-12030 · 88650-14020 · 88650-14051 · 88650-22030 · 88650-22040 |
| 88716F | Cooler refrigerant liquid pipe F | 88716-12312 · 88716-12340 |
