Toyota COROLLA 扬声器 — Figure 8602

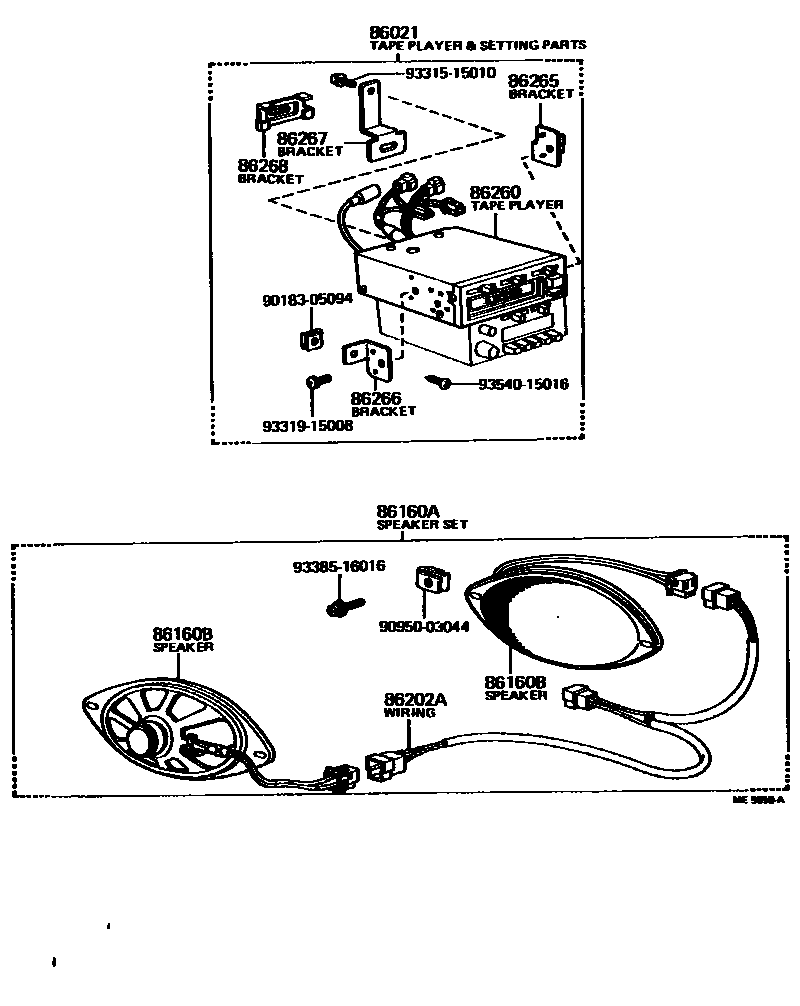

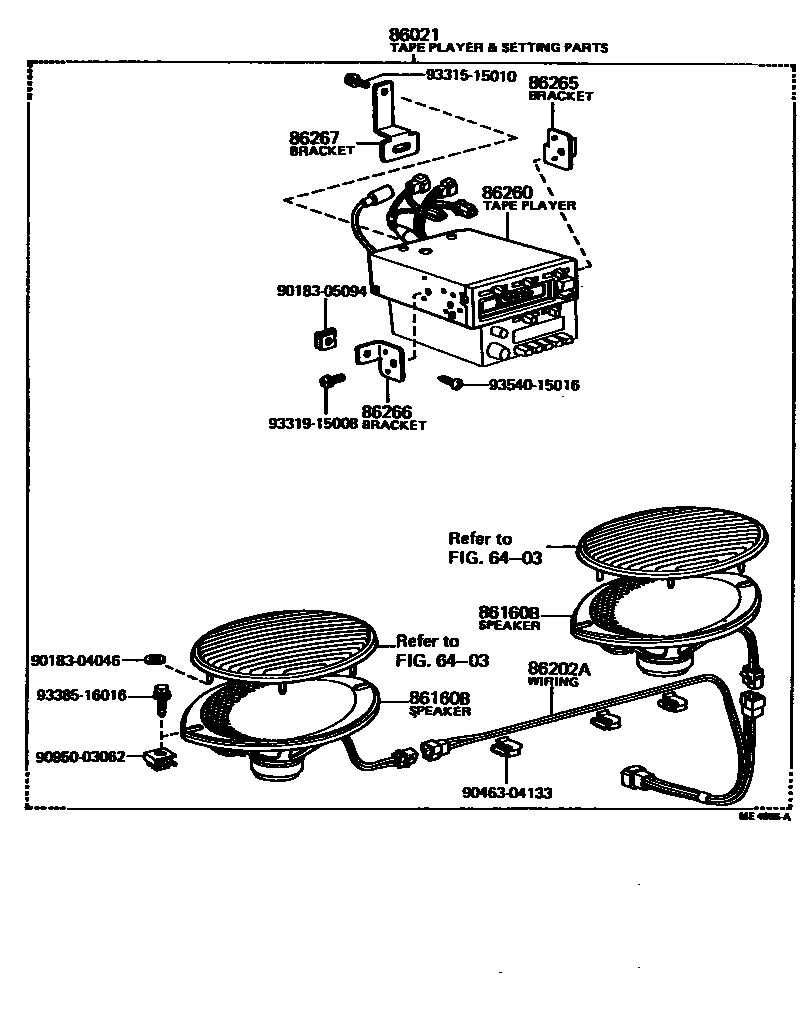

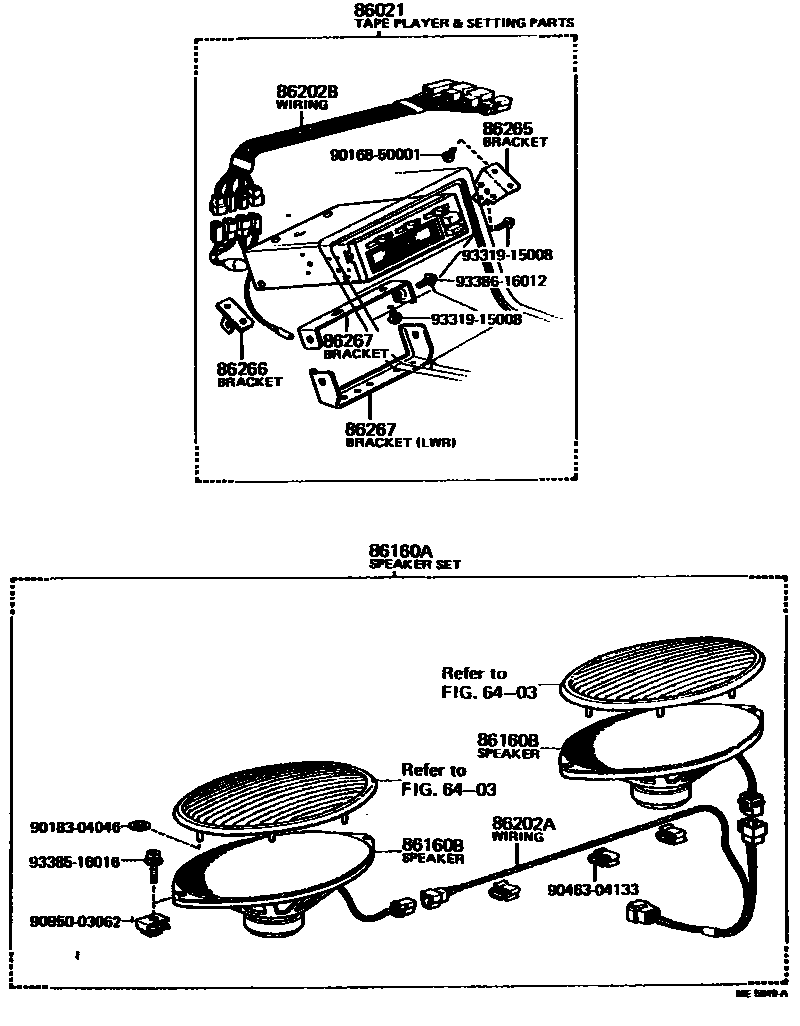

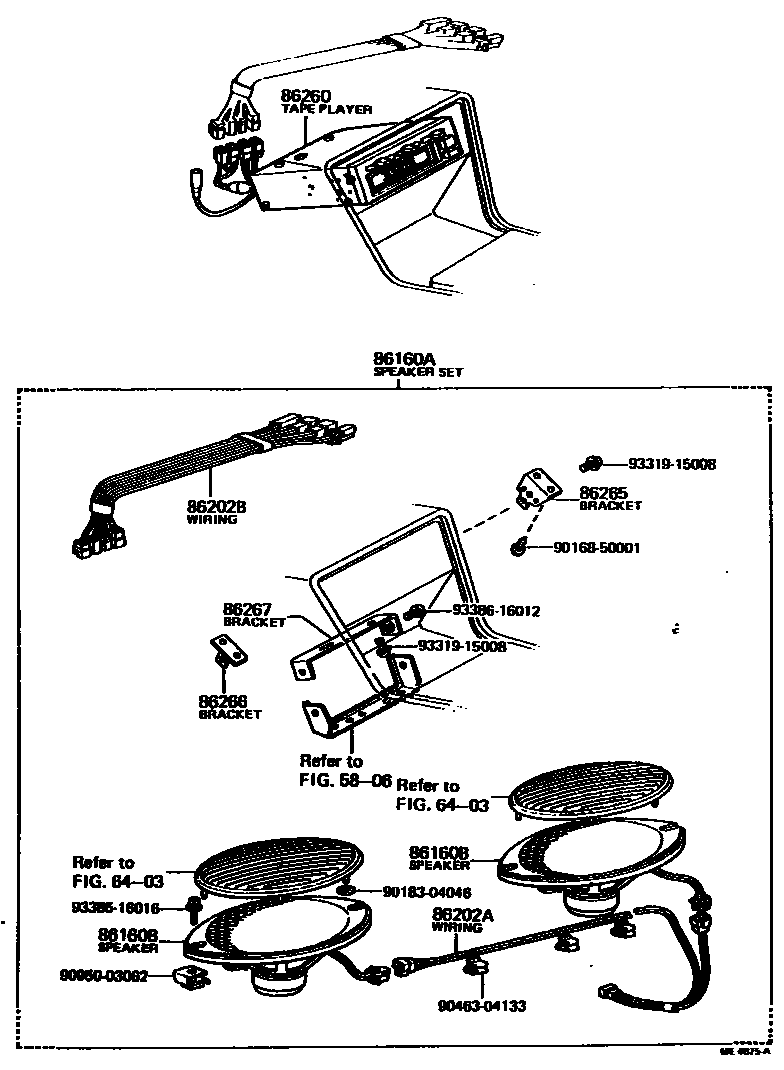

Toyota COROLLA EPC diagram 8602, 扬声器, with 4 images and 10 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 86021 | Tape player and set parts assemblies | 86021-19025 · 86021-19035 · 86021-19085 |
| 86160A | front speaker assembly | 86160-19015 · 86160-19025 · 86160-19075 |
| 86160B | Rear speaker assembly | 86160-12050 |
| 86202A | No. 2 speaker harness | 86202-12020 · 86202-12030 |
| 86202B | Tape player wiring harness | 86203-12011 |
| 86260 | Tape player assembly | 86021-19015 · 86260-12030 |
| 86265 | Tape player stand No. 1 | 86265-12080 · 86265-12100 |
| 86266 | Tape player stand No. 2 | 86265-12080 · 86265-12110 |
| 86267 | Tape player stand No. 3 | 58865-12010 · 86266-12030 · 86266-12040 · 86266-12050 |
| 86268 | Tape player stand No. 4 | 86266-12080 |
