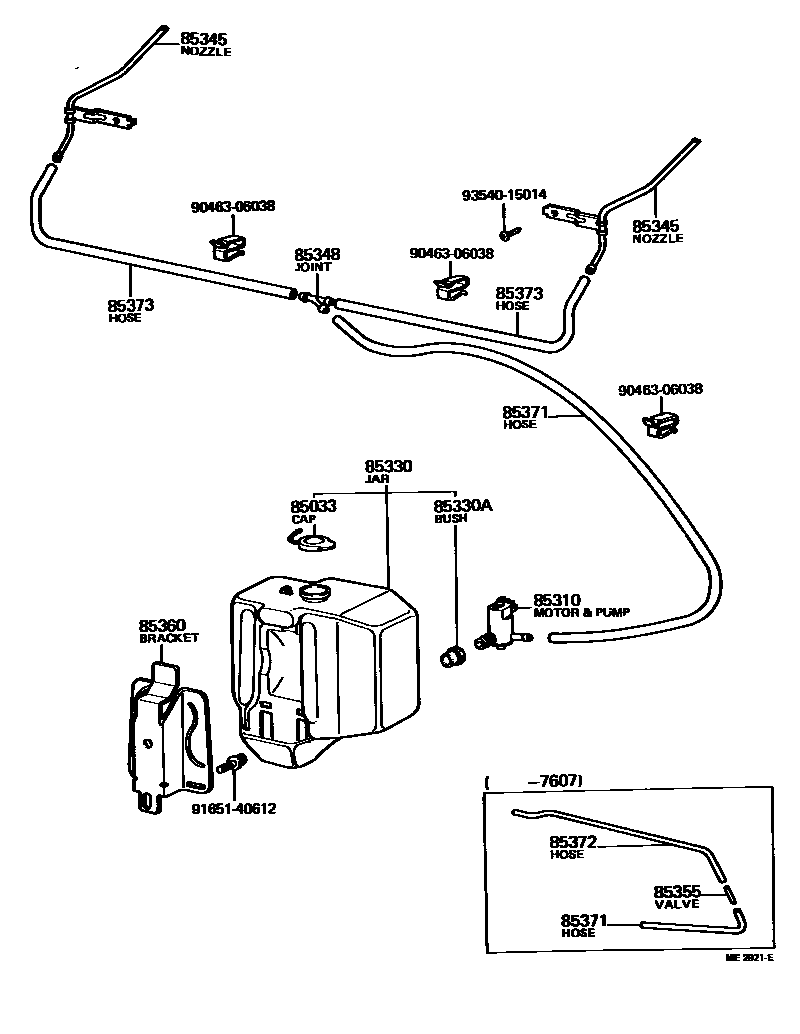

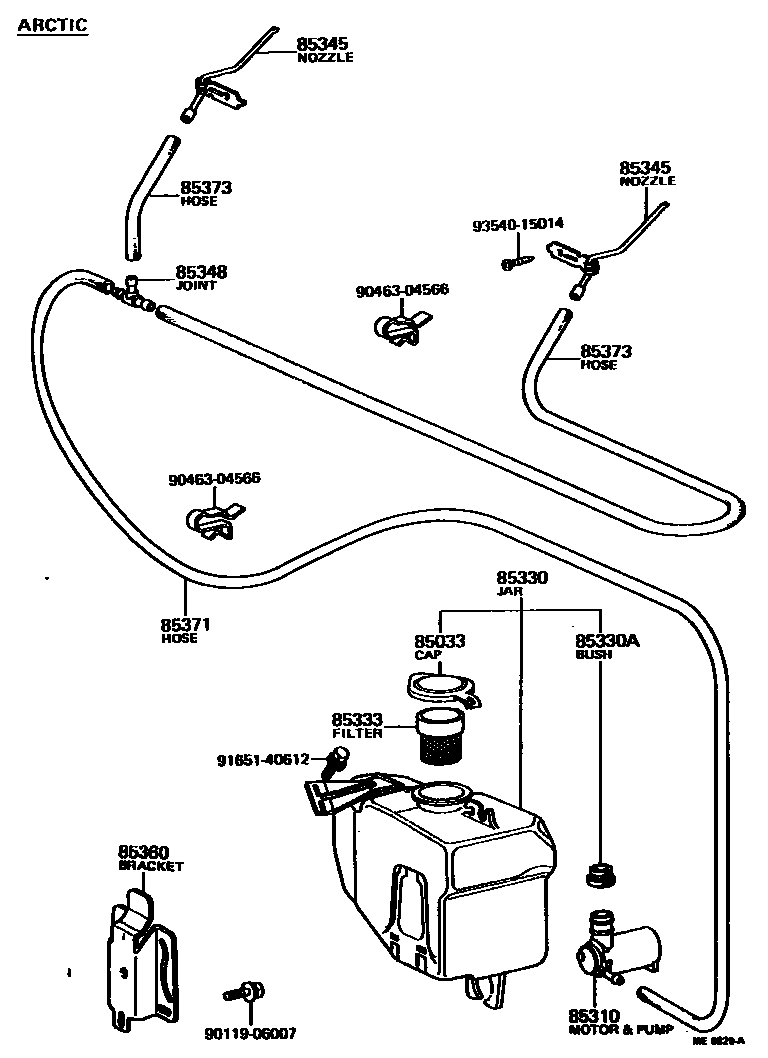

Toyota COROLLA 挡风玻璃清洗器 — Figure 8503
Toyota COROLLA EPC diagram 8503, 挡风玻璃清洗器, with 2 images and 12 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 85033 | Windshield washer cover assembly | 85332-20040 · 85332-20060 · 85332-30050 |
| 85310 | Windshield washer motor and pump assembly | 85310-12020 · 85310-12070 · 85310-12071 · 85310-12100 · 85310-20100 |
| 85330 | Windshield washer fluid tank assembly | 85330-12050 · 85330-12051 · 85330-12070 · 85330-12072 |
| 85330A | Windshield washer fluid tank bushing | 90099-32057 · 90099-32089 · 90099-32103 |
| 85333 | Windshield washer fluid tank filter | 85333-20010 · 85333-20020 |
| 85345 | windshield washer nozzle | 85341-12010 · 85341-12020 · 85341-12050 · 85341-12060 · 85341-12070 · 85341-12080 · 85341-12090 · 85341-12100 |
| 85348 | Windshield washer hose connector No. 1 | 85348-22010 · 85355-14010 |
| 85355 | Windshield washer hose valve | 85031-14020 |
| 85360 | Windshield washer bracket assembly | 53752-12020 · 53752-12030 |
| 85371 | Windshield washer hose (from motor to connector) | 90099-33245 · 90099-33289 · 90099-33340 |
| 85372 | Windshield washer hose No. 1 (from connector to connector) | 90099-33242 |
| 85373 | Windshield washer hose (from connector to nozzle) | 90099-33242 · 90099-33337 · 90099-33342 |
