Toyota COROLLA 后刮水器 — Figure 8502

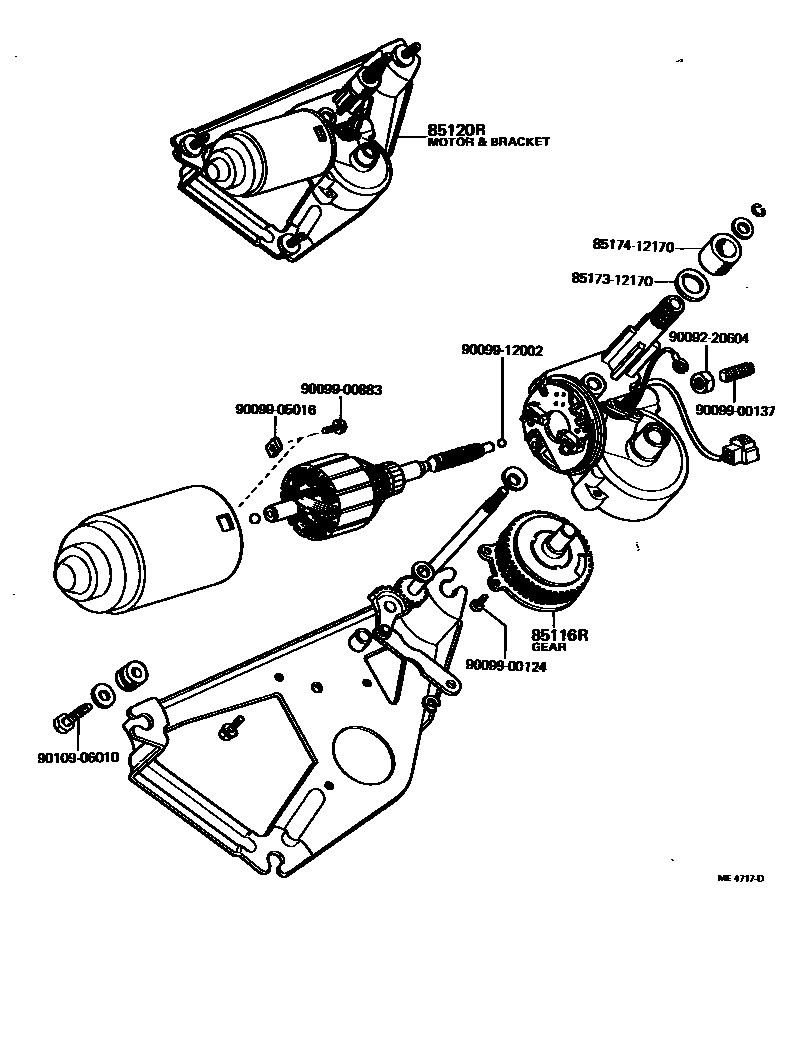

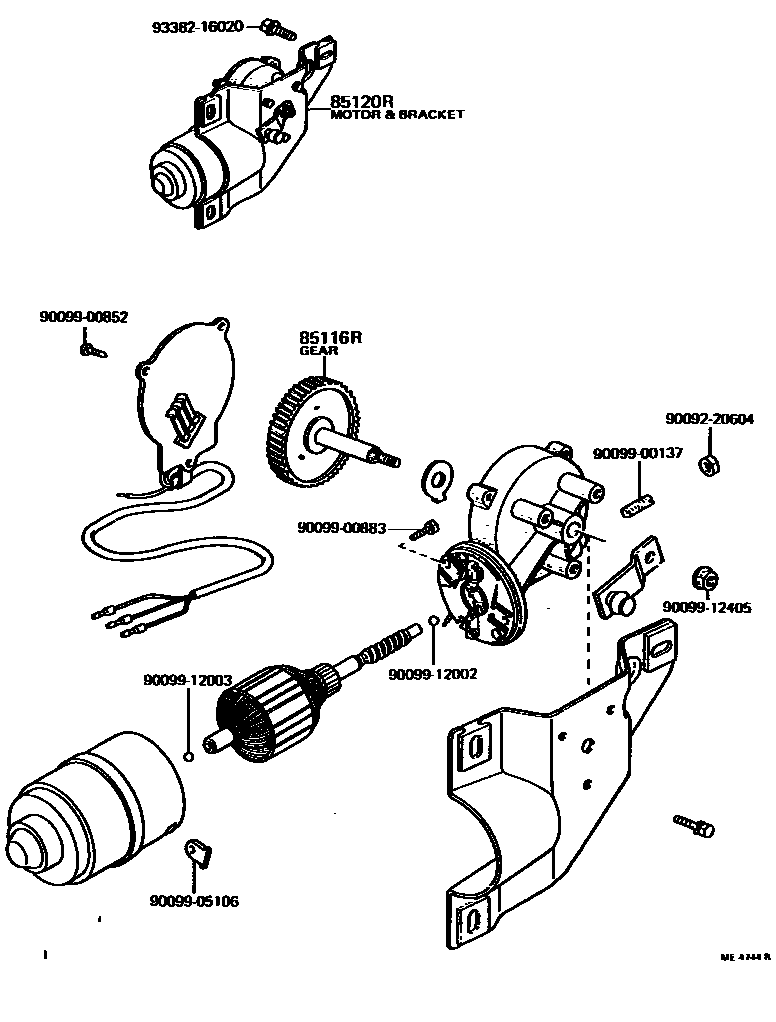

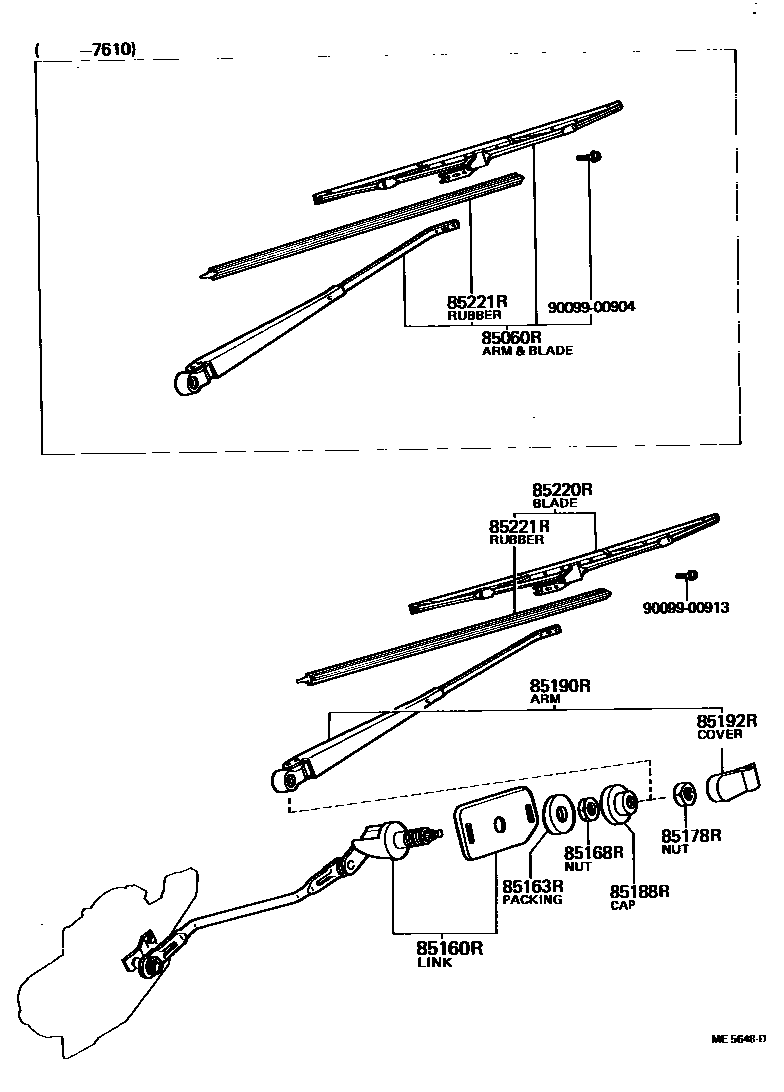

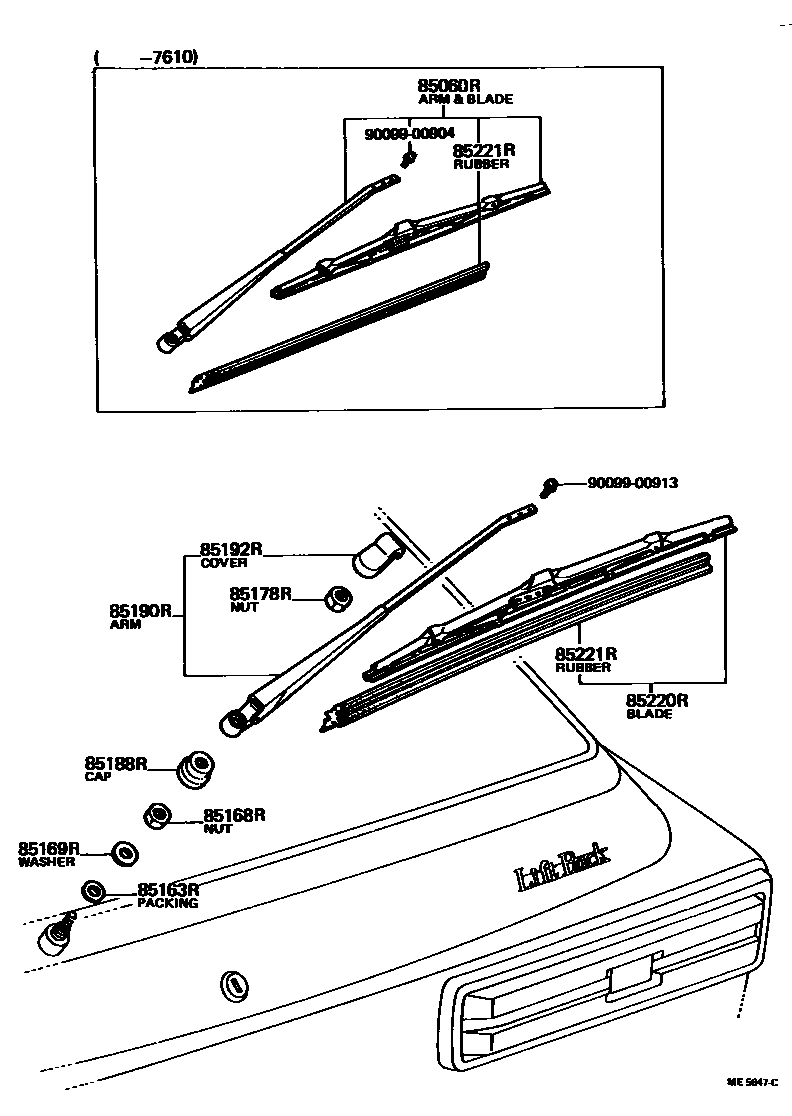

Toyota COROLLA EPC diagram 8502, 后刮水器, with 4 images and 13 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 85060R | Rear wiper arm and wiper blade assembly | 85060-12120 · 85060-13010 |
| 85116R | Rear wiper motor gear | 85116-12170 · 85116-95101 |
| 85120R | Rear wiper motor and bracket assembly | 85110-12170 · 85120-13010 |
| 85160R | Rear wiper connecting rod assembly | 85160-13010 |
| 85163R | No. 1 rear wiper pivot seal | 85174-21010 · 85179-13010 · 85179-13011 |
| 85168R | No. 1 rear wiper link pivot nut | 85186-13010 · 85186-13011 · 90099-05120 |
| 85169R | No. 1 rear wiper link pivot washer | 90099-01415 · 90099-01435 |
| 85178R | Nut (for securing rear wiper arm) | 90176-06001 · 90176-06017 · 90179-06158 |
| 85188R | No. 1 rear wiper pivot cover | 85178-13010 · 85178-21011 |
| 85190R | Rear wiper arm assembly | 85190-12340 · 85190-12341 · 85190-13010 · 85190-13011 |
| 85192R | Rear wiper arm cover | 85192-12010 |
| 85220R | Rear wiper blade assembly | 85220-10080 · 85220-12200 · 85220-13010 · 85220-14110 |
| 85221R | Rear wiper blade | 85221-10040 · 85221-20060 |
