Toyota COROLLA indicator light — Figure 8302

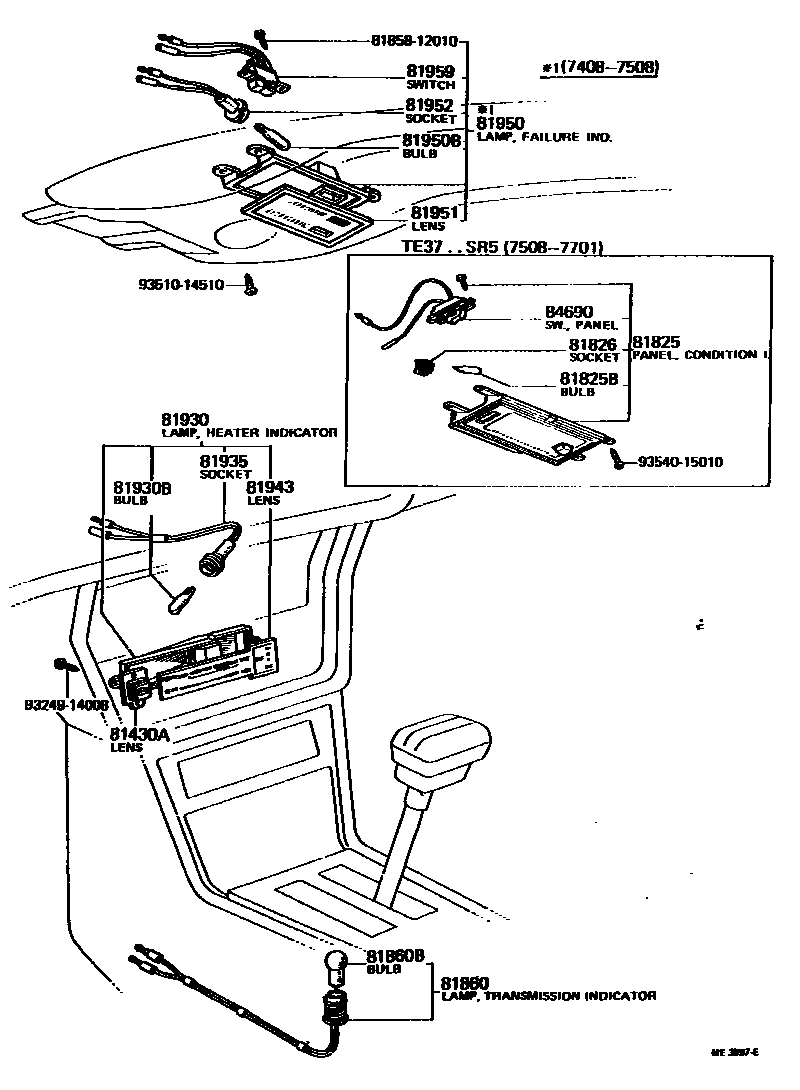

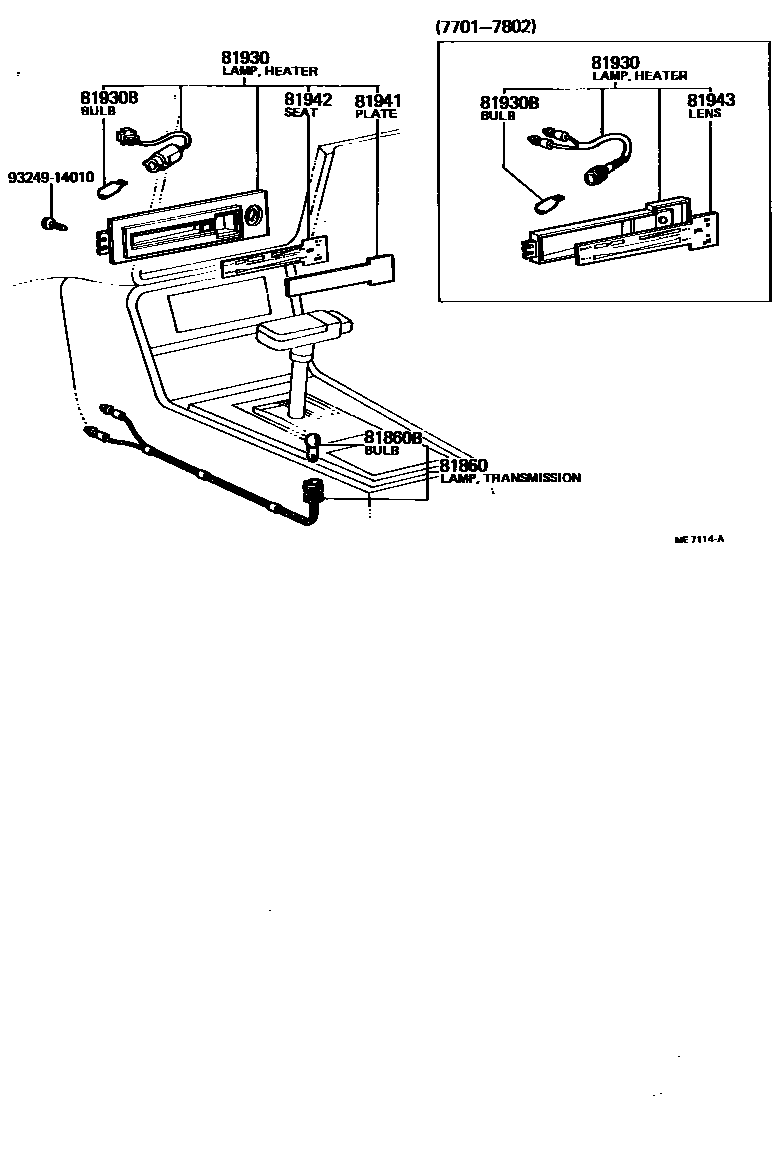

Toyota COROLLA EPC diagram 8302, indicator light, with 2 images and 18 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 81430A | Rear window defogger indicator light cover | 55488-12010 |
| 81825 | Status indicator light board assembly | 81820-12010 |
| 81825B | Status light board light bulb | 90981-11014 |
| 81826 | Status indicator lamp holder | 83101-14010 |
| 81860 | Transmission indicator light assembly | 81860-22011 |
| 81860B | Transmission indicator light bulb | 99132-11017 |
| 81930 | No. 1 heater control indicator light assembly | 81930-12040 · 81930-12041 · 81930-12042 · 81930-12043 · 81930-12050 · 81930-12051 · 81930-12052 · 81930-12053 · 81930-12070 · 81930-12071 · 81930-12080 · 81930-12081 · 81930-12100 · 81930-12101 · 81930-12120 · 81930-12121 · 81930-12130 · 81930-12140 |
| 81930B | Heater control indicator light bulb | 90981-11018 |
| 81935 | Heater control indicator lamp holder and wiring harness | 81935-12020 |
| 81941 | Heater controller nameplate | 81941-12010 |
| 81942 | Heater control nameplate | 81931-12043 · 81942-12020 |
| 81943 | Heater control indicator light cover | 81931-12040 · 81931-12041 · 81931-12042 · 81943-12020 · 81943-12030 |
| 81950 | Fault indicator light assembly | 81850-12010 |
| 81950B | fault indicator light bulb | 90981-11018 |
| 81951 | Fault indicator lamp cover | 81851-12010 |
| 81952 | Fault indicator lamp holder | 81855-12010 |
| 81959 | Fault light switch | 81859-12010 |
| 84690 | Status indicator light board switch assembly | 84249-12010 |
