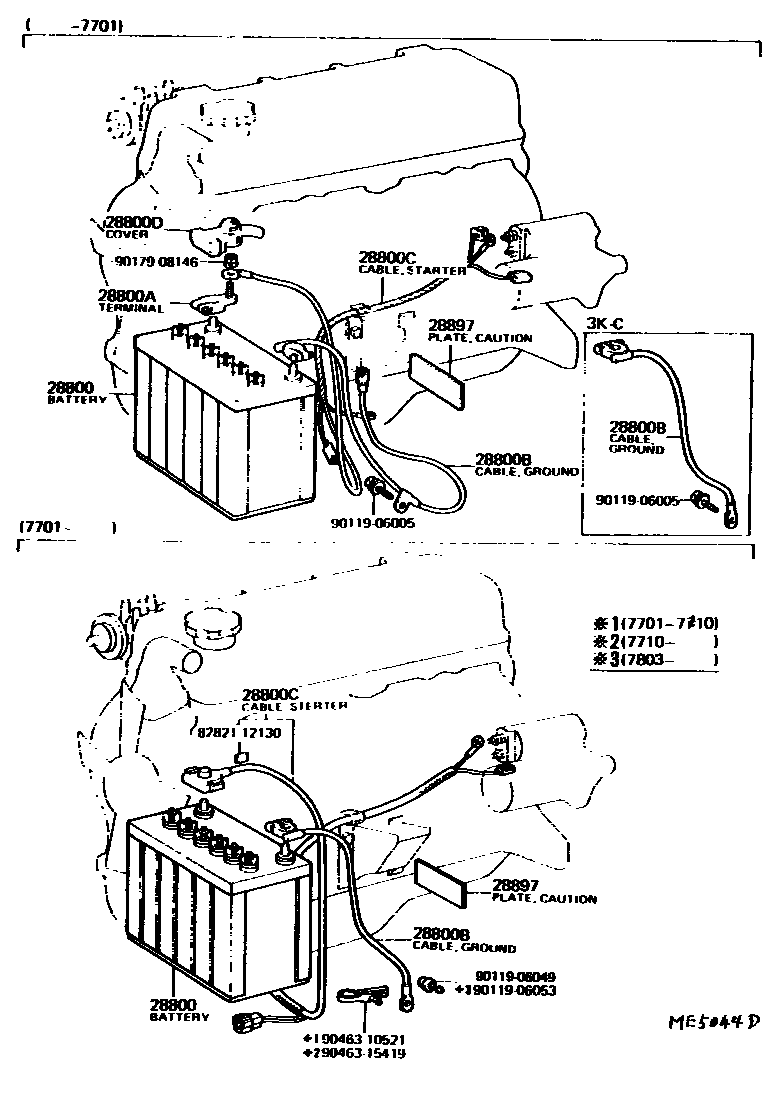

Toyota COROLLA 蓄电池和蓄电池电缆 — Figure 8201
Toyota COROLLA EPC diagram 8201, 蓄电池和蓄电池电缆, with 1 images and 6 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 28800 | battery | 28800-26010 · 28800-30131 · 28800-31031 |
| 28800A | battery positive terminal | 90982-05009 · 90982-05013 |
| 28800B | Cable between battery and ground | 90982-02098 · 90982-02100 · 90982-02127 |
| 28800C | Cable between battery and starter (for battery to main switch) | 82021-12030 · 82021-12060 · 82021-12080 · 82021-12090 · 82021-12110 |
| 28800D | Connector cover (for battery terminals) | 82821-12030 · 82821-12040 |
| 28897 | Battery warning nameplate | 28897-26010 · 28897-38010 · 28897-45010 |
