Toyota COROLLA 车内灯 — Figure 8121

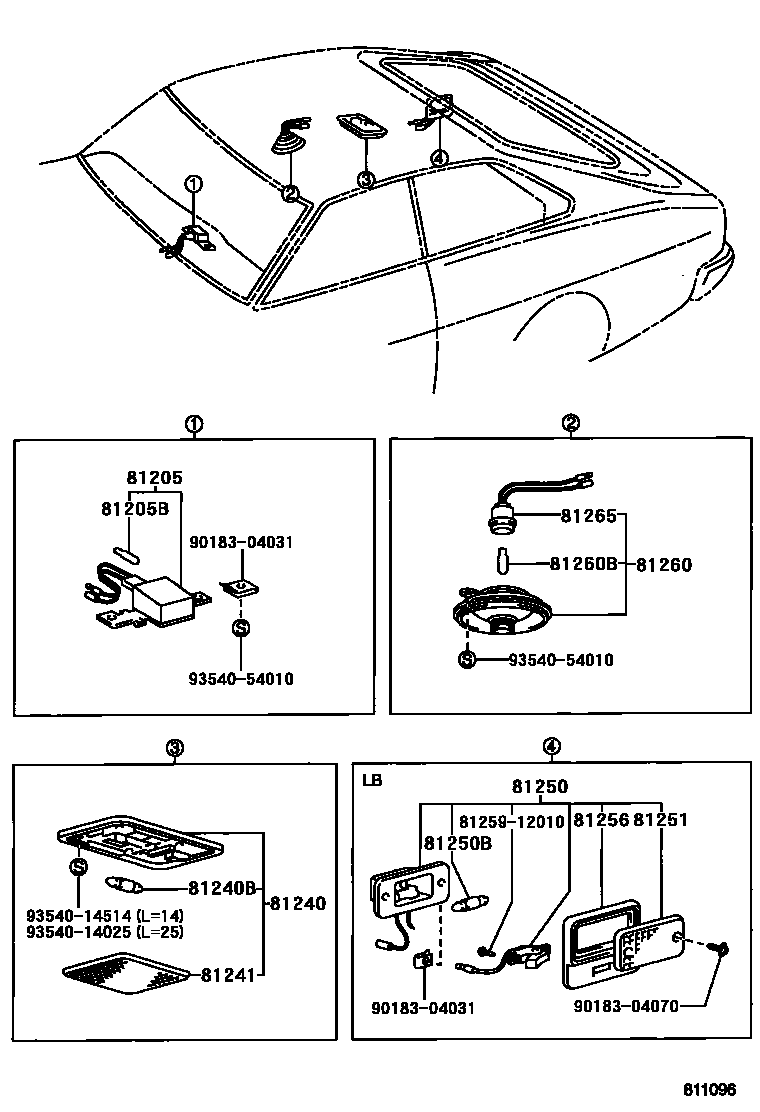

Toyota COROLLA EPC diagram 8121, 车内灯, with 1 images and 10 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 81205 | Ashtray light sub-assembly | 81205-12010 · 81205-12011 · 81205-12020 · 81205-12030 |
| 81205B | ashtray light bulb | 90981-11018 |
| 81240B | Interior light bulb No. 1 | 99132-12100 |
| 81241 | Interior light cover No. 1 | 81241-14010 |
| 81250B | Interior light bulb No. 2 | 99132-13050 |
| 81251 | Interior light cover No. 2 | 81231-30010 |
| 81256 | No. 2 interior light frame | 81256-12010 |
| 81260 | Glove box light assembly | 81260-12010 |
| 81260B | Light bulb (for glove box) | 90981-11013 |
| 81265 | Reading lamp holder and wiring harness | 81265-12010 |
