Toyota COROLLA 后牌照灯 — Figure 8113

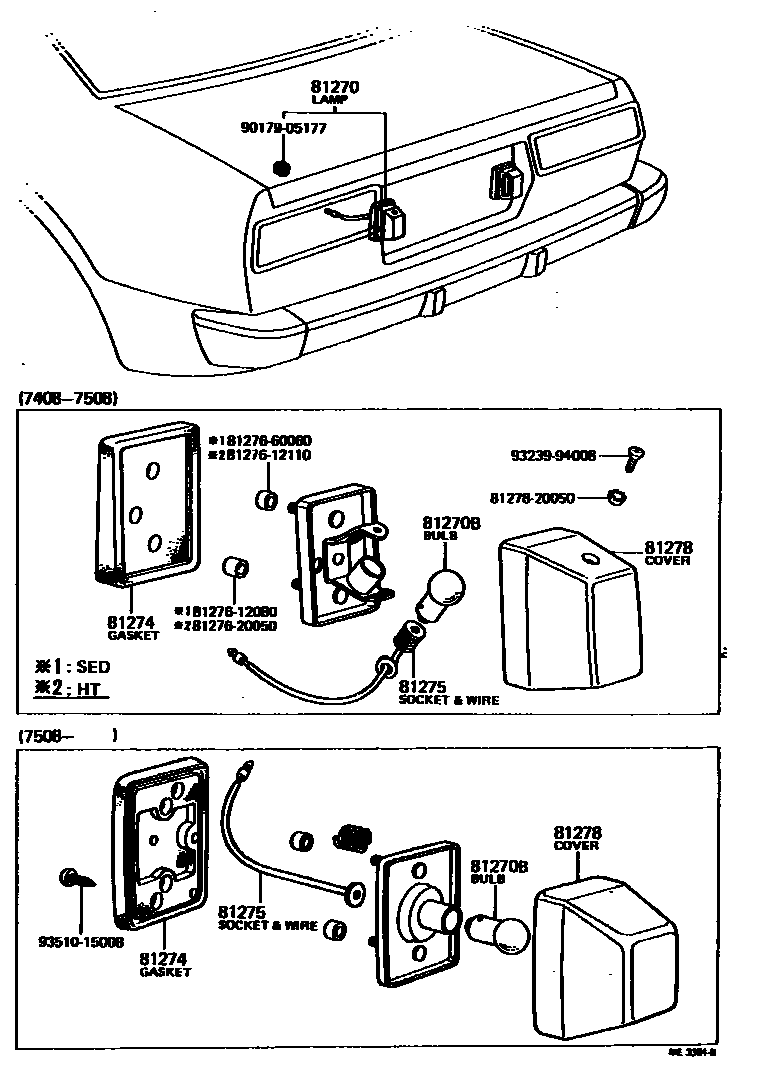

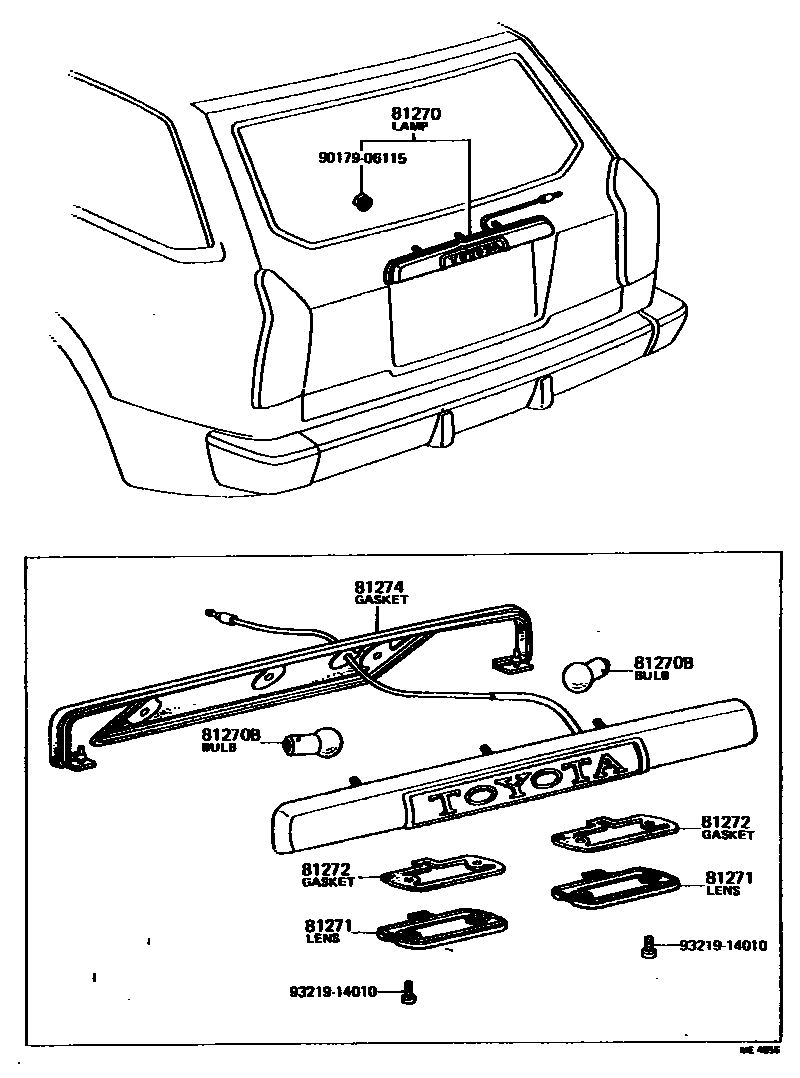

Toyota COROLLA EPC diagram 8113, 后牌照灯, with 2 images and 7 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 81270 | License plate light assembly | 81270-19225 · 81270-19226 · 81270-19265 · 81270-19266 · 81270-19275 · 81270-19276 · 81270-19325 · 81690-19045 · 81690-19046 · 81690-19055 · 81690-19056 · 81690-19065 |
| 81270B | Bulb (for license plate light) | 99132-11075 |
| 81271 | license plate lamp shade | 81271-13070 |
| 81272 | License plate lamp shade gasket | 81272-13070 |
| 81274 | License plate light body gasket | 81274-12080 · 81274-12081 · 81274-12110 · 81274-13070 · 81694-12030 · 81694-12031 · 81694-12040 |
| 81275 | License plate lamp holder and wiring harness | 81275-12081 · 81275-20050 |
| 81278 | license plate light cover | 81271-12080 · 81271-12110 · 81271-12120 · 81271-20050 |
