Toyota COROLLA 后组合灯 — Figure 8111

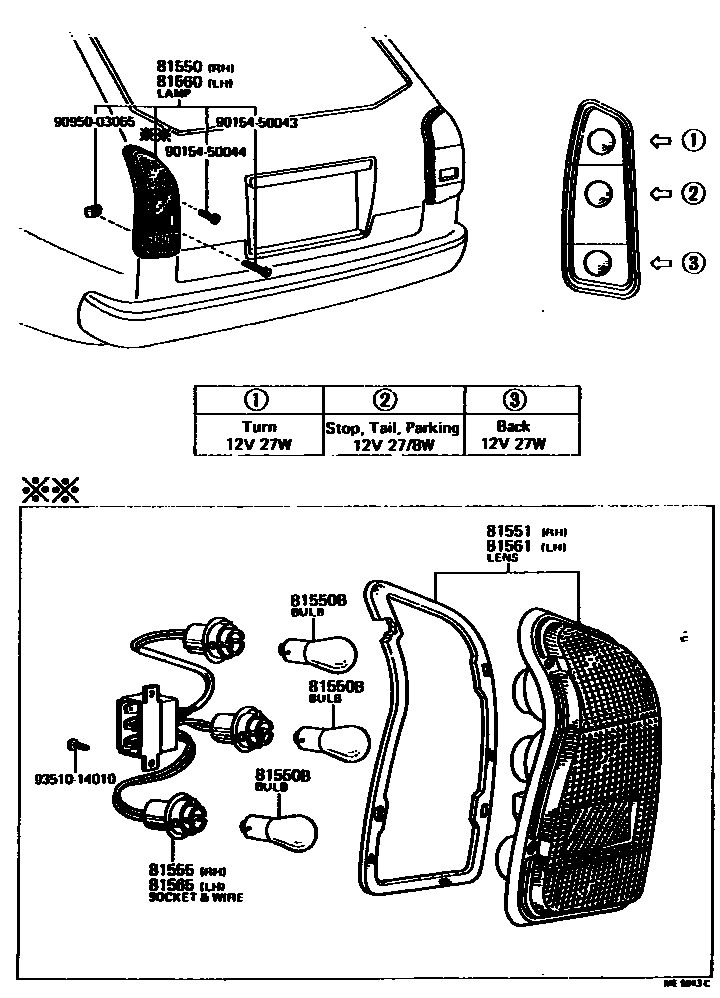

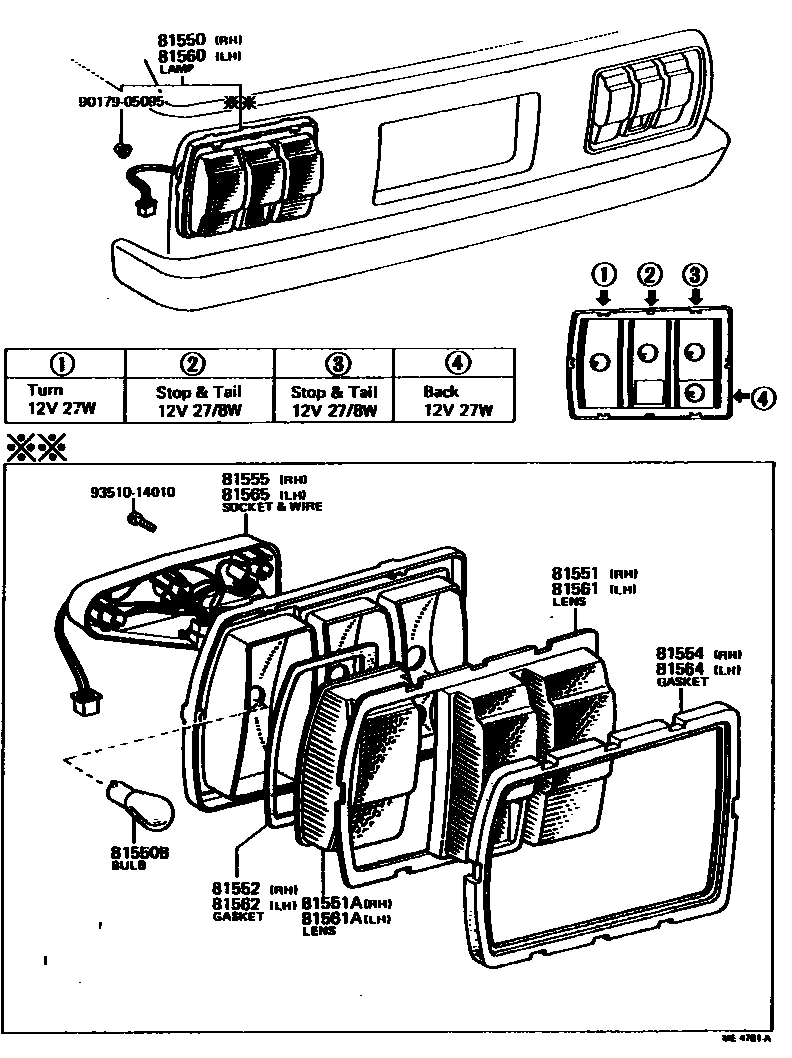

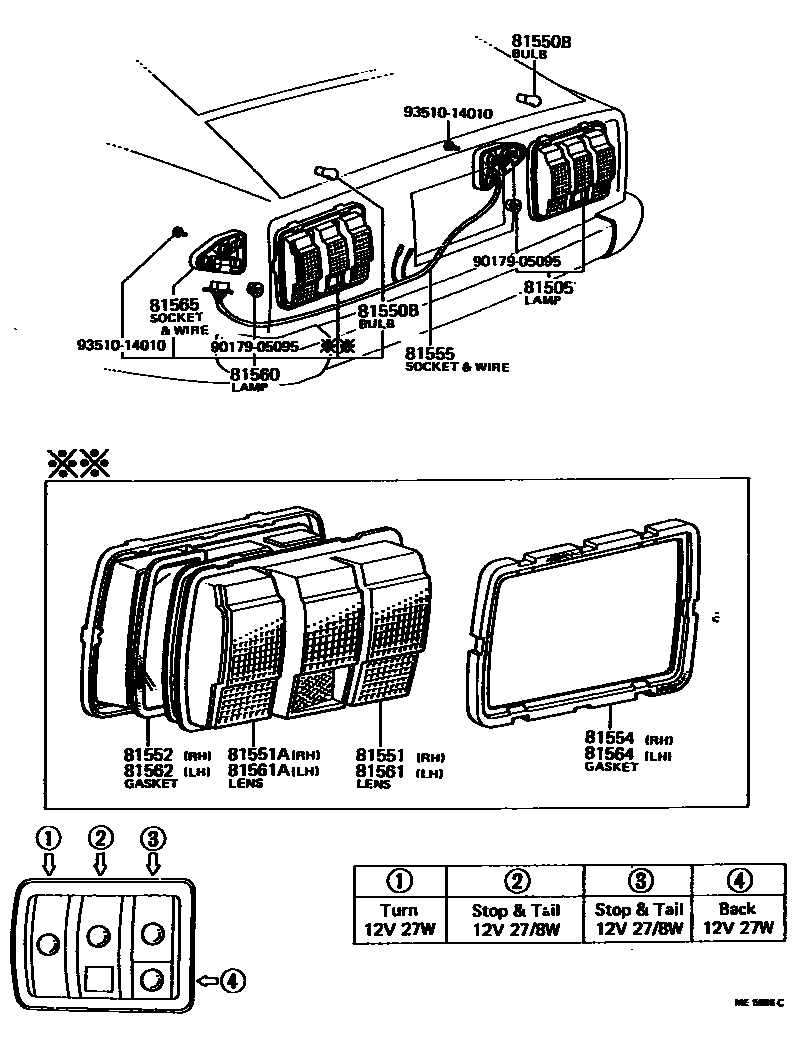

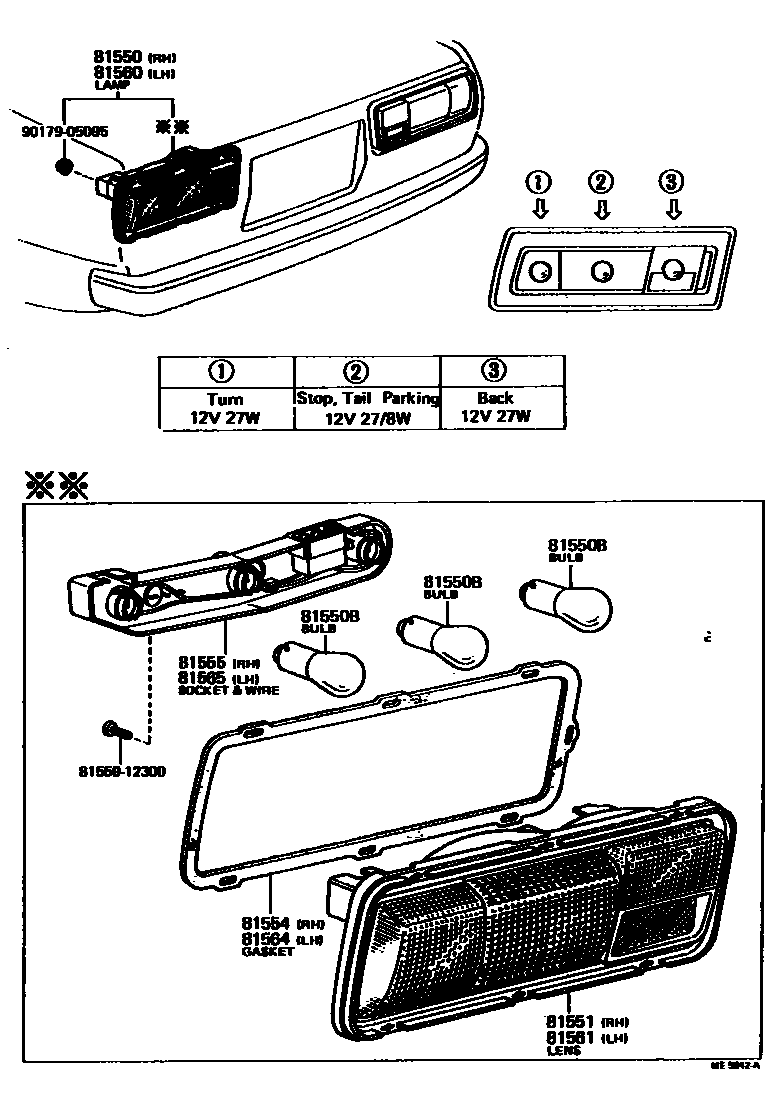

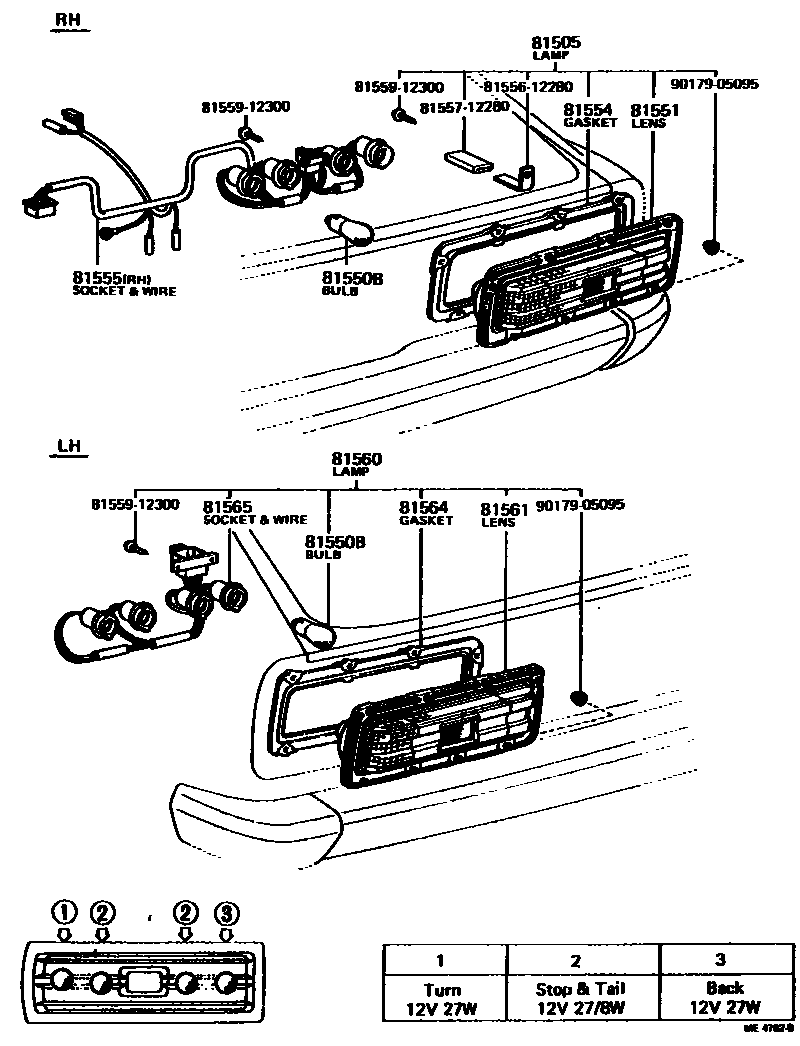

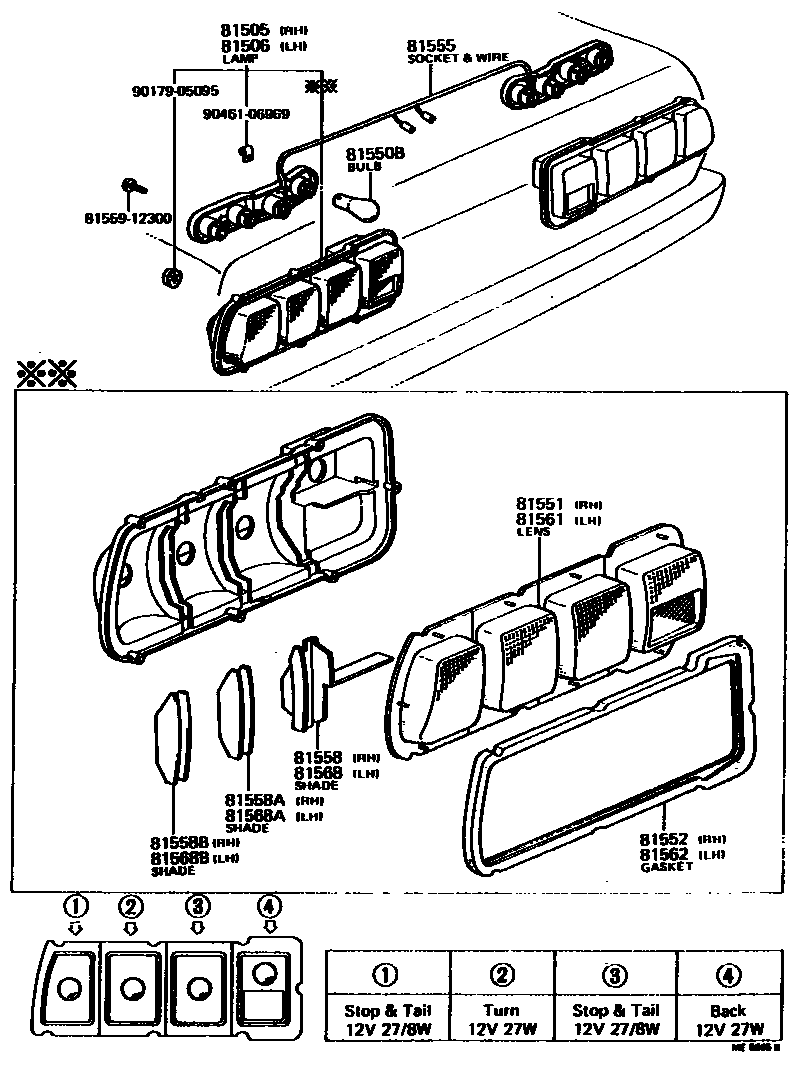

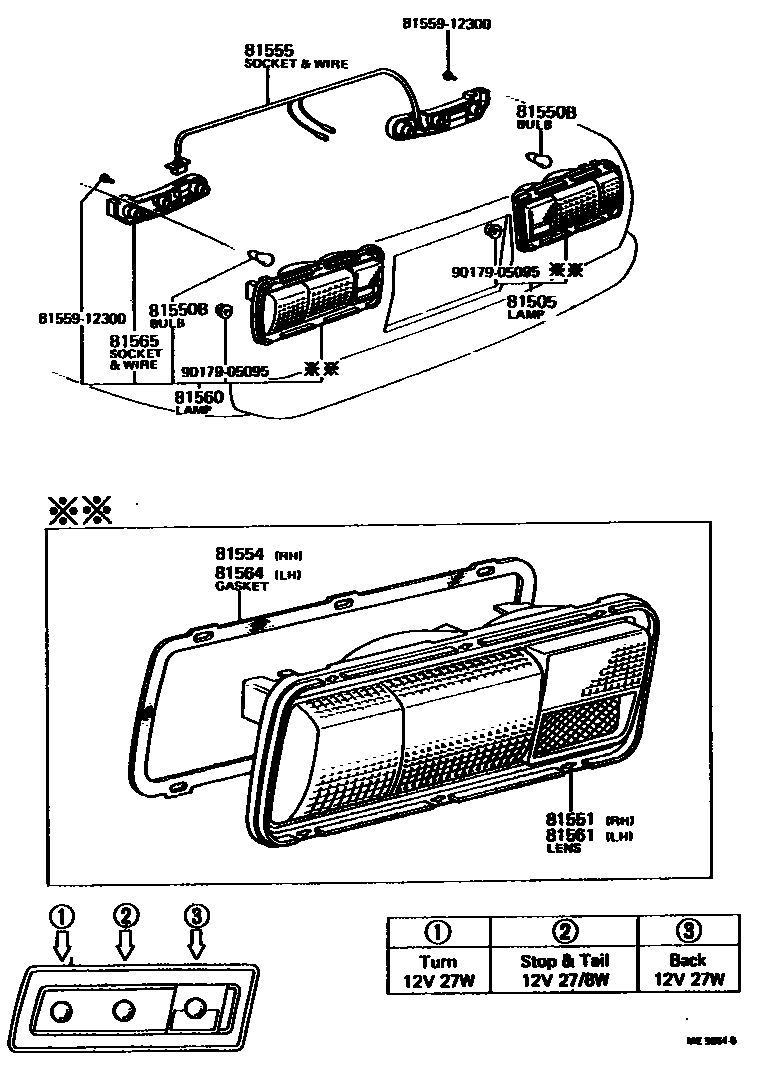

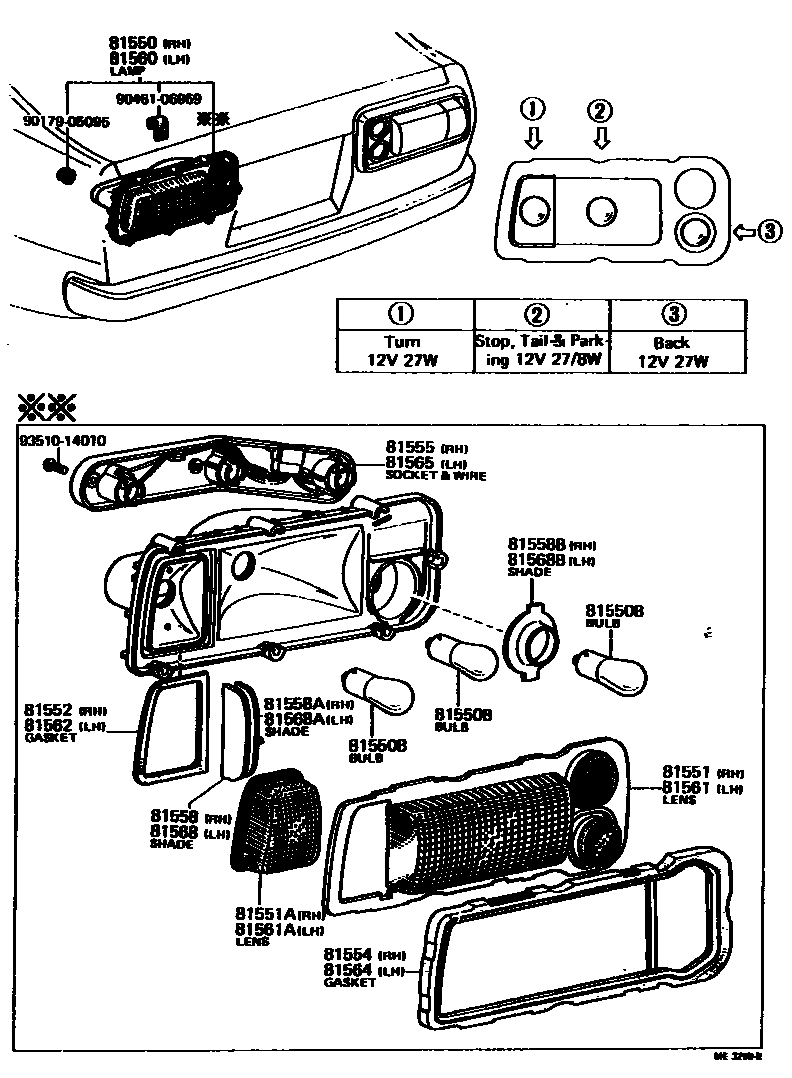

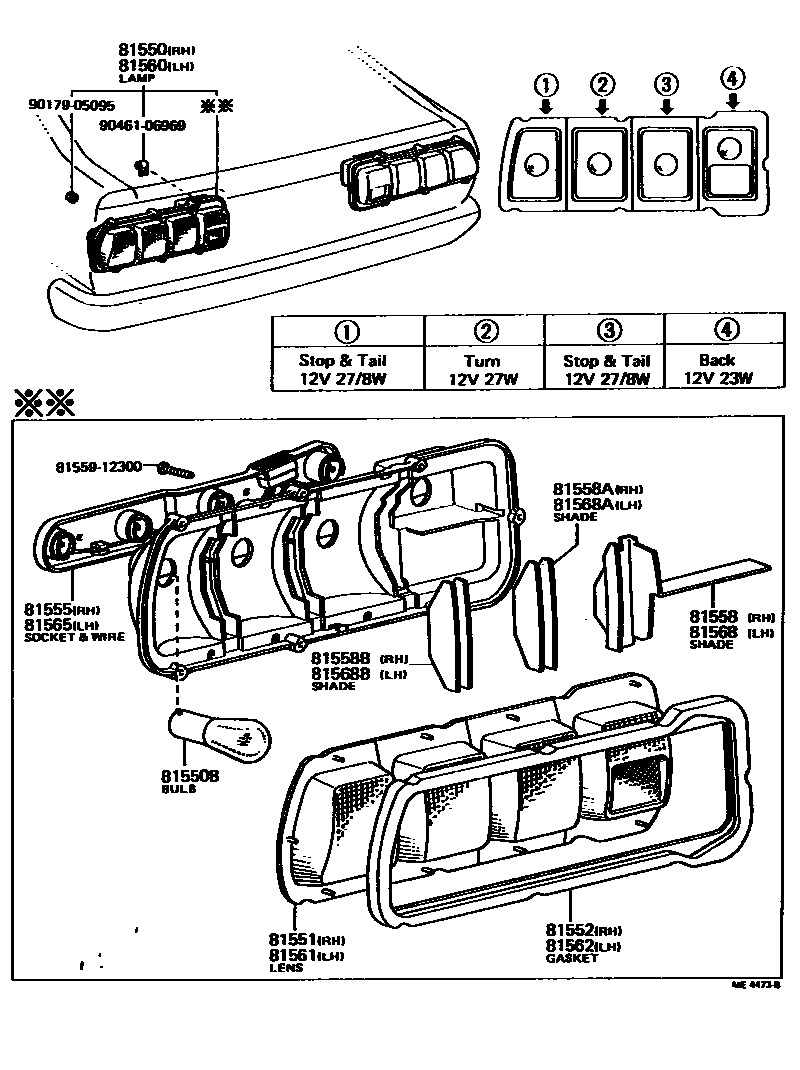

Toyota COROLLA EPC diagram 8111, 后组合灯, with 9 images and 21 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 81505 | Right rear combination lamp sub-assembly | 81505-19035 · 81505-19145 · 81505-19155 · 81505-19165 |
| 81506 | Left rear combination lamp sub-assembly | 81506-19065 |
| 81550 | Right rear combination light assembly | 81550-19745 · 81550-19755 · 81550-19756 · 81550-19765 · 81550-19855 |
| 81550B | Bulb (for rear combination lights) | 99132-11270 · 99132-21270 |
| 81551 | Right rear combination lamp shade | 81551-12320 · 81551-12330 · 81551-12350 · 81551-12380 · 81551-12400 · 81551-13190 |
| 81551A | Right rear combination lamp shade | 81557-12320 · 81557-12350 |
| 81552 | Right rear combination lamp shade gasket | 81552-12330 · 81554-12320 · 81554-12350 |
| 81554 | Right rear combination lamp body gasket | 81552-12320 · 81552-12350 · 81554-12280 · 81554-12300 |
| 81555 | Right rear combination lamp lamp holder and wiring harness sub-assembly | 81555-12380 · 81555-12400 · 81555-12401 · 81555-12420 · 81555-12421 · 81555-12422 · 81555-12460 · 81555-12461 · 81555-13170 |
| 81558 | No. 1 right rear combination light lampshade | 81557-12330 · 81558-12320 |
| 81558A | No. 2 right rear combination light lampshade | 81558-12330 · 81559-12320 |
| 81558B | No. 3 right rear combination light lampshade | 81558-12330 · 81559-12320 |
| 81560 | Left rear combination light assembly | 81560-19725 · 81560-19735 · 81560-19736 · 81560-19745 · 81560-19805 · 81560-19835 |
| 81561 | Left rear combination lamp shade | 81561-12320 · 81561-12330 · 81561-12350 · 81561-12380 · 81561-12400 · 81561-13190 |
| 81561A | Left rear combination lamp shade | 81567-12320 · 81567-12350 |
| 81562 | Left rear combination lamp shade gasket | 81554-12320 · 81554-12350 · 81562-12330 |
| 81564 | Left rear combination lamp body gasket | 81562-12320 · 81562-12350 · 81564-12280 · 81564-12300 |
| 81565 | Left rear combination lamp lamp holder and wiring harness sub-assembly | 81555-13170 · 81565-12380 · 81565-12400 · 81565-12420 · 81565-12421 · 81565-12460 |
| 81568 | No. 1 left rear combination light lampshade | 81558-12320 · 81567-12330 |
| 81568A | No. 2 left rear combination light lampshade | 81558-12330 · 81559-12320 |
| 81568B | No. 3 left rear combination light lampshade | 81558-12330 · 81559-12320 |
