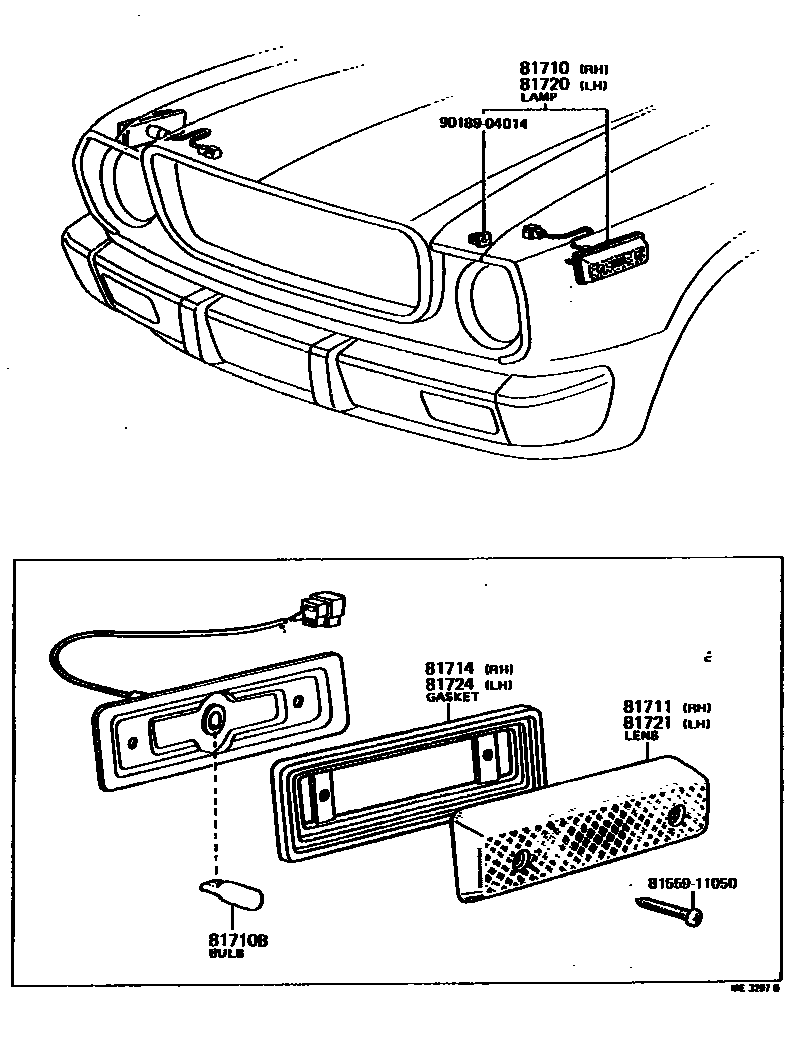

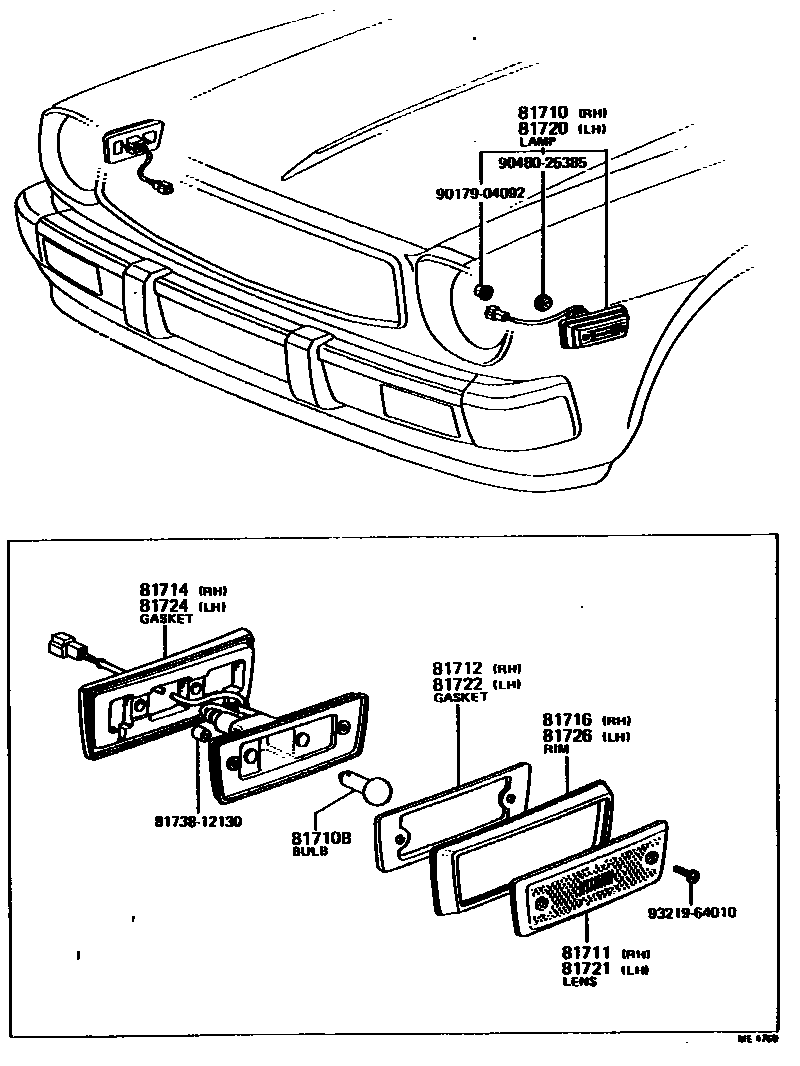

Toyota COROLLA 前标示灯 — Figure 8105
Toyota COROLLA EPC diagram 8105, 前标示灯, with 2 images and 11 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 81710 | Right front width indicator light assembly | 81730-19225 · 81730-19226 · 81730-19265 · 81730-19266 |
| 81710B | Front width light bulb | 99132-12050 · 99132-12080 |
| 81711 | Right front width indicator lamp cover | 81731-12090 · 81731-14040 |
| 81712 | Right front width light lampshade gasket | 81732-14040 |
| 81714 | Right front width light body gasket | 81734-12090 · 81734-12130 |
| 81716 | Right front width light frame | 81736-20100 |
| 81720 | Left front width indicator light assembly | 81740-19205 · 81740-19206 · 81740-19245 · 81740-19246 |
| 81721 | Left front width indicator lamp cover | 81741-12090 · 81741-14040 |
| 81722 | Left front width light lampshade gasket | 81742-14040 |
| 81724 | Left front width light body gasket | 81744-12090 · 81744-12130 |
| 81726 | Left front width light frame | 81746-20100 |
