Toyota COROLLA 前转向灯 — Figure 8103

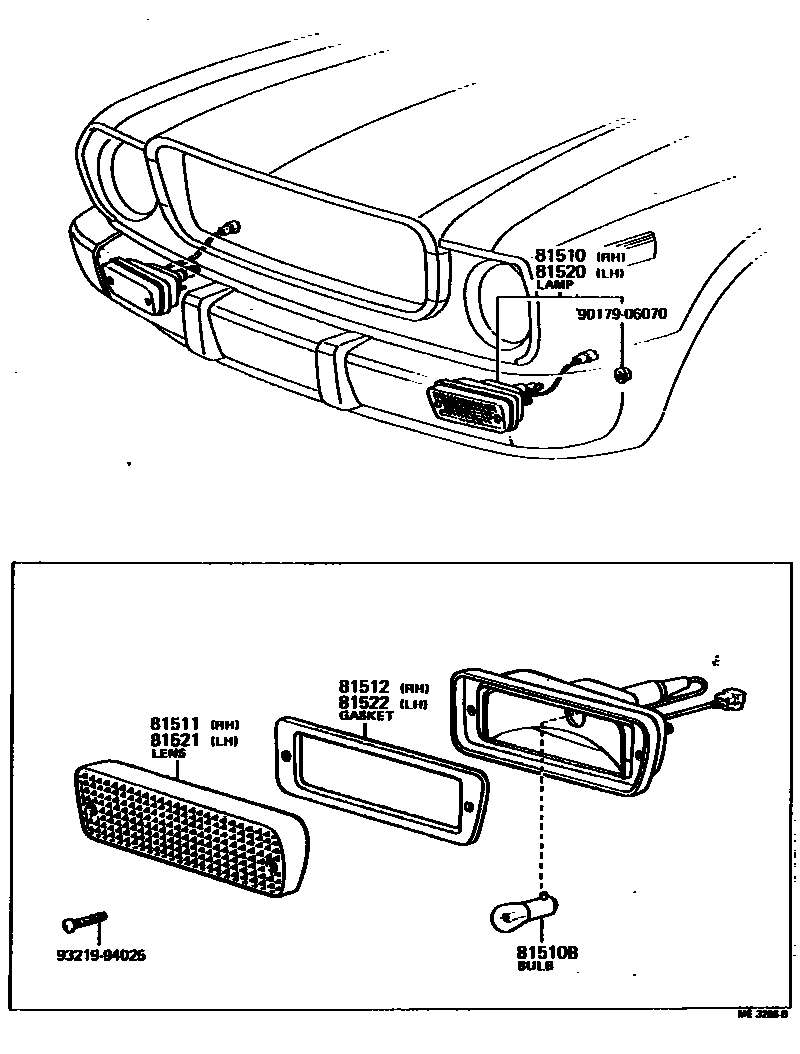

Toyota COROLLA EPC diagram 8103, 前转向灯, with 1 images and 7 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 81510 | Right front turn signal lamp assembly | 81510-19455 · 81510-19456 · 81510-19465 · 81510-19466 |
| 81510B | Bulb (for front turn signal lamp) | 99132-21270 |
| 81511 | Right front turn signal lamp cover | 81511-12230 · 81511-12250 |
| 81512 | Right front turn signal lamp housing gasket | 81512-12230 · 81512-12250 |
| 81520 | Left front turn signal lamp assembly | 81520-19455 · 81520-19456 · 81520-19465 · 81520-19466 |
| 81521 | Left front turn signal lamp cover | 81521-12220 · 81521-12240 |
| 81522 | Left front turn signal lamp housing gasket | 81512-12230 · 81522-12240 |
