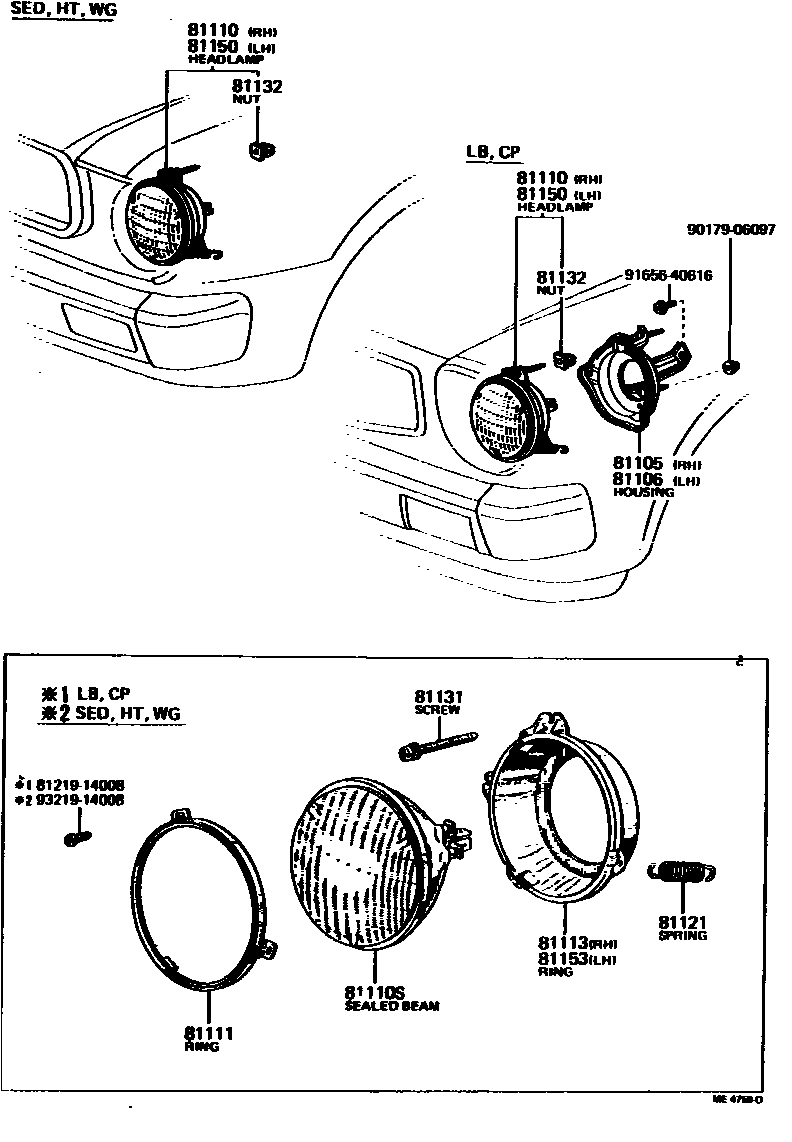

Toyota COROLLA Headlamp — Figure 8101
Toyota COROLLA EPC diagram 8101, Headlamp, with 1 images and 11 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 81105 | Right headlight housing sub-assembly | 53037-12010 |
| 81106 | Left headlight housing sub-assembly | 53038-12010 |
| 81110 | Right headlight assembly | 81110-19425 · 81110-19435 · 81110-19505 · 81110-19965 · 81110-19975 |
| 81110S | No. 1 enclosed lamp assembly | 90981-01013 · 90981-01016 · 90981-01025 · 90981-01031 |
| 81111 | Closed headlight retaining ring | 81111-10120 · 81111-12021 · 81111-12420 · 81111-12421 · 81111-22150 |
| 81113 | Right No. 1 closed lamp seat | 81113-10050 · 81113-12200 · 81113-12210 · 81113-12410 · 81113-12420 |
| 81121 | headlight spring | 81121-12070 · 81121-12140 · 81121-62010 |
| 81131 | Headlight adjustment screw | 81131-10031 · 81131-12021 · 81131-12150 |
| 81132 | Headlight self-locking nut | 90189-05013 |
| 81150 | Left headlight assembly | 81150-19375 · 81150-19385 · 81150-19455 · 81150-19905 · 81150-19915 |
| 81153 | No. 1 closed lamp seat on the left | 81153-10010 · 81153-12140 · 81153-12150 · 81153-12340 · 81153-12350 |
