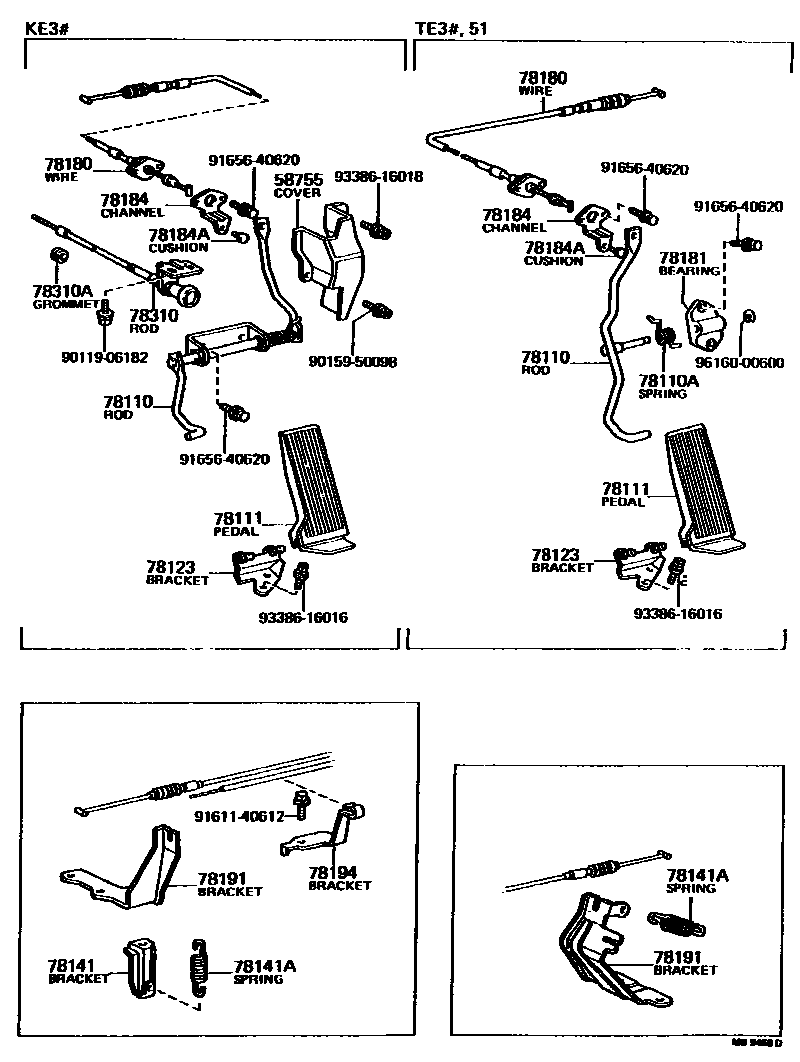

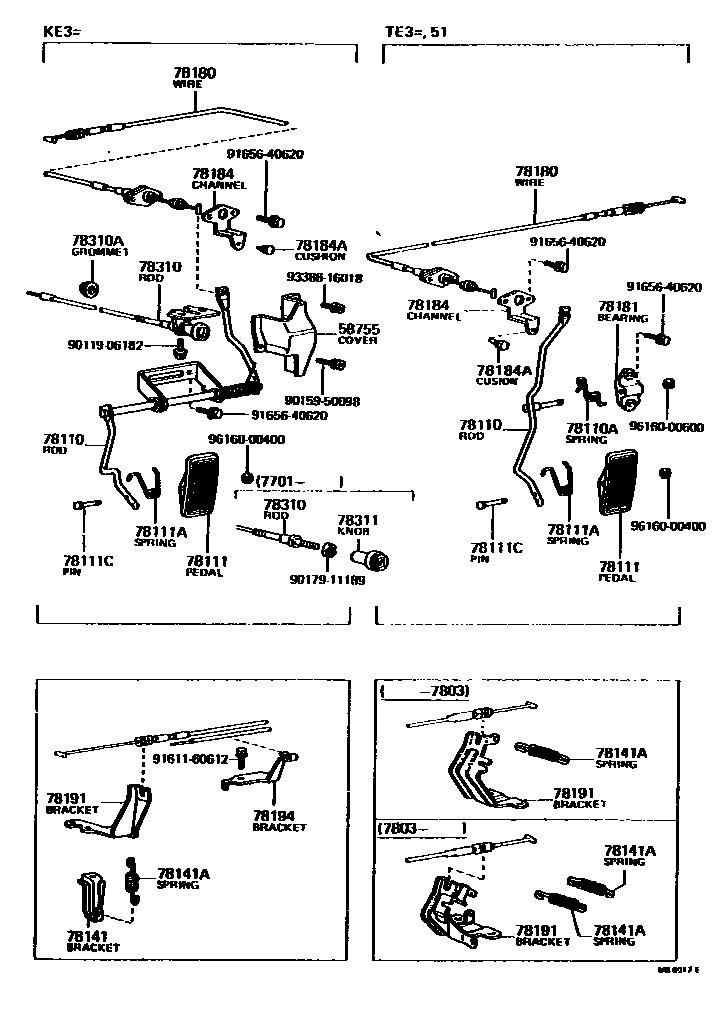

Toyota COROLLA accelerator pedal connecting rod — Figure 7801
Toyota COROLLA EPC diagram 7801, accelerator pedal connecting rod, with 2 images and 18 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 58755 | accelerator pedal shaft cover | 78109-12020 |
| 78110 | Accelerator pedal lever assembly | 78102-12080 · 78102-12081 · 78102-12090 · 78102-12091 |
| 78110A | Spring (for accelerator pedal lever) | 90508-20402 |
| 78111 | accelerator pedal | 78111-12080 · 78111-12100 |
| 78111A | Spring (for gas pedal) | 90508-23003 |
| 78111C | pin (for gas pedal) | 90249-05001 |
| 78123 | accelerator pedal bracket | 78114-12080 |
| 78141 | Throttle cable return spring bracket | 78141-12011 |
| 78141A | Tension spring (for throttle cable return spring) | 90507-08002 · 90507-10001 · 90507-10002 · 90507-12021 · 90507-12025 |
| 78180 | Throttle cable assembly | 78180-12210 · 78180-12211 · 78180-12212 · 78180-12213 · 78180-12220 · 78180-12221 · 78180-12222 · 78180-12223 |
| 78181 | Accelerator pedal rod bracket bearing | 78124-12050 |
| 78184 | Accelerator pedal idle speed adjustment stop slot | 78181-12050 · 78181-12051 · 78181-12070 · 78181-12071 |
| 78184A | Cushion pad (for accelerator pedal adjustment stop groove) | 90541-06008 |
| 78191 | Throttle cable bracket | 78024-12010 · 78184-12040 · 78184-12090 · 78184-12091 |
| 78194 | No. 2 throttle cable bracket | 78186-10010 · 78186-12020 · 78186-12040 · 78186-12041 |
| 78310 | Choke door cable assembly | 78310-12220 · 78310-12260 · 78310-12310 |
| 78310A | Choke cable retaining ring | 90480-13055 |
| 78311 | Choke control cable button | 78311-12010 |
