Toyota COROLLA 木纹面板和防护条 — Figure 7505

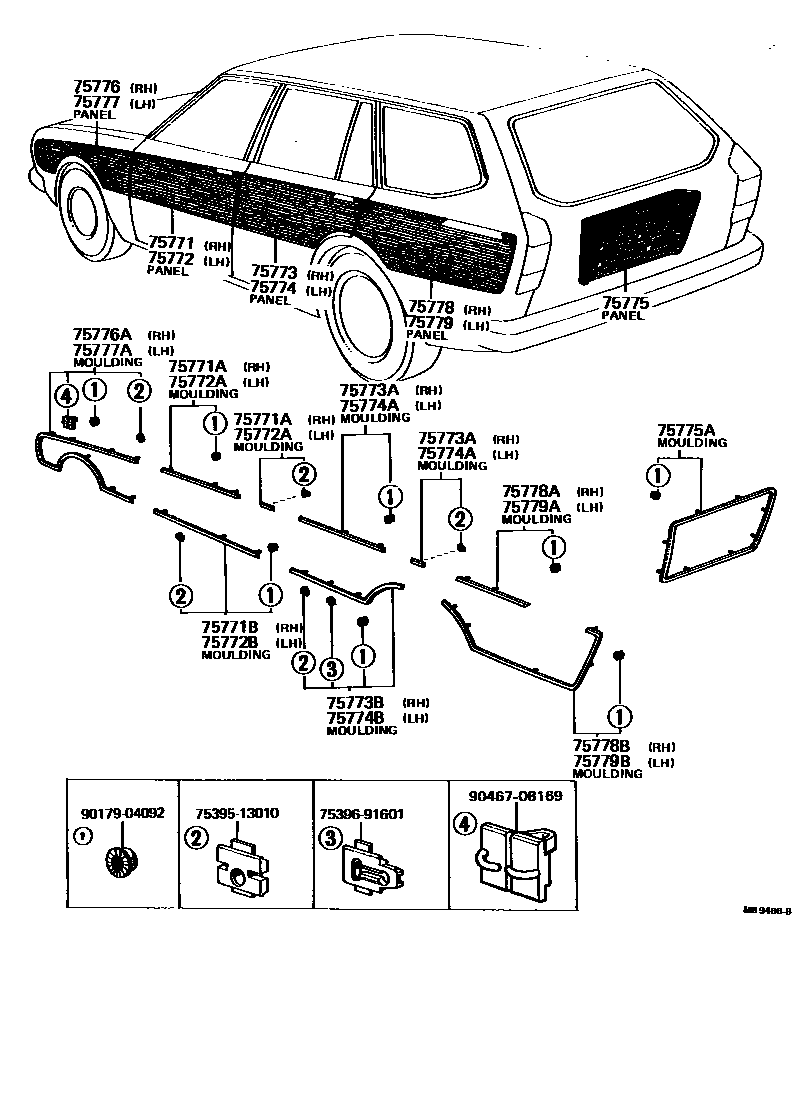

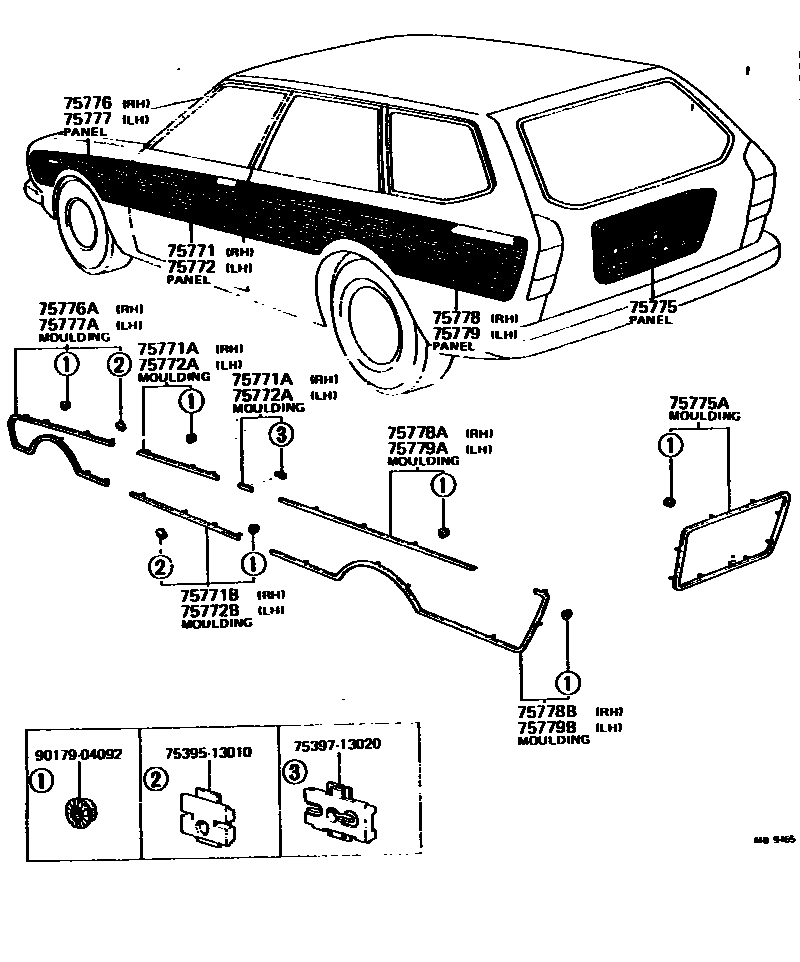

Toyota COROLLA EPC diagram 7505, 木纹面板和防护条, with 2 images and 24 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 75771 | Right front door outer trim panel | 75985-13010 · 75985-13020 |
| 75771A | No. 1 right front door outer trim panel protective strip | 75071-19015 · 75071-19025 · 75733-19015 · 75733-19025 |
| 75771B | No. 2 right front door outer trim panel protective strip | 75073-19015 · 75073-19025 |
| 75772 | Left front door outer trim panel | 75986-13010 · 75986-13020 |
| 75772A | No. 1 left front door outer trim panel protective strip | 75072-19015 · 75072-19025 · 75733-19015 · 75734-19015 |
| 75772B | No. 2 left front door outer trim panel protective strip | 75074-19015 · 75074-19025 |
| 75773 | Right rear door outer trim panel | 75987-13010 |
| 75773A | No. 1 right rear door outer trim panel protective strip | 75075-19015 · 75743-19025 |
| 75773B | No. 2 right rear door outer trim panel protective strip | 75077-19035 |
| 75774 | Left rear door outer trim panel | 75988-13010 |
| 75774A | No. 1 left rear door outer trim panel protective strip | 75076-19035 · 75744-19015 |
| 75774B | No. 2 left rear door outer trim panel protective strip | 75078-19015 |
| 75775 | Rear door outer trim panel | 75995-13010 |
| 75775A | No. 1 rear door outer trim panel protective strip | 75801-19055 |
| 75776 | Right front fender outer trim panel | 75981-13010 |
| 75776A | No. 1 right front fender outer trim protective strip | 75601-19035 |
| 75777 | Left front fender outer trim panel | 75982-13010 |
| 75777A | No. 1 left front fender outer trim protective strip | 75602-19035 |
| 75778 | Right side enclosure outer decorative panel | 75991-13010 · 75991-13020 |
| 75778A | No. 1 right side enclosure outer decorative panel protective strip | 75605-19015 · 75605-19025 |
| 75778B | No. 2 right side enclosure outer decorative panel protective strip | 75065-19015 · 75065-19025 |
| 75779 | Decorative panel on the outside of the left side enclosure | 75992-13010 · 75992-13020 |
| 75779A | No. 1 left side enclosure outer decorative panel protective strip | 75606-19015 · 75606-19025 |
| 75779B | No. 2 left side enclosure outer decorative panel protective strip | 75066-19015 · 75066-19025 |
