Toyota COROLLA 后防护条 — Figure 7504

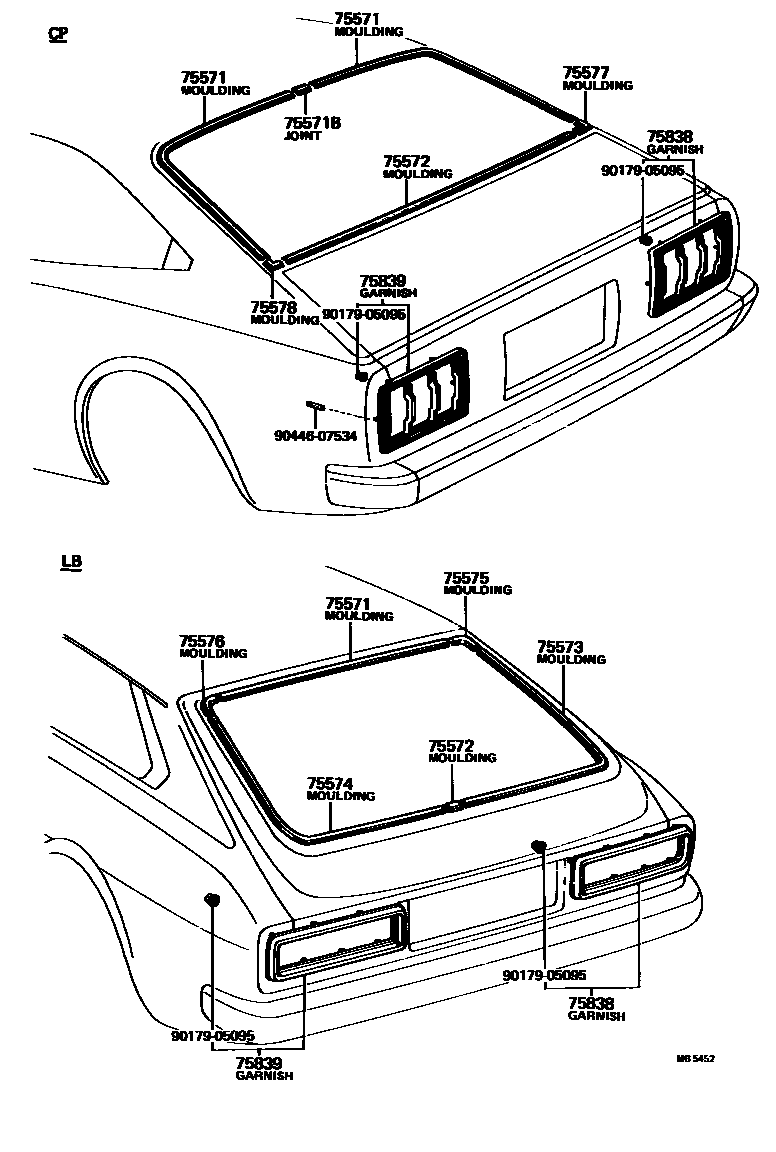

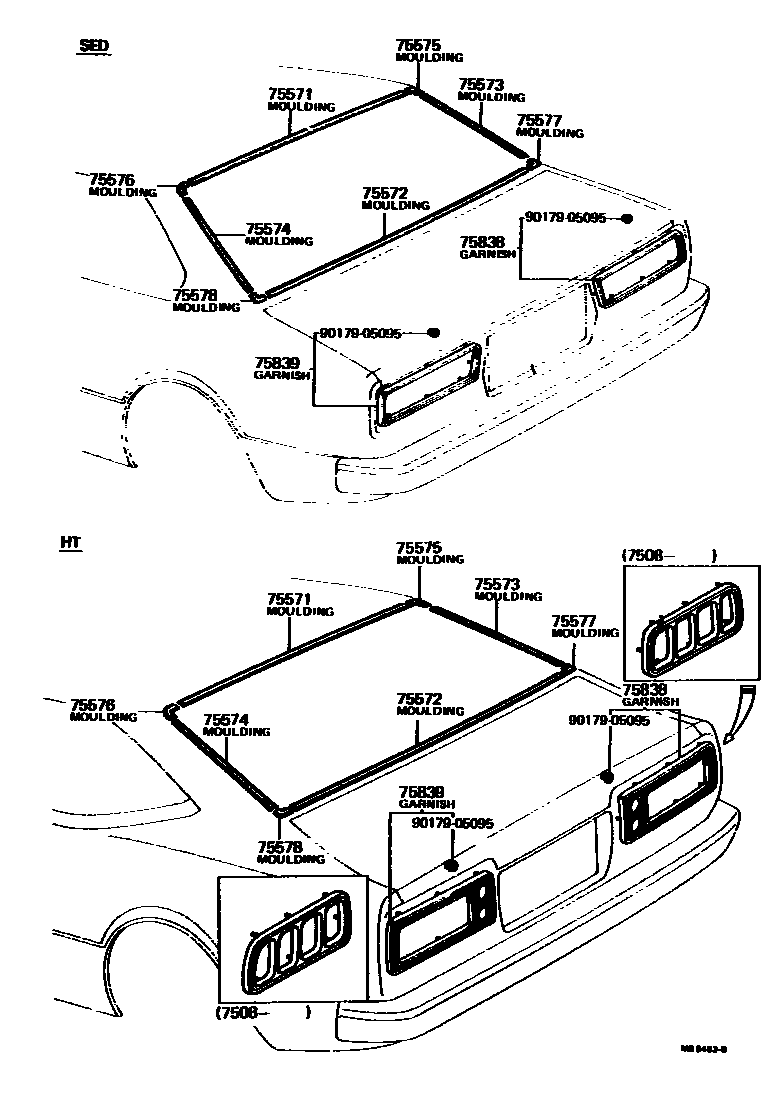

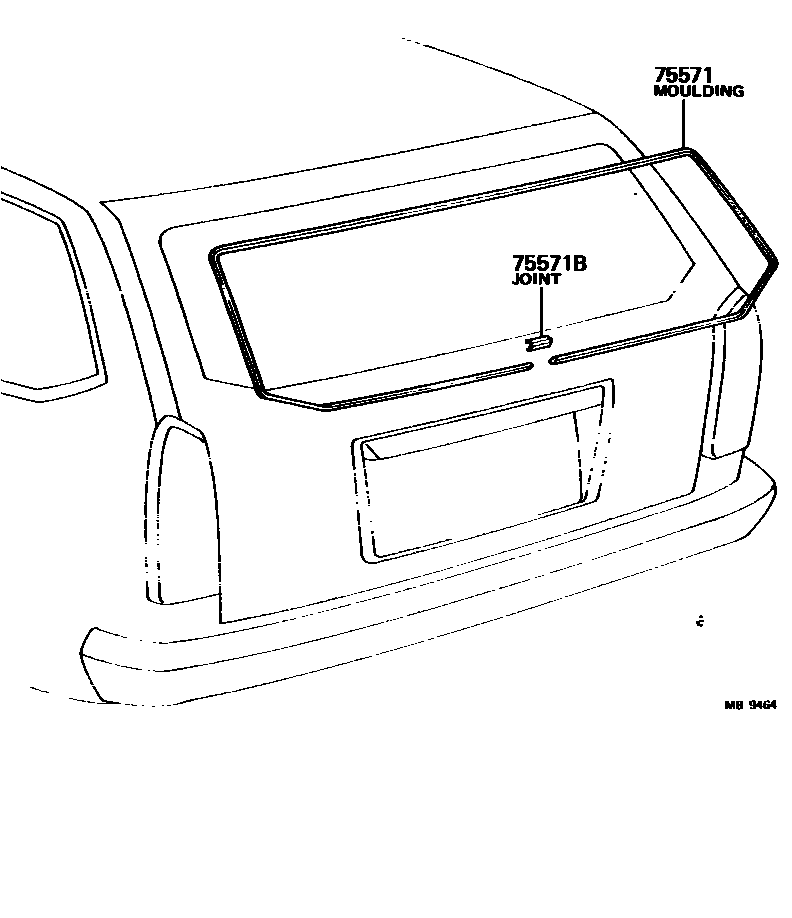

Toyota COROLLA EPC diagram 7504, 后防护条, with 3 images and 11 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 75571 | Protective strips on the outside of the rear window | 68293-13050 · 75571-12090 · 75571-12100 · 75571-12130 · 75572-12090 |
| 75571B | Protective strip connector on rear window | 68295-13011 · 75581-12030 |
| 75572 | Protective strip under rear window | 75575-12040 · 75575-12050 · 75575-12060 · 75581-12030 |
| 75573 | Right protective strip on rear window side | 75533-12140 · 75573-12120 |
| 75574 | Protective strip on the left side of the rear window | 75533-12140 · 75574-12060 |
| 75575 | Protective strip on the upper right side of the rear window corner | 75581-12010 · 75581-12020 · 75581-12050 |
| 75576 | Protective strip on the upper left corner of the back window | 75581-12010 · 75581-12020 · 75581-12050 |
| 75577 | Protective strip on the lower right corner of the back window | 75543-12010 · 75583-12020 · 75583-12030 |
| 75578 | Protective strip at lower left corner of rear window | 75543-12010 · 75583-12020 · 75583-12030 |
| 75838 | Right rear combination light decorative panel | 75911-19025 · 75911-19035 · 75911-19036 · 75911-19065 · 75911-19075 · 75911-19085 · 75911-19095 · 75911-19115 · 75911-19125 · 75911-19155 |
| 75839 | Left rear combination light decorative panel | 75912-19015 · 75912-19025 · 75912-19026 · 75912-19055 · 75912-19065 · 75912-19075 · 75912-19085 · 75912-19105 · 75912-19115 · 75912-19145 |
