Toyota COROLLA 侧防护条 — Figure 7503

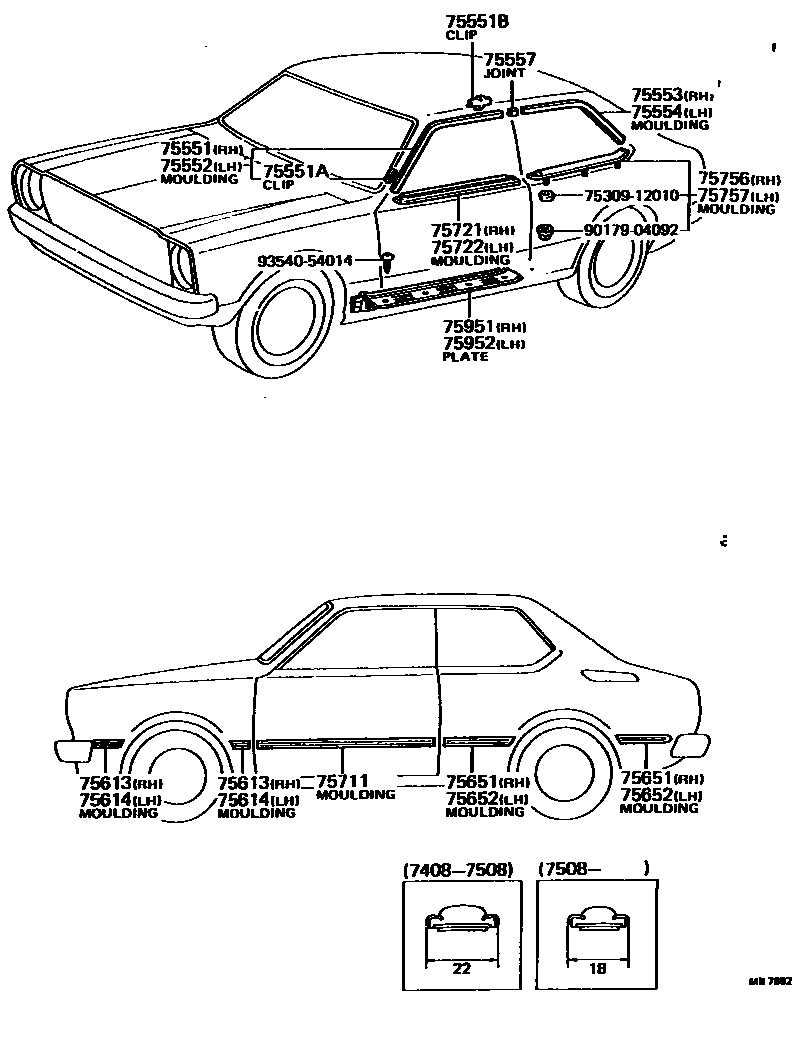

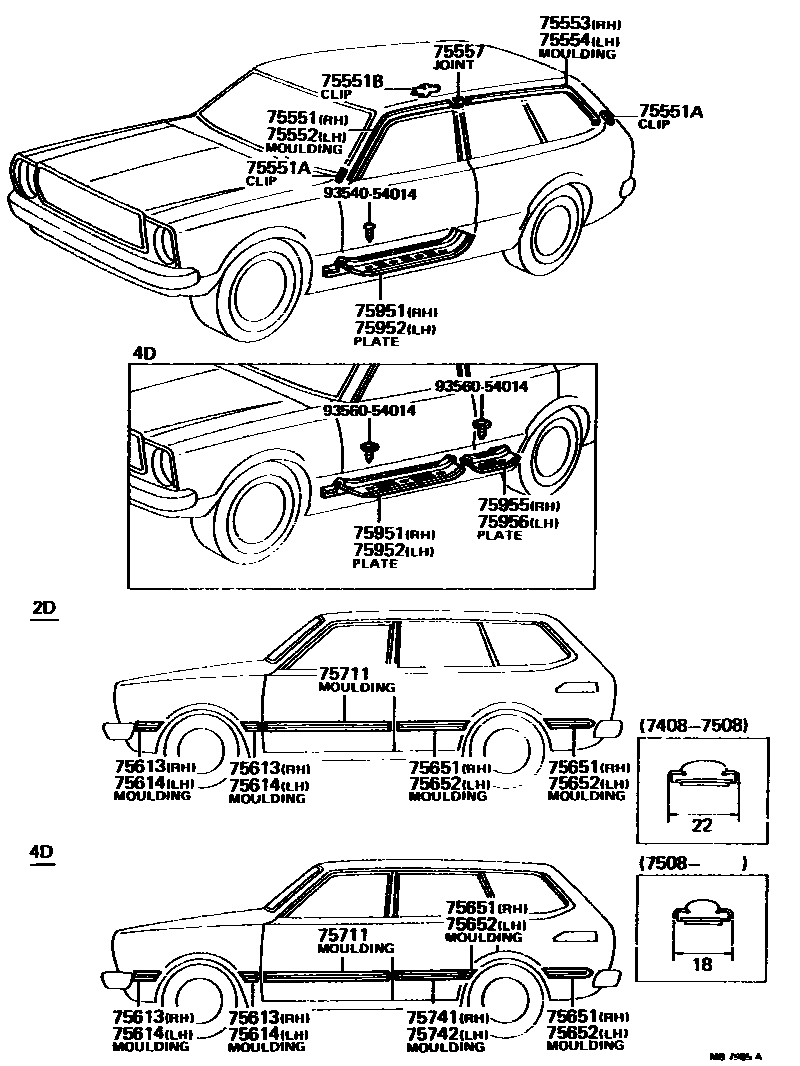

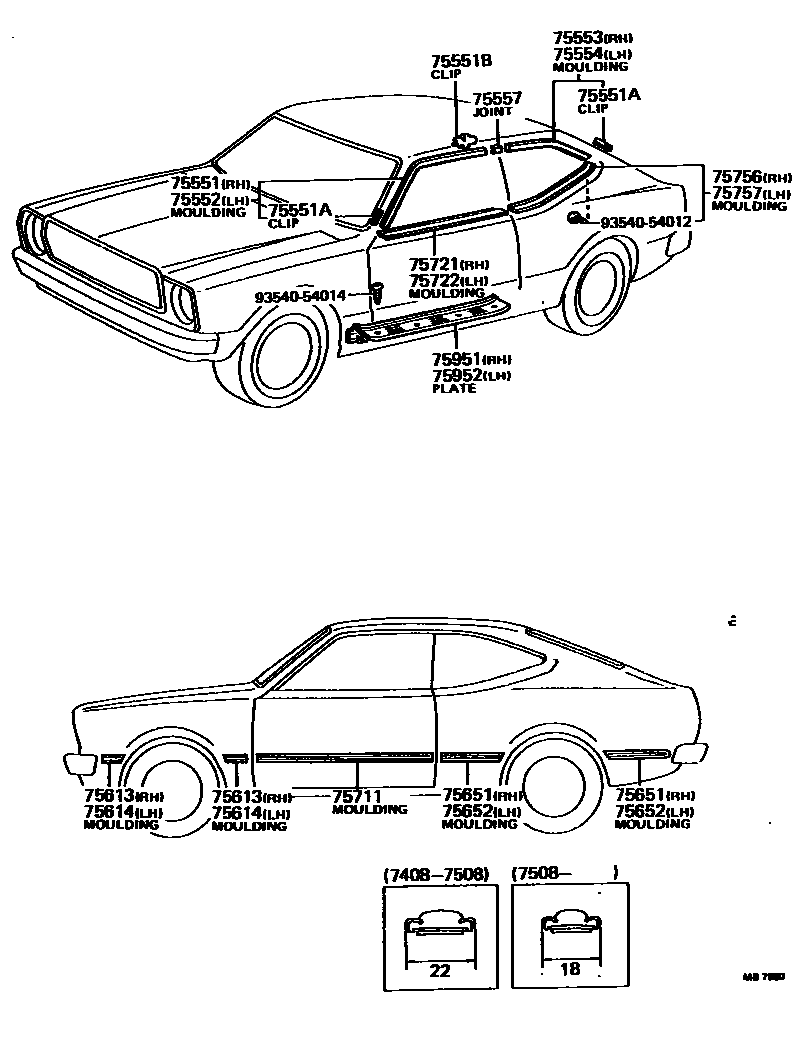

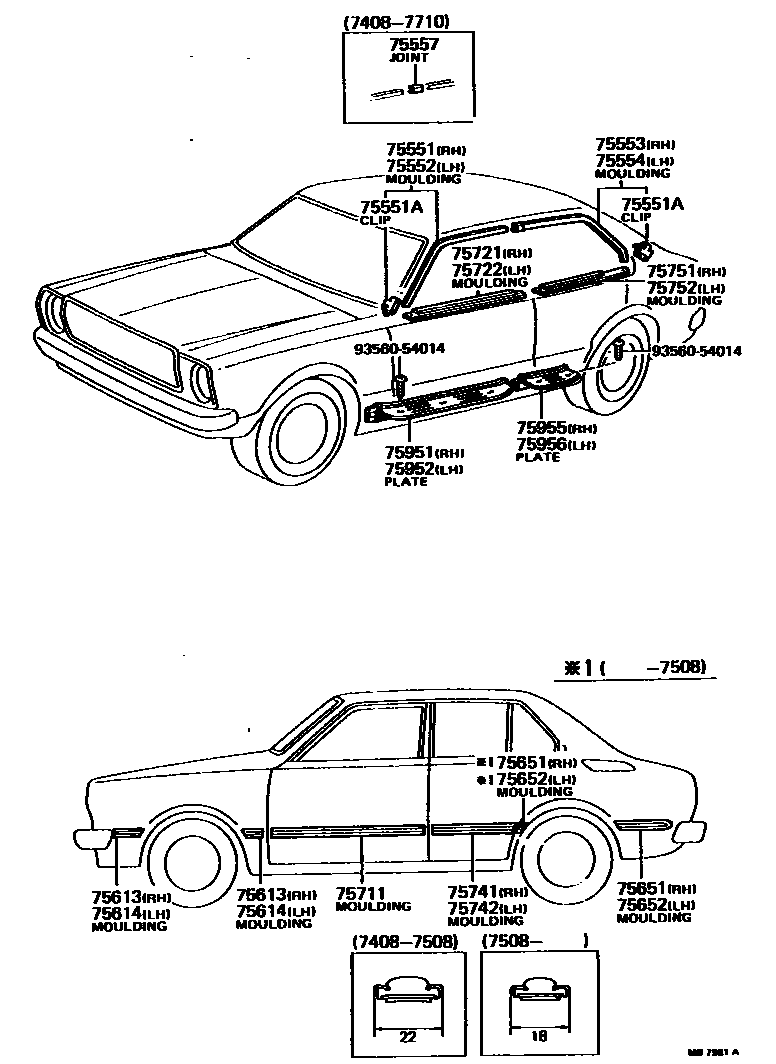

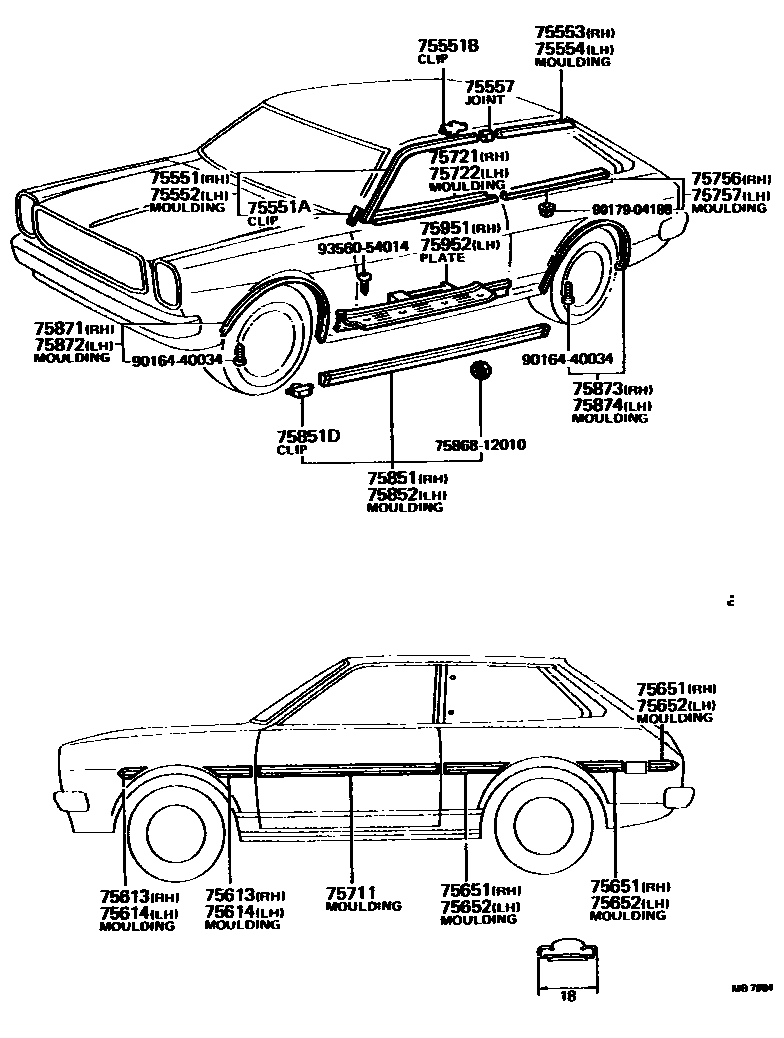

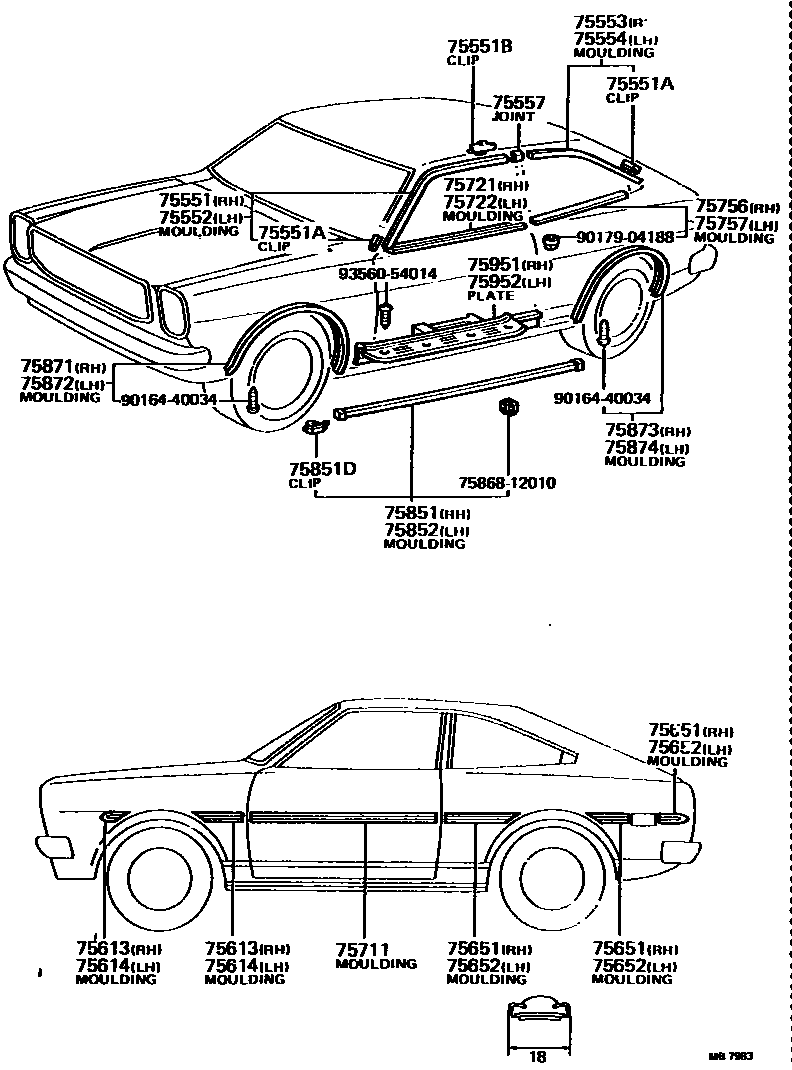

Toyota COROLLA EPC diagram 7503, 侧防护条, with 6 images and 31 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 75551 | Drainage groove side decorative strip on the right side of the roof | 75551-13040 · 75551-13041 · 75551-19035 · 75551-19036 · 75551-19045 · 75551-19046 · 75551-19065 · 75551-19066 · 75551-19095 · 75551-19096 · 75551-19105 |
| 75551A | No. 1 roof drain channel protective strip clip | 75561-12010 · 75562-12010 · 75563-12010 |
| 75551B | No. 2 roof drain channel protective strip clip | 76591-12010 |
| 75552 | Drainage groove side decorative strip on the left side of the roof | 75552-13040 · 75552-13041 · 75552-19035 · 75552-19036 · 75552-19045 · 75552-19046 · 75552-19065 · 75552-19066 · 75552-19095 · 75552-19096 · 75552-19105 |
| 75553 | Drainage groove side decorative strip on the right side of the roof | 75055-19015 · 75553-12120 · 75553-12190 · 75553-12200 · 75553-12210 · 75553-13050 · 75553-19015 · 75553-19025 · 75553-19045 |
| 75554 | Drainage groove side decorative strip on the left side of the roof | 75056-19015 · 75554-12120 · 75554-12190 · 75554-12200 · 75554-12210 · 75554-13050 · 75554-19015 · 75554-19025 · 75554-19045 |
| 75557 | Roof drain channel side decorative strip joint | 75557-12040 · 75596-12050 |
| 75613 | Right front fender outer protective strip | 75611-12040 · 75611-12050 · 75613-12100 · 75613-12110 · 75613-12120 · 75615-12010 · 75615-12020 · 75615-12030 |
| 75614 | Left front fender outer protective strip | 75611-12040 · 75611-12050 · 75614-12100 · 75614-12110 · 75614-12120 · 75616-12030 · 75616-12040 · 75616-12050 |
| 75651 | Right side outer protective strip | 75651-12110 · 75651-12111 · 75651-12120 · 75651-12130 · 75651-12131 · 75651-12140 · 75653-12010 · 75653-12011 · 75653-12020 · 75653-12021 · 75653-12030 · 75653-12050 · 75653-13020 · 75655-12010 · 75655-12020 |
| 75652 | Left side outer protective strip | 75652-12110 · 75652-12111 · 75652-12120 · 75652-12130 · 75652-12131 · 75652-12140 · 75653-12030 · 75653-12050 · 75654-12010 · 75654-12011 · 75654-12020 · 75654-12021 · 75654-13020 · 75656-12010 · 75656-12020 |
| 75711 | No. 1 front door outer protective strip | 75731-12090 · 75731-12091 · 75731-12100 · 75731-12101 · 75731-12110 |
| 75721 | Right front door waistline protection strip | 75710-12050 · 75710-12060 · 75710-12070 · 75710-12090 · 75710-12180 · 75710-12190 · 75710-12220 |
| 75722 | Left front door waistline protection strip | 75720-12050 · 75720-12060 · 75720-12070 · 75720-12090 · 75720-12180 · 75720-12190 · 75720-12220 |
| 75741 | Right rear door outer protective strip | 75741-12100 · 75741-12101 |
| 75742 | Left rear door outer protective strip | 75742-12090 · 75742-12091 |
| 75751 | Right rear door waistline protection strip | 75730-12010 · 75730-12040 |
| 75752 | Left rear door waistline protection strip | 75740-12100 · 75740-12130 |
| 75756 | Right corner window decorative strip | 75660-19015 · 75660-19025 · 75660-19065 · 75660-19085 · 75660-19145 · 75660-19155 · 75660-19165 |
| 75757 | Left corner window decorative strip | 75670-19015 · 75670-19025 · 75670-19065 · 75670-19085 · 75670-19145 · 75670-19155 · 75670-19165 |
| 75851 | Right side door sill panel protective strip | 75850-12012 |
| 75851D | Clip (for rocker panel protective strip assembly) | 75867-12020 |
| 75852 | Left side door sill panel protective strip | 75860-12012 |
| 75871 | Right front fender wheel well protection strip | 75085-19015 · 75085-19016 |
| 75872 | Left front fender wheel well protection strip | 75086-19015 · 75086-19016 |
| 75873 | Right side panel wheel mouth protection strip | 75087-19015 · 75087-19016 |
| 75874 | Left side panel wheel mouth protection strip | 75088-19015 · 75088-19016 |
| 75951 | Right front door outer wear plate | 67913-12010 · 67913-12020 · 67913-12030 · 67913-12070 |
| 75952 | Left front door outer wear plate | 67914-12010 · 67914-12020 · 67914-12030 · 67914-12070 |
| 75955 | Right rear door outer wear plate | 67917-12010 · 67917-12030 |
| 75956 | Left rear door outer wear plate | 67918-12010 · 67918-12030 |
