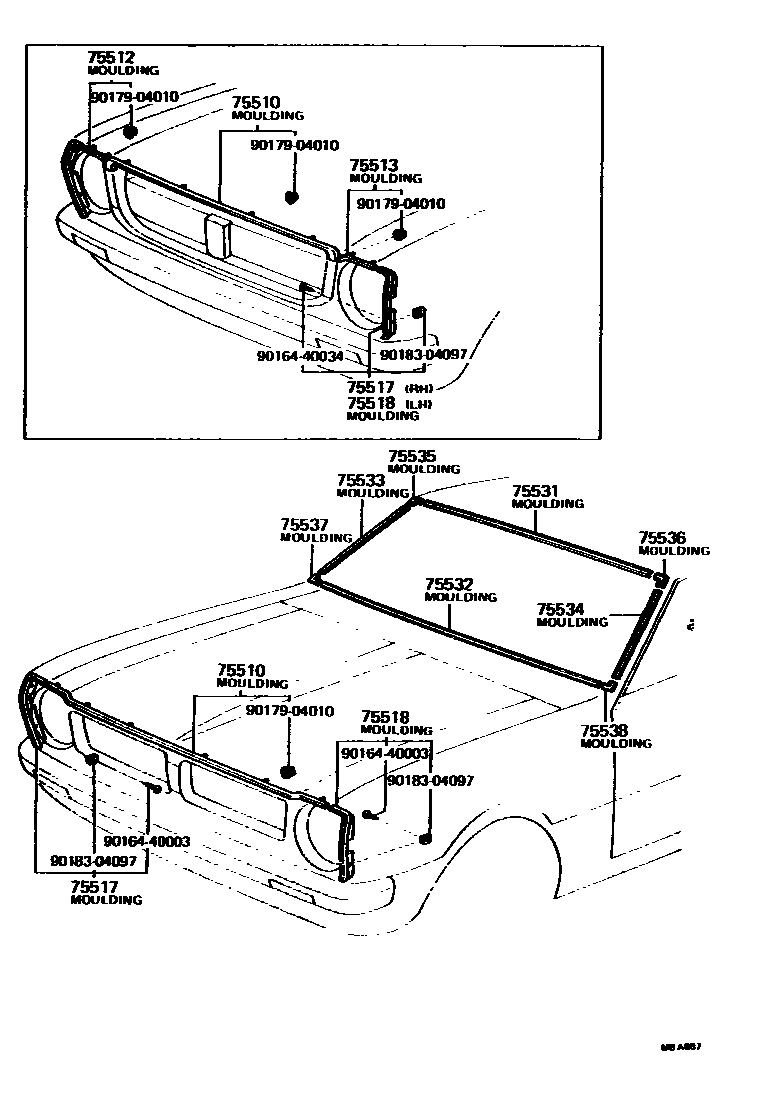

Toyota COROLLA 前防护条 — Figure 7502
Toyota COROLLA EPC diagram 7502, 前防护条, with 1 images and 13 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 75510 | Radiator upper grille opening protective strip assembly | 75770-19015 · 75770-19025 · 75770-19055 · 75770-19105 |
| 75512 | Radiator right grille opening protective strip | 75076-19025 · 75780-19035 |
| 75513 | Radiator left grille opening protective strip | 75077-19025 · 75790-19035 |
| 75517 | Radiator lower right grille opening protective strip | 75601-19015 · 75601-19045 |
| 75518 | Radiator lower left grille opening protective strip | 75602-19015 · 75602-19045 |
| 75531 | Windshield outer protective strip | 75531-12120 · 75571-12090 |
| 75532 | Lower windshield protection strip | 75535-12050 · 75535-12070 |
| 75533 | Windshield right outer protective strip | 75533-12140 · 75533-12150 |
| 75534 | Windshield left outer protective strip | 75533-12140 · 75533-12150 |
| 75535 | Windshield upper right corner protective strip | 75541-12030 · 75541-12050 |
| 75536 | Windshield upper left corner protective strip | 75541-12030 · 75541-12050 |
| 75537 | Windshield lower right corner protective strip | 75543-12010 · 75543-12030 |
| 75538 | Windshield lower left corner protective strip | 75543-12010 · 75543-12030 |
