Toyota COROLLA 警示铭牌(车外和车内) — Figure 7403

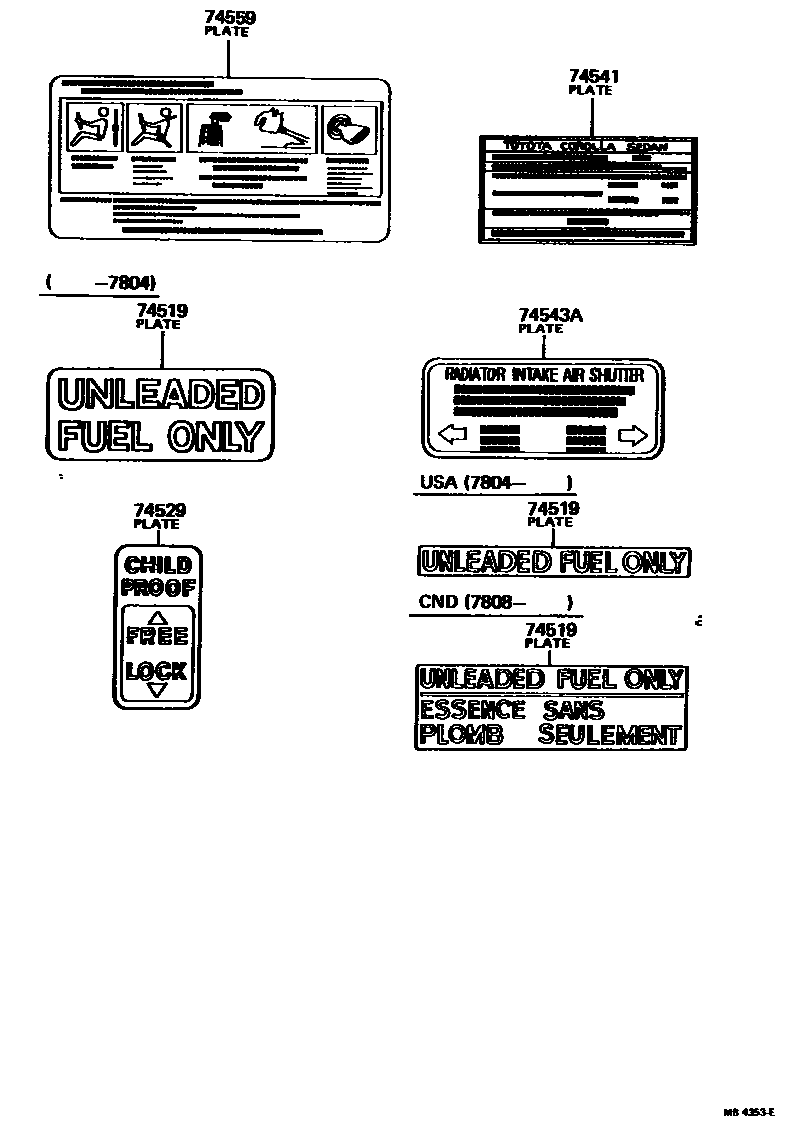

Toyota COROLLA EPC diagram 7403, 警示铭牌(车外和车内), with 1 images and 5 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 74519 | Fuel warning plate | 74559-20040 · 74559-20041 · 74559-20090 · 74559-20100 |
| 74529 | Child safety or child restraint lock warning nameplate | 69339-14010 |
| 74541 | tire pressure warning plate | 42661-12080 · 42661-12081 · 42661-12082 · 42661-12100 · 42661-12150 · 42661-12151 · 42661-12170 · 42661-12171 · 42661-12180 · 42661-12190 · 42661-12191 · 42661-12192 · 42661-12221 · 42661-12240 · 42661-12250 · 42661-12260 · 42661-12270 · 42661-12280 · 42661-12290 · 42661-13030 · 42661-13090 · 74552-12180 · 74552-12190 · 74552-12250 · 74552-12260 · 74552-12300 · 74552-13100 |
| 74543A | Radiator air inlet baffle warning nameplate | 74543-12010 · 74543-12011 |
| 74559 | Starter interlock warning nameplate | 74556-20022 |
