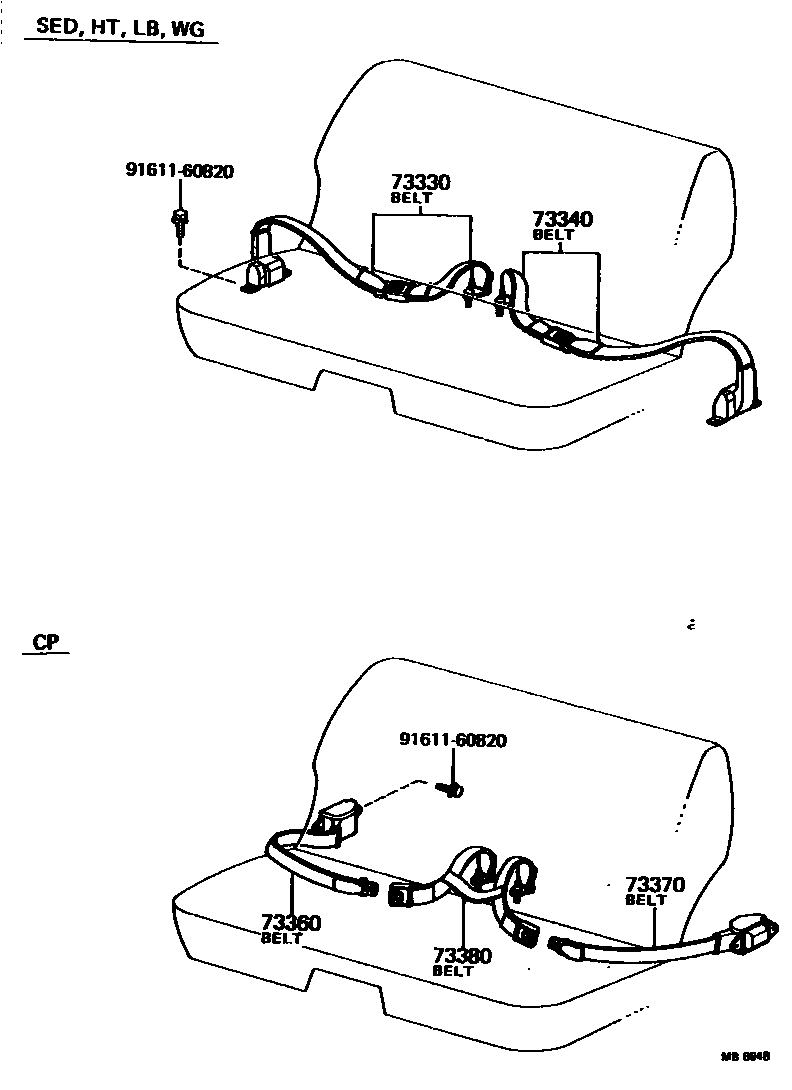

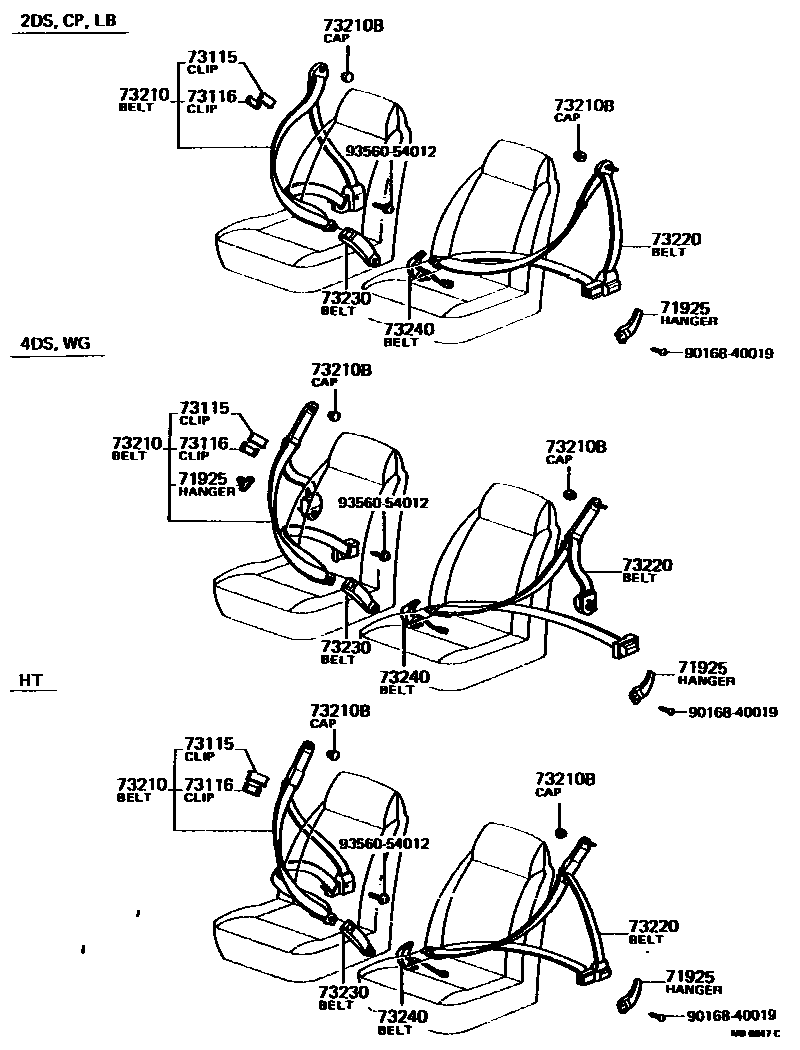

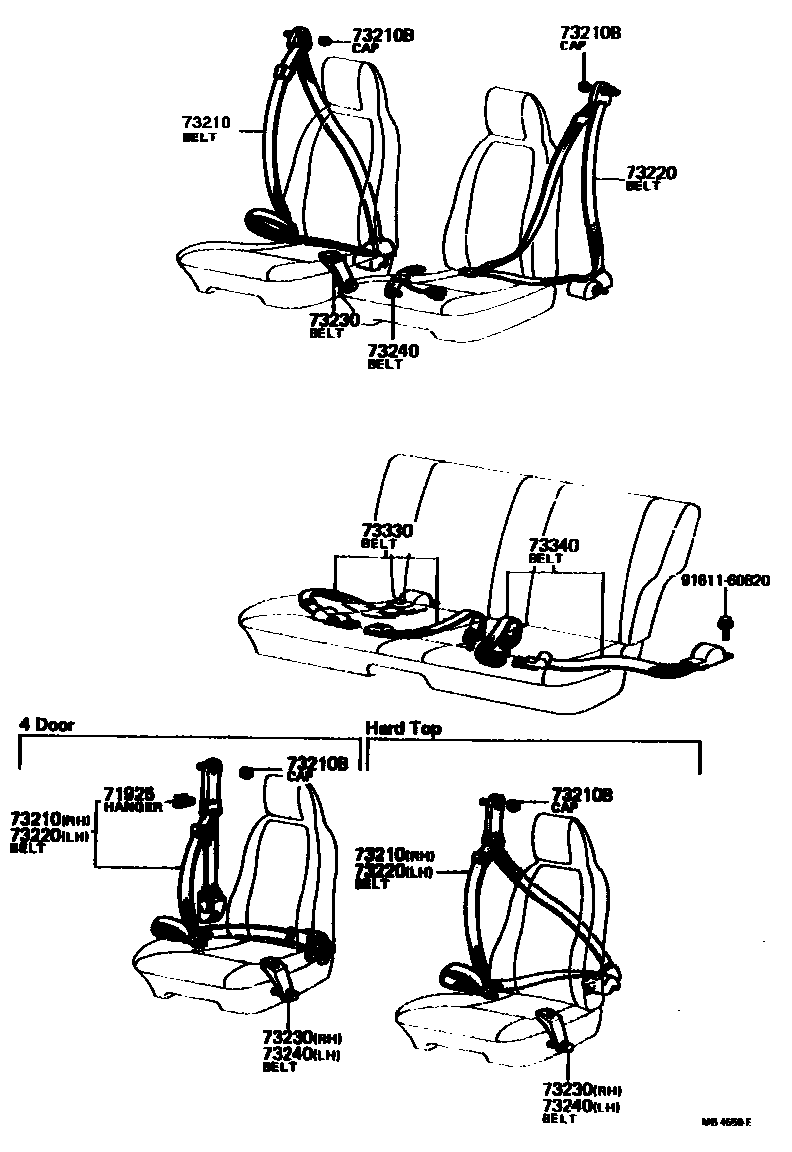

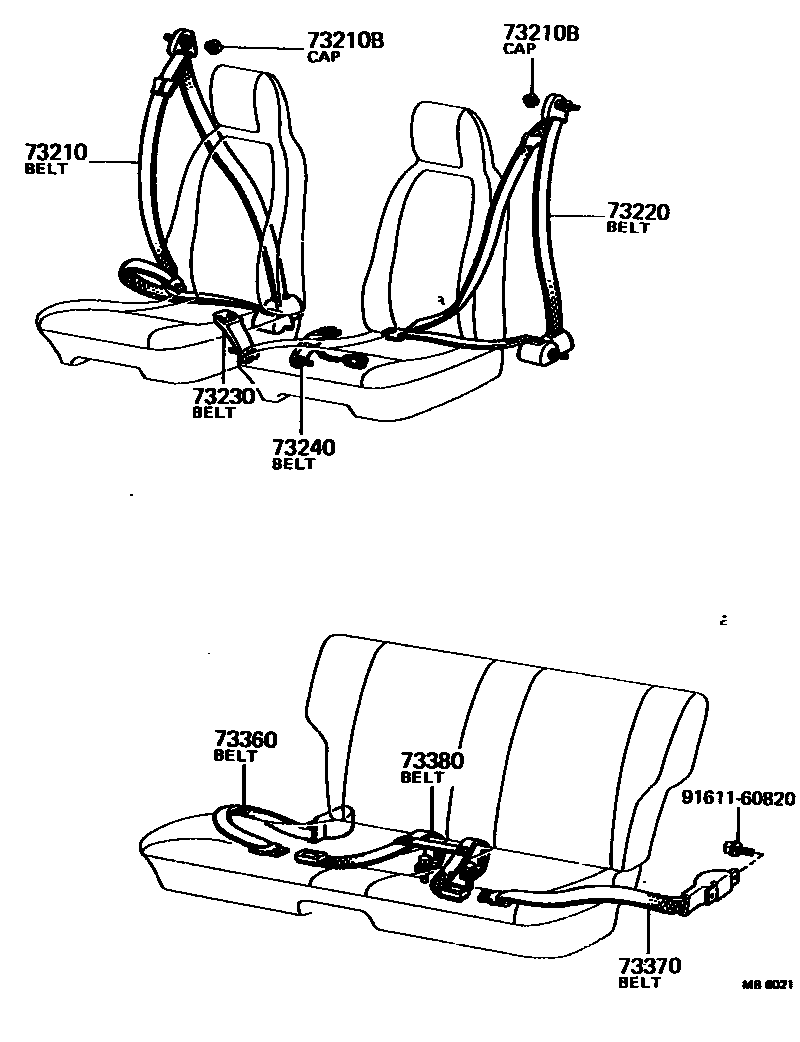

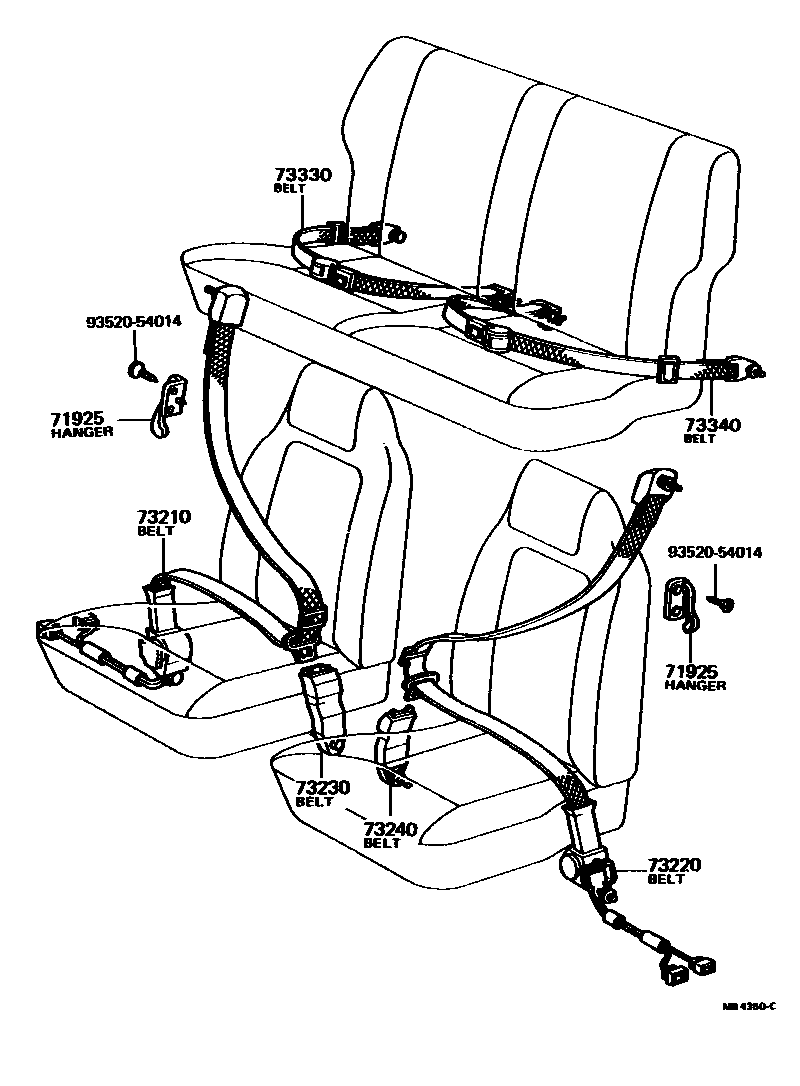

Toyota COROLLA 安全带和儿童保护座椅 — Figure 7104
Toyota COROLLA EPC diagram 7104, 安全带和儿童保护座椅, with 5 images and 5 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 71925 | safety belt hanger | 73176-12010 · 73177-12010 |
| 73115 | Seat belt comfort adjustment clip No. 1 | 73115-12010 |
| 73116 | Seat belt comfort adjustment clip No. 2 | 73116-12010 |
| 73230 | Front right seat inner seat belt assembly | 73230-12030 · 73230-12050 |
| 73240 | Front left seat inner seat belt assembly | 73230-12030 · 73240-12010 · 73240-12011 |
