Toyota COROLLA 后排座椅和座椅滑轨 — Figure 7102

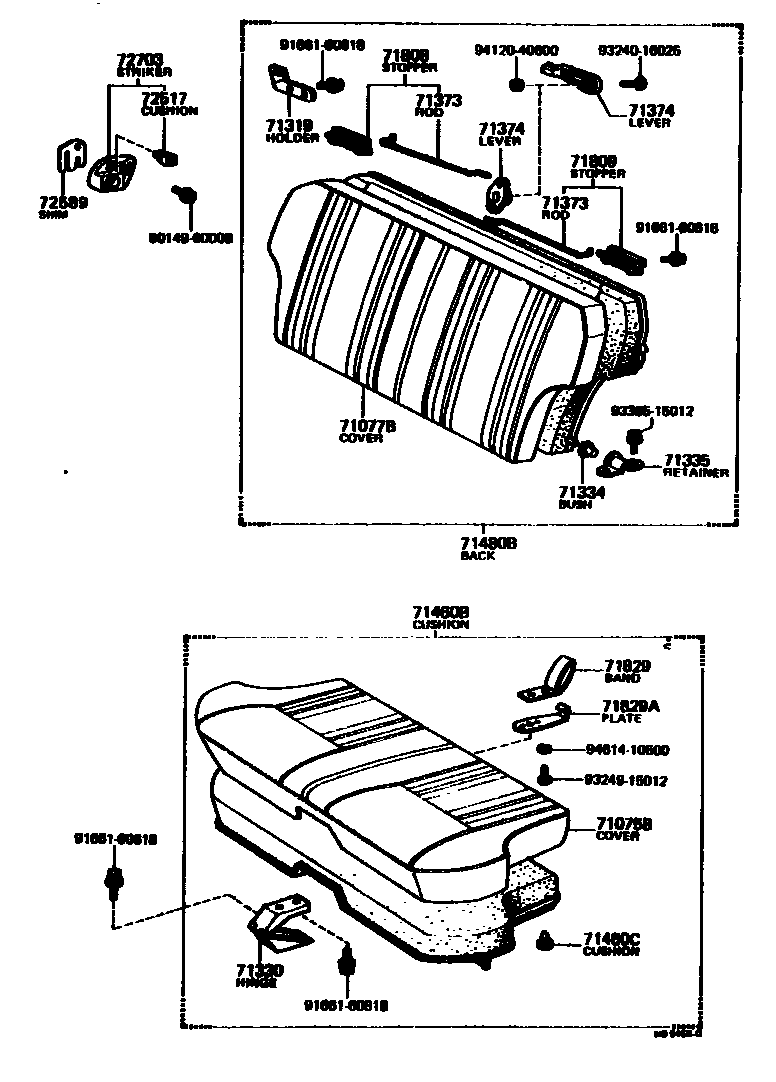

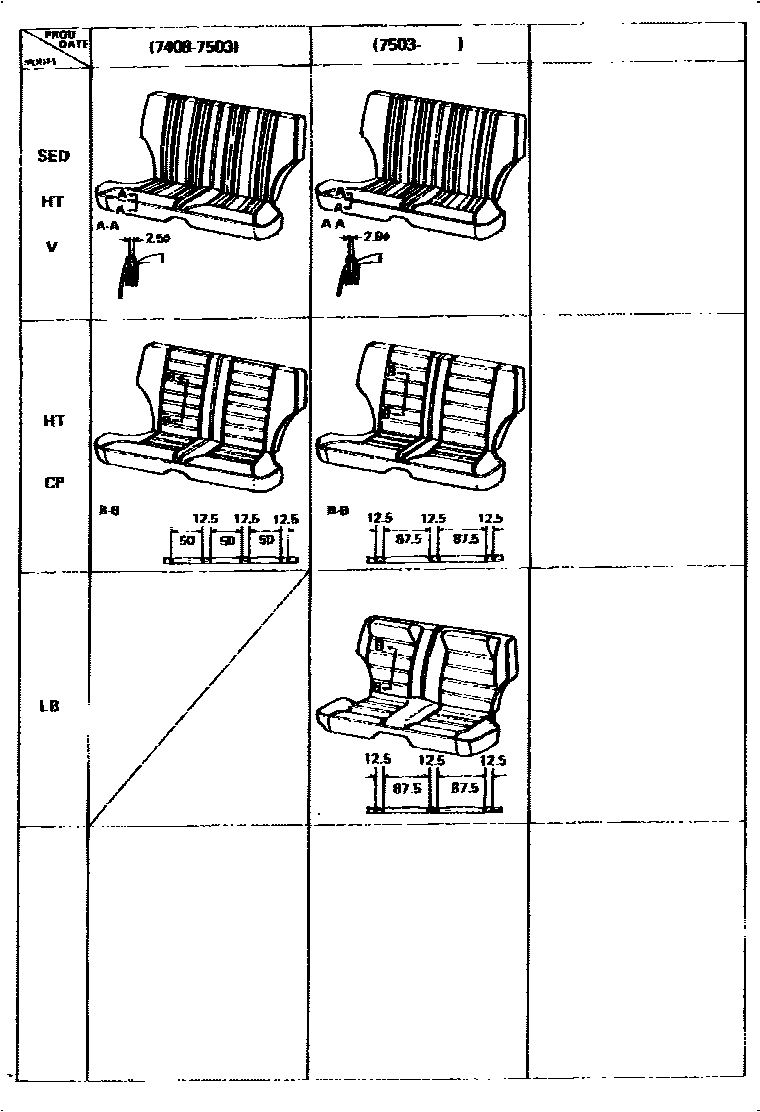

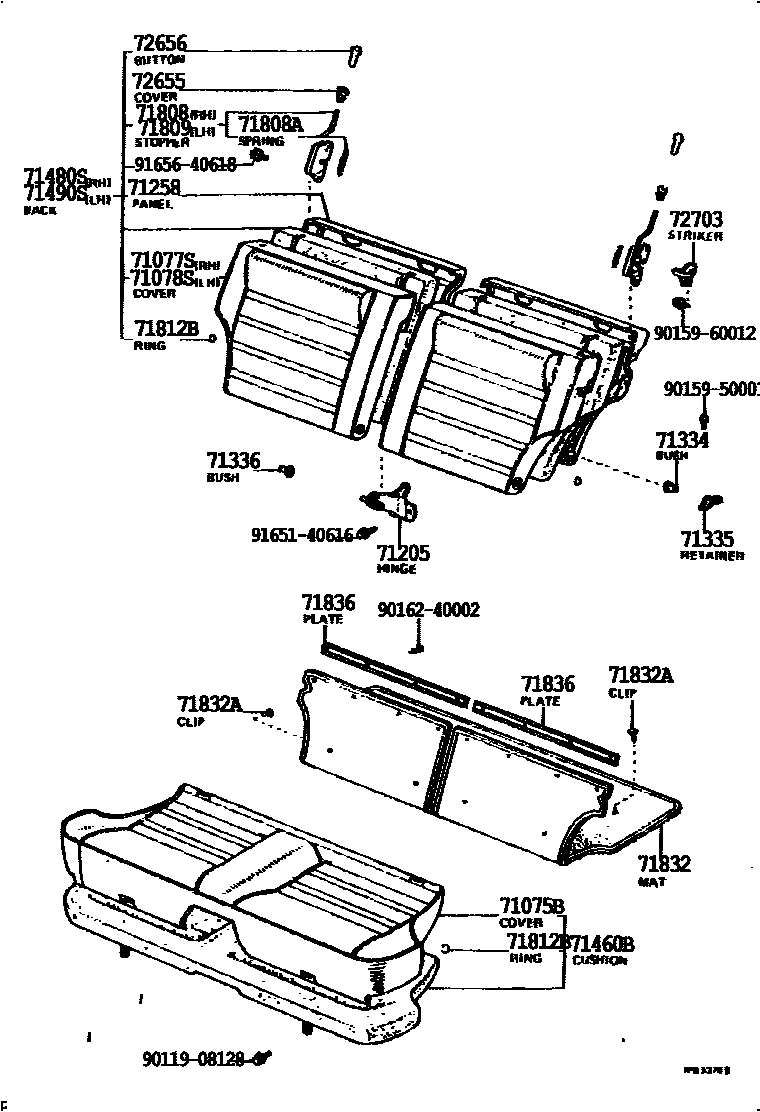

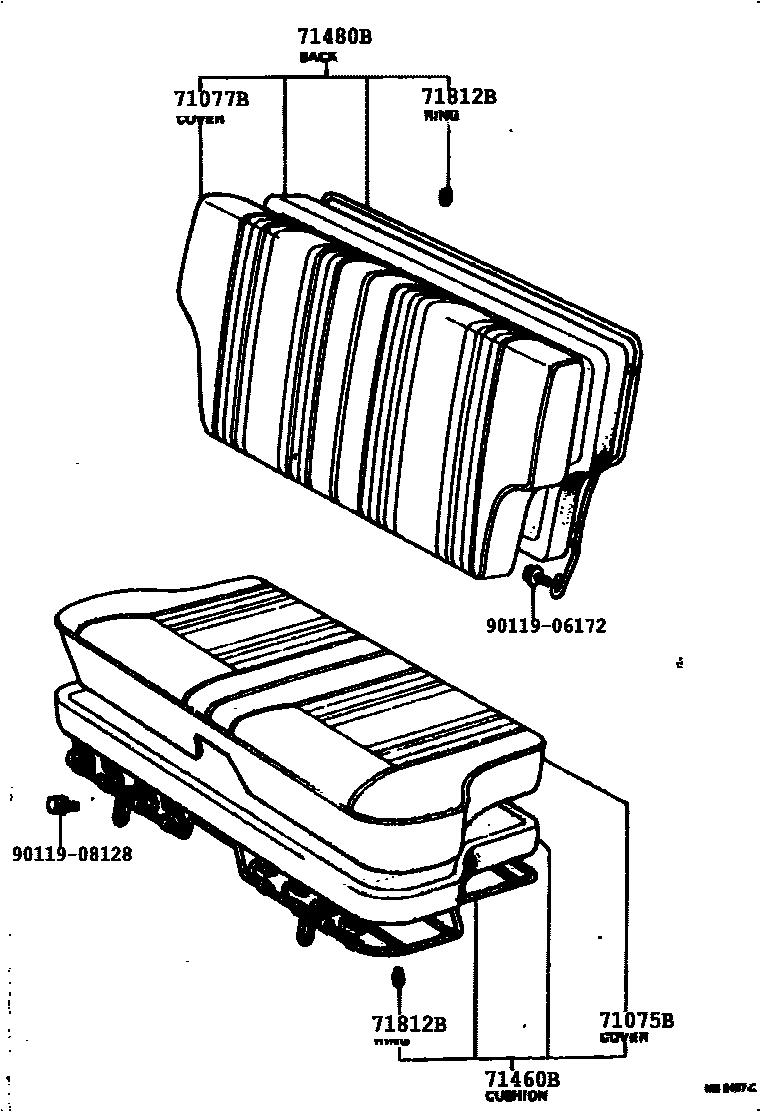

Toyota COROLLA EPC diagram 7102, 后排座椅和座椅滑轨, with 4 images and 21 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 71205 | Rear outer seat back hinge sub-assembly | 71305-12010 |
| 71258 | Rear seat back panel sub-assembly | 71202-12010 · 71203-12010 |
| 71319 | Rear seat back retainer | 71398-13010 |
| 71330 | Rear seat cushion hinge assembly | 71301-13010 |
| 71334 | Rear seat cushion pivot bushing | 71331-13010 |
| 71335 | Rear seat backrest pivot upper seat ring | 71327-12010 · 71327-13010 |
| 71336 | Rear seat back hinge bushings or spacers | 71331-13010 |
| 71373 | Rear seat back lock lever | 72625-13010 · 72626-13010 |
| 71374 | Rear seat back lever control lever | 72636-13010 · 72637-13030 · 72638-13010 |
| 71460C | Seat cushion (for rear seat cushion) | 90541-07025 |
| 71808 | Rear right seat backrest block sub-assembly | 72630-12010 · 72630-13030 |
| 71808A | Rear seat back limit spring | 90506-08003 |
| 71809 | Rear left seat backrest block sub-assembly | 72640-12010 · 72640-13030 |
| 71812B | Clip (for rear seat cushion cover) | 90468-18071 |
| 71829A | Rear seat cushion strap support plate | 71897-13020 |
| 71836 | Rear seat backrest felt pad or backrest pad support plate | 71882-12010 |
| 72517 | Rear seat backrest stop cushion | 90541-06141 |
| 72589 | Rear seat back stop gasket | 72669-13010 |
| 72655 | Rear seat backrest stopper handle cover | 72655-20020 |
| 72656 | Rear seat back stop release button | 72656-20010 |
| 72703 | Rear seat backrest block lock sub-assembly | 72601-12010 · 72601-13020 · 72604-12010 · 72604-13020 |
