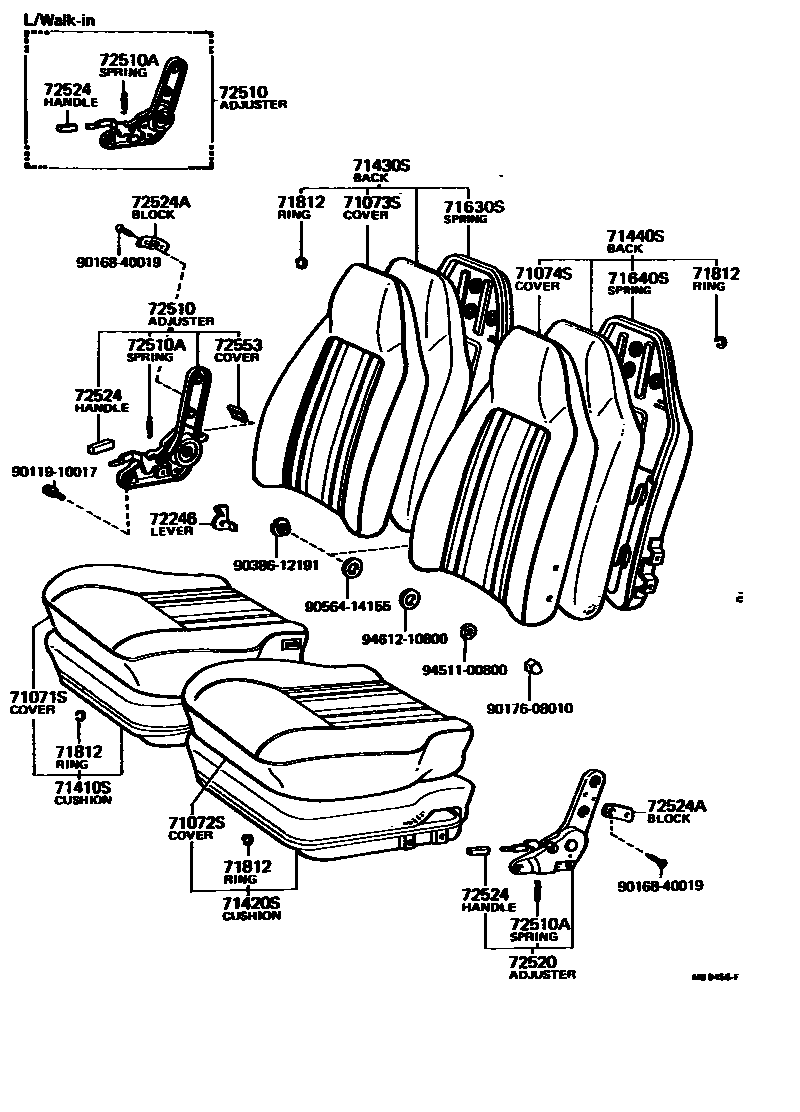

Toyota COROLLA 前排座椅和座椅滑轨 — Figure 7101

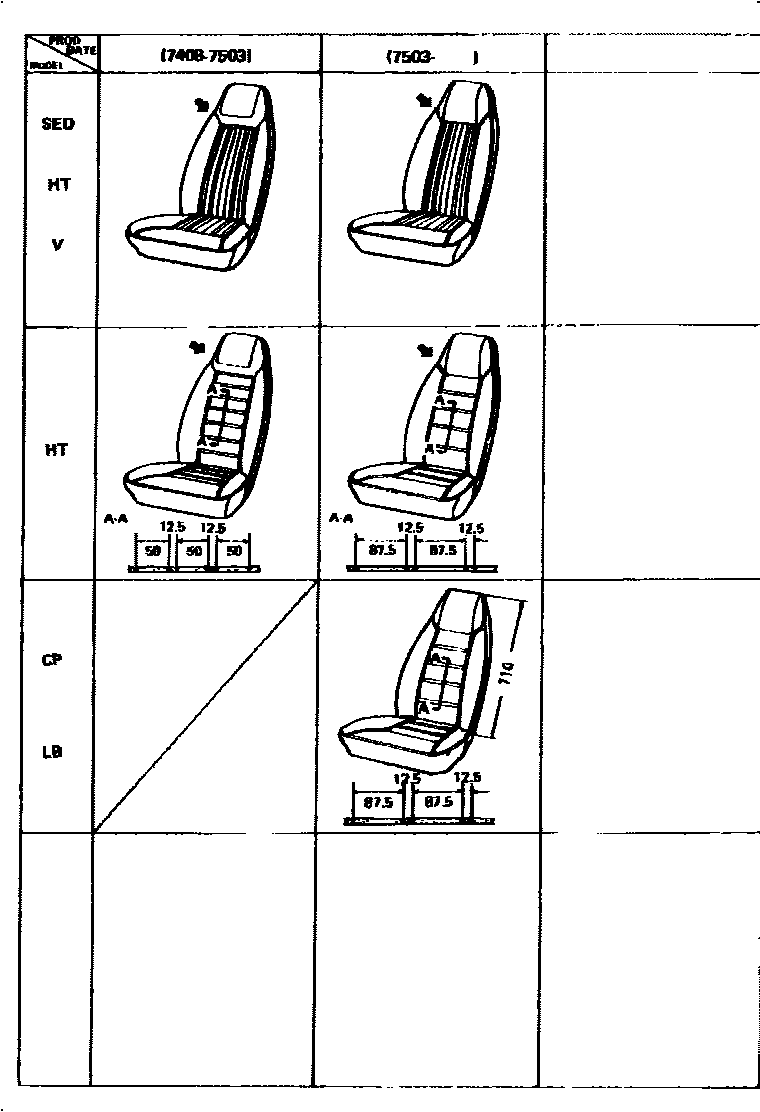

Toyota COROLLA EPC diagram 7101, 前排座椅和座椅滑轨, with 2 images and 10 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 71630S | Front right seat back spring assembly (for split seats) | 71630-12121 · 71630-12161 |
| 71640S | Front left seat back spring assembly (for split seats) | 71640-12111 · 71640-12151 |
| 71812 | Clip (for front seat cushion cover) | 90468-18071 |
| 72246 | Left seat slide lock release lever | 72245-12010 |
| 72510 | Front right seat backrest tilt adjuster assembly | 72510-12040 · 72510-12050 · 72510-12060 · 72510-12070 · 72510-12090 |
| 72510A | Tension spring No. 1 (for seat back recliner) | 90506-12272 |
| 72520 | Left seat back tilt adjuster assembly | 72520-12040 · 72520-12070 |
| 72524 | Backrest recliner release handle | 72525-12040 · 72525-12050 |
| 72524A | Seat belt guide block | 72589-12010 |
| 72553 | Seat back tilt pedal cover | 72553-12020 · 72553-12030 |
