Toyota COROLLA 锁芯组件 — Figure 6712

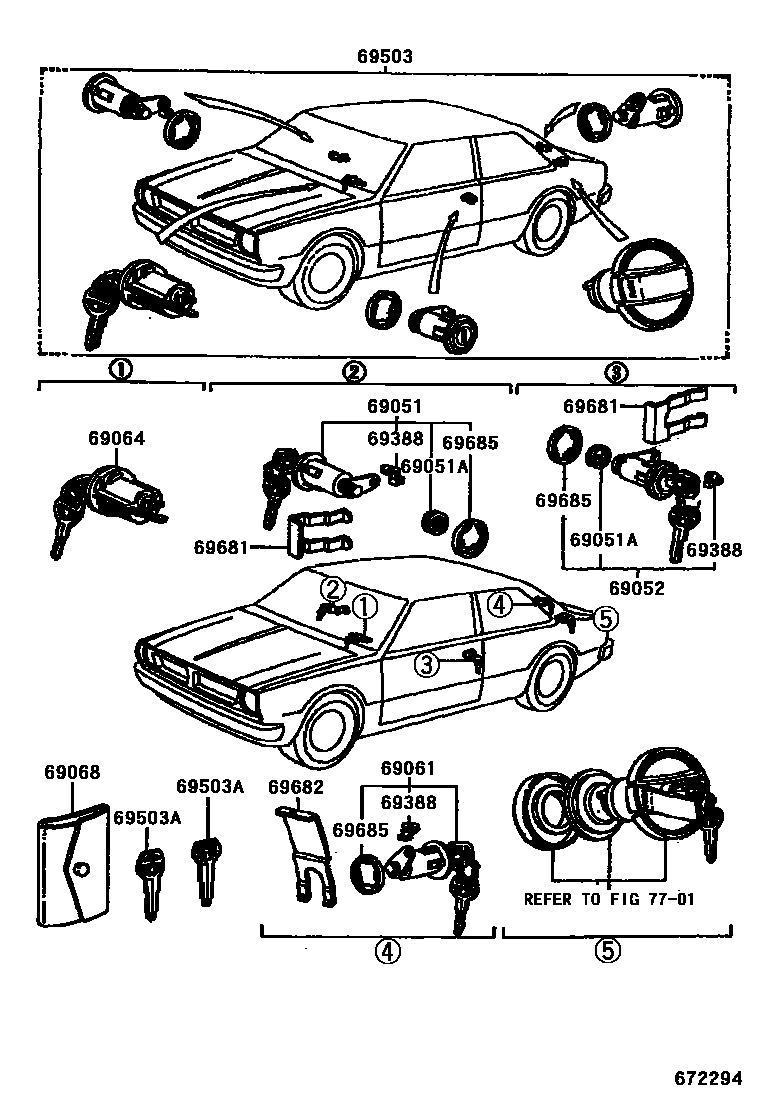

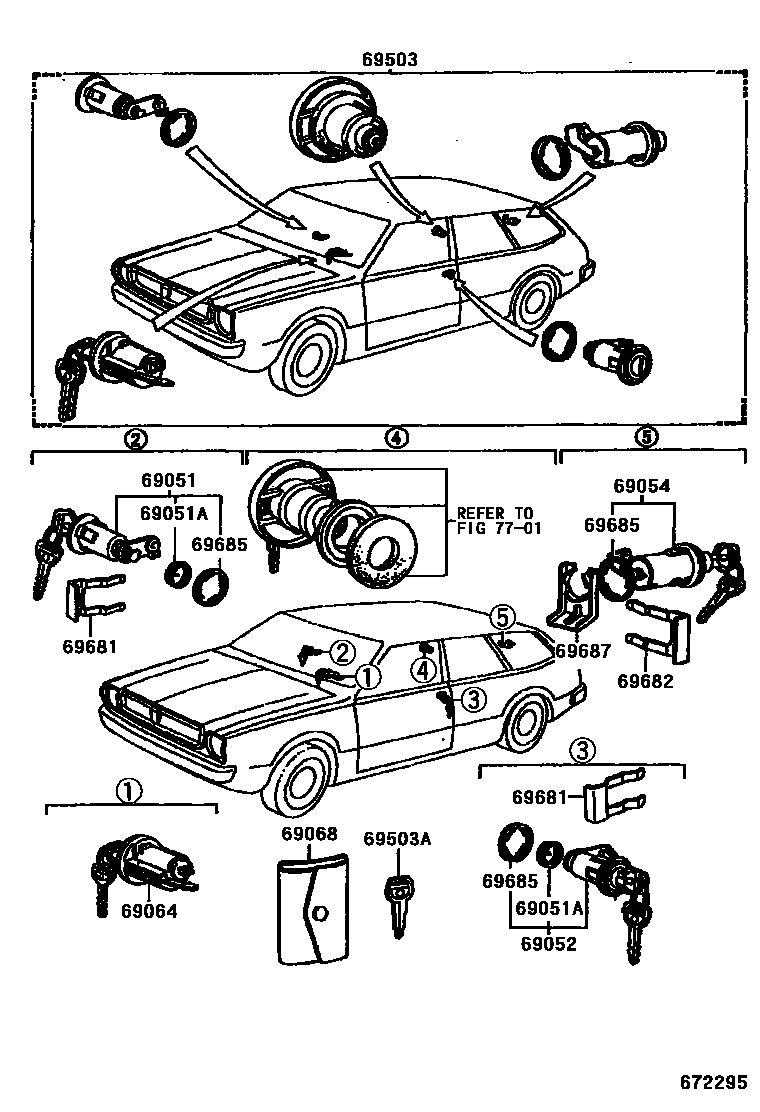

Toyota COROLLA EPC diagram 6712, 锁芯组件, with 2 images and 14 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 69051 | Right door lock cylinder and key assembly | 69051-19065 · 69051-19075 |
| 69051A | door lock cylinder spring | 90508-09279 |
| 69052 | Left door lock cylinder and key assembly | 69052-19065 · 69052-19075 |
| 69054 | Rear door lock cylinder and key assembly | 69055-13010 |
| 69061 | Luggage lock cylinder and key assembly | 69055-19015 · 69055-19025 · 69055-19035 |
| 69064 | Ignition switch lock cylinder and key assembly | 69057-12010 · 69057-12011 · 69057-13010 |
| 69068 | Key cover sub-assembly | 69555-20010 |
| 69388 | Lever clip (for door lock) | 69377-12010 · 69377-30020 |
| 69503 | Door lock cylinder components | 69005-12030 · 69005-12031 · 69005-12032 · 69005-12052 · 69005-12060 · 69005-12061 · 69005-12062 · 69005-12080 · 69005-12090 · 69005-12100 · 69005-13020 · 69005-13021 · 69005-13040 |
| 69503A | external tooth key | 90999-00066 · 90999-00067 · 90999-00068 |
| 69681 | Door lock cylinder and sleeve clip | 69681-20040 |
| 69682 | Lock cylinder fixing parts | 69551-13020 · 69561-12010 · 69561-12030 · 69561-12040 · 69561-12060 |
| 69685 | Lock cylinder liner | 69553-13020 · 69685-12010 |
| 69687 | Rear door lock cylinder stay | 69687-13010 |
