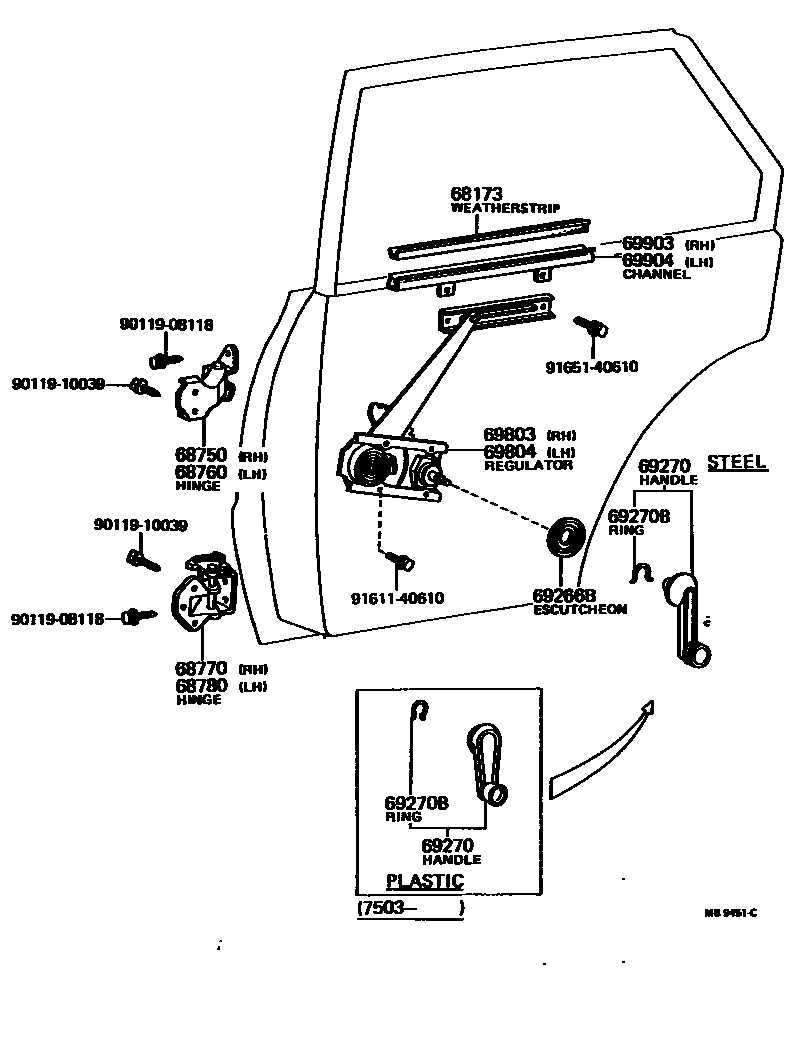

Toyota COROLLA 后门车窗升降器和合页 — Figure 6707
Toyota COROLLA EPC diagram 6707, 后门车窗升降器和合页, with 1 images and 12 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 68173 | Rear door glass groove seal strip | 68173-20030 |
| 68750 | Right rear door upper hinge assembly | 68710-12050 |
| 68760 | Left rear door upper hinge assembly | 68720-12050 |
| 68770 | Right rear door lower hinge assembly | 68730-20050 · 68730-30050 |
| 68780 | Left rear door lower hinge assembly | 68740-20050 · 68740-30030 |
| 69266B | Door window lift handle escutcheon (for rear doors) | 69266-22010 · 69285-22010 |
| 69270 | Rear door window lift handle assembly | 69260-12010 · 69260-14010 |
| 69270B | Shaft snap ring (for rear door window regulator handle) | 90520-01002 · 90520-01274 |
| 69803 | Right rear door window lifter sub-assembly | 69830-12050 · 69830-12051 · 69830-12052 |
| 69804 | Left rear door window lifter sub-assembly | 69840-12050 · 69840-12051 · 69840-12052 |
| 69903 | Right rear door glass groove sub-assembly | 69903-20070 · 69905-12040 |
| 69904 | Left rear door glass groove sub-assembly | 69903-20070 · 69905-12040 |
