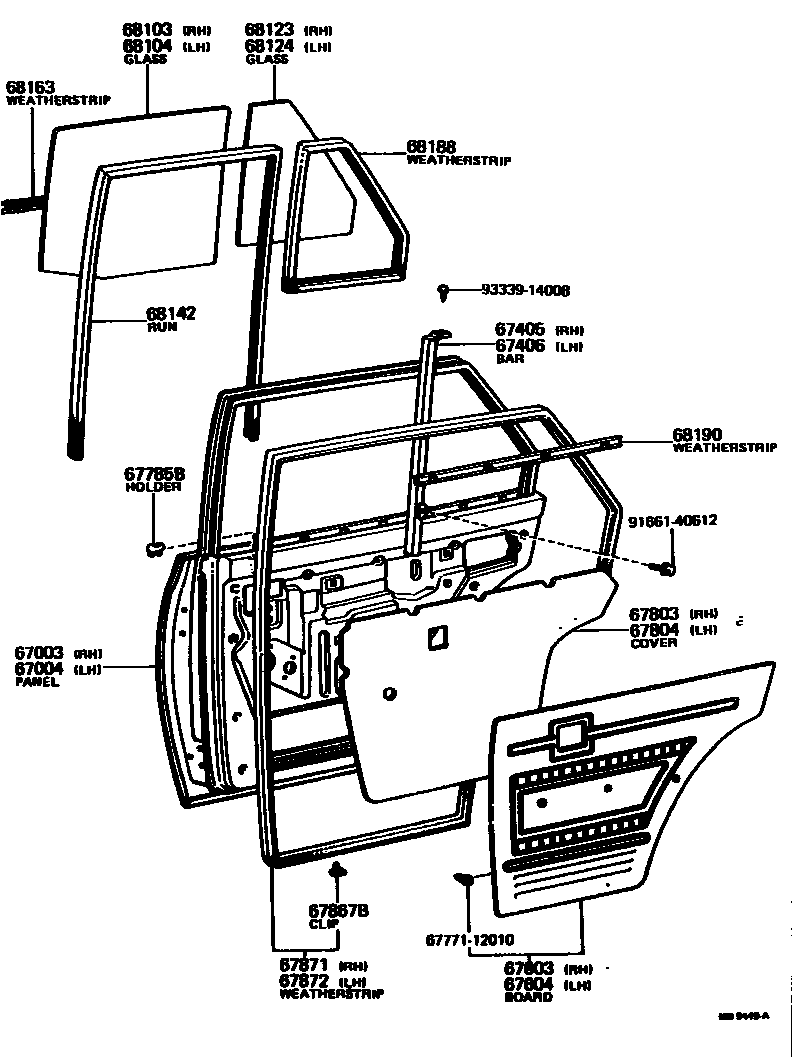

Toyota COROLLA 后门板和后门玻璃 — Figure 6705
Toyota COROLLA EPC diagram 6705, 后门板和后门玻璃, with 1 images and 18 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 67003 | Right rear door panel sub-assembly | 67003-12120 · 67003-12121 · 67003-12150 · 67003-13050 · 67003-13051 · 67003-13100 |
| 67004 | Left rear door panel sub-assembly | 67004-12120 · 67004-12121 · 67004-12150 · 67004-13050 · 67004-13051 · 67004-13100 |
| 67405 | Right rear door window divider sub-assembly | 67407-12060 · 67407-12061 · 67407-13010 · 67407-13011 |
| 67406 | Left rear door window divider sub-assembly | 67408-12060 · 67408-12061 · 67408-13010 · 67408-13011 |
| 67785B | Door lock button collar fastener (for rear doors) | 67785-20010 · 69751-20030 |
| 67803 | Right rear door access hole cover sub-assembly | 67841-12030 |
| 67804 | Left rear door access hole cover sub-assembly | 67841-12030 |
| 67867B | Door seal strip clip (for rear door) | 67867-12020 · 67868-30040 |
| 67871 | Right rear door sealing strip | 67871-12060 · 67871-12082 · 67871-13060 · 67871-13061 |
| 67872 | Left rear door sealing strip | 67872-12060 · 67872-12082 · 67872-13050 · 67872-13051 |
| 68103 | Right rear door glass sub-assembly | 68113-12060 · 68113-12070 · 68113-13050 |
| 68104 | Left rear door glass sub-assembly | 68114-12060 · 68114-12070 · 68114-13050 |
| 68123 | Right rear door window glass | 68123-12070 · 68123-12080 · 68123-13050 |
| 68124 | Left rear door window glass | 68124-12070 · 68124-12080 · 68124-13050 |
| 68142 | Rear door glass lift chute | 68142-12030 |
| 68163 | Rear door glass outer seal strip | 68180-12030 · 68230-12010 |
| 68188 | Right rear door corner window seal | 68188-12050 · 68188-13030 · 68189-12050 · 68189-13030 |
| 68190 | Rear door glass inner sealing strip assembly | 68190-12050 |
