Toyota COROLLA 前门车窗升降器和合页 — Figure 6704

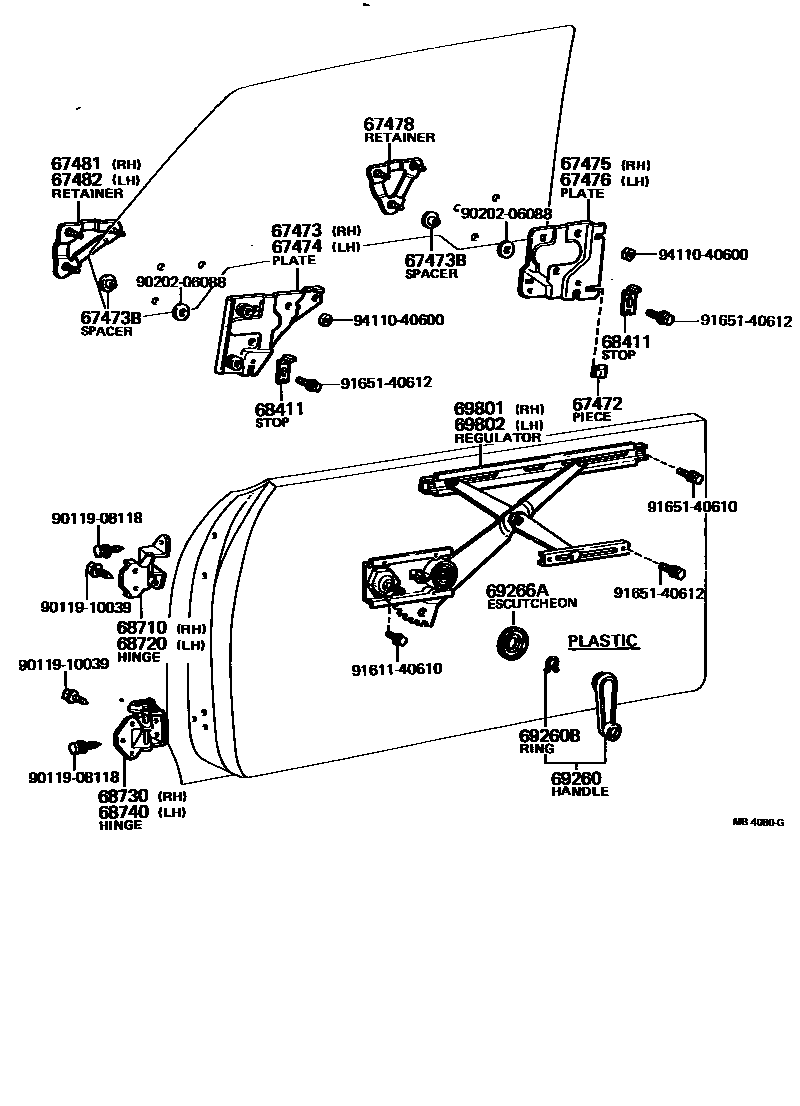

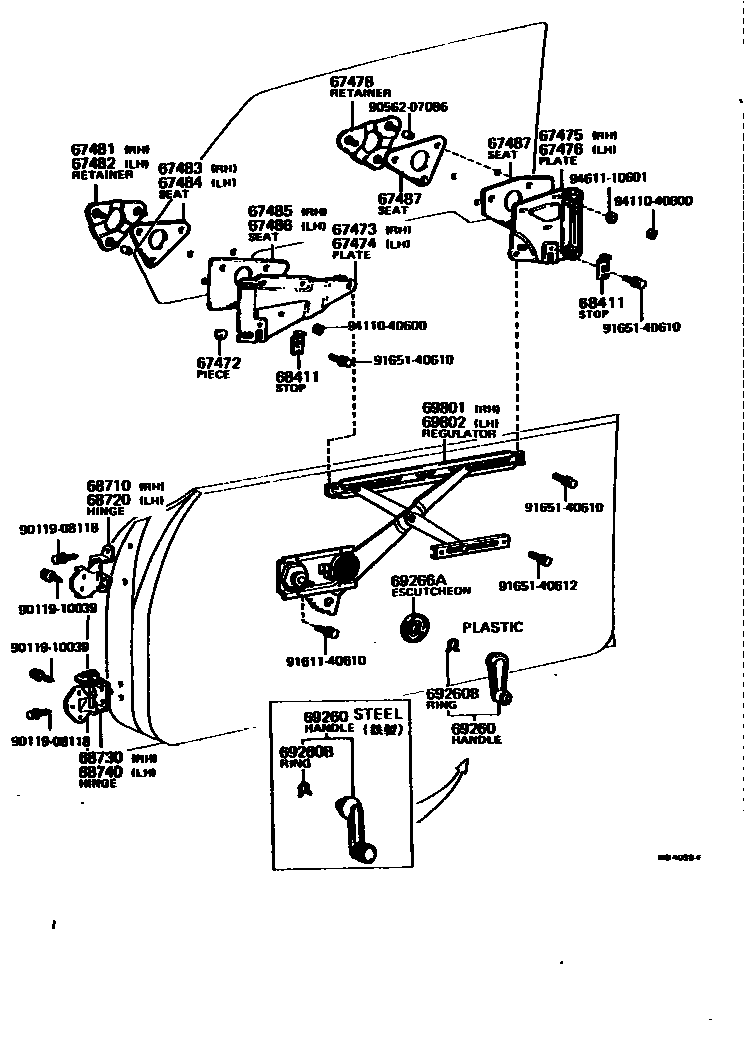

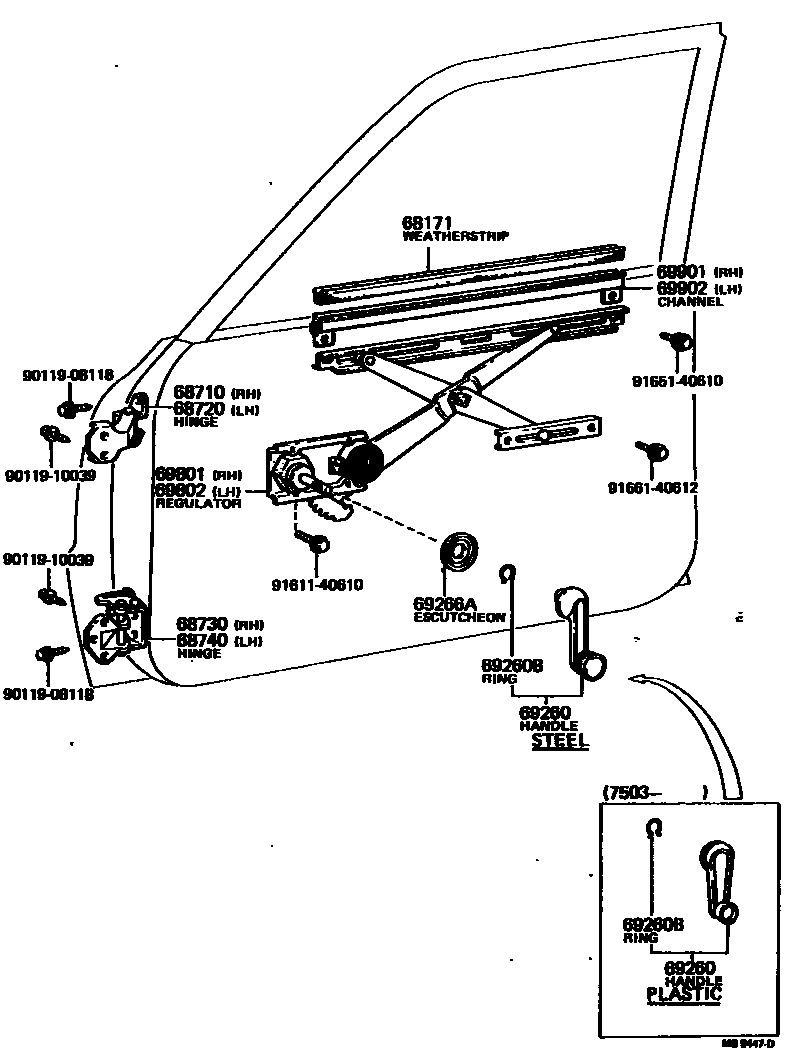

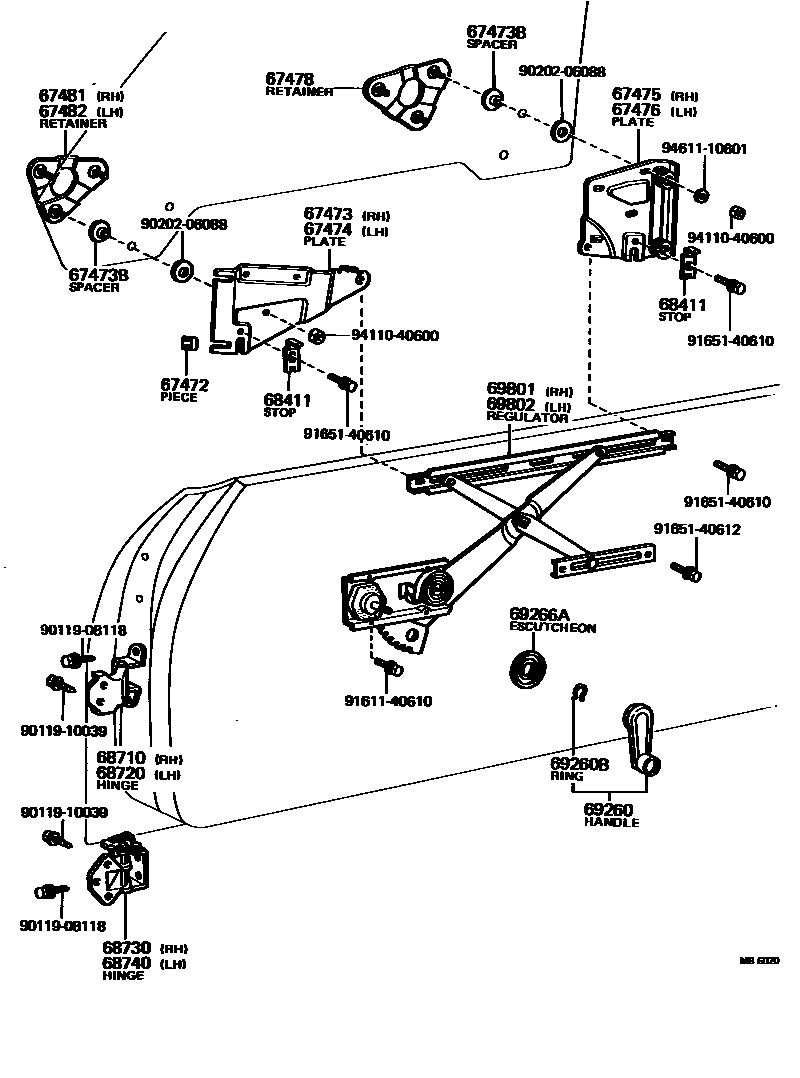

Toyota COROLLA EPC diagram 6704, 前门车窗升降器和合页, with 4 images and 27 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 67472 | Front door glass guide channel | 67479-12010 · 67479-14030 · 69986-12010 · 69986-12020 · 69986-30030 |
| 67473 | Right front door glass front fixing plate | 69901-12060 · 69951-12060 · 69951-12061 |
| 67473B | Front door glass fixed panel spacer | 69988-95550 |
| 67474 | Left front door glass front fixing plate | 69902-12040 · 69952-12020 · 69952-12021 |
| 67475 | Right front door glass rear fixing plate | 69903-12030 · 69953-12030 |
| 67476 | Left front door glass rear fixing plate | 69904-12020 · 69954-12030 |
| 67478 | Front door glass rear fixing parts | 69963-12010 · 69963-12020 · 69964-12010 · 69964-12020 |
| 67481 | Right front door glass front fixing part | 69961-12030 · 69961-12040 |
| 67482 | Left front door glass front fixing part | 69961-12030 · 69962-12020 |
| 67483 | Right front door glass outer front panel | 67481-12010 |
| 67484 | Left front door glass outer front panel | 67481-12010 |
| 67485 | Right front door glass inner front panel | 67483-12010 |
| 67486 | Left front door glass inner front panel | 67483-12010 |
| 67487 | Front door glass rear panel | 67482-12020 · 67484-12010 |
| 68171 | Front door glass groove seal strip | 68171-22020 |
| 68411 | Front door window glass upper stopper | 67215-12020 · 67215-20010 |
| 68710 | Right front door upper hinge assembly | 68710-12050 · 68710-20050 |
| 68720 | Left front door upper hinge assembly | 68720-12050 · 68720-20040 |
| 68730 | Right front door lower hinge assembly | 68730-20050 · 68730-20060 · 68730-30050 |
| 68740 | Left front door lower hinge assembly | 68740-20050 · 68740-20060 · 68740-30030 |
| 69260 | Front door window lift handle assembly | 69260-12010 · 69260-14010 |
| 69260B | Shaft snap ring (for front door window regulator handle) | 90520-01002 · 90520-01274 |
| 69266A | Door window lift handle escutcheon (for front doors) | 69266-22010 · 69285-22010 |
| 69801 | Right front door window lifter sub-assembly | 69810-12110 · 69810-12111 · 69810-12112 · 69810-12120 · 69810-12121 · 69810-12122 · 69810-12131 |
| 69802 | Left front door window lifter sub-assembly | 69820-12110 · 69820-12111 · 69820-12112 · 69820-12120 · 69820-12121 · 69820-12122 · 69820-12131 |
| 69901 | Right front door glass groove sub-assembly | 69901-12080 · 69901-20070 |
| 69902 | Left front door glass groove sub-assembly | 69901-12080 · 69901-20070 |
