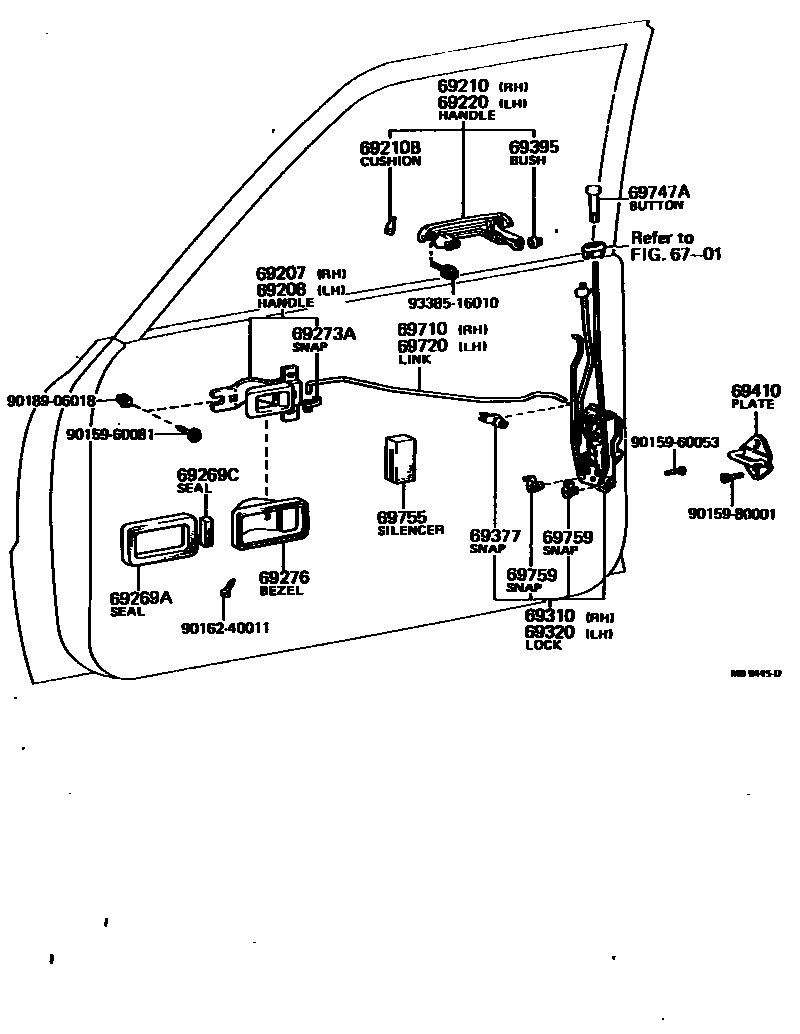

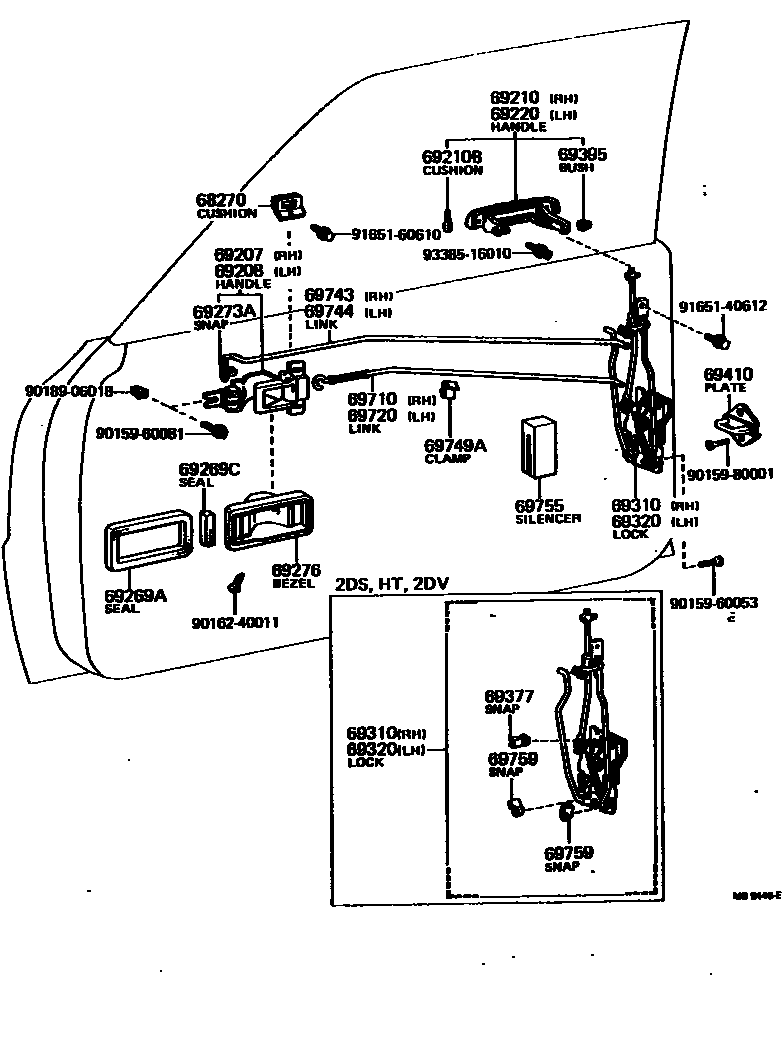

Toyota COROLLA 前门锁和车门把手 — Figure 6703
Toyota COROLLA EPC diagram 6703, 前门锁和车门把手, with 2 images and 23 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 68270 | Front door glass inner cushion | 68270-12010 · 68270-12020 |
| 69207 | Right front door inner handle sub-assembly | 69207-10010 · 69207-20021 |
| 69208 | Left front door inner handle sub-assembly | 69208-10010 · 69208-20011 |
| 69210 | Right front door outer handle assembly | 69210-12030 |
| 69210B | Cushion pad (for front door outer handle) | 90541-03021 |
| 69220 | Left front door outer handle assembly | 69220-12030 |
| 69269A | Door No. 1 inner handle seal (for front door) | 69269-12010 · 69269-12020 |
| 69269C | Door No. 2 inner handle seal (for front door) | 69289-12010 |
| 69273A | Inner door handle lever buckle (for front door) | 69273-10010 · 69279-12010 |
| 69276 | Front door inner handle frame | 69276-10012 · 69276-20011 |
| 69310 | Right front door lock assembly | 69310-12040 · 69310-12041 · 69310-12050 · 69310-12051 · 69310-12060 |
| 69320 | Left front door lock assembly | 69320-12040 · 69320-12041 · 69320-12050 · 69320-12051 · 69320-12060 |
| 69377 | Front door lock control link buckle | 69377-30020 |
| 69395 | Bushing (for outer door handle) | 69395-22010 |
| 69410 | Front door lock plate assembly | 69410-12030 · 69410-20050 |
| 69710 | Right front door opening control linkage assembly | 69710-12050 · 69710-12060 · 69711-12020 |
| 69720 | Left front door opening control linkage assembly | 69712-12020 · 69720-12050 · 69720-12060 |
| 69743 | Right front door lock control link No. 1 | 69733-12020 · 69775-12010 |
| 69744 | Left front door No. 1 locking control link | 69734-12020 · 69776-12010 |
| 69747A | Door lock button (for front doors) | 69741-20020 · 69747-30012 |
| 69749A | Front door lock No. 1 link clamp | 69749-12010 |
| 69755 | Front door lock link silencer | 69759-12011 |
| 69759 | Rear door lock No. 1 control link buckle | 69759-12030 |
