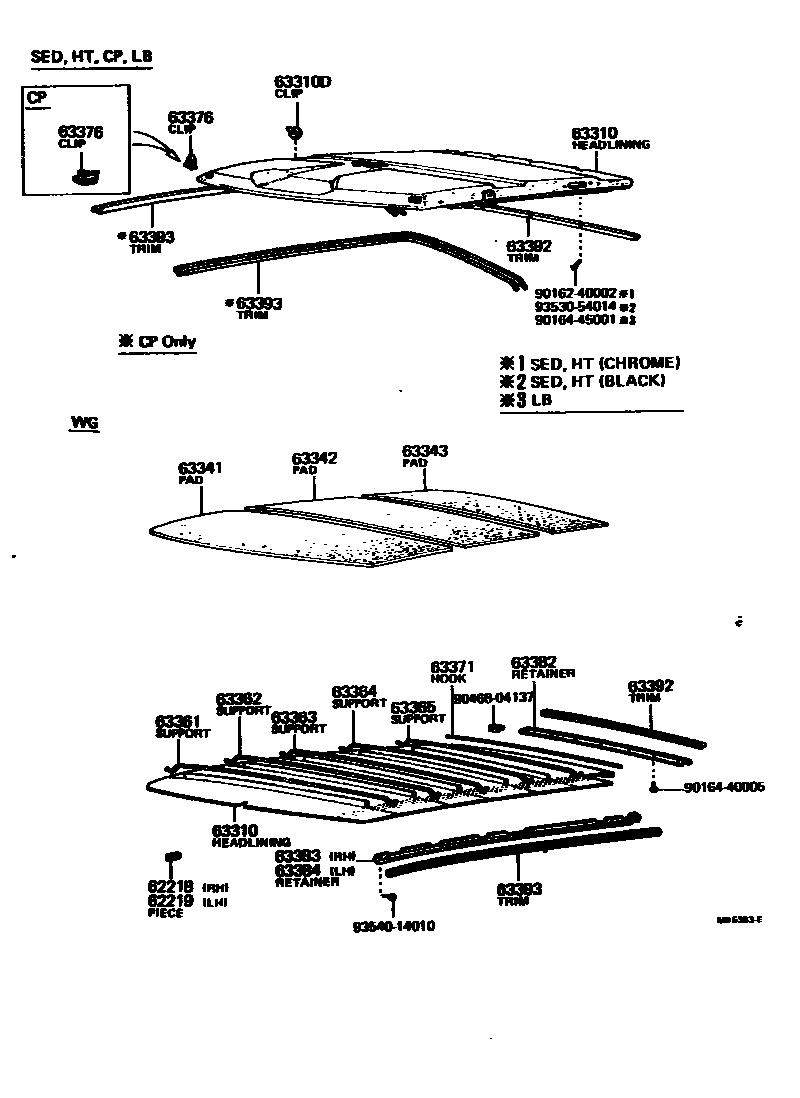

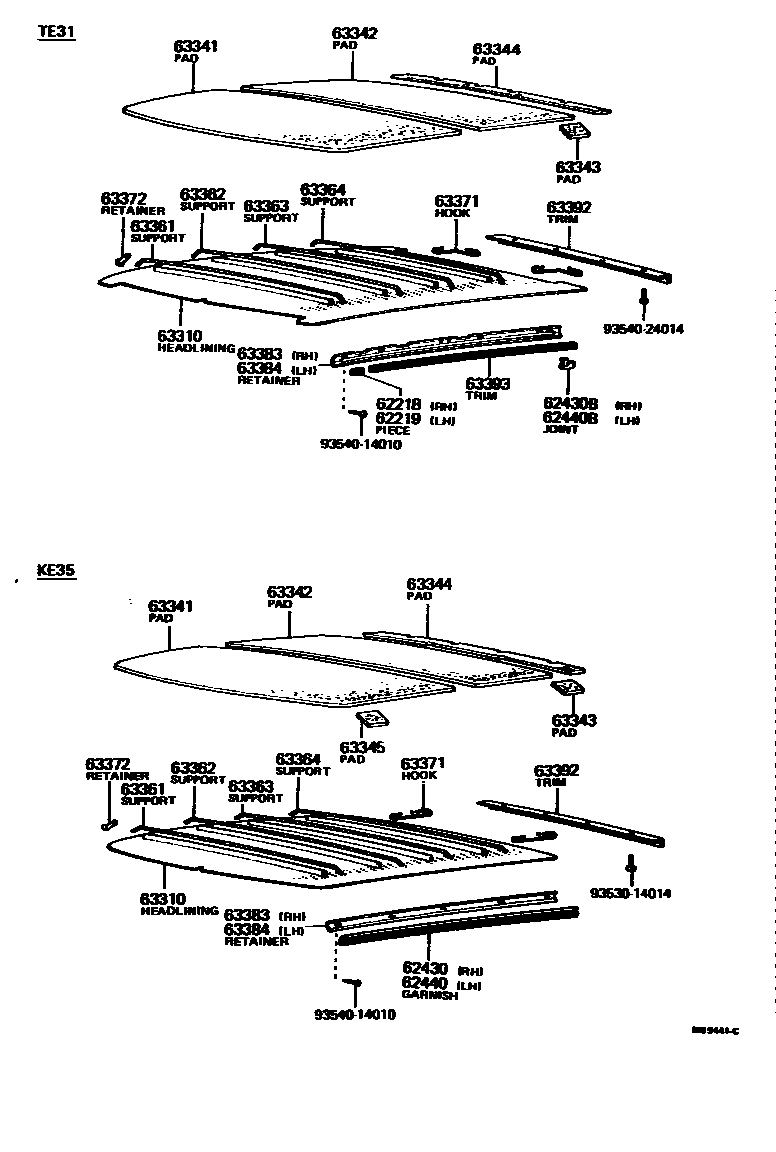

Toyota COROLLA 车顶内衬和消声垫 — Figure 6402
Toyota COROLLA EPC diagram 6402, 车顶内衬和消声垫, with 2 images and 23 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 62218 | Right front pillar decorative panel corner trim piece | 62218-13010 |
| 62219 | Left front pillar decorative panel corner trim piece | 62219-13010 |
| 62430B | Roof right side rail decorative strip joint | 62443-12010 |
| 62440B | Roof left side rail decorative strip joint | 62444-12010 |
| 63310 | Headlining assembly | 63310-12230 · 63310-12232 · 63310-12250 · 63310-12260 · 63310-12263 · 63310-12264 · 63310-12300 · 63310-13070 |
| 63341 | No. 1 roof silencer mat | 63341-12050 · 63341-13030 |
| 63342 | No. 2 roof muffler pad | 63342-12010 · 63342-12020 · 63342-13030 |
| 63343 | No. 3 roof muffler pad | 63341-13030 · 63343-12010 |
| 63344 | No. 4 roof silencer mat | 63352-12010 · 63352-12020 |
| 63345 | No. 5 roof silencer mat | 63354-12010 |
| 63361 | Headlining bracket No. 1 | 63361-12050 · 63361-12060 · 63361-13010 |
| 63362 | Headlining bracket No. 2 | 63361-12050 · 63361-13010 · 63362-12040 |
| 63363 | No. 3 roof lining bracket | 63361-12050 · 63361-13010 · 63362-12040 |
| 63364 | No. 4 roof lining bracket | 63361-13010 · 63362-12040 |
| 63365 | No. 5 headliner bracket | 63361-13010 |
| 63371 | Headlining bracket hook | 63372-12010 · 63372-12020 · 63372-12030 · 90580-30174 |
| 63372 | Lining bracket fixings | 63365-12010 · 63371-12050 |
| 63376 | Lined clips | 63376-20010 · 63395-12010 |
| 63382 | Center rear lining fastener | 63383-13010 |
| 63383 | Right rear headliner fixing | 63302-12010 · 63302-13020 · 63381-12020 |
| 63384 | Left rear headliner fixing | 63303-12010 · 63382-12020 · 63382-13010 |
| 63392 | Rear headliner trim panel | 63392-13010 |
| 63393 | Center roof lining trim | 63393-13010 |
