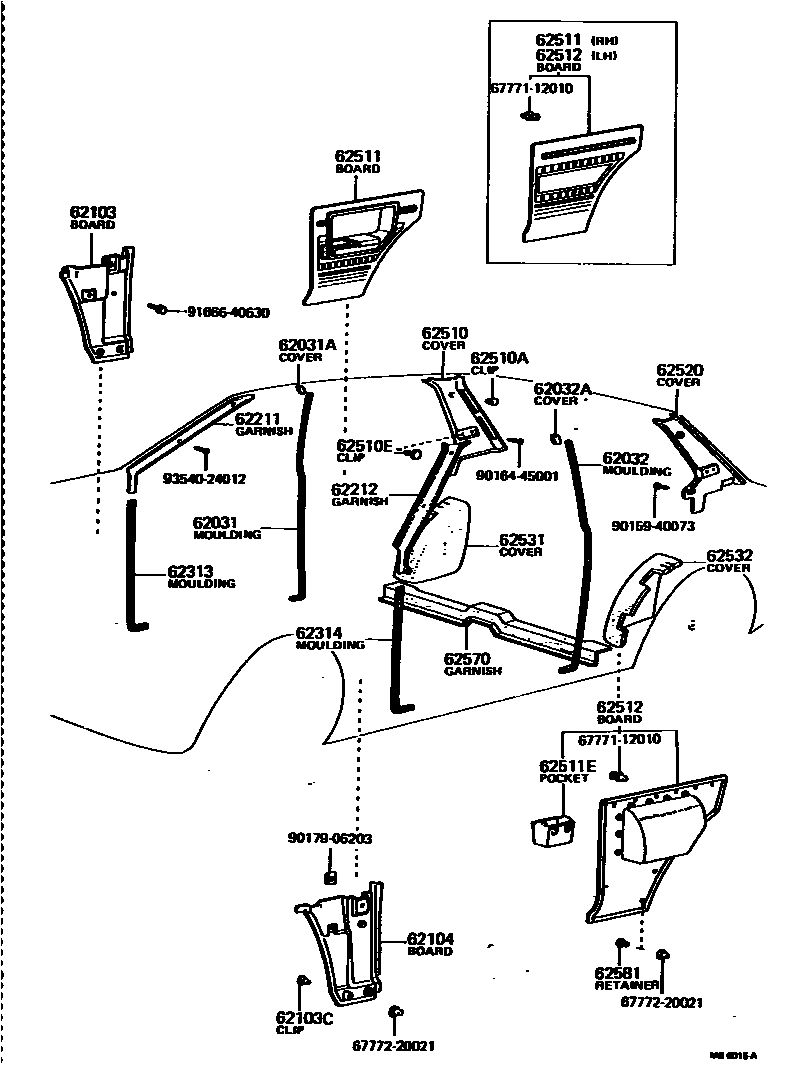

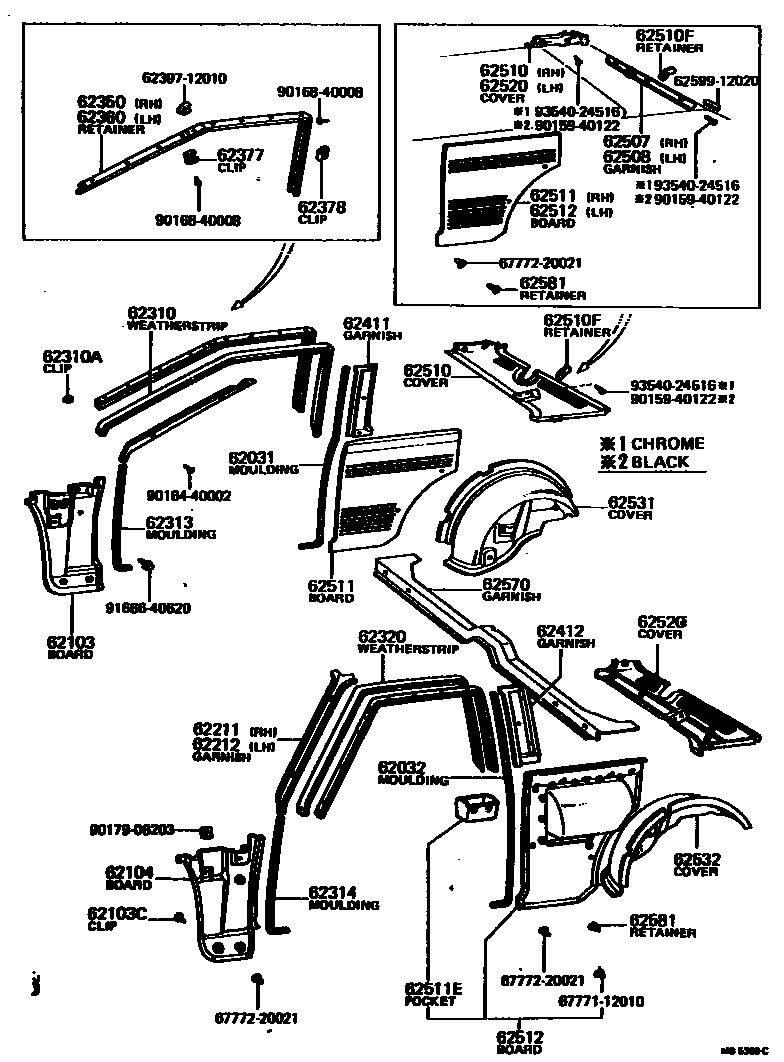

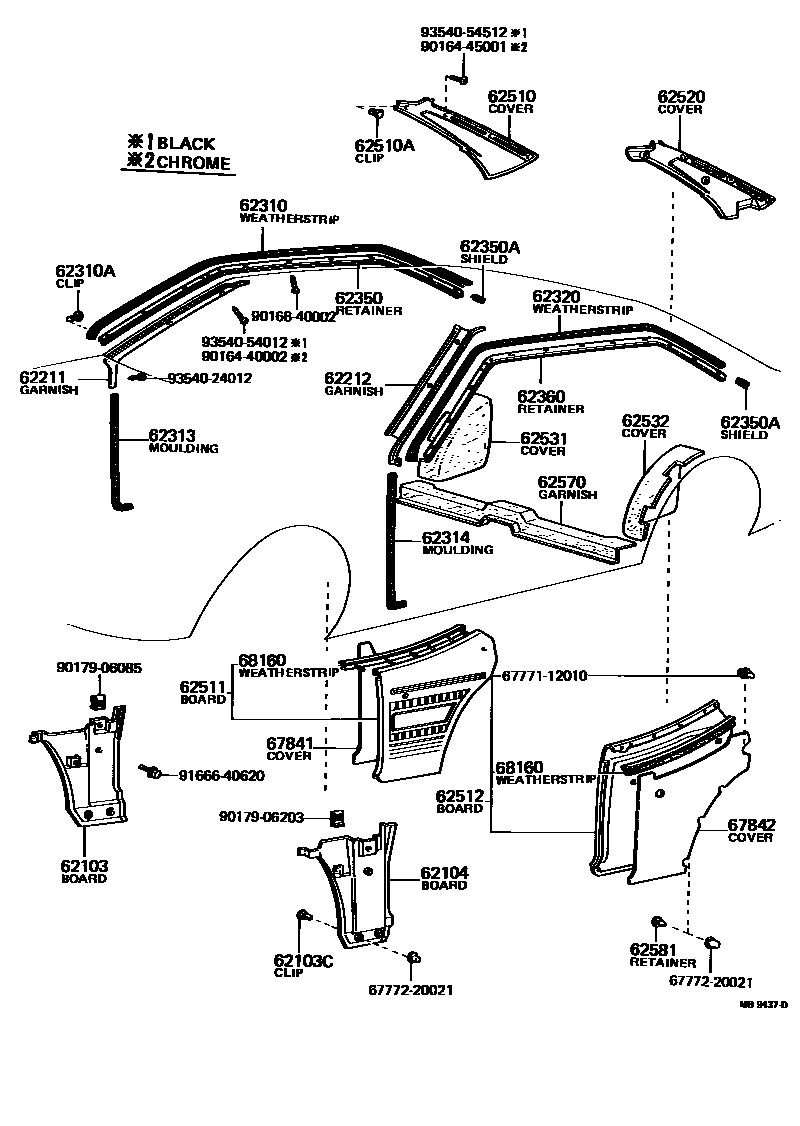

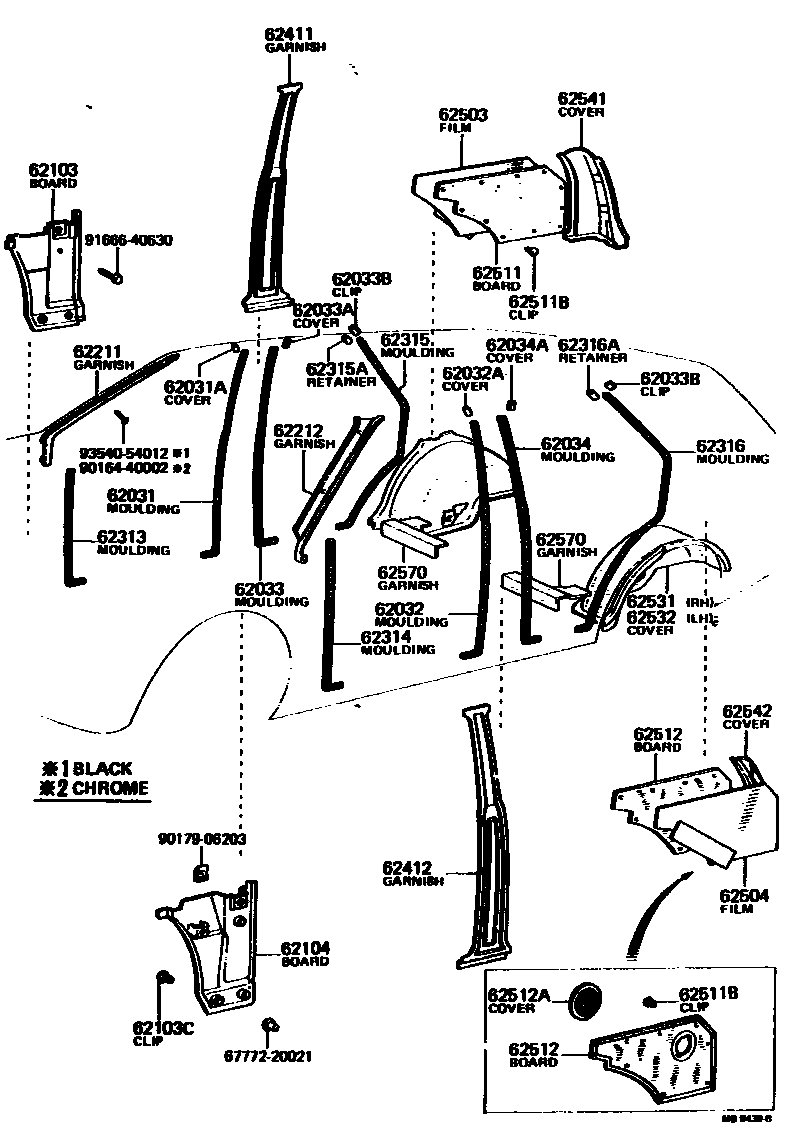

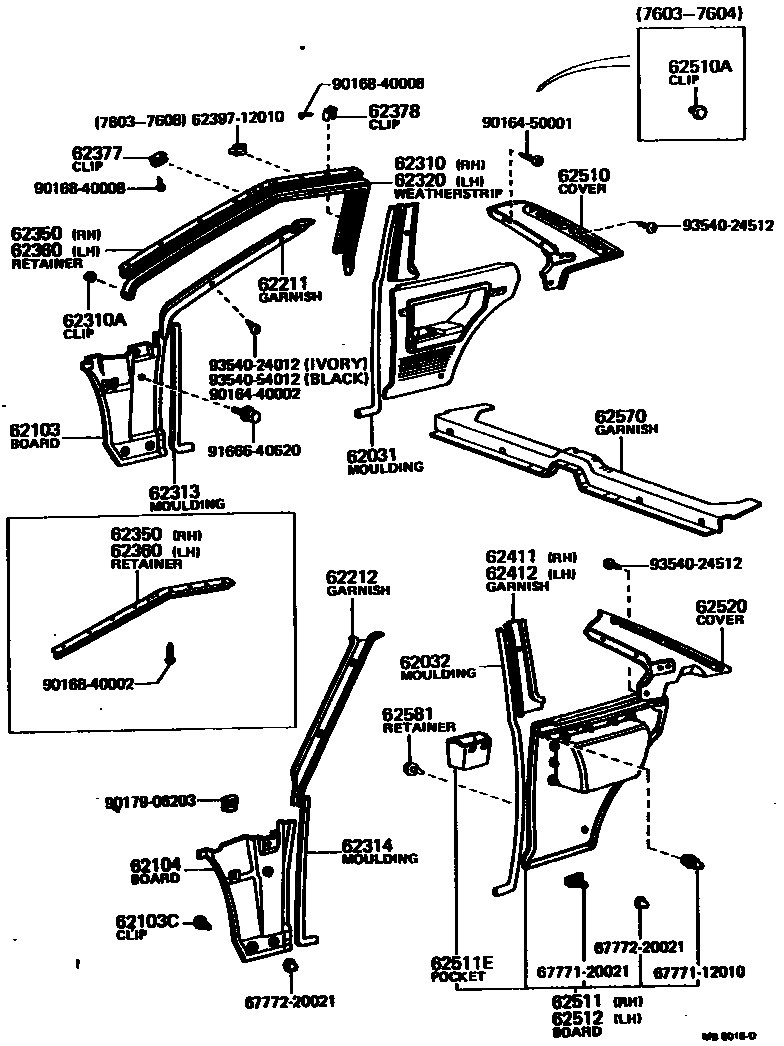

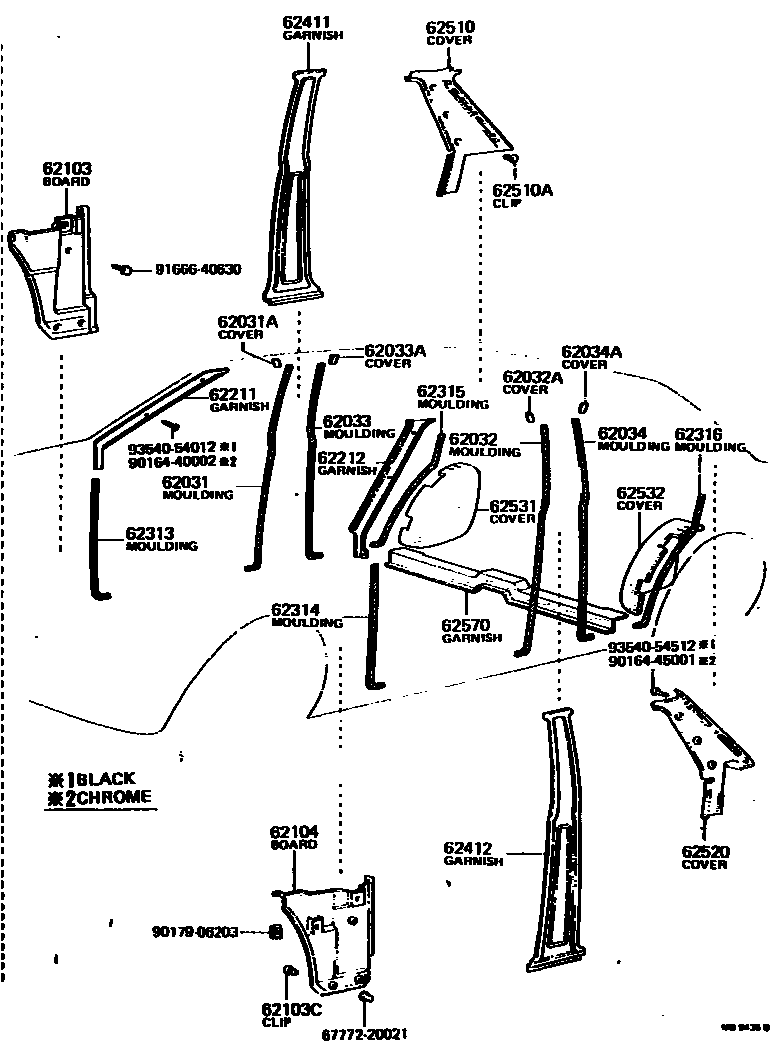

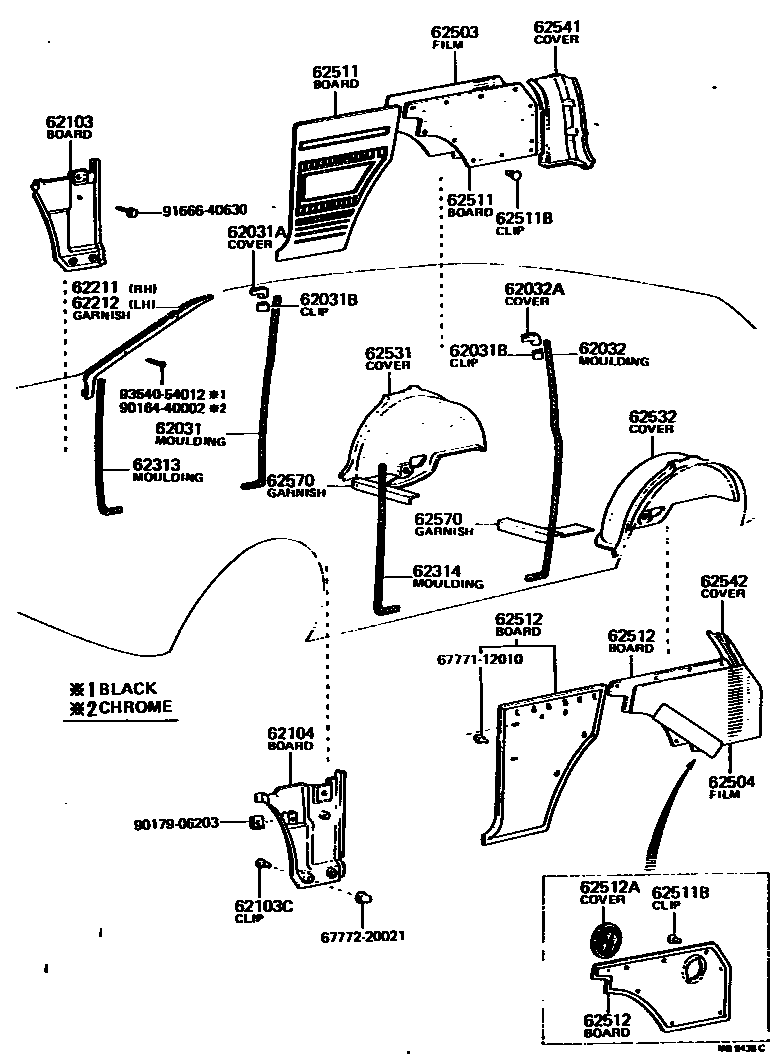

Toyota COROLLA 内饰板和车门防水胶条 — Figure 6401
Toyota COROLLA EPC diagram 6401, 内饰板和车门防水胶条, with 7 images and 24 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 62031B | Front door waterproof strip clip | 90468-04133 |
| 62033B | Rear door waterproof tape clip | 90468-04133 |
| 62103 | Right front wall side trim sub-assembly | 62101-12030 |
| 62104 | Left front wall side trim sub-assembly | 62102-12030 |
| 62211 | Right front pillar trim | 62211-13010 |
| 62212 | Left front pillar trim | 62212-13010 |
| 62310 | Roof right side rail seal strip | 62381-12010 · 62381-12020 · 62381-12050 |
| 62310A | Roof rail sealing strip clip | 67868-30030 |
| 62313 | Right front door waterproof strip | 62313-12050 |
| 62314 | Left front door waterproof strip | 62313-12050 |
| 62320 | Roof left side rail seal strip | 62382-12010 · 62382-12020 · 62382-12060 |
| 62350 | Right front roof rail sealing strip fixing assembly | 62051-12010 · 62051-12030 · 62051-12040 |
| 62350A | Corner window rear side guard | 62797-12010 |
| 62360 | Left front roof rail sealing strip fixing assembly | 62052-12010 · 62052-12030 · 62052-12040 |
| 62377 | Car door window glass clip | 62367-12020 |
| 62378 | Car door window glass clip | 62368-12010 |
| 62503 | Right front side panel inner panel protective film sub-assembly | 61791-13010 · 61791-13011 |
| 62504 | Left front side panel inner panel protective film sub-assembly | 61791-13011 · 61792-13010 · 61792-13020 |
| 62507 | Right body rear pillar decorative panel sub-assembly | 62571-12080 |
| 62508 | Left body rear pillar decorative panel sub-assembly | 62572-12080 |
| 62510F | Roof side trim fixings | 62485-12010 |
| 67841 | No. 1 right side manhole cover | 67841-12040 |
| 67842 | No. 1 left side manhole cover | 67841-12040 |
| 68160 | Rear corner window inner sealing strip assembly | 68190-12040 · 68240-12010 |
