Toyota COROLLA 车侧通风装置 — Figure 6102

Toyota COROLLA EPC diagram 6102, 车侧通风装置, with 4 images and 10 PNC and OE references.

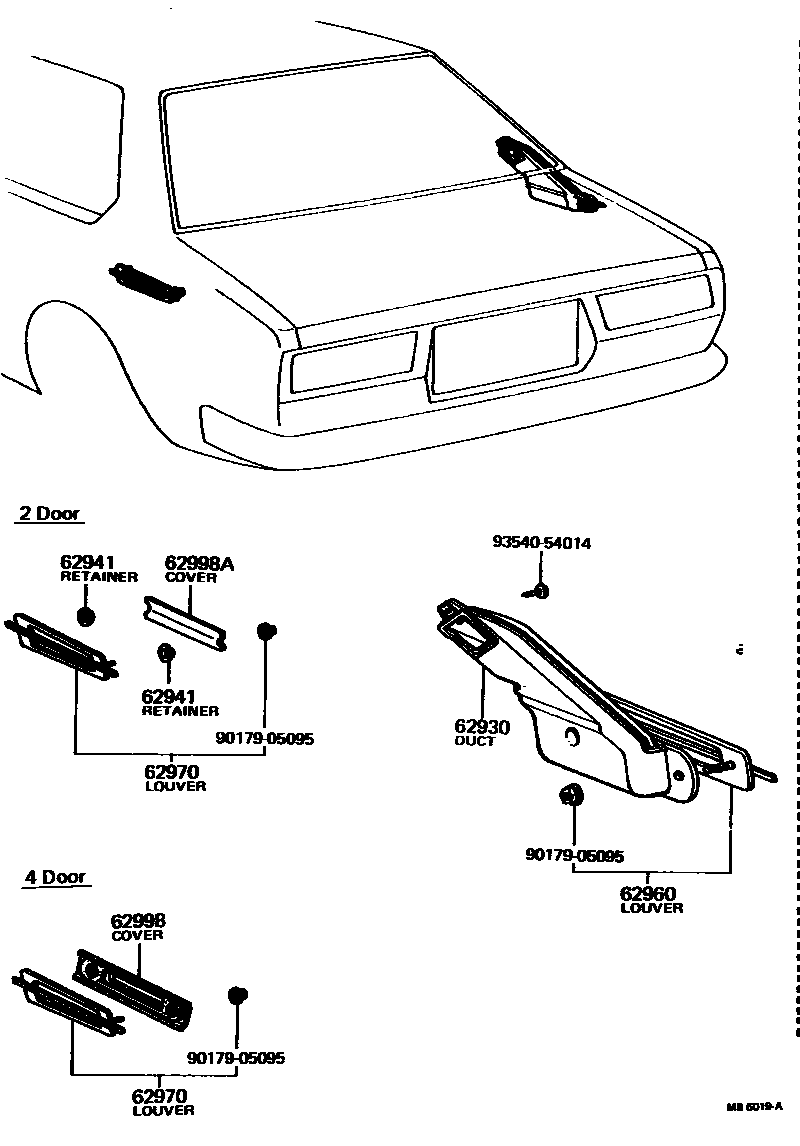

Toyota COROLLA 车侧通风装置 EPC diagram — MB6019A
车侧通风装置 — MB6019A (197608 – 197908)

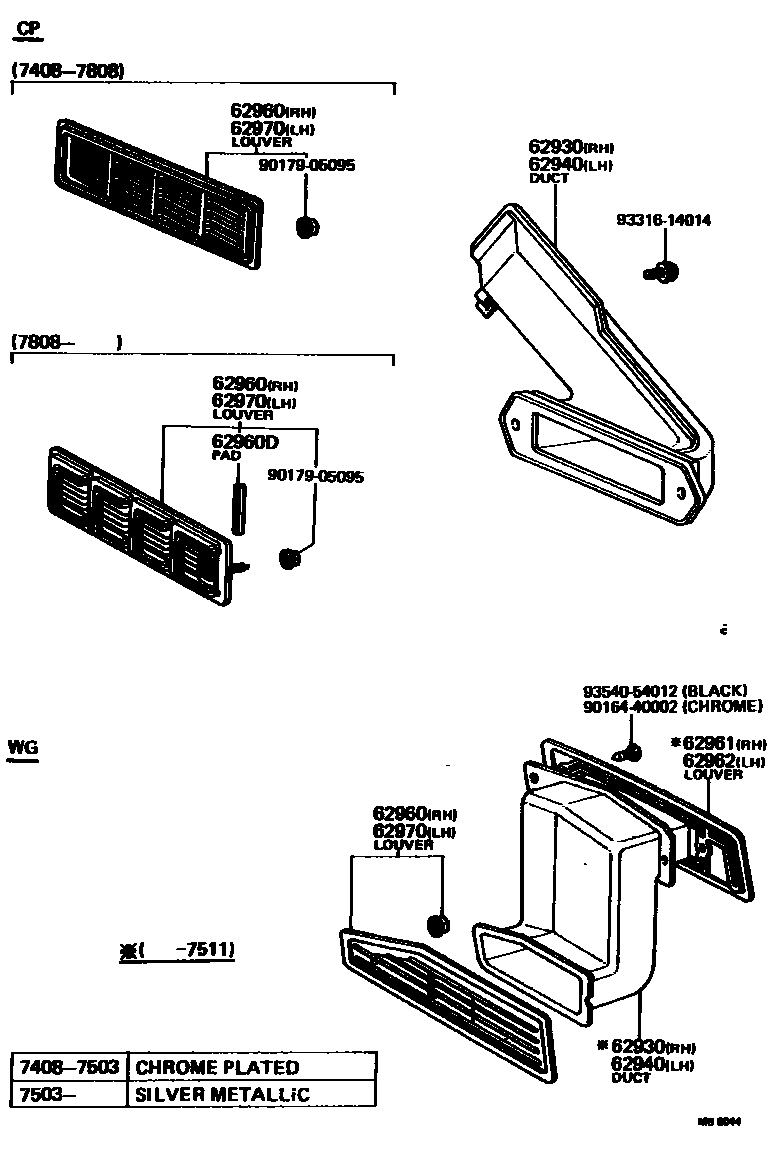

Toyota COROLLA 车侧通风装置 EPC diagram — MB8044
车侧通风装置 — MB8044 (197603 – 197908)

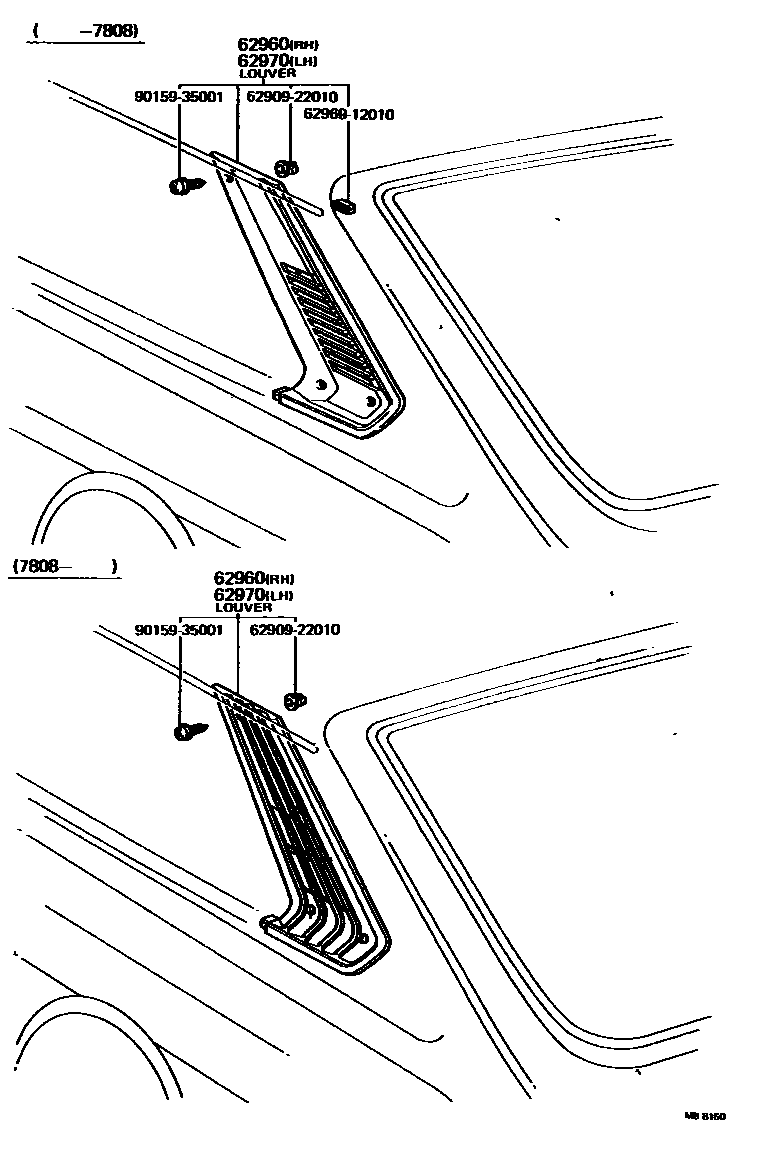

Toyota COROLLA 车侧通风装置 EPC diagram — MB8160
车侧通风装置 — MB8160 (197603 – 197908)

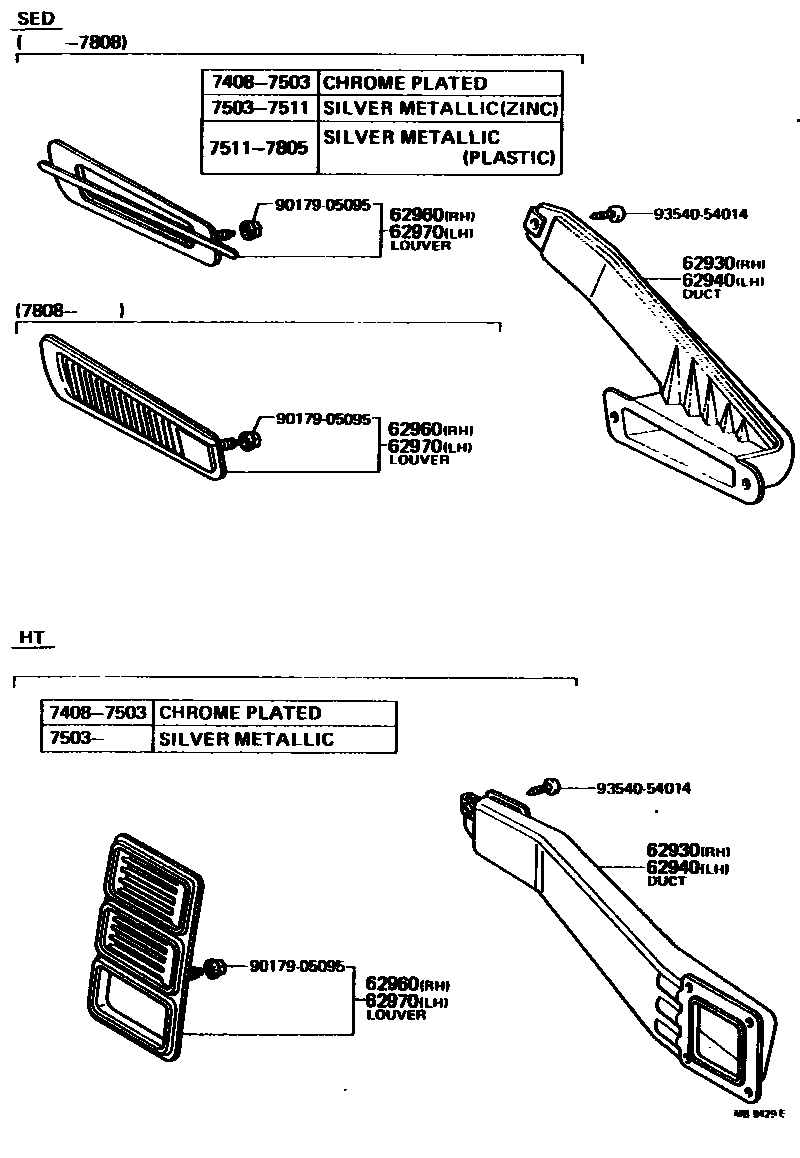

Toyota COROLLA 车侧通风装置 EPC diagram — MB9429E
车侧通风装置 — MB9429E (197408 – 197908)

PNC and OE references

PNCPart nameOE numbers
62930Ventilation duct assembly on the right side of the roof62930-12010 · 62930-12020 · 62930-12030 · 62930-12031 · 62931-13030
62940Roof left ventilation duct assembly62932-13030 · 62940-12010 · 62940-12020 · 62940-12030 · 62940-12031
62941Ventilation duct fixing on the right side of the roof62941-12070
62960Roof right ventilation grille assembly62905-19025 · 62905-19026 · 62905-19027 · 62905-19075 · 62905-19145 · 62905-19195 · 62951-19135 · 62951-19136 · 62951-19175 · 62951-19176 · 62951-19177 · 62951-19205 · 62951-19206 · 62951-19215 · 62951-19216 · 62951-19255
62960DLiner No. 1 (for roof side ventilation grille)62991-12010
62961Ventilation grille on the right side of the roof62907-13010
62962Ventilation grille on the left side of the roof62908-13010
62970Roof left ventilation grille assembly62906-19025 · 62906-19026 · 62906-19027 · 62906-19075 · 62906-19125 · 62906-19175 · 62951-19135 · 62951-19136 · 62951-19255 · 62952-19145 · 62952-19146 · 62952-19155 · 62952-19156 · 62952-19165 · 62952-19166
62998Side vent cover sub-assembly62908-12010
62998ASide vent covers62998-12020 · 62998-12021
