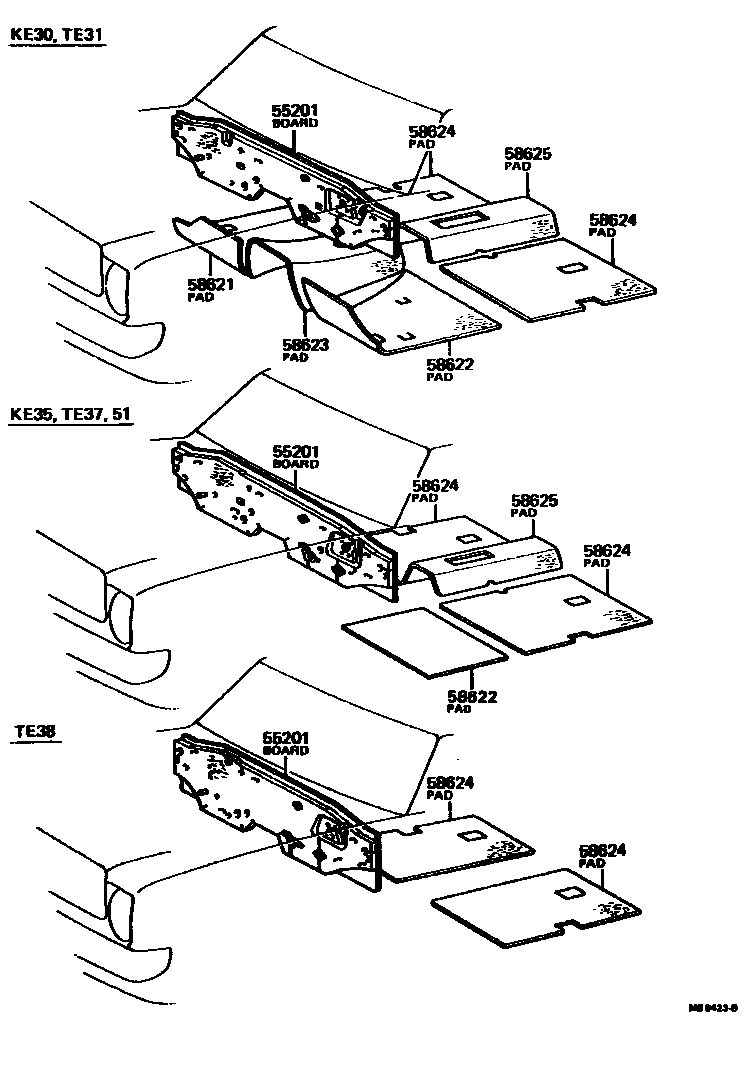

Toyota COROLLA 前围板消声板和地板消声垫 — Figure 5805
Toyota COROLLA EPC diagram 5805, 前围板消声板和地板消声垫, with 1 images and 6 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 55201 | Front apron muffler panel sub-assembly | 55210-12050 · 55210-12051 · 55210-12070 · 55210-12071 · 55210-12072 · 55210-12080 · 55210-12081 · 55210-12082 · 55210-12083 · 55210-12090 · 55210-12091 · 55210-12092 |
| 58621 | Front floor right muffler pad | 58621-12030 |
| 58622 | Front floor left muffler pad | 58621-12030 · 58621-12050 |
| 58623 | Front floor center muffler mat | 58623-12050 |
| 58624 | Rear floor side sound attenuator mat | 58624-12040 |
| 58625 | Rear floor center muffler mat | 58626-12010 |
