Toyota COROLLA 地板隔热垫 — Figure 5802

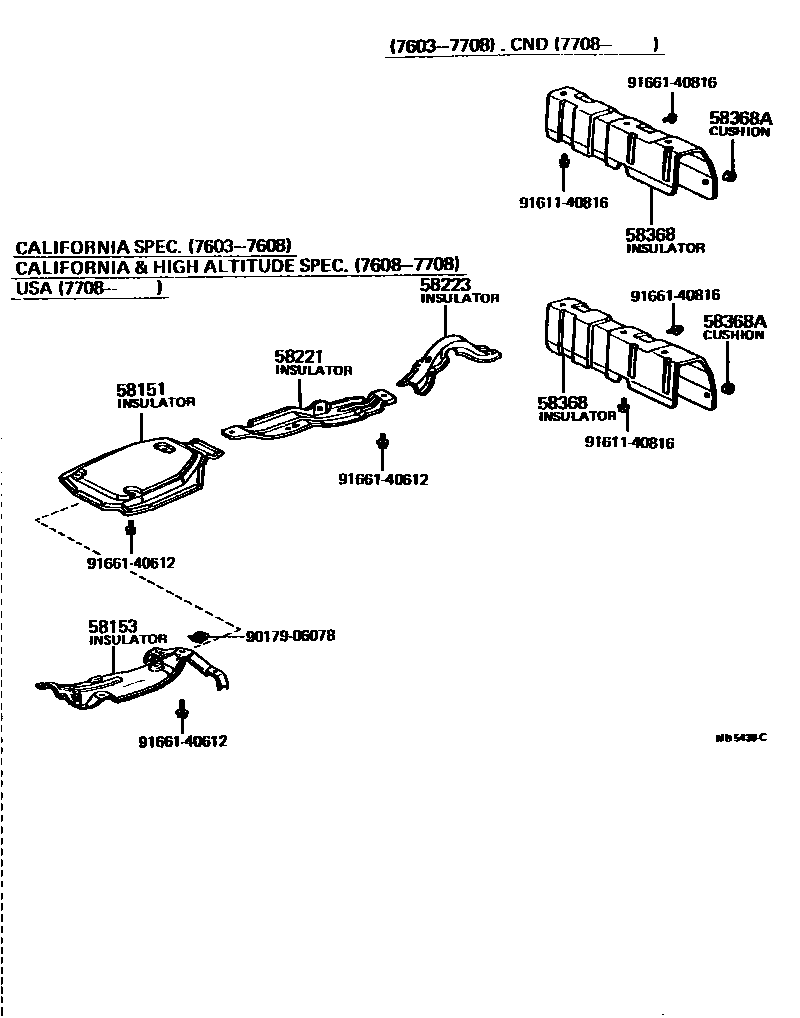

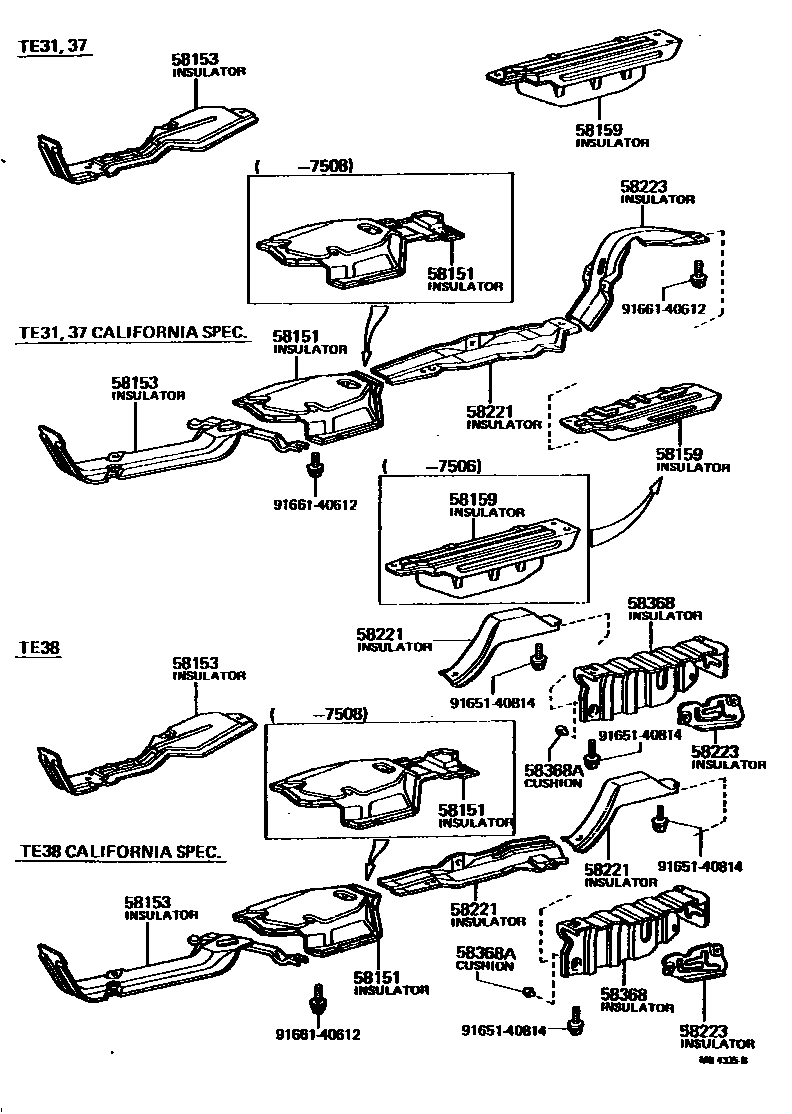

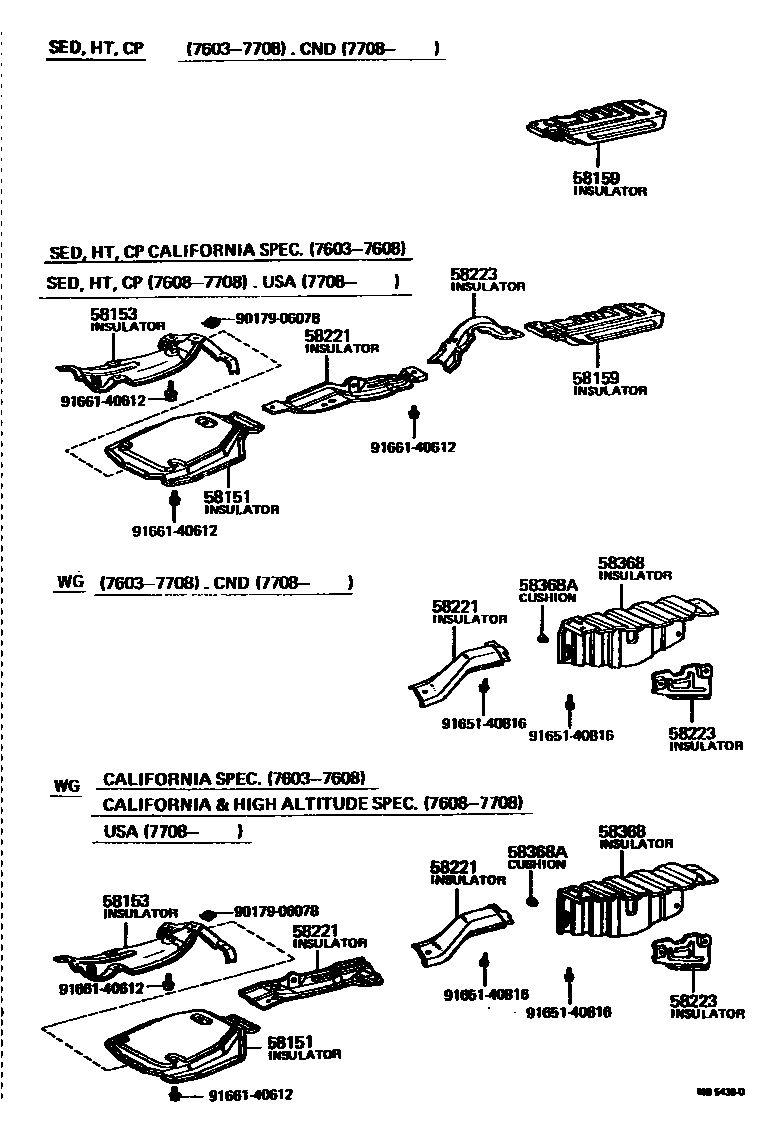

Toyota COROLLA EPC diagram 5802, 地板隔热垫, with 4 images and 7 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 58151 | Front floor insulation mat No. 1 | 58041-12020 · 58041-12030 · 58041-12040 · 58041-12050 · 58041-12060 · 58041-12070 |
| 58153 | Front floor insulation mat No. 2 | 58042-12010 · 58153-12010 · 58153-12020 |
| 58159 | Main muffler heat insulation pad | 58031-12010 · 58031-12020 · 58031-12060 |
| 58221 | Central Floor Insulating Mat No. 1 | 58044-13010 · 58221-12020 · 58221-12040 · 58221-12041 · 58221-12050 · 58221-12060 · 58221-13020 · 58221-13021 · 58221-13022 |
| 58223 | Central Floor Insulating Mat No. 2 | 52189-13010 · 58223-12020 · 58223-12030 |
| 58368 | potholder | 58031-13020 · 58327-12030 |
| 58368A | Cushion pad (for potholders) | 90541-09151 · 90950-01006 |
