Toyota COROLLA 浅盘形地板和车身下背板 — Figure 5801

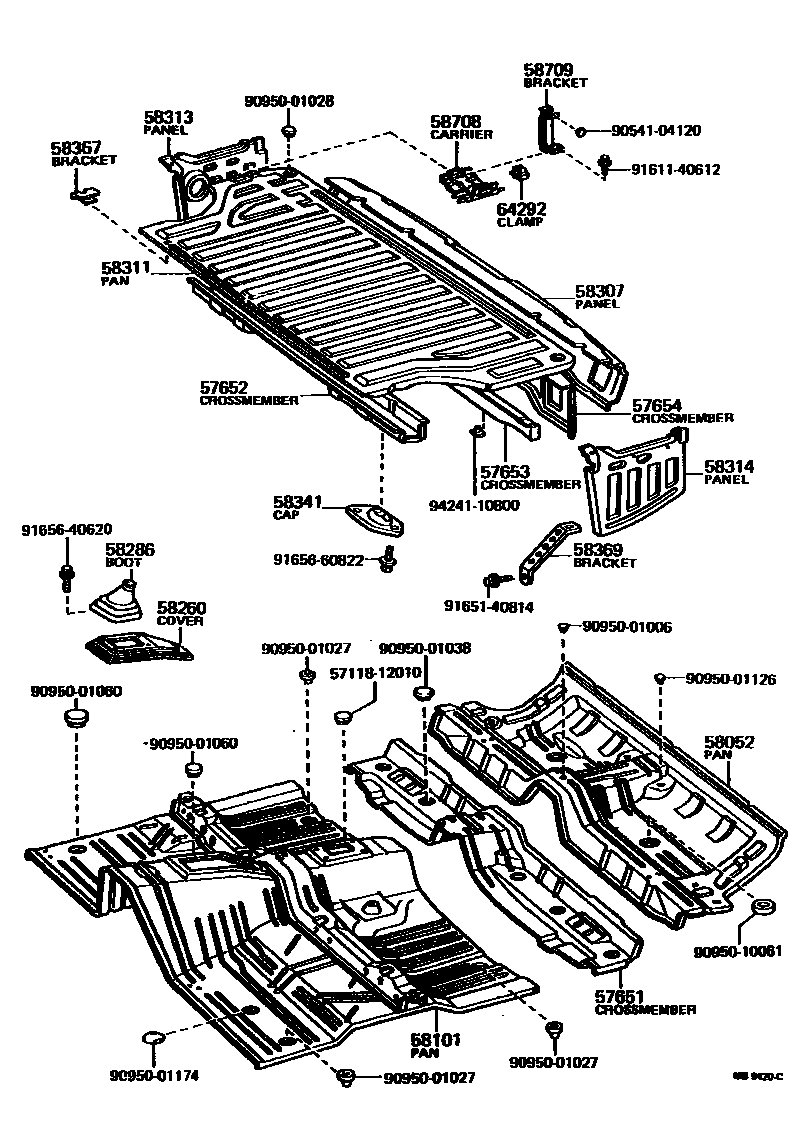

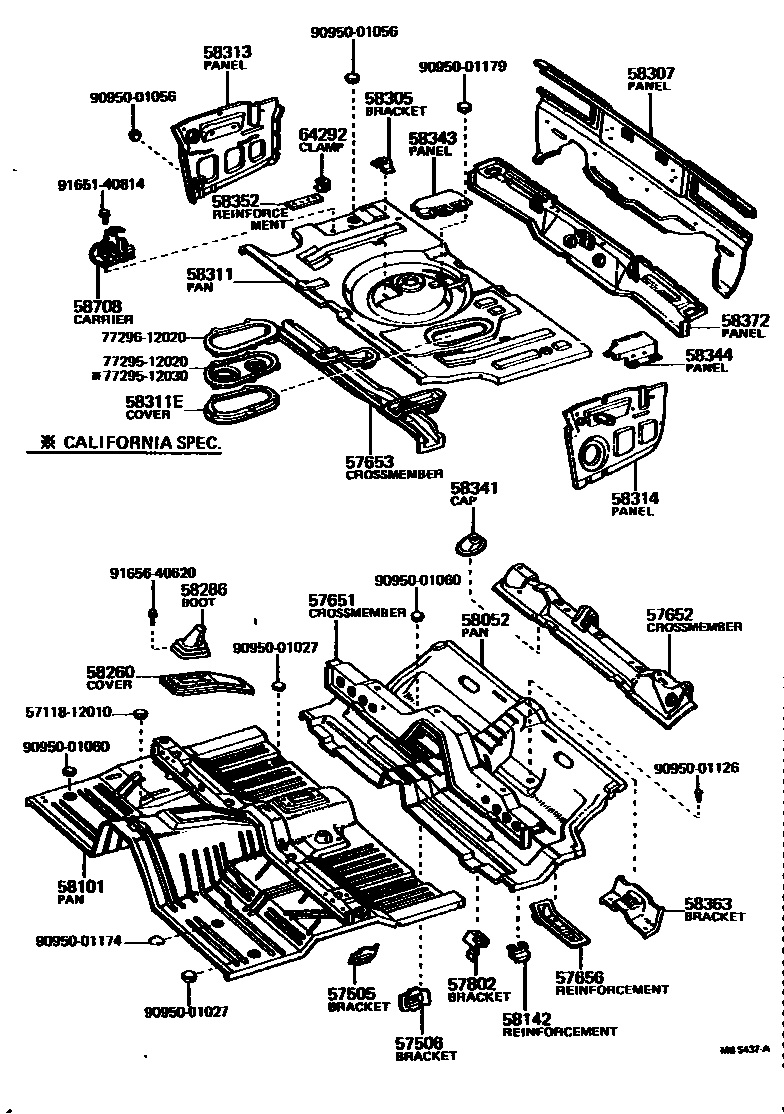

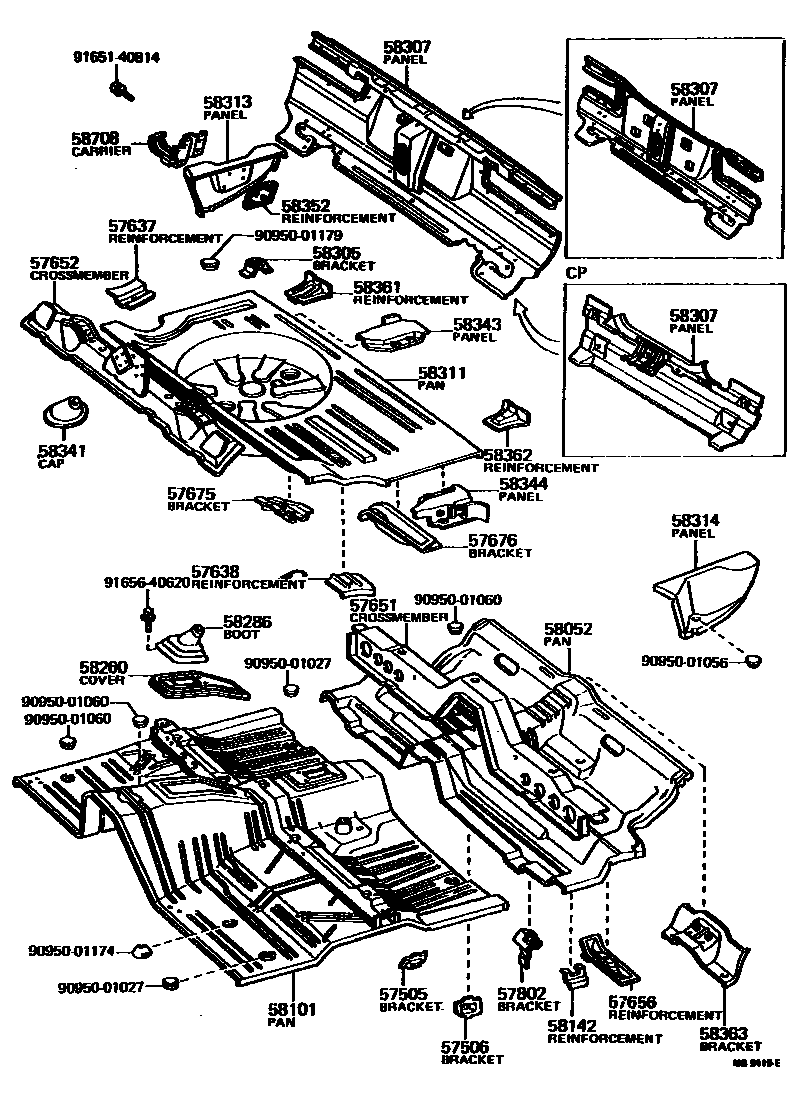

Toyota COROLLA EPC diagram 5801, 浅盘形地板和车身下背板, with 3 images and 36 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 57505 | No. 1 parking brake bracket sub-assembly | 58207-12030 |
| 57506 | No. 2 parking brake bracket sub-assembly | 58208-12030 |
| 57637 | Rear floor right longitudinal beam to wheel house reinforcement | 57637-12010 |
| 57638 | Rear floor side cross member to wheel house left reinforcement | 57638-12010 |
| 57651 | rear floor front cross member | 57407-13020 · 57407-13030 · 57407-13031 · 57461-12030 |
| 57652 | Rear floor cross member No. 2 | 57606-12030 · 57606-12040 · 57606-13010 · 57606-13020 |
| 57653 | Rear floor beam No. 3 | 57605-12040 · 57606-15010 · 57652-13030 |
| 57654 | Rear floor beam No. 4 | 58308-13030 |
| 57656 | Exhaust pipe hanger support reinforcement | 57658-12020 |
| 57675 | No. 1 muffler hanger bracket | 57656-12010 |
| 57676 | No. 2 muffler hanger bracket | 57657-12020 |
| 57802 | No. 1 brake pipe bracket sub-assembly | 58326-12010 |
| 58052 | Center floor floor sub-assembly | 58201-13040 · 58201-13050 · 58211-12050 · 58211-12051 · 58211-12052 |
| 58101 | Front floor sub-assembly | 58101-12906 · 58101-12915 · 58101-12919 |
| 58142 | Floor stringers to floor base reinforcements | 58143-12030 |
| 58260 | Transmission front cover assembly | 58121-12030 · 58121-12040 · 58121-12050 |
| 58286 | No. 1 shift lever dust cover | 58280-12010 · 58280-12030 · 58280-12040 · 58280-12060 |
| 58305 | Spare tire clamp bracket sub-assembly | 58305-10011 |
| 58307 | Body lower back panel sub-assembly | 58307-12160 · 58307-12161 · 58307-12170 · 58307-12171 · 58307-12180 · 58307-12190 · 58307-13060 · 58307-13061 |
| 58311 | rear floor pan | 58311-12040 · 58311-12050 · 58311-13060 |
| 58311E | Rear floor access hole cover | 58312-12020 |
| 58313 | Rear floor right panel | 58305-12020 · 58305-12030 · 58313-12030 · 58313-12040 · 58313-12050 · 58313-12100 · 58313-12110 · 58313-13040 · 58313-13050 |
| 58314 | rear floor left panel | 58306-12010 · 58306-12020 · 58314-12030 · 58314-12040 · 58314-12050 · 58314-12100 · 58314-12110 · 58314-13040 |
| 58341 | Rear shock absorber cover | 58341-12010 · 58341-13010 · 58342-12010 · 58342-13010 |
| 58343 | Rear floor right rear side panel | 57635-12020 · 57801-12010 |
| 58344 | Rear floor left rear side panel | 57636-12020 · 57802-12010 |
| 58352 | Jack clamp reinforcement | 58352-12020 · 58352-12030 |
| 58361 | Rear floor pan to right body lower back panel reinforcement | 58361-12010 · 58361-12020 |
| 58362 | Rear floor pan to left body lower back panel reinforcement | 58362-12010 · 58362-12020 |
| 58363 | Differential case buffer block bracket sub-assembly | 58205-12030 |
| 58367 | Fuel pipe clamp bracket | 58367-13010 |
| 58369 | Thermal pad holder | 58345-13020 |
| 58372 | Body inner lower back panel | 58308-12010 · 58308-12011 |
| 58708 | Jack bracket sub-assembly | 58709-13010 · 58791-12030 · 58791-12040 |
| 58709 | Jack clamp bracket sub-assembly | 58793-13010 |
| 64292 | Jack handle clip | 58788-13010 · 58788-15010 · 58789-13020 |
