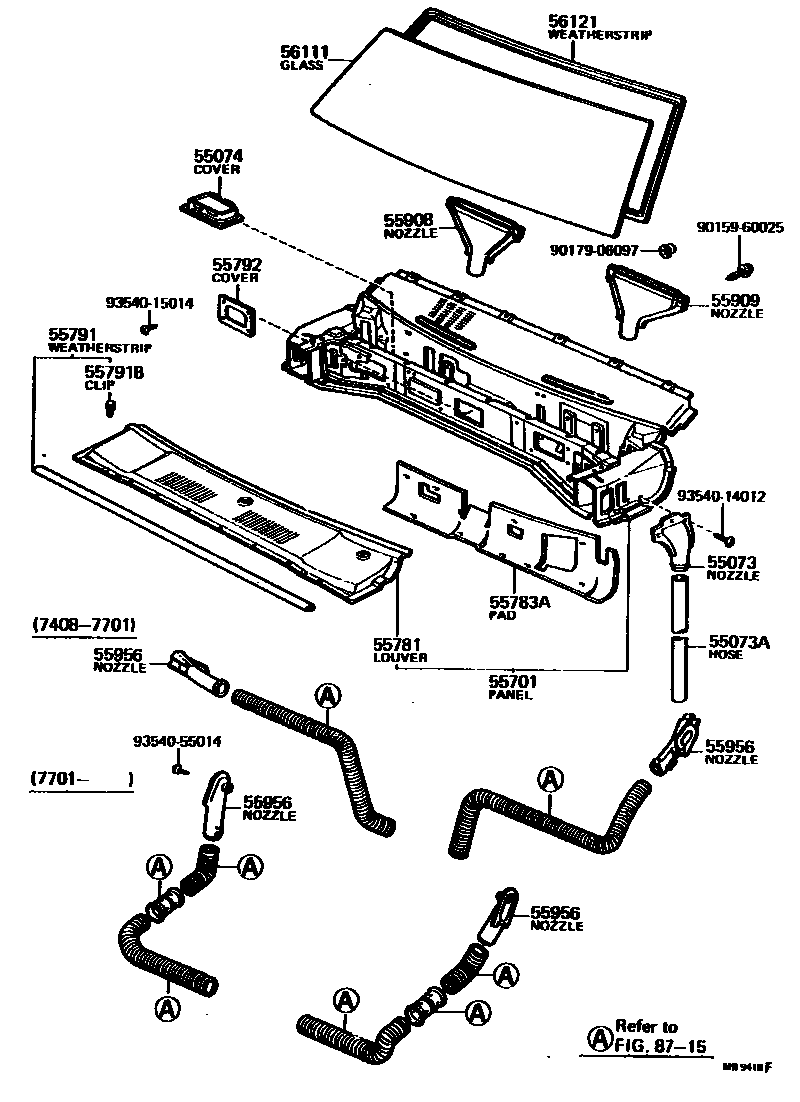

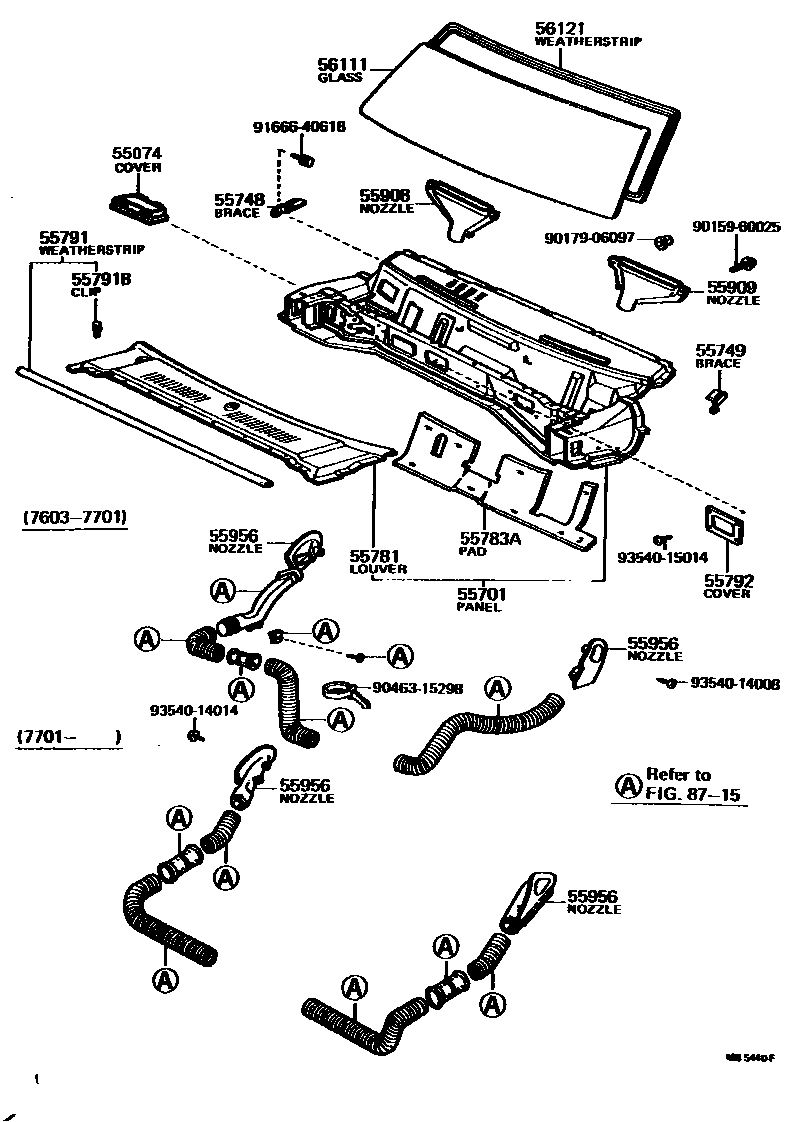

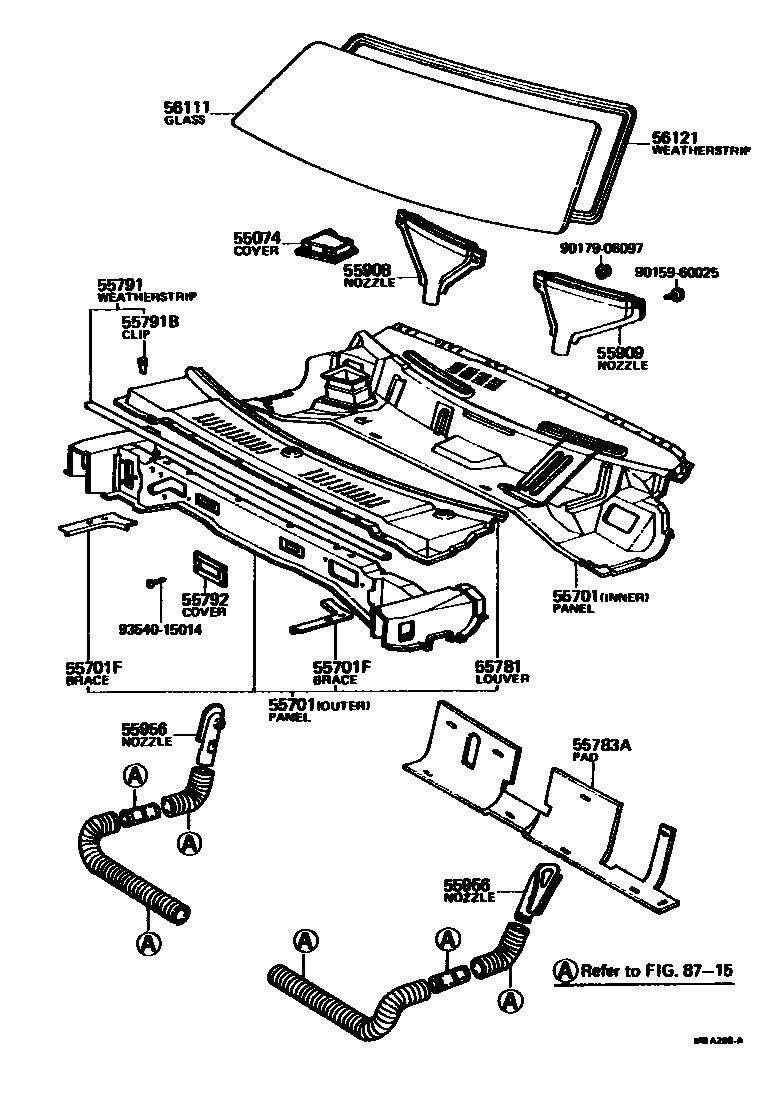

Toyota COROLLA 前围板和挡风玻璃 — Figure 5503
Toyota COROLLA EPC diagram 5503, 前围板和挡风玻璃, with 3 images and 17 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 55073 | Front wall water pumping nozzle sub-assembly | 55073-20010 |
| 55073A | Hoses (for water pumping nozzles) | 90445-33004 |
| 55074 | Front wall inner air heater cover sub-assembly | 55077-12020 |
| 55701 | Front apron sub-assembly | 55700-12031 · 55700-12040 · 55700-12060 · 55700-12070 · 55701-12120 · 55703-12061 |
| 55701F | From cowl upper cover to fender stay | 55715-12030 · 55716-12030 |
| 55748 | From cowl upper cover to column right bracket | 55748-12020 |
| 55749 | From the cowl upper cover to the left bracket of the column | 55749-12030 |
| 55781 | Front apron ventilation grille | 55711-12060 · 55711-12070 |
| 55783A | Front cowl upper cover silencer pad | 55783-12020 · 55783-12030 · 55783-12050 · 55783-12060 |
| 55791 | Sealing strip from engine cover to cowl upper cover | 53383-12010 · 53383-12020 |
| 55791B | Clamp (for sealing strip from engine cover to cowl upper cover) | 90467-07050 · 90467-08008 |
| 55792 | Wiper motor access hole cover | 55071-12010 · 55071-20010 |
| 55908 | Right defroster nozzle sub-assembly | 55091-12010 |
| 55909 | Left defroster nozzle sub-assembly | 55092-12010 |
| 55956 | Side defroster nozzle | 55961-12020 · 55961-12030 · 55961-12050 · 55961-12070 · 55962-12010 · 55962-12020 · 55962-12040 · 55962-12060 |
| 56111 | windshield | 56111-12200 · 56111-12220 · 56111-12240 · 56111-12330 · 56111-12380 |
| 56121 | windshield seal | 56121-12140 · 56121-12160 · 56121-12170 · 56121-12180 · 56121-13020 |
