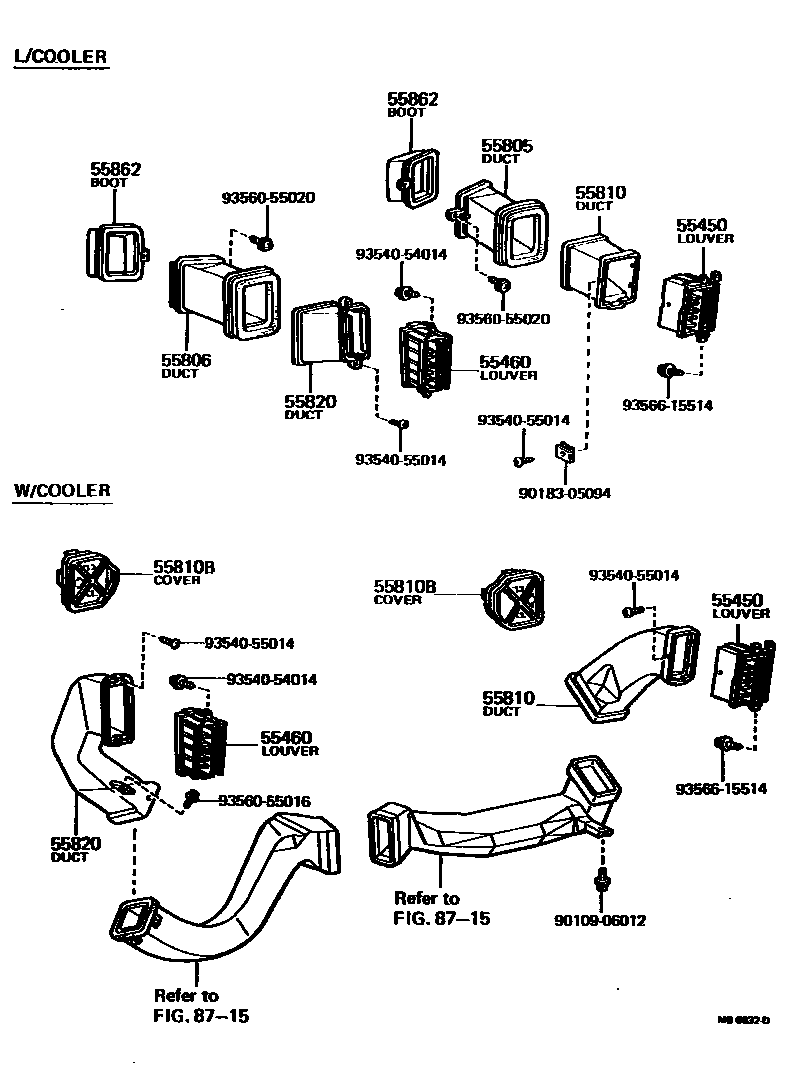

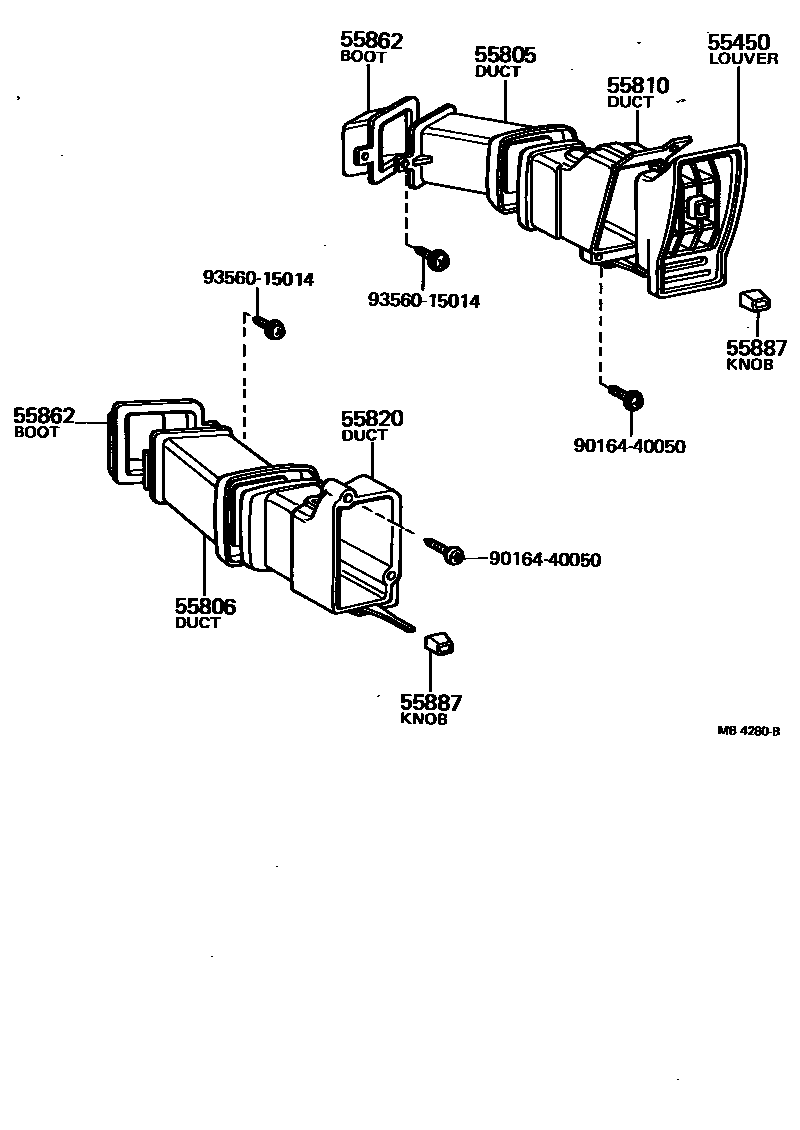

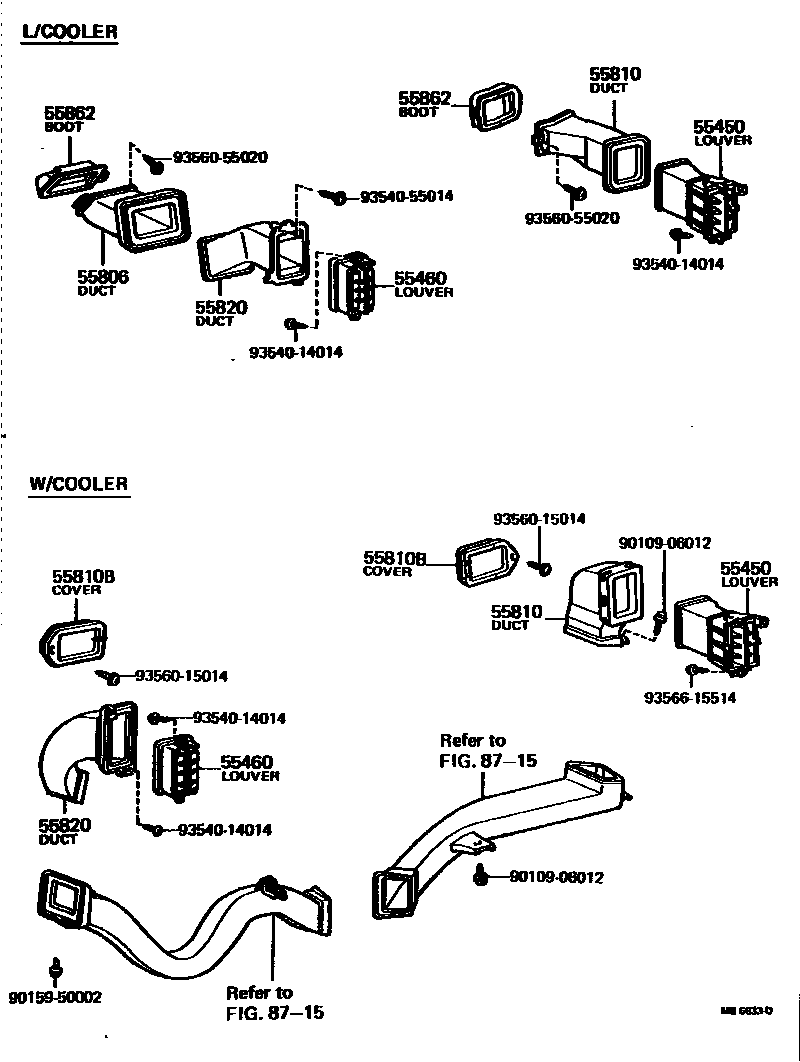

Toyota COROLLA 前围板通风装置 — Figure 5502
Toyota COROLLA EPC diagram 5502, 前围板通风装置, with 3 images and 9 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 55450 | Right ventilation grille assembly | 55660-12040 · 55660-12060 |
| 55460 | Left ventilation grille assembly | 55650-12020 · 55650-12030 |
| 55805 | No. 2 right ventilation duct sub-assembly | 55842-12030 · 55842-12040 · 55842-12060 |
| 55806 | No. 2 left ventilation duct sub-assembly | 55841-12030 · 55841-12040 · 55841-12060 · 55841-12080 |
| 55810 | Right ventilation duct assembly | 55088-12020 · 55830-12031 · 55832-12050 · 55840-12030 · 55842-12080 · 55846-12040 |
| 55810B | Side vent cover | 55877-12010 · 55877-12020 · 55878-12010 |
| 55820 | Left ventilation duct assembly | 55081-12050 · 55081-12051 · 55084-12040 · 55085-12040 · 55830-12030 · 55831-12060 · 55831-12080 · 55840-12031 |
| 55862 | Side ventilation dust cover | 55843-12030 · 55843-12040 · 55844-12030 · 55844-12040 |
| 55887 | Side ventilation butterfly valve control button | 55897-12901 |
