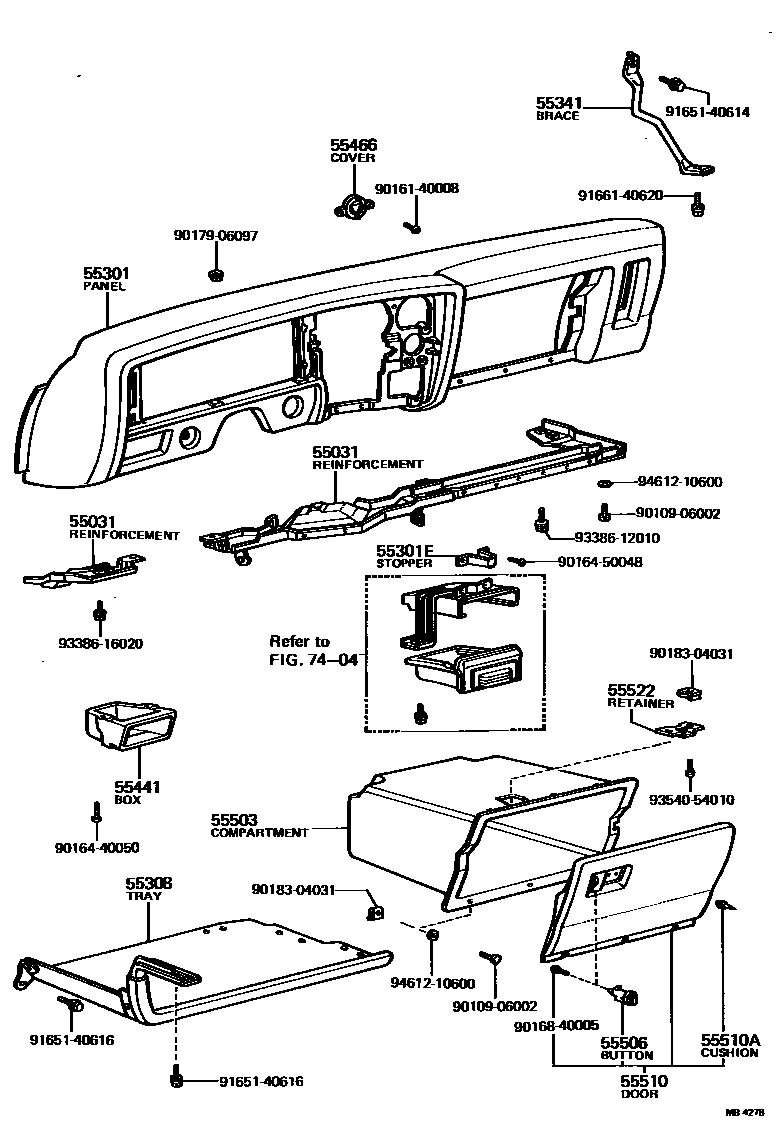

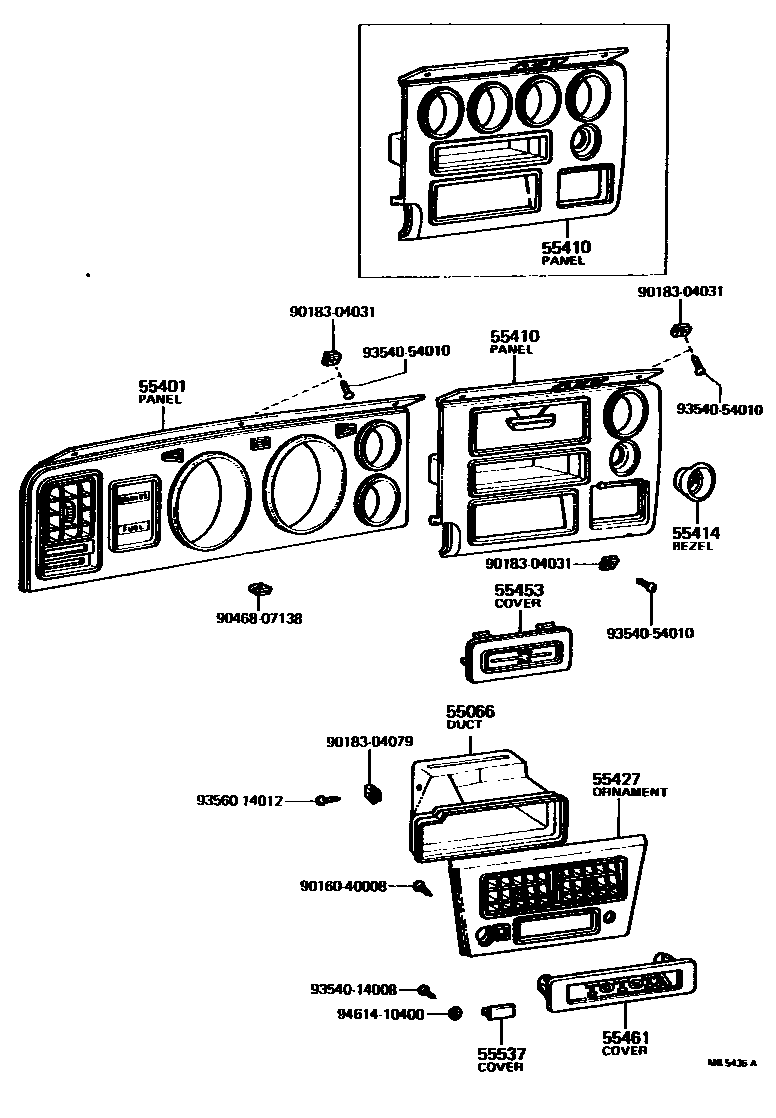

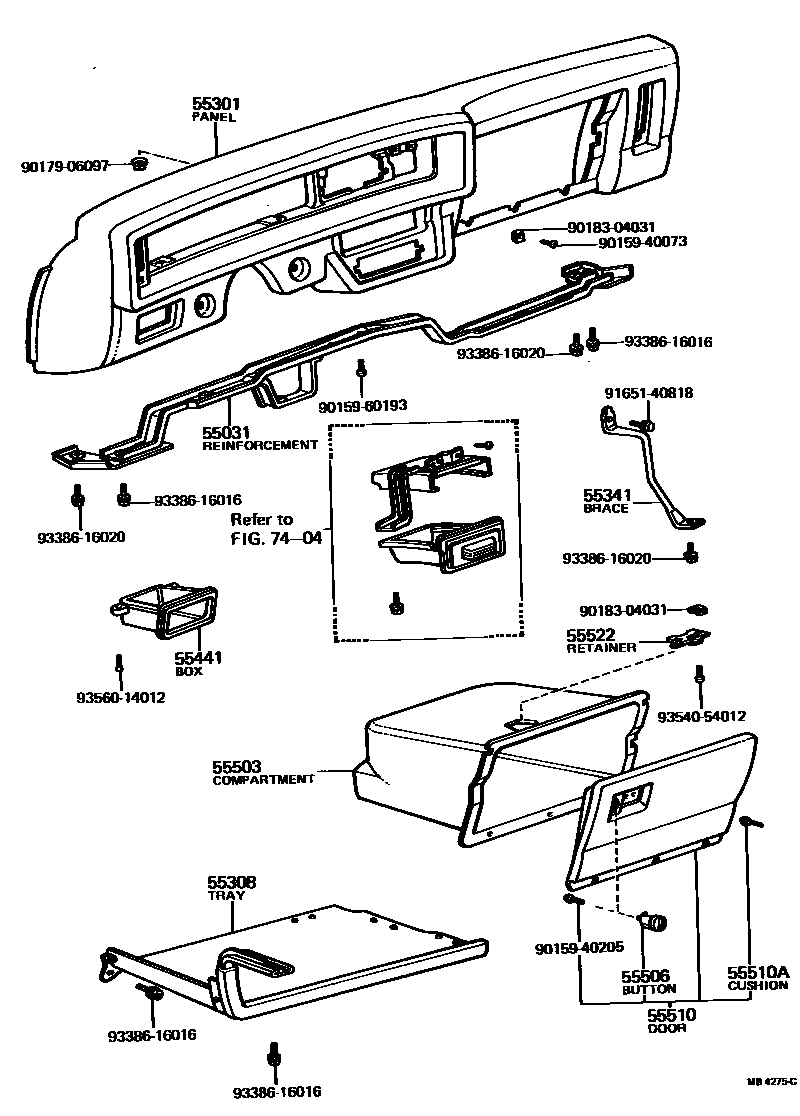

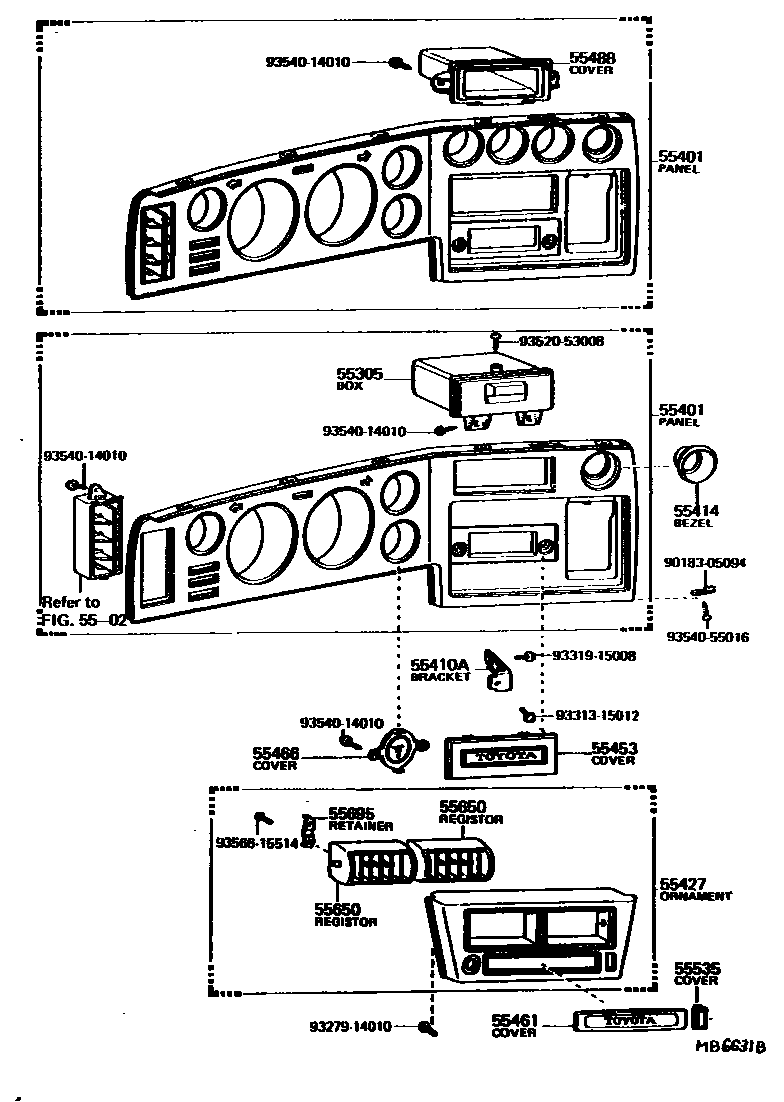

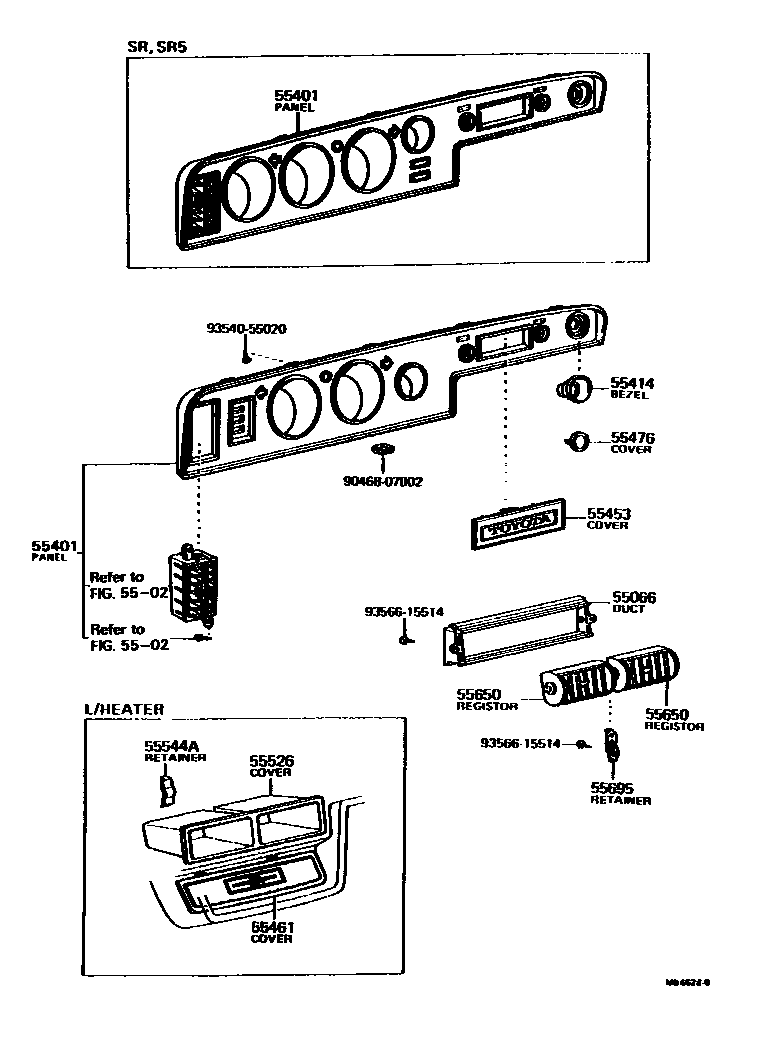

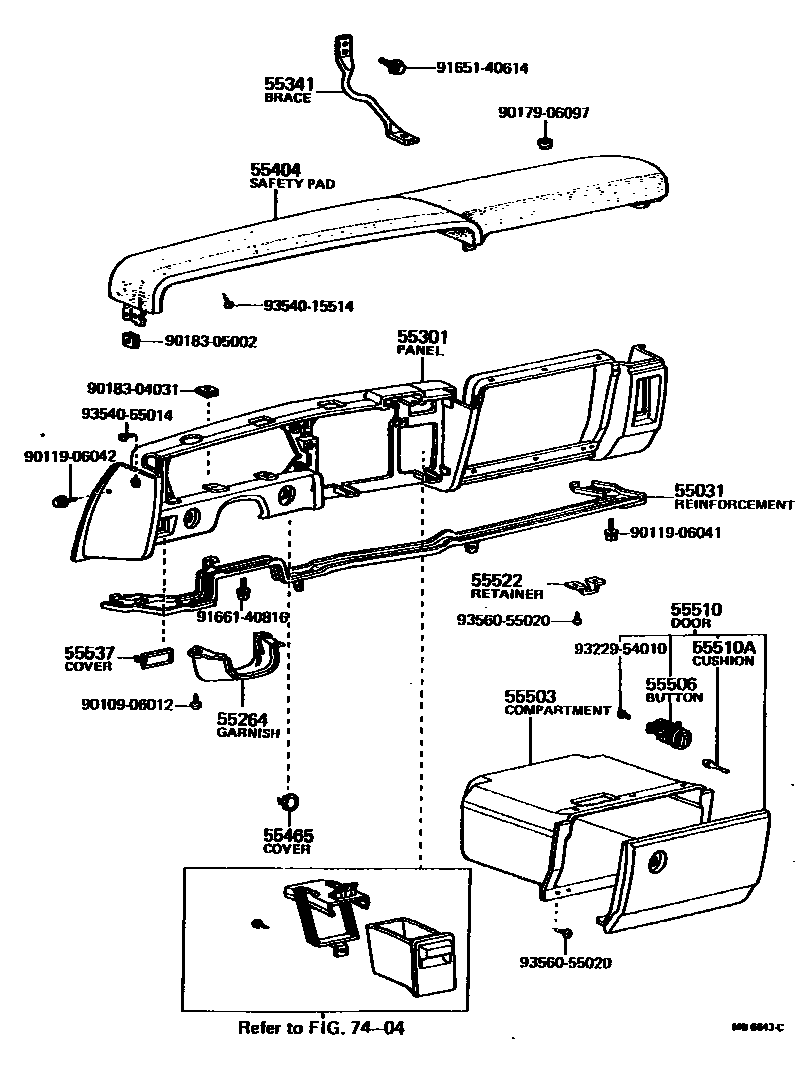

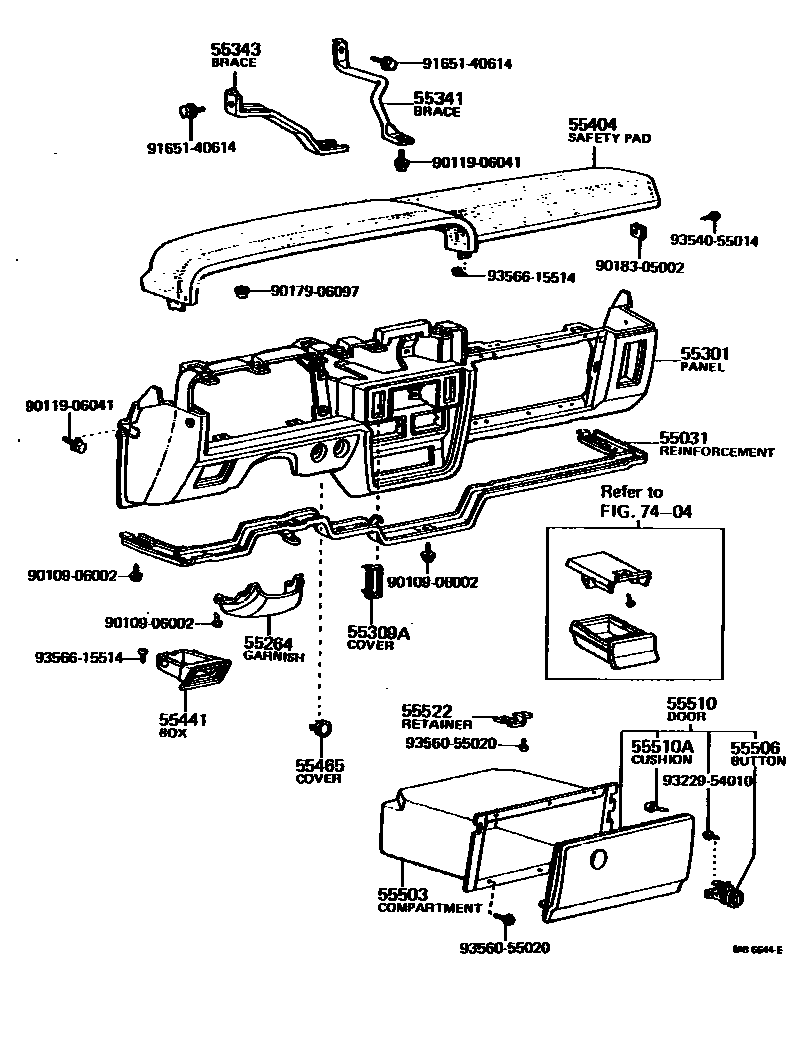

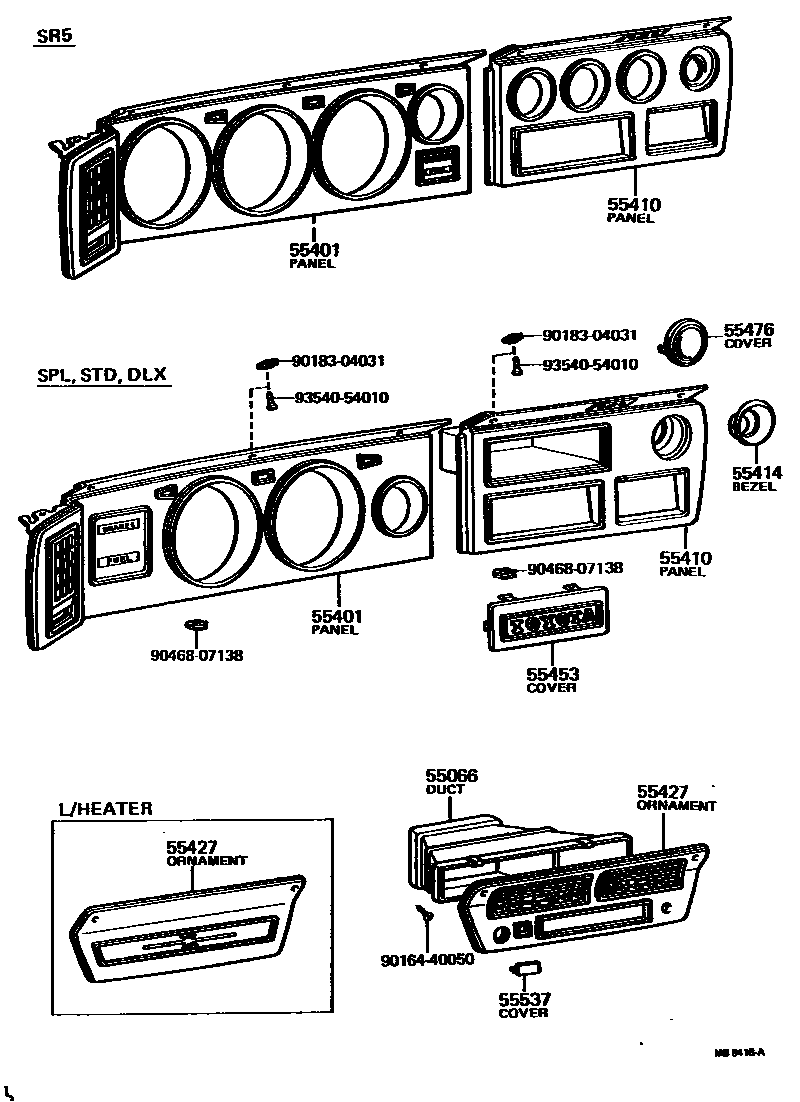

Toyota COROLLA 仪表板和手套箱 — Figure 5501
Toyota COROLLA EPC diagram 5501, 仪表板和手套箱, with 8 images and 29 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 55031 | Instrument panel reinforcement No. 1 | 55305-12020 · 55305-12040 · 55330-12050 · 55330-12060 · 55332-12050 |
| 55066 | Central air outlet duct sub-assembly | 55835-12010 · 55835-12040 · 55837-12040 |
| 55301E | Center instrument cluster decorative panel stopper | 55418-12020 |
| 55305 | Central instrument panel storage box sub-assembly | 55308-12070 |
| 55308 | Instrument panel bottom support sub-assembly | 55601-12051 · 55601-12060 |
| 55309A | No. 1 switch base hole cover | 55385-20011 |
| 55341 | Instrument panel bracket No. 1 | 55341-12060 · 55341-12070 · 55341-12090 |
| 55343 | Dashboard No. 3 Bracket | 55343-12010 |
| 55401 | Instrument cluster decorative panel sub-assembly | 55404-12090 · 55404-12230 · 55404-12250 · 55404-12300 · 55404-12310 · 55404-12330 · 55404-12360 · 55404-12370 · 55404-12380 · 55404-12390 · 55404-12400 · 55410-12220 · 55410-12230 · 55410-12280 · 55410-12430 · 55410-12440 · 55410-12450 · 55410-12460 |
| 55410 | Instrument cluster No. 2 decorative panel assembly | 55405-12101 · 55405-12230 · 55405-12231 · 55405-12291 · 55405-12300 · 55405-12301 |
| 55410A | Instrument cluster No. 2 decorative panel bracket | 55427-12040 |
| 55414 | Cigarette lighter hole frame | 55477-12030 |
| 55427 | Center instrument panel trim | 55406-12030 · 55406-12040 · 55406-12050 · 55406-12100 · 55406-12110 · 55406-12120 · 55406-12130 · 55406-12140 · 55406-12150 · 55406-12170 · 55406-12210 · 55406-12230 · 55406-12260 · 55406-12270 · 55413-12030 · 55413-12090 |
| 55441 | Dashboard storage box | 55441-12040 · 55441-12050 |
| 55453 | Radio tuner opening cover | 55522-12010 · 55522-12020 · 55522-12040 · 55522-12050 |
| 55461 | Heater controller hole cover | 55523-12010 · 55523-12020 · 55523-12030 · 55523-12040 |
| 55466 | clock hole cover | 55533-12030 · 55533-12050 |
| 55476 | Cigarette lighter hole cover | 55477-10010 |
| 55488 | stereo system hole cover | 55521-12060 |
| 55503 | Glove box sub-assembly | 55581-12050 · 55581-12060 · 55581-12080 · 55581-12100 |
| 55506 | Glove box lid lock button sub-assembly | 55520-14011 · 55560-12010 · 55560-12020 |
| 55510A | Cushion (for glovebox lid) | 90541-03015 |
| 55522 | Glovebox plug-in fasteners | 55521-14010 · 55561-12010 |
| 55526 | Dashboard air register opening cover | 55526-12010 |
| 55535 | Warning light hole cover | 55534-12060 |
| 55537 | Rear window defogger switch hole cover | 55385-20011 · 55537-12010 |
| 55544A | Dashboard hole cover fixings | 55544-12010 |
| 55650 | No. 1 air regulator assembly on instrument panel | 55670-12010 |
| 55695 | No. 2 central air guide blade housing fixing piece | 58914-12010 |
