Toyota COROLLA Floor stringers — Figure 5305

Toyota COROLLA EPC diagram 5305, Floor stringers, with 1 images and 5 PNC and OE references.

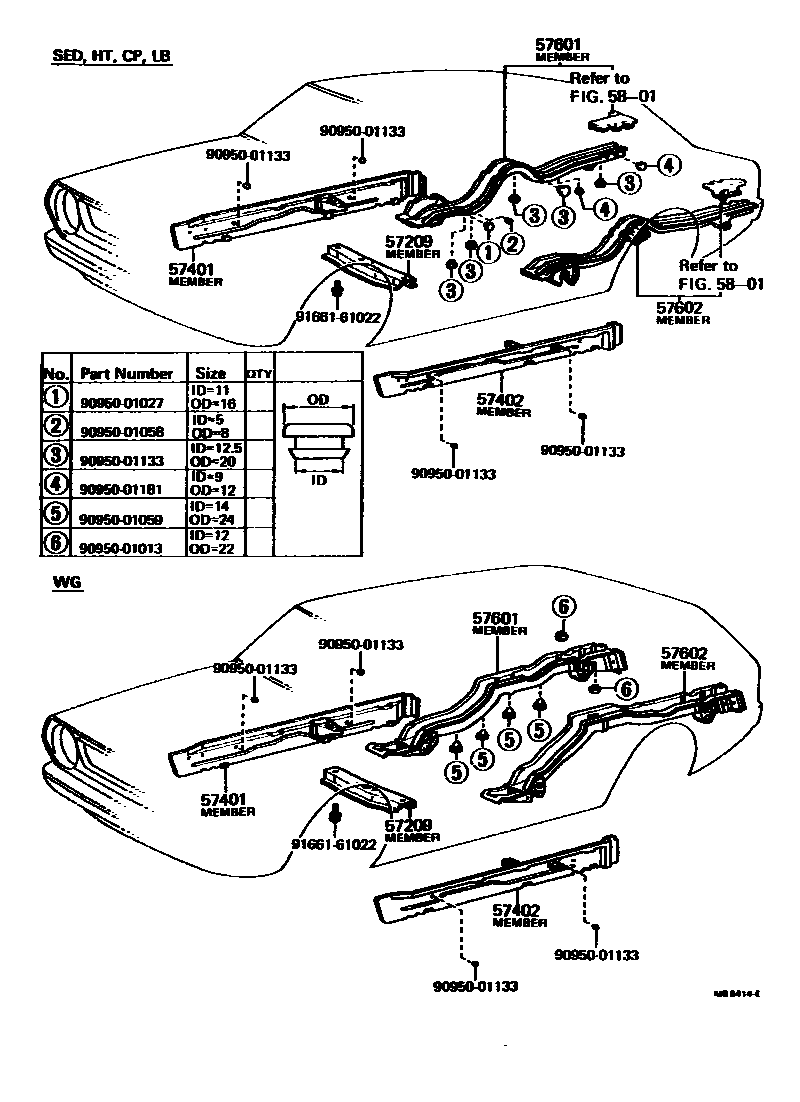

Toyota COROLLA Floor stringers EPC diagram — MB9414E
Floor stringers — MB9414E (197408 – 197908)

PNC and OE references

PNCPart nameOE numbers
57209Engine rear support beam sub-assembly57209-12060 · 57255-12060 · 57255-12080
57401Main floor right longitudinal beam sub-assembly57401-12030 · 57401-12070 · 57401-12080
57402Main floor left longitudinal beam sub-assembly57402-12030 · 57402-12070 · 57402-12080
57601Rear floor right longitudinal beam sub-assembly57601-12010 · 57601-12030 · 57601-12040 · 57601-12050 · 57601-12060 · 57601-12080 · 57601-13040 · 57601-13041 · 57601-13050 · 57601-13051
57602Rear floor left longitudinal beam sub-assembly57601-12050 · 57601-12060 · 57602-12010 · 57602-12030 · 57602-12040 · 57602-12050 · 57602-12060 · 57602-12070 · 57602-13040 · 57602-13041 · 57602-13042 · 57602-13050
