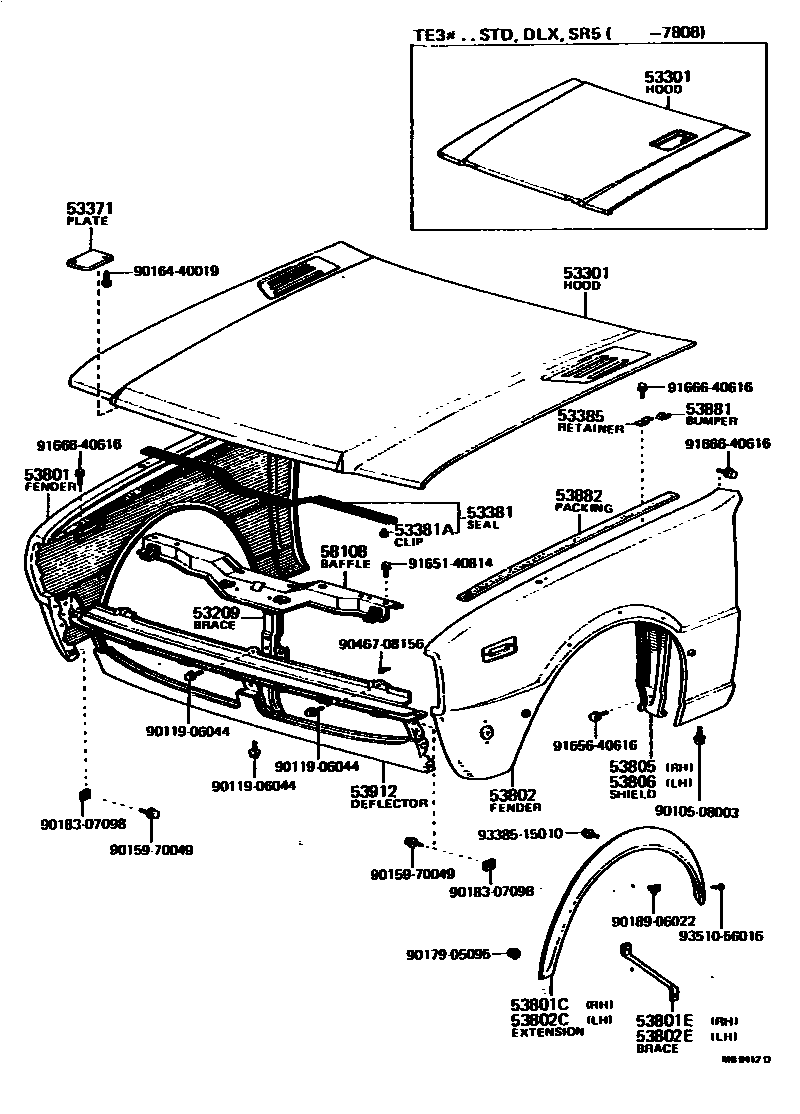

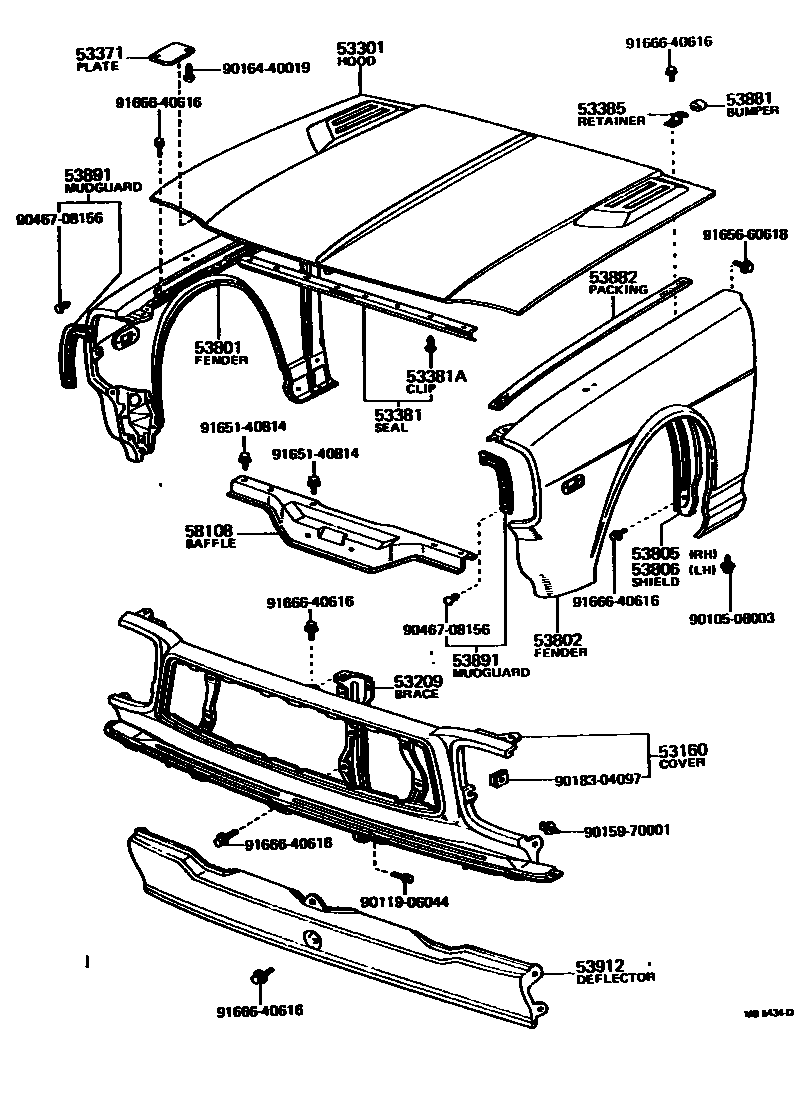

Toyota COROLLA 发动机盖和前翼子板 — Figure 5302
Toyota COROLLA EPC diagram 5302, 发动机盖和前翼子板, with 3 images and 23 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 53160 | Radiator cover assembly | 53903-12020 · 53903-12021 |
| 53209 | Engine cover lock bracket sub-assembly | 53208-12020 · 53208-12021 · 53208-12030 · 53209-12070 · 53209-12071 · 53209-12090 |
| 53301 | Engine cover sub-assembly | 53301-12050 · 53301-12051 · 53301-12060 · 53301-12061 · 53301-12070 · 53301-12110 · 53301-12130 · 53301-12160 · 53301-12190 |
| 53371 | Radio interference suppression board | 53371-12010 |
| 53381 | Engine cover to radiator bracket seal | 53381-12010 · 53381-12020 · 53381-12030 · 53381-12050 · 53381-12060 · 53381-12070 · 53381-12090 |
| 53381A | Clip (for engine cover to radiator bracket seal) | 90467-07050 · 90467-08008 · 90467-08011 |
| 53385 | Engine cover buffer block fixing | 53385-14010 · 53386-14010 |
| 53801 | Right front fender sub-assembly | 53801-12420 · 53801-12905 · 53801-12917 · 53801-12919 · 53801-12922 |
| 53801C | Right front wing extension | 53847-12020 |
| 53801E | Right front fender to fender stay | 53845-12010 |
| 53802 | Left front fender sub-assembly | 53802-12420 · 53802-12905 · 53802-12917 · 53802-12919 · 53802-12922 |
| 53802C | Left front wing extension | 53848-12020 |
| 53802E | Left front fender to fender stay | 53846-12010 |
| 53805 | Right front fender splash guard sub-assembly | 53805-12040 · 53805-12050 |
| 53806 | Left front fender splash guard sub-assembly | 53806-12040 · 53806-12050 |

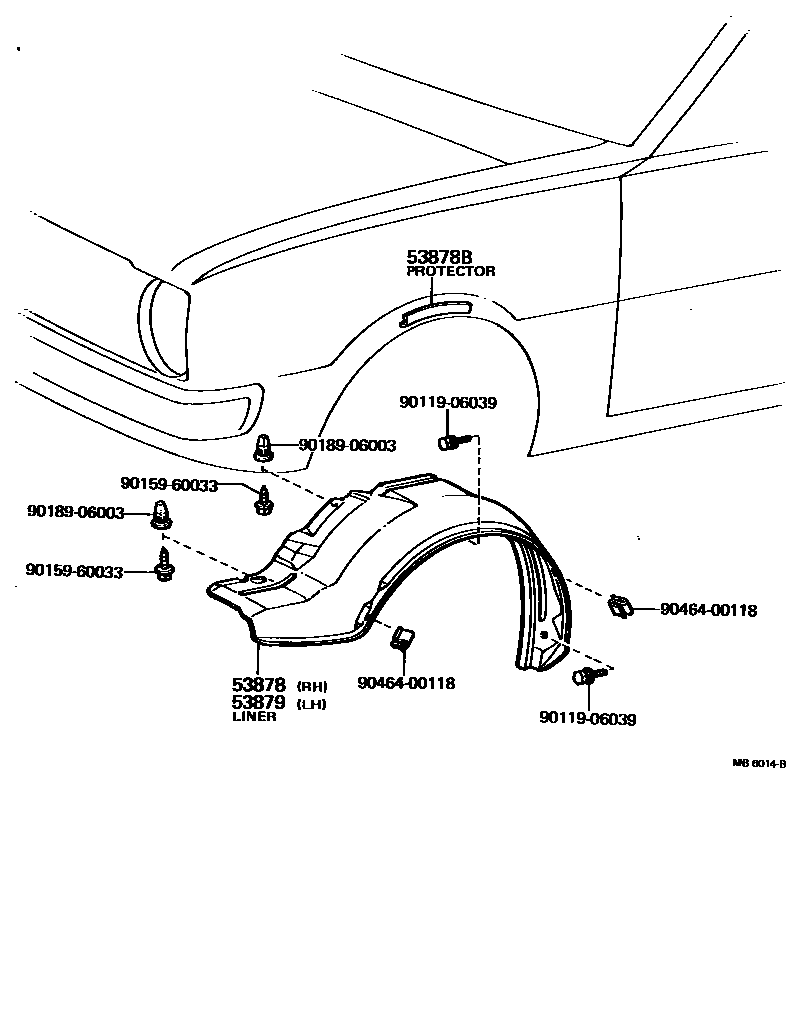

| 53878 | Right front fender lining | 53875-12010 · 53875-12020 · 53875-12030 |
| 53878B | Front fender lining protector | 53891-12040 |
| 53879 | Left front fender lining | 53876-12010 · 53876-12020 · 53876-12030 |
| 53881 | fender to engine cover buffer block | 53384-14010 |
| 53882 | Front fender main seal | 53882-12030 |
| 53891 | Front fender to side fender fender | 53891-12030 · 53892-12030 |
| 53912 | Front bumper stone guard | 53901-12010 · 53901-12020 · 53901-12030 · 53911-12020 · 53911-12090 |
| 58108 | Radiator upper partition sub-assembly | 53205-12060 · 53205-12061 · 53216-12041 · 53216-12042 |
