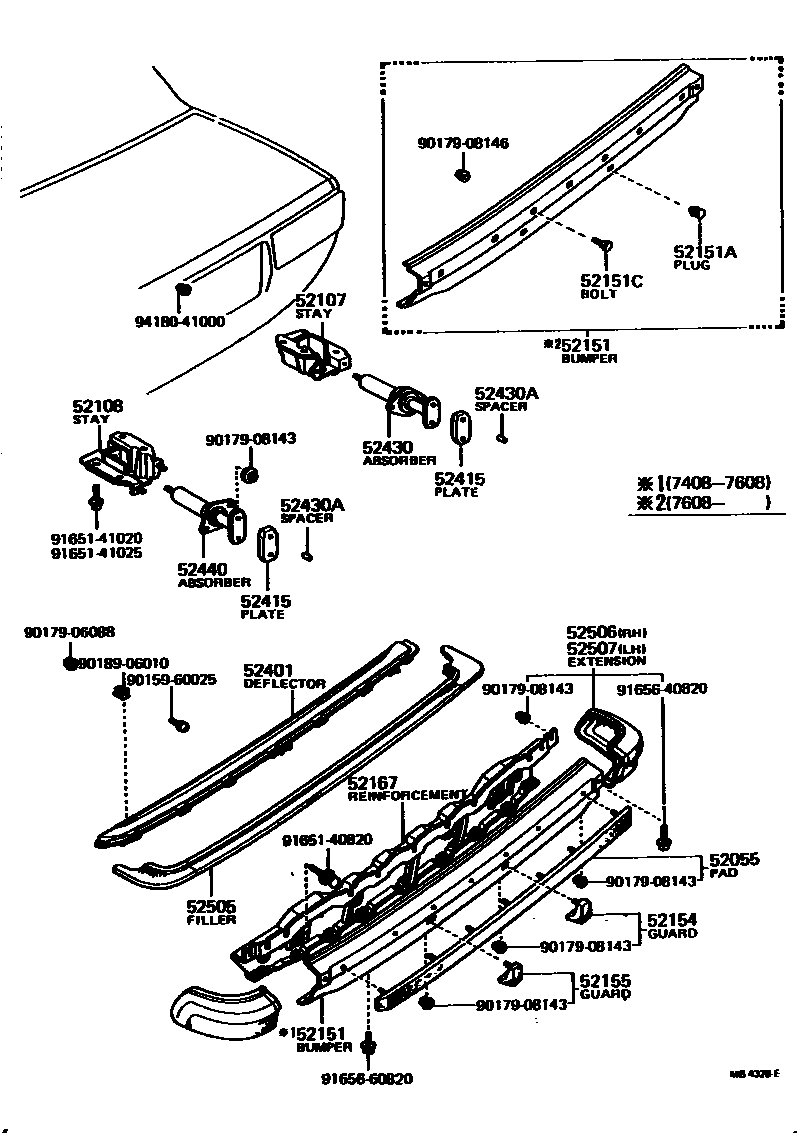

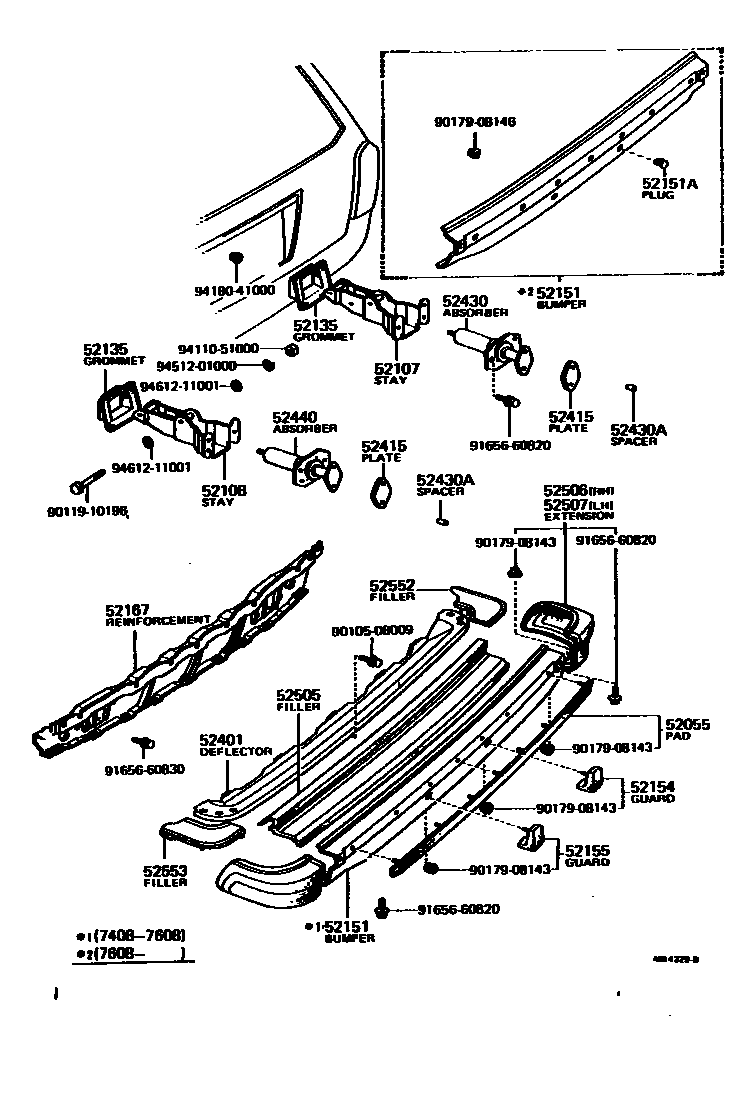

Toyota COROLLA 后保险杠及附件 — Figure 5202
Toyota COROLLA EPC diagram 5202, 后保险杠及附件, with 2 images and 19 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 52055 | Rear bumper gasket sub-assembly | 52055-19015 |
| 52107 | Rear bumper right side stay sub-assembly | 52015-12020 · 52015-12030 · 52015-13030 |
| 52108 | Rear bumper left side stay sub-assembly | 52016-12020 · 52016-12030 · 52016-13030 |
| 52135 | Rear bumper stay gasket | 52191-13050 · 52192-13050 |
| 52151 | Rear bumper assembly | 52151-12130 · 52151-19325 · 52151-19326 · 52151-19335 |
| 52151A | Rear bumper screw plug | 90950-01114 · 90950-01202 · 90950-01210 · 90950-01237 · 90950-01253 |
| 52151C | Round head square neck bolt (for rear bumper) | 90112-08008 · 90112-08009 · 90112-08016 |
| 52154 | Rear bumper right anti-collision bar | 52405-19055 |
| 52155 | Rear bumper left anti-collision bar | 52405-19055 |
| 52167 | Rear bumper reinforcement | 52023-12010 |
| 52401 | Rear bumper stone guard | 58401-12010 · 58401-12011 · 58401-13010 · 59201-12010 |
| 52430 | Rear bumper right shock absorber | 52650-12010 · 52650-12020 · 52650-13010 |
| 52430A | Rear bumper shock absorber spacer | 90560-08421 |
| 52440 | Rear bumper left shock absorber | 52650-13010 · 52660-12010 · 52660-12020 |
| 52505 | Rear bumper arc filler sub-assembly | 52501-12020 · 52505-12010 · 52505-12020 · 52551-13010 |
| 52506 | Rear bumper right extension section sub-assembly | 52106-19035 · 52106-19055 |
| 52507 | Rear bumper left extension section sub-assembly | 52107-19065 · 52107-19085 |
| 52552 | Arc filler on the right side of the rear bumper | 52552-13010 |
| 52553 | Rear bumper left curved filler | 52553-13010 |
