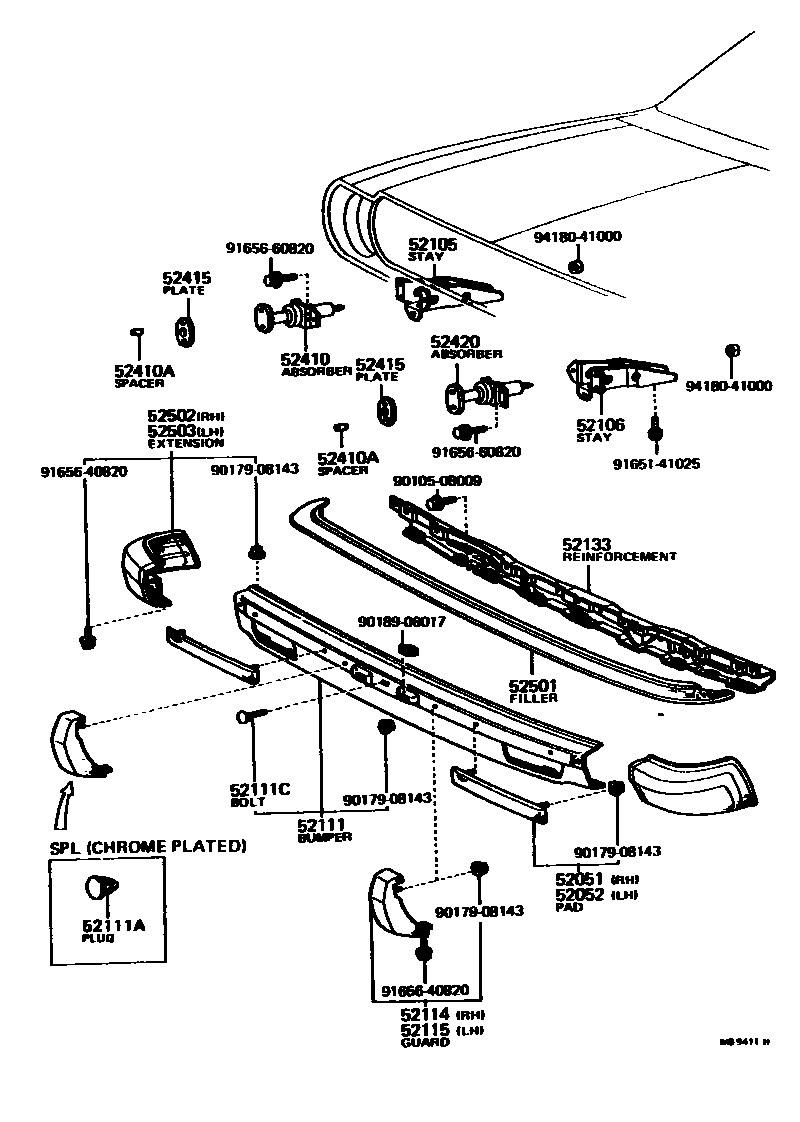

Toyota COROLLA 前保险杠及附件 — Figure 5201
Toyota COROLLA EPC diagram 5201, 前保险杠及附件, with 1 images and 17 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 52051 | Front bumper right side pad sub-assembly | 52051-19015 |
| 52052 | Front bumper left side pad sub-assembly | 52052-19015 |
| 52105 | Front bumper right side stay sub-assembly | 52011-12030 · 52011-12050 |
| 52106 | Front bumper left stay sub-assembly | 52012-12030 · 52012-12050 |
| 52111 | front bumper assembly | 52111-19225 · 52111-19226 · 52111-19265 · 52111-19266 |
| 52111A | Front bumper screw plug | 90950-01114 |
| 52111C | Round head square neck bolt (for front bumper) | 90112-08002 · 90112-08008 · 90112-08009 · 90112-08016 · 90112-08037 |
| 52114 | Front bumper right anti-collision bar | 52401-19055 |
| 52115 | Front bumper left anti-collision bar | 52401-19055 |
| 52133 | Front bumper reinforcement | 52021-12010 |
| 52410 | Front bumper right shock absorber | 52610-12010 |
| 52410A | Front bumper shock absorber spacer | 90560-08421 |
| 52415 | Shock absorber mounting plate | 52625-12010 |
| 52420 | Front bumper left shock absorber | 52610-12010 |
| 52501 | Front bumper arc filler sub-assembly | 52501-12010 · 52501-12020 |
| 52502 | Front bumper right extension section sub-assembly | 52102-19115 · 52102-19135 |
| 52503 | Front bumper left extension section sub-assembly | 52103-19105 · 52103-19115 |
